Roxtec presents the new Roxtec Cabinet Seal Platform for high cable density applications in harsh environments

Roxtec CSP transits are made for harsh environments. They can either include Roxtec standard sealing modules and protect against water, dust, sand and dirt, or Roxtec CM BG (bonding and grounding) modules to add an electrical safety feature for sealing of armored cables.

Quick to install in cabinets

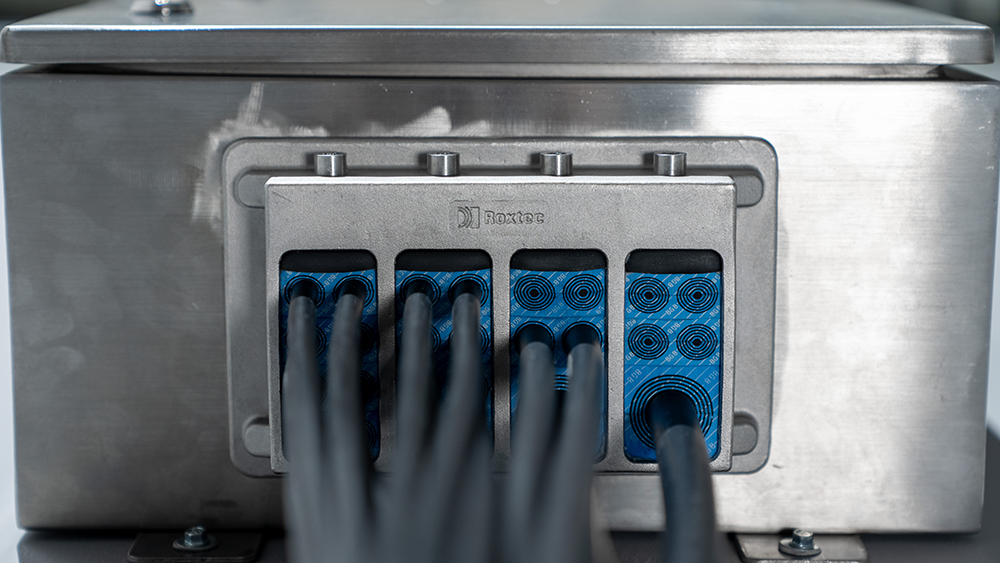

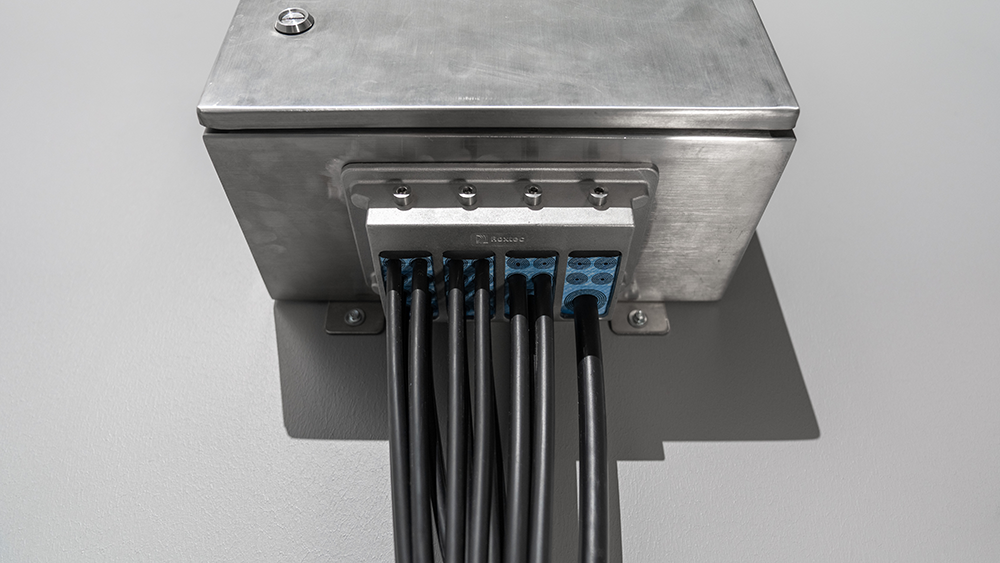

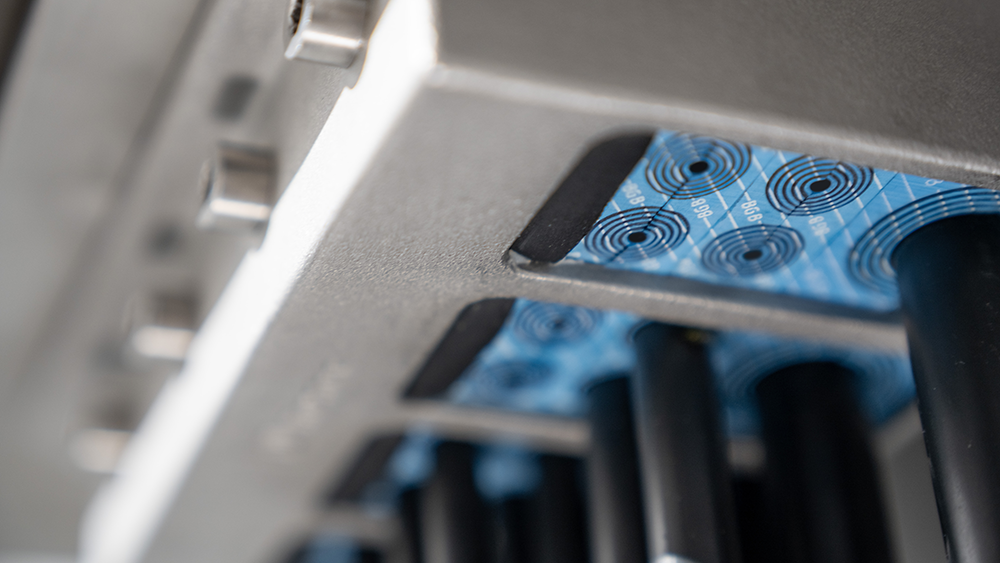

Roxtec CSP transits are quick to install in cabinets and enclosures because they have integrated compression and very few components – only the acid-proof stainless-steel frame and the sealing modules with Roxtec Multidiameter. The Roxtec invention for adaptability and flexibility is based on removable rubber layers and ensures a perfect fit for cables of many different sizes.

Manage high cable density

Roxtec CSP transits are compact sealing solutions that help design engineers and electrical installers manage high cable density in a reduced footprint. They are area efficient and available in two different sizes, in which it is possible to seal up to 16 or up to 32 cables in a single cut-out. The design allows installers to pass through pre-terminated cables without cutting the connector.

Built-in spare capacity

Another advantage is the built-in spare capacity which enables early planning for upgrades or expansion with additional cables, without any need for drilling or punching new holes. It is possible to add cables in the field without making new openings or adding more sealing material. Roxtec has made multiple compartments for cables and sealing modules in each transit. Installers can just open the one they want to add cables to and let the other compartments remain tight.

The new Roxtec Cabinet Seal Platform transits are ideal for high cable density applications in harsh environments.
