Once again, Roxtec sealing solutions for cables and pipes have shown their strength within power transmission and distribution. The seals efficiently keep water and rodents out.

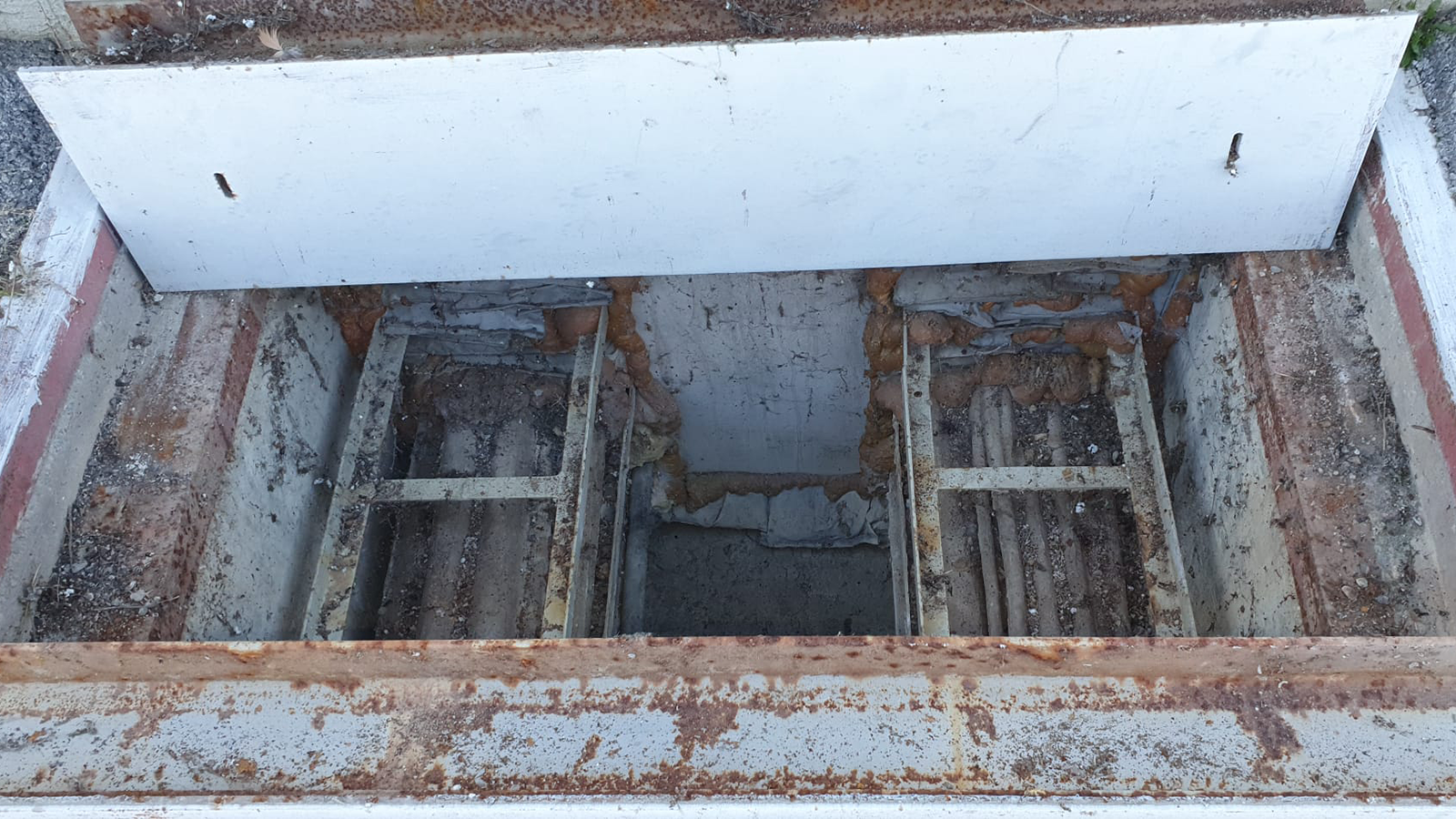

When refurbishing the electrical substation SS Ernestinovo in Osijek, Croatia, the construction team had problems with water leakage and rodents. The traditional method that had been used to seal the penetrations in the relay houses was not enough to form a barrier that would protect the driving equipment inside against flooding, humidity and pests. Fortunately, the Roxtec team in Croatia was able to help design and installation firm Tehno-elektro specify reliable seals.
Support throughout the project

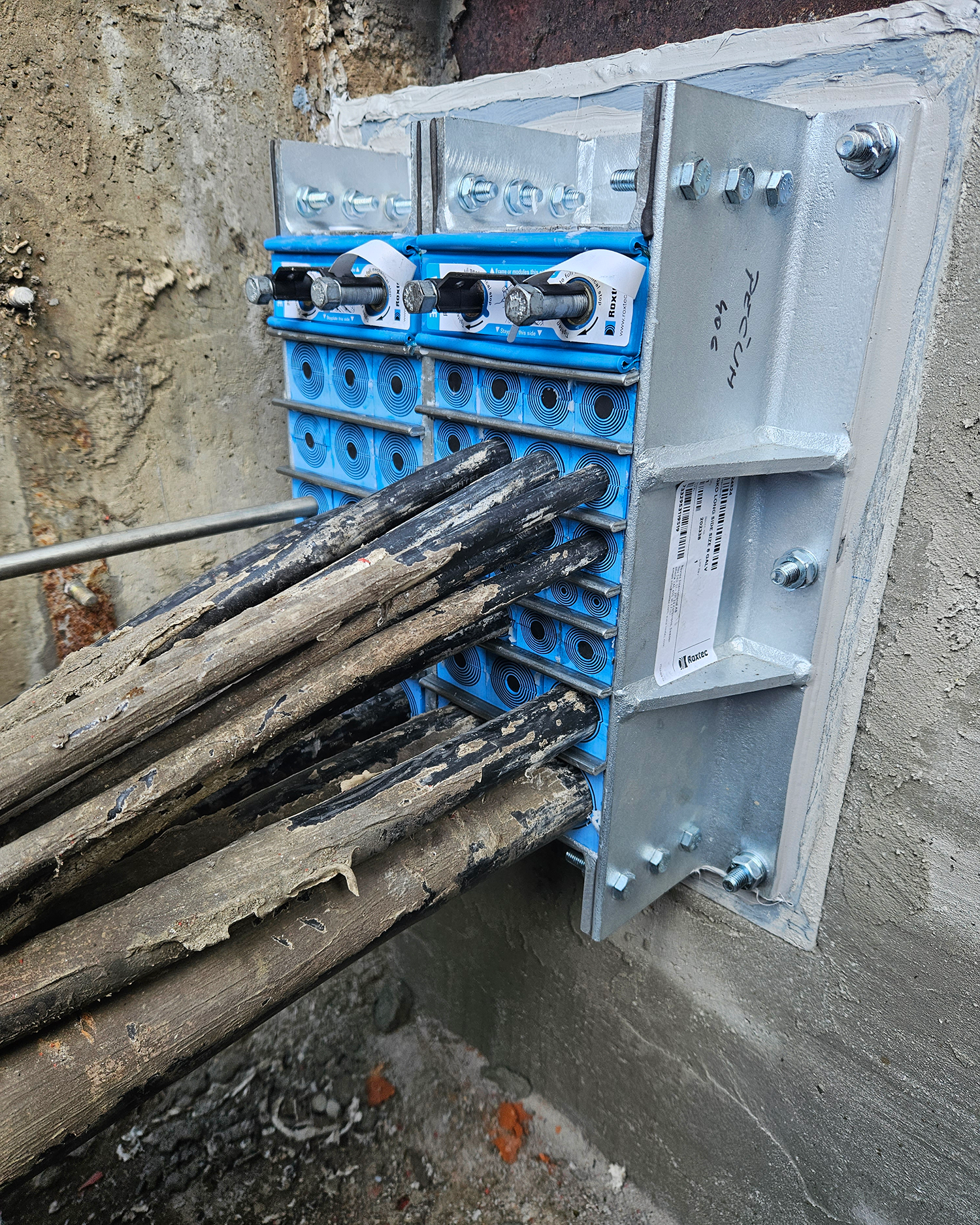

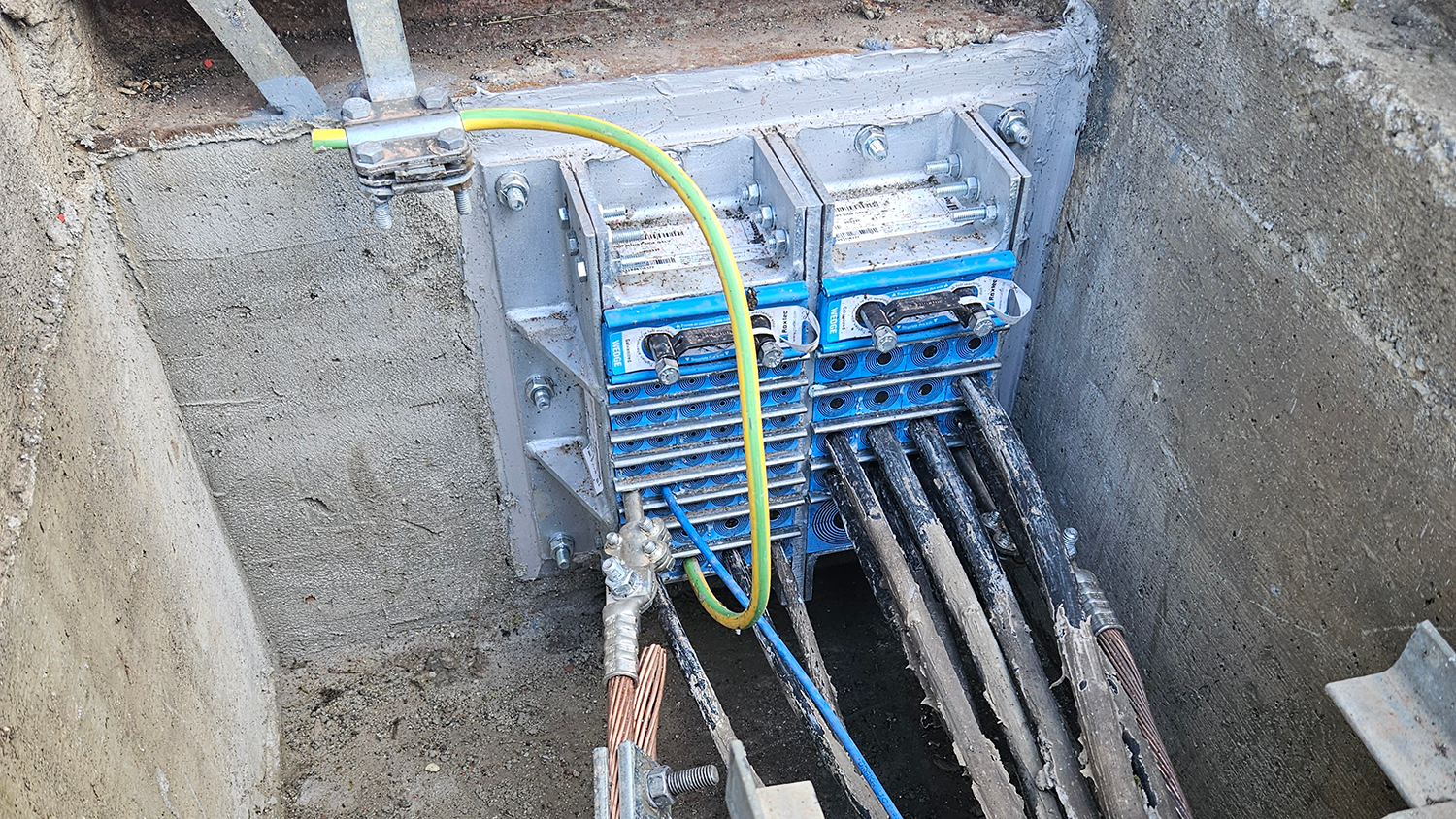

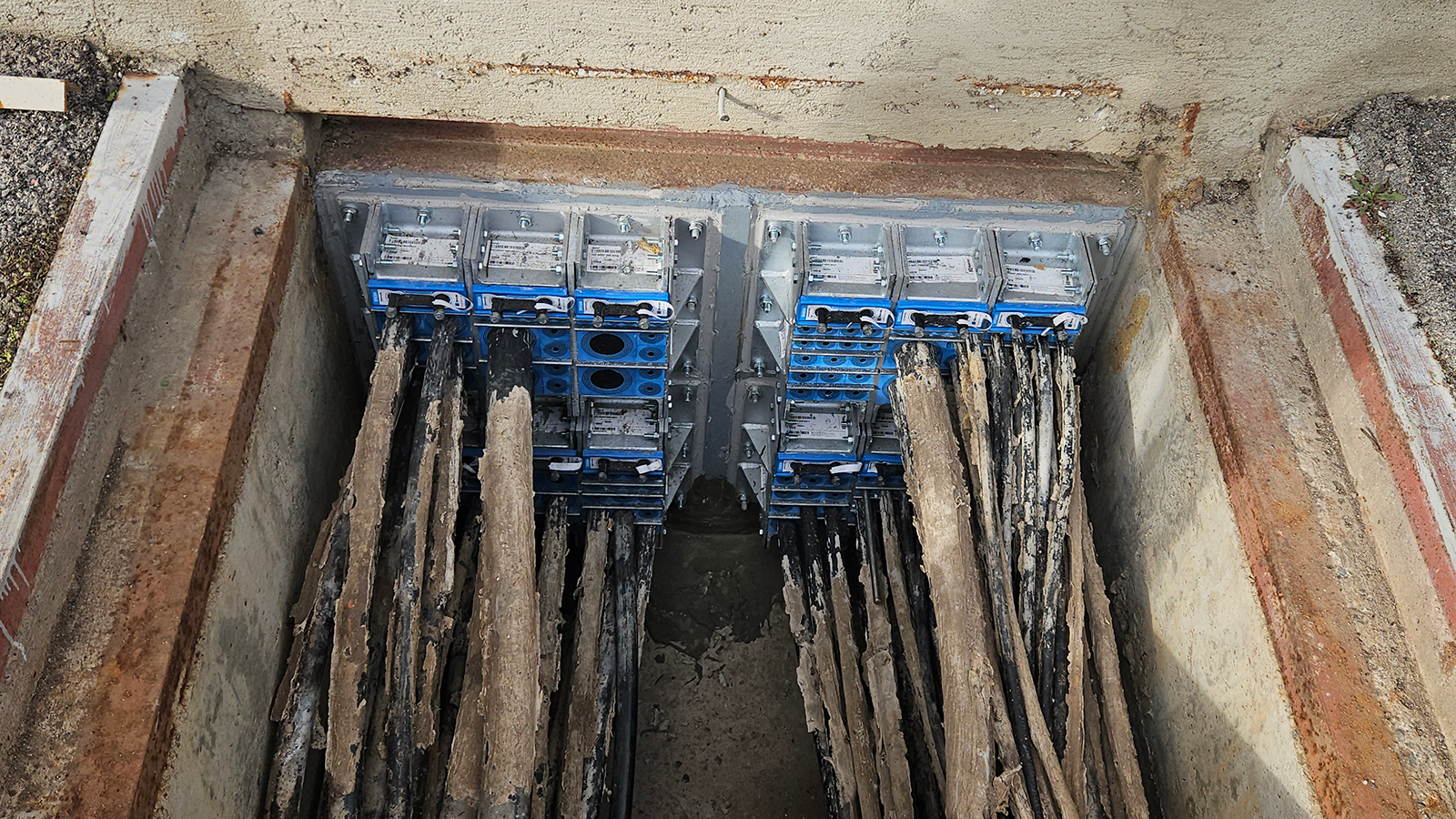

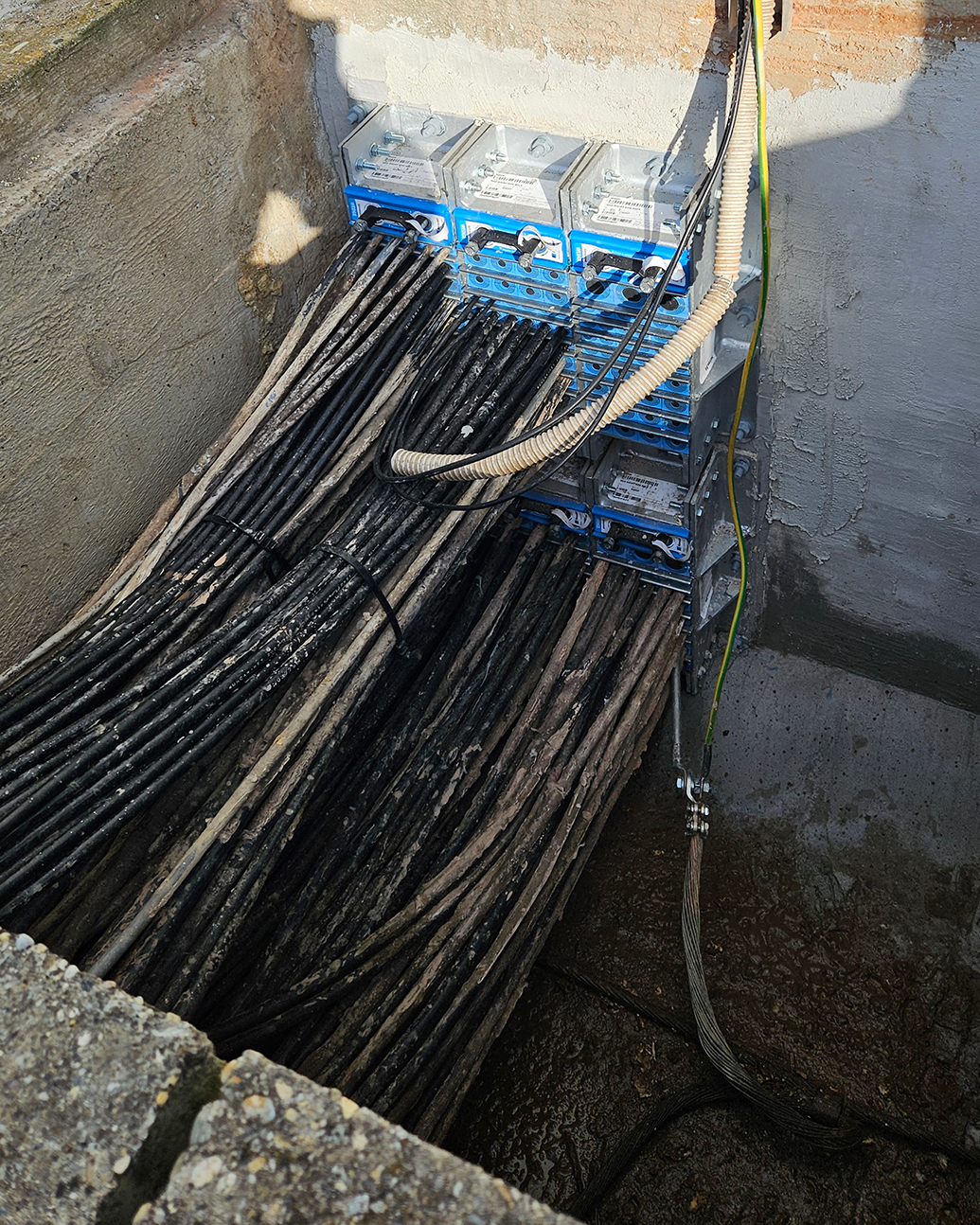

Roxtec representatives provided efficient technical support. They inspected each penetration, measured each cable and proposed a Roxtec solution. There were signal cables and power cables as well as OKITEN pipes that needed sealing. In some openings, there were as many as 100 cables – which was perfect for the space saving multi-cable sealing system from Roxtec. As it is openable, quick and easy to install, and functional immediately after installation, it is ideal for this kind of urgent retrofit needs. When the installers assembled the transits and selected sealing modules, the Roxtec team continued to provide field support.
Why use Roxtec?
- Watertight
- Pest and rodent barrier
- Easy to install
- Openable for retrofit
- Technical support
- Ability to clean and maintain cable infrastructure
Project facts
Project description
Refurbishment of electrical substation in Croatia
Companies involved
HOPS Osijek – owner
Tehno-elektro d.o.o. – design and installation
Applications
Sealing of cable and pipe entries
Sealing requirements
Fire protection
Watertightness
Rodent-proof
Roxtec products
Roxtec GKO transits (openable)
Roxtec delivered in total 3069 modules
400 kV relay houses = 16 GKO frames + 1 GH frame
110 kV relay houses = 12 GKO frames
35 kV relay houses = 12 GKO frames
Administrative building: 1 GKO frame
