  4. Roxtec RM ES Ex module with Multidiameter™

Roxtec RM ES Ex module with Multidiameter™

Roxtec RM modules are 60 mm (2.362") deep and easy to adapt to cable and pipes of different sizes. The ES Ex version protects against high frequency radiated and conducted EMI/EMP in shielded environments and is used in potentially explosive atmospheres and hazardous locations.

  • To be used with corresponding Roxtec components to form a complete sealing solution
RM 30 0+10-25mm ES B EX
RM 30 0+10-25mm ES B EX

Component articles

Metric (mm/kg) Imperial (inch/lbs)

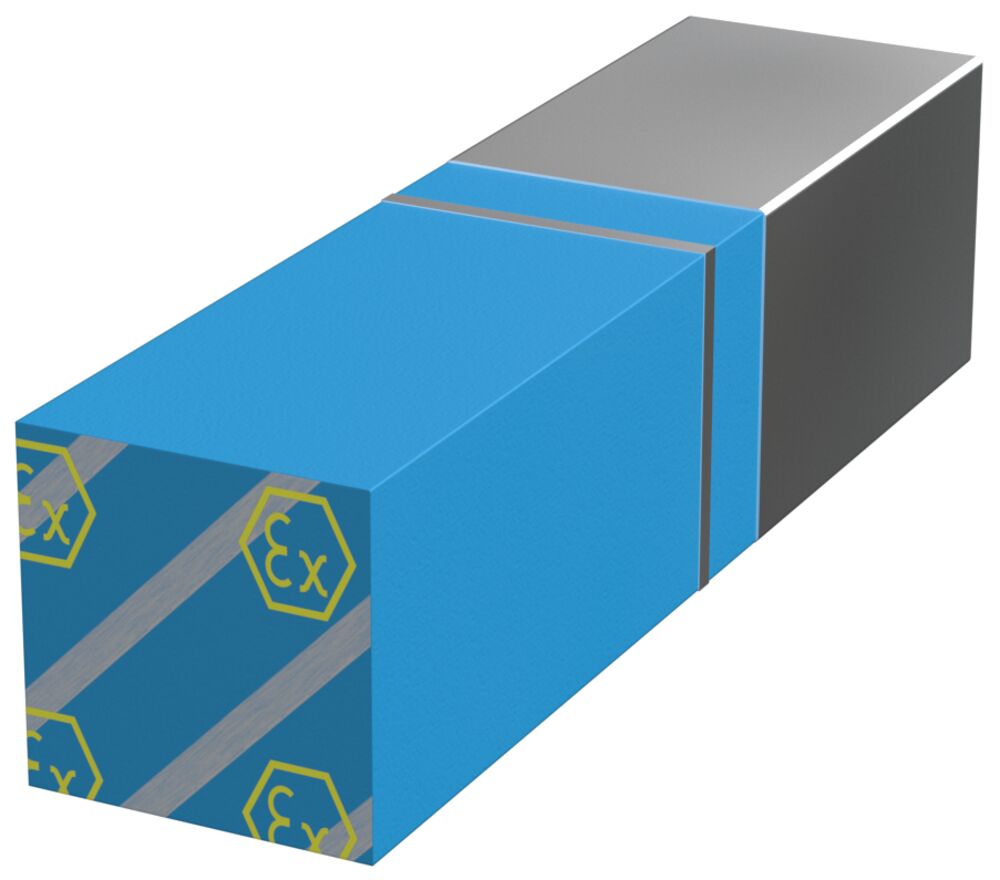

RM ES B Ex
Name Number of cables/pipes For cable/pipe Ø (mm) External dimensions WxHxD (mm) Weight (kg) Art. No CAD files
RM 5W120/0 ES B Ex 0 0 - 0 5 x 5 x 60 0.05 EXRMESB30524100
  • For cable/pipe Ø (mm) 0 - 0
  • External dimensions WxHxD (mm) 5 x 5 x 60
  • Weight (kg) 0.05
  • Art. No EXRMESB30524100
  • CAD files
RM 15/0 ES B Ex 0 0 - 0 15 x 15 x 60 0.06 EXRMESB30015100
  • For cable/pipe Ø (mm) 0 - 0
  • External dimensions WxHxD (mm) 15 x 15 x 60
  • Weight (kg) 0.06
  • Art. No EXRMESB30015100
  • CAD files
RM ES B Ex, with core
Name Number of cables/pipes For cable/pipe Ø (mm) External dimensions WxHxD (mm) Weight (kg) Art. No CAD files
RM 15 ES B Ex 1 3 - 11 15 x 15 x 60 0.02 EXRMESB10015100
  • For cable/pipe Ø (mm) 3 - 11
  • External dimensions WxHxD (mm) 15 x 15 x 60
  • Weight (kg) 0.02
  • Art. No EXRMESB10015100
  • CAD files
RM 15w40 ES B Ex 3 3.5 - 10.5 40 x 15 x 60 0.06 EXRMESB11540100
  • For cable/pipe Ø (mm) 3.5 - 10.5
  • External dimensions WxHxD (mm) 40 x 15 x 60
  • Weight (kg) 0.06
  • Art. No EXRMESB11540100
  • CAD files
RM 20 ES B Ex 1 4 - 14.5 20 x 20 x 60 0.04 EXRMESB10020100
  • For cable/pipe Ø (mm) 4 - 14.5
  • External dimensions WxHxD (mm) 20 x 20 x 60
  • Weight (kg) 0.04
  • Art. No EXRMESB10020100
  • CAD files
RM 20w40 ES B Ex 2 3.5 - 16.5 40 x 20 x 60 0.08 EXERM1120401181
  • For cable/pipe Ø (mm) 3.5 - 16.5
  • External dimensions WxHxD (mm) 40 x 20 x 60
  • Weight (kg) 0.08
  • Art. No EXERM1120401181
  • CAD files
RM 30 ES B Ex 1 10 - 25 30 x 30 x 60 0.08 EXRMESB10030100
  • For cable/pipe Ø (mm) 10 - 25
  • External dimensions WxHxD (mm) 30 x 30 x 60
  • Weight (kg) 0.08
  • Art. No EXRMESB10030100
  • CAD files
RM 30H90 ES B Ex 1 10 - 25 30 x 90 x 60 106475
  • For cable/pipe Ø (mm) 10 - 25
  • External dimensions WxHxD (mm) 30 x 90 x 60
  • Weight (kg)
  • Art. No 106475
  • CAD files
RM 40 10-32 ES B Ex 1 9.5 - 32.5 40 x 40 x 60 0.15 EXERM1140101181
  • For cable/pipe Ø (mm) 9.5 - 32.5
  • External dimensions WxHxD (mm) 40 x 40 x 60
  • Weight (kg) 0.15
  • Art. No EXERM1140101181
  • CAD files
RM 40 ES B Ex 1 21.5 - 34.5 40 x 40 x 60 0.14 EXRMESB10040100
  • For cable/pipe Ø (mm) 21.5 - 34.5
  • External dimensions WxHxD (mm) 40 x 40 x 60
  • Weight (kg) 0.14
  • Art. No EXRMESB10040100
  • CAD files
RM 60 24-54 ES B Ex 1 24 - 54 60 x 60 x 60 0.33 EXRMESB10602454
  • For cable/pipe Ø (mm) 24 - 54
  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Weight (kg) 0.33
  • Art. No EXRMESB10602454
  • CAD files
RM 60 ES B Ex 1 28 - 54 60 x 60 x 60 0.3 EXRMESB10060100
  • For cable/pipe Ø (mm) 28 - 54
  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Weight (kg) 0.3
  • Art. No EXRMESB10060100
  • CAD files
RM 80 ES B Ex 1 48 - 71 80 x 80 x 60 0.6 163621
  • For cable/pipe Ø (mm) 48 - 71
  • External dimensions WxHxD (mm) 80 x 80 x 60
  • Weight (kg) 0.6
  • Art. No 163621
  • CAD files
RM 90 ES B Ex 1 48 - 71 90 x 90 x 60 0.7 EXRMESB10090100
  • For cable/pipe Ø (mm) 48 - 71
  • External dimensions WxHxD (mm) 90 x 90 x 60
  • Weight (kg) 0.7
  • Art. No EXRMESB10090100
  • CAD files
RM 120 ES B Ex 1 67.5 - 99 120 x 120 x 60 1.3 EXRMESB10120100
  • For cable/pipe Ø (mm) 67.5 - 99
  • External dimensions WxHxD (mm) 120 x 120 x 60
  • Weight (kg) 1.3
  • Art. No EXRMESB10120100
  • CAD files
RM ES B Ex, without core
Name Number of cables/pipes For cable/pipe Ø (mm) External dimensions WxHxD (mm) Weight (kg) Art. No CAD files
RM 60 ES B Ex WOC 1 28 - 54 60 x 60 x 60 0.28 EXRMESB00601000
  • For cable/pipe Ø (mm) 28 - 54
  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Weight (kg) 0.28
  • Art. No EXRMESB00601000
  • CAD files
RM 80 ES B Ex WOC 1 48 - 71 80 x 80 x 60 0.44 163622
  • For cable/pipe Ø (mm) 48 - 71
  • External dimensions WxHxD (mm) 80 x 80 x 60
  • Weight (kg) 0.44
  • Art. No 163622
  • CAD files
RM 90 ES B WOC Ex 1 48 - 71 90 x 90 x 60 0.6 EXRMESB00901000
  • For cable/pipe Ø (mm) 48 - 71
  • External dimensions WxHxD (mm) 90 x 90 x 60
  • Weight (kg) 0.6
  • Art. No EXRMESB00901000
  • CAD files
RM 120 ES B Ex WOC 1 67.5 - 99 120 x 120 x 60 1.3 EXRMESB01201000
  • For cable/pipe Ø (mm) 67.5 - 99
  • External dimensions WxHxD (mm) 120 x 120 x 60
  • Weight (kg) 1.3
  • Art. No EXRMESB01201000
  • CAD files
RM ES Ex, with core
Name Number of cables/pipes For cable/pipe Ø (mm) External dimensions WxHxD (mm) Weight (kg) Art. No CAD files
RM 15 ES Ex 1 3 - 11 15 x 15 x 60 0.01 EXERM0100151181
  • For cable/pipe Ø (mm) 3 - 11
  • External dimensions WxHxD (mm) 15 x 15 x 60
  • Weight (kg) 0.01
  • Art. No EXERM0100151181
  • CAD files
RM 15w40 ES Ex 3 3.5 - 10.5 40 x 15 x 60 0.05 EXERM0115401181
  • For cable/pipe Ø (mm) 3.5 - 10.5
  • External dimensions WxHxD (mm) 40 x 15 x 60
  • Weight (kg) 0.05
  • Art. No EXERM0115401181
  • CAD files
RM 20 ES Ex 1 4 - 14.5 20 x 20 x 60 0.4 EXERM0100201181
  • For cable/pipe Ø (mm) 4 - 14.5
  • External dimensions WxHxD (mm) 20 x 20 x 60
  • Weight (kg) 0.4
  • Art. No EXERM0100201181
  • CAD files
RM 20w40 ES Ex 2 3.5 - 16.5 40 x 20 x 60 0.08 EXERM0120401181
  • For cable/pipe Ø (mm) 3.5 - 16.5
  • External dimensions WxHxD (mm) 40 x 20 x 60
  • Weight (kg) 0.08
  • Art. No EXERM0120401181
  • CAD files
RM 30 ES Ex 1 10 - 25 30 x 30 x 60 0.09 EXERM0100301181
  • For cable/pipe Ø (mm) 10 - 25
  • External dimensions WxHxD (mm) 30 x 30 x 60
  • Weight (kg) 0.09
  • Art. No EXERM0100301181
  • CAD files
RM 30H90 ES Ex 1 10 - 25 30 x 90 x 60 106458
  • For cable/pipe Ø (mm) 10 - 25
  • External dimensions WxHxD (mm) 30 x 90 x 60
  • Weight (kg)
  • Art. No 106458
  • CAD files
RM 40 10-32 ES Ex 1 9.5 - 32.5 40 x 40 x 60 0.07 EXERM0140101181
  • For cable/pipe Ø (mm) 9.5 - 32.5
  • External dimensions WxHxD (mm) 40 x 40 x 60
  • Weight (kg) 0.07
  • Art. No EXERM0140101181
  • CAD files
RM 40 ES Ex 1 21.5 - 34.5 40 x 40 x 60 0.14 EXERM0100401181
  • For cable/pipe Ø (mm) 21.5 - 34.5
  • External dimensions WxHxD (mm) 40 x 40 x 60
  • Weight (kg) 0.14
  • Art. No EXERM0100401181
  • CAD files
RM 60 24-54 ES Ex 1 24 - 54 60 x 60 x 60 0.13 EXERM0160201181
  • For cable/pipe Ø (mm) 24 - 54
  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Weight (kg) 0.13
  • Art. No EXERM0160201181
  • CAD files
RM 60 ES Ex 1 28 - 54 60 x 60 x 60 0.31 EXERM0100601181
  • For cable/pipe Ø (mm) 28 - 54
  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Weight (kg) 0.31
  • Art. No EXERM0100601181
  • CAD files
RM 80 ES Ex 1 48 - 71 80 x 80 x 60 0.6 163619
  • For cable/pipe Ø (mm) 48 - 71
  • External dimensions WxHxD (mm) 80 x 80 x 60
  • Weight (kg) 0.6
  • Art. No 163619
  • CAD files
RM 90 ES Ex 1 48 - 71 90 x 90 x 60 0.39 EXERM0100901181
  • For cable/pipe Ø (mm) 48 - 71
  • External dimensions WxHxD (mm) 90 x 90 x 60
  • Weight (kg) 0.39
  • Art. No EXERM0100901181
  • CAD files
RM 120 ES Ex 1 67.5 - 99 120 x 120 x 60 1.4 EXERM0101201181
  • For cable/pipe Ø (mm) 67.5 - 99
  • External dimensions WxHxD (mm) 120 x 120 x 60
  • Weight (kg) 1.4
  • Art. No EXERM0101201181
  • CAD files
RM ES Ex, without core
Name Number of cables/pipes For cable/pipe Ø (mm) External dimensions WxHxD (mm) Weight (kg) Art. No CAD files
RM 60 ES Ex WOC 1 28 - 54 60 x 60 x 60 0.3 106459
  • For cable/pipe Ø (mm) 28 - 54
  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Weight (kg) 0.3
  • Art. No 106459
  • CAD files
RM 80 ES Ex WOC 1 48 - 71 80 x 80 x 60 0.44 163620
  • For cable/pipe Ø (mm) 48 - 71
  • External dimensions WxHxD (mm) 80 x 80 x 60
  • Weight (kg) 0.44
  • Art. No 163620
  • CAD files
RM 90 ES Ex WOC 1 48 - 71 90 x 90 x 60 0.7 EXERM0000901181
  • For cable/pipe Ø (mm) 48 - 71
  • External dimensions WxHxD (mm) 90 x 90 x 60
  • Weight (kg) 0.7
  • Art. No EXERM0000901181
  • CAD files
RM 120 ES Ex WOC 1 67.5 - 99 120 x 120 x 60 1.3 106460
  • For cable/pipe Ø (mm) 67.5 - 99
  • External dimensions WxHxD (mm) 120 x 120 x 60
  • Weight (kg) 1.3
  • Art. No 106460
  • CAD files
