Roxtec GM module with Multidiameter™

Print

Use the print button on the page for an optimized print layout.

Roxtec GM sealing modules are 15 mm (0.590") deep and easy to adapt to cables and pipes of different sizes thanks to Multidiameter™, the Roxtec innovation based on removable layers. When used with a core, the module functions as spare module for future capacity.

  • To be used with corresponding Roxtec components to form a complete sealing solution
  • For cables and pipes 3.5-32.5 mm (0.141"-1.281") OD
View variants
GM 20w40
GM 20w40

Read more about the Roxtec sealing system and learn how to perform a correct transit installation on our installation pages.

Variants

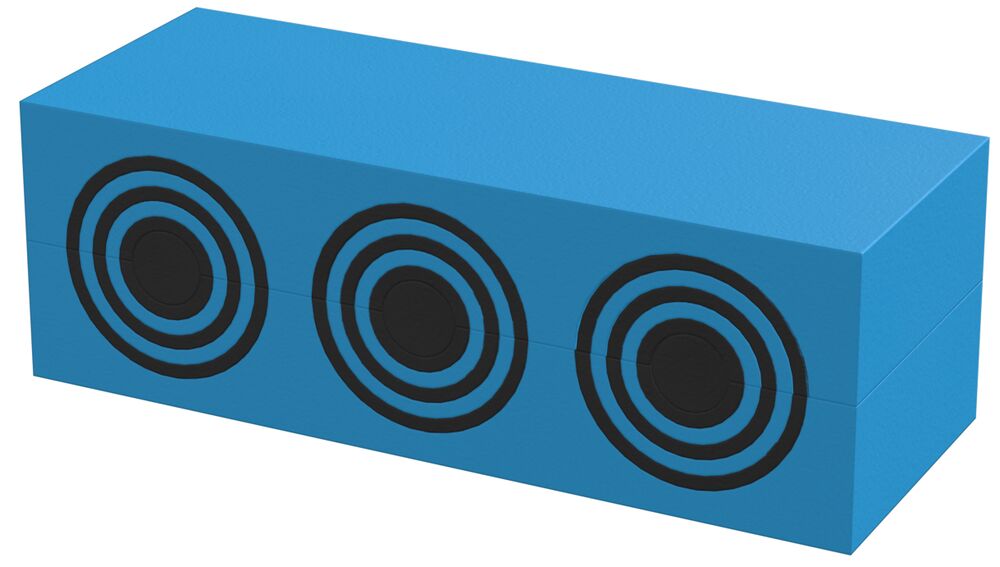

GM 13,3w40

  • External dimensions WxHxD (mm) 40 x 13 x 15
  • Number of cables/pipes 3
  • For cable/pipe Ø (mm) 3.5 - 10.5
  • Weight (kg) 0.01
  • Art. No GM00113401000
stp
Download
Remove from cart?

GM 20w40

  • External dimensions WxHxD (mm) 40 x 20 x 15
  • Number of cables/pipes 2
  • For cable/pipe Ø (mm) 3.5 - 16.5
  • Weight (kg) 0.02
  • Art. No GM00120401000
stp
Download
Remove from cart?

GM 40 10-32

  • External dimensions WxHxD (mm) 40 x 40 x 15
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 9.5 - 32.5
  • Weight (kg) 0.04
  • Art. No GM00140101000
stp
Download
Remove from cart?
Product External dimensions WxHxD (mm) Number of cables/pipes For cable/pipe Ø (mm) Weight (kg) Art. No
GM 13,3w40 40 x 13 x 15 3 3.5 - 10.5 0.01 GM00113401000 0
GM 20w40 40 x 20 x 15 2 3.5 - 16.5 0.02 GM00120401000 0
GM 40 10-32 40 x 40 x 15 1 9.5 - 32.5 0.04 GM00140101000 0
