Roxtec SRC frame

The Roxtec SRC frame is a metal frame for load bearing structures. It is designed with rounded corners to reduce stress concentration and the risk of cracks around the frame. It is available in different materials.

To be used with corresponding Roxtec components to form a complete sealing solution
Attachment by welding
Available in two versions, SRC r20 and SRC r40

Information drawings

Installation instructions

Certificates

Certificates
Type approval name	Certifying authority	Rating	Pipe/cable	Division
03-LD371631B/5-PDA	ABS	A-0 A-15 A-30 A-60	Bundle Copper Steel	Steel Bulkhead Deck	pdf Download
Certifying authority ABS Rating A-0 A-15 A-30 A-60 Pipe/cable Bundle Copper Steel
03-LD396103/5	ABS	H-120 H-60	Steel Other	Steel Bulkhead Deck	pdf Download
Certifying authority ABS Rating H-120 H-60 Pipe/cable Steel Other
04558/F3 BV	BV	A-0 A-15 A-30 A-60	Marine Armored	Steel Bulkhead Deck	pdf Download
Certifying authority BV Rating A-0 A-15 A-30 A-60 Pipe/cable Marine Armored
14.10092.262	RMRS	A-0 A-30 A-60 A-15	Other	Steel Bulkhead Deck	pdf Download
Certifying authority RMRS Rating A-0 A-30 A-60 A-15 Pipe/cable Other
14.10093.262	RMRS	A-0 A-30 A-60 A-15	Steel Copper	Steel Bulkhead Deck	pdf Download
Certifying authority RMRS Rating A-0 A-30 A-60 A-15 Pipe/cable Steel Copper
15-GD1297684-1-PDA	ABS	A-0 A-30 A-60 A-15	Steel Copper Other	Aluminium Bulkhead Deck	pdf Download
Certifying authority ABS Rating A-0 A-30 A-60 A-15 Pipe/cable Steel Copper Other
15027/C1 BV	BV	H-0 H-15 H-30 H-60 H-90 H-120	Marine Armored	Steel Bulkhead Deck	pdf Download
Certifying authority BV Rating H-0 H-15 H-30 H-60 H-90 H-120 Pipe/cable Marine Armored
16-LD1534575-PDA	ABS	Jet fire	Marine Steel Armored	Steel Bulkhead Deck	pdf Download
Certifying authority ABS Rating Jet fire Pipe/cable Marine Steel Armored
16.10012.262	RMRS	H-120 H-0 H-60	Steel Other	Steel Bulkhead Deck	pdf Download
Certifying authority RMRS Rating H-120 H-0 H-60 Pipe/cable Steel Other
18-LD1721317-PDA	ABS	A-0 A-15 A-30 A-60	Shielded Marine Armored	Steel Bulkhead Deck	pdf Download
Certifying authority ABS Rating A-0 A-15 A-30 A-60 Pipe/cable Shielded Marine Armored
2017TAC086	IRS	A-0 A-15 A-30 A-60	Copper-Nickel Marine Bundle Copper Steel Other	Steel Bulkhead Deck	pdf Download
Certifying authority IRS Rating A-0 A-15 A-30 A-60 Pipe/cable Copper-Nickel Marine Bundle Copper Steel Other
40893/A1 BV	BV	J-30 J-60 Jet fire	Marine Steel Armored	Steel Bulkhead Deck	pdf Download
Certifying authority BV Rating J-30 J-60 Jet fire Pipe/cable Marine Steel Armored
41353/A0 BV	BV	A-0 A-30 A-60 A-15	Other	Aluminium Bulkhead Deck	pdf Download
Certifying authority BV Rating A-0 A-30 A-60 A-15 Pipe/cable Other
C-SEII05.B.04342-B_G-frame	Poschjpolicert Electrocert	EIT 120 E 120	Other	Concrete Floor Wall	pdf Download
Certifying authority Poschjpolicert Electrocert Rating EIT 120 E 120 Pipe/cable Other
C-SEII05.B.04343-G_B-frame	Poschjpolicert Electrocert	EIT 60 E 60	Other	Concrete Floor Wall	pdf Download
Certifying authority Poschjpolicert Electrocert Rating EIT 60 E 60 Pipe/cable Other
CWE/BCC/30/13/002	QinetiQ	A-0 A-15 A-30 A-60	Marine	Steel Bulkhead Deck	pdf Download
Certifying authority QinetiQ Rating A-0 A-15 A-30 A-60 Pipe/cable Marine
CWE/BCC/30/13/002	QinetiQ	A-0 A-15 A-30 A-60	Marine	Steel Bulkhead Deck	pdf Download
Certifying authority QinetiQ Rating A-0 A-15 A-30 A-60 Pipe/cable Marine
GB15T00021	CCS	A-0 A-30 A-60 A-15	Steel Copper Other	Steel Bulkhead Deck	pdf Download
Certifying authority CCS Rating A-0 A-30 A-60 A-15 Pipe/cable Steel Copper Other
LAB298113CS/001	RINA	A-60	Other	Steel Bulkhead	pdf Download
Certifying authority RINA Rating A-60 Pipe/cable Other
LAB298113CS/002	RINA	A-60	Other	Steel Deck	pdf Download
Certifying authority RINA Rating A-60 Pipe/cable Other
MED-B-9250	DNV GL	A-0 A-30 A-60 A-15	Other	Aluminium Bulkhead Deck	pdf Download
Certifying authority DNV GL Rating A-0 A-30 A-60 A-15 Pipe/cable Other
MED-B-9930	DNV GL	A-0 A-30 A-60 A-15	Bundle Copper Steel	Steel Bulkhead Deck	pdf Download
Certifying authority DNV GL Rating A-0 A-30 A-60 A-15 Pipe/cable Bundle Copper Steel
MEDB0000130	DNV GL	A-0 A-15 A-30 A-60	Marine	Aluminium Bulkhead Deck	pdf Download
Certifying authority DNV GL Rating A-0 A-15 A-30 A-60 Pipe/cable Marine
MEDB00001Y7	DNV GL	A-0 A-15 A-30 A-60	Marine Armored	Steel Bulkhead Deck	pdf Download
Certifying authority DNV GL Rating A-0 A-15 A-30 A-60 Pipe/cable Marine Armored
SAS F160311	LR	A-60	Marine	Aluminium Bulkhead Deck	pdf Download
Certifying authority LR Rating A-60 Pipe/cable Marine
SASF150098/M3	LR	A-0 A-15 A-30 A-60	Copper Steel Other	Steel Bulkhead Deck	pdf Download
Certifying authority LR Rating A-0 A-15 A-30 A-60 Pipe/cable Copper Steel Other
SASF160133	LR	H-120 H-0/400 H-0 H-60	Marine	Steel Bulkhead Deck	pdf Download
Certifying authority LR Rating H-120 H-0/400 H-0 H-60 Pipe/cable Marine
TAE000000U	DNV GL		All Copper-Nickel Aluminium Plastic Copper Steel	Aluminium Steel Bulkhead Deck	pdf Download
Certifying authority DNV GL Rating Pipe/cable All Copper-Nickel Aluminium Plastic Copper Steel
TAF00000DW	DNV GL	H-0 H-0/400 H-60 H-120	Marine Steel Armored	Steel Bulkhead Deck	pdf Download
Certifying authority DNV GL Rating H-0 H-0/400 H-60 H-120 Pipe/cable Marine Steel Armored

Component articles

Metric (mm/kg) Imperial (inch/lbs)

SRC R20, aluminum
Name	Frame openings	Packing space (mm)	External dimensions WxHxD (mm)	Weight (kg)	Art. No	CAD files
SRC 2x1 R20 ALU	1	120 x 60	140.5 x 121 x 60	0.7	5SRC000004148	dxf stp
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 140.5 x 121 x 60 Weight (kg) 0.7 Art. No 5SRC000004148 CAD files dxf stp
SRC 2x2 R20 ALU	2	120 x 60	271 x 121 x 60	1.4	5SRC000010908	dxf stp
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 271 x 121 x 60 Weight (kg) 1.4 Art. No 5SRC000010908 CAD files dxf stp
SRC 2x3 R20 ALU	3	120 x 60	401.5 x 121 x 60	2	5SRC000010909	dxf stp
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 401.5 x 121 x 60 Weight (kg) 2 Art. No 5SRC000010909 CAD files dxf stp
SRC 2x4 R20 ALU	4	120 x 60	532 x 121 x 60	2.6	5SRC000010910	dxf stp
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 532 x 121 x 60 Weight (kg) 2.6 Art. No 5SRC000010910 CAD files dxf stp
SRC 2x5 R20 ALU	5	120 x 60	662.5 x 121 x 60	3.2	5SRC000010911	dxf stp
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 662.5 x 121 x 60 Weight (kg) 3.2 Art. No 5SRC000010911 CAD files dxf stp
SRC 2x6 R20 ALU	6	120 x 60	793 x 121 x 60	3.8	119614	dxf stp
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 793 x 121 x 60 Weight (kg) 3.8 Art. No 119614 CAD files dxf stp
SRC 2+2x1 R20 ALU	2	120 x 60	140.5 x 232 x 60	1.4	119619	dxf stp
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 140.5 x 232 x 60 Weight (kg) 1.4 Art. No 119619 CAD files dxf stp
SRC 2+2x2 R20 ALU	4	120 x 60	271 x 242 x 60	0	119620
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 271 x 242 x 60 Weight (kg) 0 Art. No 119620 CAD files
SRC 2+2x3 R20 ALU	6	120 x 60	401.5 x 242 x 60	0	119621
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 401.5 x 242 x 60 Weight (kg) 0 Art. No 119621 CAD files

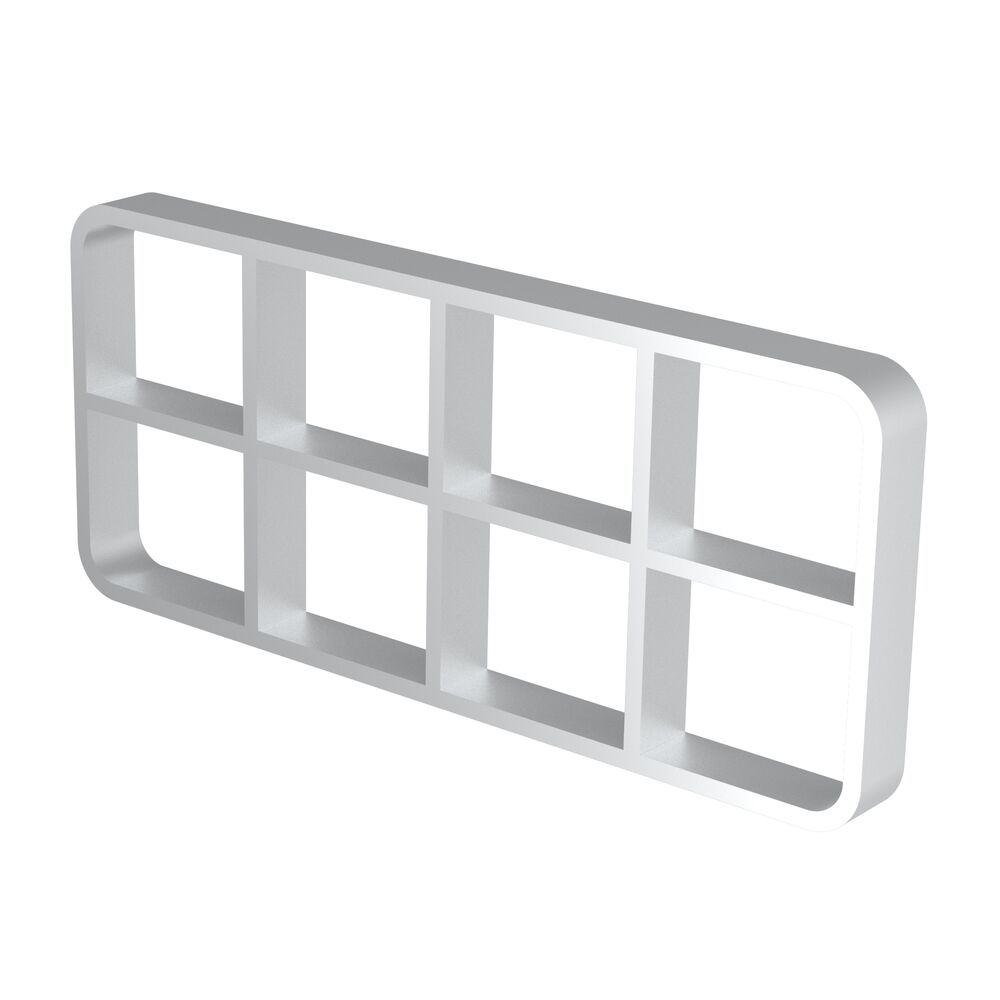

SRC 2+2x4 R20 ALU	8	120 x 60	532 x 242 x 60	0	119622
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 532 x 242 x 60 Weight (kg) 0 Art. No 119622 CAD files
SRC 4x1 R20 ALU	1	120 x 120	140.5 x 179.5 x 60	0.9	SRC4000020131	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 140.5 x 179.5 x 60 Weight (kg) 0.9 Art. No SRC4000020131 CAD files dxf stp
SRC 4x2 R20 ALU	2	120 x 120	271 x 179.5 x 60	1.6	5SRC000004693	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 271 x 179.5 x 60 Weight (kg) 1.6 Art. No 5SRC000004693 CAD files dxf stp
SRC 4x3 R20 ALU	3	120 x 120	401.5 x 179.5 x 60	2.2	106154	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 401.5 x 179.5 x 60 Weight (kg) 2.2 Art. No 106154 CAD files dxf stp
SRC 4x4 R20 ALU	4	120 x 120	532 x 179.5 x 60	3.1	106155	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 532 x 179.5 x 60 Weight (kg) 3.1 Art. No 106155 CAD files dxf stp
SRC 4x5 R20 ALU	5	120 x 120	662.5 x 179.5 x 60	3.7	119640	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 662.5 x 179.5 x 60 Weight (kg) 3.7 Art. No 119640 CAD files dxf stp
SRC 4x6 R20 ALU	6	120 x 120	793 x 179.5 x 60	4.4	119641	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 793 x 179.5 x 60 Weight (kg) 4.4 Art. No 119641 CAD files dxf stp
SRC 4x7 R20 ALU	7	120 x 120	923.5 x 179.5 x 60	5.1	119642	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 923.5 x 179.5 x 60 Weight (kg) 5.1 Art. No 119642 CAD files dxf stp
SRC 4x8 R20 ALU	8	120 x 120	1054 x 179.5 x 60	5.8	119643	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 1054 x 179.5 x 60 Weight (kg) 5.8 Art. No 119643 CAD files dxf stp
SRC 4x9 R20 ALU	9	120 x 120	1184.5 x 179.5 x 60	6.5	119644	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 1184.5 x 179.5 x 60 Weight (kg) 6.5 Art. No 119644 CAD files dxf stp
SRC 4+4x1 R20 ALU	2	120 x 120	140.5 x 349 x 60	1.8	119646	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 140.5 x 349 x 60 Weight (kg) 1.8 Art. No 119646 CAD files dxf stp
SRC 4+4x2 R20 ALU	4	120 x 120	271 x 359 x 60	3.4	119647	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 271 x 359 x 60 Weight (kg) 3.4 Art. No 119647 CAD files dxf stp
SRC 4+4x3 R20 ALU	6	120 x 120	401.5 x 359 x 60	4.7	119648	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 401.5 x 359 x 60 Weight (kg) 4.7 Art. No 119648 CAD files dxf stp
SRC 4+4x4 R20 ALU	8	120 x 120	532 x 359 x 60	6.1	119649	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 532 x 359 x 60 Weight (kg) 6.1 Art. No 119649 CAD files dxf stp
SRC 4+4x5 R20 ALU	10	120 x 120	662.5 x 359 x 60	7.4	119650	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 662.5 x 359 x 60 Weight (kg) 7.4 Art. No 119650 CAD files dxf stp
SRC 4+4x6 R20 ALU	12	120 x 120	793 x 359 x 60	8.8	119651	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 793 x 359 x 60 Weight (kg) 8.8 Art. No 119651 CAD files dxf stp
SRC 6x1 R20 ALU	1	120 x 180	140.5 x 238 x 60	1.1	5SRC000003054	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 140.5 x 238 x 60 Weight (kg) 1.1 Art. No 5SRC000003054 CAD files dxf stp
SRC 6x2 R20 ALU	2	120 x 180	271 x 238 x 60	1.9	5SRC000004149	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 271 x 238 x 60 Weight (kg) 1.9 Art. No 5SRC000004149 CAD files dxf stp
SRC 6x3 R20 ALU	3	120 x 180	401.5 x 238 x 60	2.7	5SRC000011726	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 401.5 x 238 x 60 Weight (kg) 2.7 Art. No 5SRC000011726 CAD files dxf stp
SRC 6x4 R20 ALU	4	120 x 180	532 x 238 x 60	3.4	5SRC000009302	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 532 x 238 x 60 Weight (kg) 3.4 Art. No 5SRC000009302 CAD files dxf stp
SRC 6x5 R20 ALU	5	120 x 180	662.5 x 238 x 60	4.2	105139	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 662.5 x 238 x 60 Weight (kg) 4.2 Art. No 105139 CAD files dxf stp
SRC 6x6 R20 ALU	6	120 x 180	793 x 238 x 60	5.1	119667	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 793 x 238 x 60 Weight (kg) 5.1 Art. No 119667 CAD files dxf stp
SRC 6x7 R20 ALU	7	120 x 180	923.5 x 238 x 60	5.9	119668	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 923.5 x 238 x 60 Weight (kg) 5.9 Art. No 119668 CAD files dxf stp
SRC 6x8 R20 ALU	8	120 x 180	1054 x 238 x 60	6.6	119669	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 1054 x 238 x 60 Weight (kg) 6.6 Art. No 119669 CAD files dxf stp
SRC 6x9 R20 ALU	9	120 x 180	1184.5 x 238 x 60	7.4	119670	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 1184.5 x 238 x 60 Weight (kg) 7.4 Art. No 119670 CAD files dxf stp
SRC 6+6x1 R20 ALU	2	120 x 180	140.5 x 466 x 60	2	5SRC000007884	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 140.5 x 466 x 60 Weight (kg) 2 Art. No 5SRC000007884 CAD files dxf stp
SRC 6+6x2 R20 ALU	4	120 x 180	271 x 476 x 60	3.7	5SRC000009727	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 271 x 476 x 60 Weight (kg) 3.7 Art. No 5SRC000009727 CAD files dxf stp
SRC 6+6x3 R20 ALU	6	120 x 180	401.5 x 476 x 60	5.5	119672	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 401.5 x 476 x 60 Weight (kg) 5.5 Art. No 119672 CAD files dxf stp
SRC 6+6x4 R20 ALU	8	120 x 180	532 x 476 x 60	7	119673	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 532 x 476 x 60 Weight (kg) 7 Art. No 119673 CAD files dxf stp
SRC 6+6x5 R20 ALU	10	120 x 180	662.5 x 476 x 60	8.6	119674	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 662.5 x 476 x 60 Weight (kg) 8.6 Art. No 119674 CAD files dxf stp
SRC 6+6x6 R20 ALU	12	120 x 180	793 x 476 x 60	10.1	119675	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 793 x 476 x 60 Weight (kg) 10.1 Art. No 119675 CAD files dxf stp
SRC 8x1 R20 ALU	1	120 x 240	140.5 x 298 x 60	1.3	5SRC000004178	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 140.5 x 298 x 60 Weight (kg) 1.3 Art. No 5SRC000004178 CAD files dxf stp
SRC 8x2 R20 ALU	2	120 x 240	271 x 298 x 60	2.2	5SRC000004150	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 271 x 298 x 60 Weight (kg) 2.2 Art. No 5SRC000004150 CAD files dxf stp
SRC 8x3 R20 ALU	3	120 x 240	401.5 x 298 x 60	3.2	106156	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 401.5 x 298 x 60 Weight (kg) 3.2 Art. No 106156 CAD files dxf stp
SRC 8x4 R20 ALU	4	120 x 240	532 x 298 x 60	3.9	5SRC000009301	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 532 x 298 x 60 Weight (kg) 3.9 Art. No 5SRC000009301 CAD files dxf stp
SRC 8x5 R20 ALU	5	120 x 240	662.5 x 298 x 60	4.9	119691	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 662.5 x 298 x 60 Weight (kg) 4.9 Art. No 119691 CAD files dxf stp
SRC 8x6 R20 ALU	6	120 x 240	793 x 298 x 60	5.8	119692	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 793 x 298 x 60 Weight (kg) 5.8 Art. No 119692 CAD files dxf stp
SRC 8+8x1 R20 ALU	2	120 x 240	140.5 x 586 x 60	2.5	119697	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 140.5 x 586 x 60 Weight (kg) 2.5 Art. No 119697 CAD files dxf stp
SRC 8+8x2 R20 ALU	4	120 x 240	271 x 596 x 60	4.5	119698	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 271 x 596 x 60 Weight (kg) 4.5 Art. No 119698 CAD files dxf stp
SRC 8+8x3 R20 ALU	6	120 x 240	401.5 x 596 x 60	6.3	119699	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 401.5 x 596 x 60 Weight (kg) 6.3 Art. No 119699 CAD files dxf stp
SRC 8+8x4 R20 ALU	8	120 x 240	532 x 596 x 60	8	119700	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 532 x 596 x 60 Weight (kg) 8 Art. No 119700 CAD files dxf stp

SRC R20, primed mild steel
Name	Frame openings	Packing space (mm)	External dimensions WxHxD (mm)	Weight (kg)	Art. No	CAD files
SRC 2x1 R20 PRIMED				2.2	SRC2000020112	dxf stp
Packing space (mm) External dimensions WxHxD (mm) Weight (kg) 2.2 Art. No SRC2000020112 CAD files dxf stp
SRC 2x2 R20 PRIMED				3.9	SRC2000020212	dxf stp
Packing space (mm) External dimensions WxHxD (mm) Weight (kg) 3.9 Art. No SRC2000020212 CAD files dxf stp
SRC 2x3 R20 PRIMED				5.5	SRC2000020312	dxf stp
Packing space (mm) External dimensions WxHxD (mm) Weight (kg) 5.5 Art. No SRC2000020312 CAD files dxf stp
SRC 2x4 R20 PRIMED				7.1	SRC2000020412	dxf stp
Packing space (mm) External dimensions WxHxD (mm) Weight (kg) 7.1 Art. No SRC2000020412 CAD files dxf stp
SRC 2x5 R20 PRIMED				8.7	SRC2000020512	dxf stp
Packing space (mm) External dimensions WxHxD (mm) Weight (kg) 8.7 Art. No SRC2000020512 CAD files dxf stp
SRC 2x6 R20 PRIMED				10.3	SRC2000020612	dxf stp
Packing space (mm) External dimensions WxHxD (mm) Weight (kg) 10.3 Art. No SRC2000020612 CAD files dxf stp
SRC 2+2x1 R20 PRIMED	2	120 x 60	140.5 x 232 x 60	3.9	113823	dxf stp
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 140.5 x 232 x 60 Weight (kg) 3.9 Art. No 113823 CAD files dxf stp
SRC 2+2x2 R20 PRIMED	4	120 x 60	271 x 242 x 60	0	113824
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 271 x 242 x 60 Weight (kg) 0 Art. No 113824 CAD files
SRC 2+2x3 R20 PRIMED	6	120 x 60	401.5 x 242 x 60	0	113825
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 401.5 x 242 x 60 Weight (kg) 0 Art. No 113825 CAD files
SRC 2+2x4 R20 PRIMED	8	120 x 60	532 x 242 x 60	0	113826
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 532 x 242 x 60 Weight (kg) 0 Art. No 113826 CAD files
SRC 4x1 R20 PRIMED	1	120 x 120	140.5 x 179.5 x 60	2.8	SRC4000020112	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 140.5 x 179.5 x 60 Weight (kg) 2.8 Art. No SRC4000020112 CAD files dxf stp
SRC 4x2 R20 PRIMED	2	120 x 120	271 x 179.5 x 60	4.7	SRC4000020212	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 271 x 179.5 x 60 Weight (kg) 4.7 Art. No SRC4000020212 CAD files dxf stp
SRC 4x3 R20 PRIMED	3	120 x 120	401.5 x 179.5 x 60	6.6	SRC4000020312	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 401.5 x 179.5 x 60 Weight (kg) 6.6 Art. No SRC4000020312 CAD files dxf stp
SRC 4x4 R20 PRIMED	4	120 x 120	532 x 179.5 x 60	8.5	SRC4000020412	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 532 x 179.5 x 60 Weight (kg) 8.5 Art. No SRC4000020412 CAD files dxf stp
SRC 4x5 R20 PRIMED	5	120 x 120	662.5 x 179.5 x 60	10.3	SRC4000020512	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 662.5 x 179.5 x 60 Weight (kg) 10.3 Art. No SRC4000020512 CAD files dxf stp
SRC 4x6 R20 PRIMED	6	120 x 120	793 x 179.5 x 60	12.2	SRC4000020612	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 793 x 179.5 x 60 Weight (kg) 12.2 Art. No SRC4000020612 CAD files dxf stp
SRC 4x7 R20 PRIMED	7	120 x 120	923.5 x 179.5 x 60	14.1	SRC4000020712	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 923.5 x 179.5 x 60 Weight (kg) 14.1 Art. No SRC4000020712 CAD files dxf stp
SRC 4x8 R20 PRIMED	8	120 x 120	1054 x 179.5 x 60	16	SRC4000020812	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 1054 x 179.5 x 60 Weight (kg) 16 Art. No SRC4000020812 CAD files dxf stp
SRC 4x9 R20 PRIMED	9	120 x 120	1184.5 x 179.5 x 60	17.9	SRC4000020912	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 1184.5 x 179.5 x 60 Weight (kg) 17.9 Art. No SRC4000020912 CAD files dxf stp
SRC 4+4x1 R20 PRIMED	2	120 x 120	140.5 x 349 x 60	4.8	5SRC000009354	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 140.5 x 349 x 60 Weight (kg) 4.8 Art. No 5SRC000009354 CAD files dxf stp
SRC 4+4x2 R20 PRIMED	4	120 x 120	271 x 359 x 60	9.3	SRC4400020212	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 271 x 359 x 60 Weight (kg) 9.3 Art. No SRC4400020212 CAD files dxf stp
SRC 4+4x3 R20 PRIMED	6	120 x 120	401.5 x 359 x 60	13.4	5SRC000009355	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 401.5 x 359 x 60 Weight (kg) 13.4 Art. No 5SRC000009355 CAD files dxf stp
SRC 4+4x4 R20 PRIMED	8	120 x 120	532 x 359 x 60	17.5	5SRC000009356	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 532 x 359 x 60 Weight (kg) 17.5 Art. No 5SRC000009356 CAD files dxf stp
SRC 4+4x5 R20 PRIMED	10	120 x 120	662.5 x 359 x 60	21.5	108845	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 662.5 x 359 x 60 Weight (kg) 21.5 Art. No 108845 CAD files dxf stp
SRC 4+4x6 R20 PRIMED	12	120 x 120	793 x 359 x 60	25.3	113846	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 793 x 359 x 60 Weight (kg) 25.3 Art. No 113846 CAD files dxf stp
SRC 6x1 R20 PRIMED	1	120 x 180	140.5 x 238 x 60	3.3	SRC6000020112	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 140.5 x 238 x 60 Weight (kg) 3.3 Art. No SRC6000020112 CAD files dxf stp
SRC 6x2 R20 PRIMED	2	120 x 180	271 x 238 x 60	5.5	SRC6000020212	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 271 x 238 x 60 Weight (kg) 5.5 Art. No SRC6000020212 CAD files dxf stp
SRC 6x3 R20 PRIMED	3	120 x 180	401.5 x 238 x 60	7.7	SRC6000020312	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 401.5 x 238 x 60 Weight (kg) 7.7 Art. No SRC6000020312 CAD files dxf stp
SRC 6x4 R20 PRIMED	4	120 x 180	532 x 238 x 60	9.8	SRC6000020412	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 532 x 238 x 60 Weight (kg) 9.8 Art. No SRC6000020412 CAD files dxf stp
SRC 6x5 R20 PRIMED	5	120 x 180	662.5 x 238 x 60	12	SRC6000020512	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 662.5 x 238 x 60 Weight (kg) 12 Art. No SRC6000020512 CAD files dxf stp
SRC 6x6 R20 PRIMED	6	120 x 180	793 x 238 x 60	14.2	SRC6000020612	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 793 x 238 x 60 Weight (kg) 14.2 Art. No SRC6000020612 CAD files dxf stp
SRC 6x7 R20 PRIMED	7	120 x 180	923.5 x 238 x 60	16.3	SRC6000020712	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 923.5 x 238 x 60 Weight (kg) 16.3 Art. No SRC6000020712 CAD files dxf stp
SRC 6x8 R20 PRIMED	8	120 x 180	1054 x 238 x 60	18.5	SRC6000020812	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 1054 x 238 x 60 Weight (kg) 18.5 Art. No SRC6000020812 CAD files dxf stp
SRC 6x9 R20 PRIMED	9	120 x 180	1184.5 x 238 x 60	20.8	SRC6000020912	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 1184.5 x 238 x 60 Weight (kg) 20.8 Art. No SRC6000020912 CAD files dxf stp
SRC 6+6x1 R20 PRIMED	2	120 x 180	140.5 x 466 x 60	6	SRC6600020112	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 140.5 x 466 x 60 Weight (kg) 6 Art. No SRC6600020112 CAD files dxf stp
SRC 6+6x2 R20 PRIMED	4	120 x 180	271 x 476 x 60	11.1	5SRC000006900	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 271 x 476 x 60 Weight (kg) 11.1 Art. No 5SRC000006900 CAD files dxf stp
SRC 6+6x3 R20 PRIMED	6	120 x 180	401.5 x 476 x 60	15.7	SRC6600020312	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 401.5 x 476 x 60 Weight (kg) 15.7 Art. No SRC6600020312 CAD files dxf stp
SRC 6+6x4 R20 PRIMED	8	120 x 180	532 x 476 x 60	20.4	5SRC000006901	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 532 x 476 x 60 Weight (kg) 20.4 Art. No 5SRC000006901 CAD files dxf stp
SRC 6+6x5 R20 PRIMED	10	120 x 180	662.5 x 476 x 60	24.8	5SRC000008287	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 662.5 x 476 x 60 Weight (kg) 24.8 Art. No 5SRC000008287 CAD files dxf stp
SRC 6+6x6 R20 PRIMED	12	120 x 180	793 x 476 x 60	31	5SRC000012800	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 793 x 476 x 60 Weight (kg) 31 Art. No 5SRC000012800 CAD files dxf stp
SRC 8x1 R20 PRIMED	1	120 x 240	140.5 x 298 x 60	3.9	SRC8000020112	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 140.5 x 298 x 60 Weight (kg) 3.9 Art. No SRC8000020112 CAD files dxf stp
SRC 8x2 R20 PRIMED	2	120 x 240	271 x 298 x 60	6.1	SRC8000020212	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 271 x 298 x 60 Weight (kg) 6.1 Art. No SRC8000020212 CAD files dxf stp
SRC 8x3 R20 PRIMED	3	120 x 240	401.5 x 298 x 60	8.2	SRC8000020312	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 401.5 x 298 x 60 Weight (kg) 8.2 Art. No SRC8000020312 CAD files dxf stp
SRC 8x4 R20 PRIMED	4	120 x 240	532 x 298 x 60	10.4	SRC8000020412	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 532 x 298 x 60 Weight (kg) 10.4 Art. No SRC8000020412 CAD files dxf stp
SRC 8x5 R20 PRIMED	5	120 x 240	662.5 x 298 x 60	12.6	SRC8000020512	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 662.5 x 298 x 60 Weight (kg) 12.6 Art. No SRC8000020512 CAD files dxf stp
SRC 8x6 R20 PRIMED	6	120 x 240	793 x 298 x 60	14.7	SRC8000020612	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 793 x 298 x 60 Weight (kg) 14.7 Art. No SRC8000020612 CAD files dxf stp
SRC 8+8x1 R20 PRIMED	2	120 x 240	140.5 x 586 x 60	7	SRC8800020112	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 140.5 x 586 x 60 Weight (kg) 7 Art. No SRC8800020112 CAD files dxf stp
SRC 8+8x2 R20 PRIMED	4	120 x 240	271 x 596 x 60	12.8	5SRC000007765	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 271 x 596 x 60 Weight (kg) 12.8 Art. No 5SRC000007765 CAD files dxf stp
SRC 8+8x3 R20 PRIMED	6	120 x 240	401.5 x 596 x 60	17.8	5SRC000007401	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 401.5 x 596 x 60 Weight (kg) 17.8 Art. No 5SRC000007401 CAD files dxf stp
SRC 8+8x4 R20 PRIMED	8	120 x 240	532 x 596 x 60	20.8	5SRC000008379	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 532 x 596 x 60 Weight (kg) 20.8 Art. No 5SRC000008379 CAD files dxf stp

SRC R20, stainless steel
Name	Frame openings	Packing space (mm)	External dimensions WxHxD (mm)	Weight (kg)	Art. No	CAD files
SRC 2x1 R20 AISI316	1	120 x 60	140.5 x 121 x 60	2.2	5SRC000004700	dxf stp
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 140.5 x 121 x 60 Weight (kg) 2.2 Art. No 5SRC000004700 CAD files dxf stp
SRC 2x2 R20 AISI316	2	120 x 60	271 x 121 x 60	3.7	105848	dxf stp
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 271 x 121 x 60 Weight (kg) 3.7 Art. No 105848 CAD files dxf stp
SRC 2x3 R20 AISI316	3	120 x 60	401.5 x 121 x 60	5	113900	dxf stp
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 401.5 x 121 x 60 Weight (kg) 5 Art. No 113900 CAD files dxf stp
SRC 2x4 R20 AISI316	4	120 x 60	532 x 121 x 60	7.6	113901	dxf stp
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 532 x 121 x 60 Weight (kg) 7.6 Art. No 113901 CAD files dxf stp
SRC 2x5 R20 AISI316	5	120 x 60	662.5 x 121 x 60	9.3	113902	dxf stp
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 662.5 x 121 x 60 Weight (kg) 9.3 Art. No 113902 CAD files dxf stp
SRC 2x6 R20 AISI316	6	120 x 60	793 x 121 x 60	11.1	113903	dxf stp
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 793 x 121 x 60 Weight (kg) 11.1 Art. No 113903 CAD files dxf stp
SRC 2+2x1 R20 AISI316	2	120 x 60	140.5 x 232 x 60	4	113908	dxf stp
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 140.5 x 232 x 60 Weight (kg) 4 Art. No 113908 CAD files dxf stp
SRC 2+2x2 R20 AISI316	4	120 x 60	271 x 242 x 60	0	113909
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 271 x 242 x 60 Weight (kg) 0 Art. No 113909 CAD files
SRC 2+2x3 R20 AISI316	6	120 x 60	401.5 x 242 x 60	0	113910
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 401.5 x 242 x 60 Weight (kg) 0 Art. No 113910 CAD files
SRC 2+2x4 R20 AISI316	8	120 x 60	532 x 242 x 60	0	113911
Packing space (mm) 120 x 60 External dimensions WxHxD (mm) 532 x 242 x 60 Weight (kg) 0 Art. No 113911 CAD files
SRC 4x1 R20 AISI316	1	120 x 120	140.5 x 179.5 x 60	2.8	5SRC000006107	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 140.5 x 179.5 x 60 Weight (kg) 2.8 Art. No 5SRC000006107 CAD files dxf stp
SRC 4x2 R20 AISI316	2	120 x 120	271 x 179.5 x 60	4.7	5SRC000006736	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 271 x 179.5 x 60 Weight (kg) 4.7 Art. No 5SRC000006736 CAD files dxf stp
SRC 4x3 R20 AISI316	3	120 x 120	401.5 x 179.5 x 60	6.6	5SRC000006971	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 401.5 x 179.5 x 60 Weight (kg) 6.6 Art. No 5SRC000006971 CAD files dxf stp
SRC 4x4 R20 AISI316	4	120 x 120	532 x 179.5 x 60	8.5	5SRC000006435	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 532 x 179.5 x 60 Weight (kg) 8.5 Art. No 5SRC000006435 CAD files dxf stp
SRC 4x5 R20 AISI316	5	120 x 120	662.5 x 179.5 x 60	10.3	5SRC000006972	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 662.5 x 179.5 x 60 Weight (kg) 10.3 Art. No 5SRC000006972 CAD files dxf stp
SRC 4x6 R20 AISI316	6	120 x 120	793 x 179.5 x 60	12.2	5SRC000006973	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 793 x 179.5 x 60 Weight (kg) 12.2 Art. No 5SRC000006973 CAD files dxf stp
SRC 4x7 R20 AISI316	7	120 x 120	923.5 x 179.5 x 60	15	113933	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 923.5 x 179.5 x 60 Weight (kg) 15 Art. No 113933 CAD files dxf stp
SRC 4x8 R20 AISI316	8	120 x 120	1054 x 179.5 x 60	15.8	105892	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 1054 x 179.5 x 60 Weight (kg) 15.8 Art. No 105892 CAD files dxf stp
SRC 4x9 R20 AISI316	9	120 x 120	1184.5 x 179.5 x 60	19.1	113934	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 1184.5 x 179.5 x 60 Weight (kg) 19.1 Art. No 113934 CAD files dxf stp
SRC 4+4x1 R20 AISI316	2	120 x 120	140.5 x 349 x 60	5	113936	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 140.5 x 349 x 60 Weight (kg) 5 Art. No 113936 CAD files dxf stp
SRC 4+4x2 R20 AISI316	4	120 x 120	271 x 359 x 60	9.8	113937	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 271 x 359 x 60 Weight (kg) 9.8 Art. No 113937 CAD files dxf stp
SRC 4+4x3 R20 AISI316	6	120 x 120	401.5 x 359 x 60	13.9	5SRC000006668	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 401.5 x 359 x 60 Weight (kg) 13.9 Art. No 5SRC000006668 CAD files dxf stp
SRC 4+4x4 R20 AISI316	8	120 x 120	532 x 359 x 60	16.4	5SRC000007495	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 532 x 359 x 60 Weight (kg) 16.4 Art. No 5SRC000007495 CAD files dxf stp
SRC 4+4x5 R20 AISI316	10	120 x 120	662.5 x 359 x 60	22	113938	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 662.5 x 359 x 60 Weight (kg) 22 Art. No 113938 CAD files dxf stp
SRC 4+4x6 R20 AISI316	12	120 x 120	793 x 359 x 60	26	113939	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 793 x 359 x 60 Weight (kg) 26 Art. No 113939 CAD files dxf stp
SRC 6x1 R20 AISI316	1	120 x 180	140.5 x 238 x 60	3.3	5SRC000006106	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 140.5 x 238 x 60 Weight (kg) 3.3 Art. No 5SRC000006106 CAD files dxf stp
SRC 6x2 R20 AISI316	2	120 x 180	271 x 238 x 60	5.5	5SRC000006105	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 271 x 238 x 60 Weight (kg) 5.5 Art. No 5SRC000006105 CAD files dxf stp
SRC 6x3 R20 AISI316	3	120 x 180	401.5 x 238 x 60	7.7	5SRC000006684	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 401.5 x 238 x 60 Weight (kg) 7.7 Art. No 5SRC000006684 CAD files dxf stp
SRC 6x4 R20 AISI316	4	120 x 180	532 x 238 x 60	9.8	5SRC000006685	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 532 x 238 x 60 Weight (kg) 9.8 Art. No 5SRC000006685 CAD files dxf stp
SRC 6x5 R20 AISI316	5	120 x 180	662.5 x 238 x 60	12.1	104267	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 662.5 x 238 x 60 Weight (kg) 12.1 Art. No 104267 CAD files dxf stp
SRC 6x6 R20 AISI316	6	120 x 180	793 x 238 x 60	15	113960	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 793 x 238 x 60 Weight (kg) 15 Art. No 113960 CAD files dxf stp
SRC 6x7 R20 AISI316	7	120 x 180	923.5 x 238 x 60	16.5	113961	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 923.5 x 238 x 60 Weight (kg) 16.5 Art. No 113961 CAD files dxf stp
SRC 6x8 R20 AISI316	8	120 x 180	1054 x 238 x 60	19.6	113962	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 1054 x 238 x 60 Weight (kg) 19.6 Art. No 113962 CAD files dxf stp
SRC 6x9 R20 AISI316	9	120 x 180	1184.5 x 238 x 60	21.9	113963	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 1184.5 x 238 x 60 Weight (kg) 21.9 Art. No 113963 CAD files dxf stp
SRC 6+6x1 R20 AISI316	2	120 x 180	140.5 x 466 x 60	5.7	5SRC000013682	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 140.5 x 466 x 60 Weight (kg) 5.7 Art. No 5SRC000013682 CAD files dxf stp
SRC 6+6x2 R20 AISI316	4	120 x 180	271 x 476 x 60	11	5SRC000007413	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 271 x 476 x 60 Weight (kg) 11 Art. No 5SRC000007413 CAD files dxf stp
SRC 6+6x3 R20 AISI316	6	120 x 180	401.5 x 476 x 60	15.4	5SRC000006686	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 401.5 x 476 x 60 Weight (kg) 15.4 Art. No 5SRC000006686 CAD files dxf stp
SRC 6+6x4 R20 AISI316	8	120 x 180	532 x 476 x 60	20.7	113965	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 532 x 476 x 60 Weight (kg) 20.7 Art. No 113965 CAD files dxf stp
SRC 6+6x5 R20 AISI316	10	120 x 180	662.5 x 476 x 60	25.3	113966	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 662.5 x 476 x 60 Weight (kg) 25.3 Art. No 113966 CAD files dxf stp
SRC 6+6x6 R20 AISI316	12	120 x 180	793 x 476 x 60	30	113967	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 793 x 476 x 60 Weight (kg) 30 Art. No 113967 CAD files dxf stp
SRC 8x1 R20 AISI316	1	120 x 240	140.5 x 298 x 60	3.8	5SRC000012346	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 140.5 x 298 x 60 Weight (kg) 3.8 Art. No 5SRC000012346 CAD files dxf stp
SRC 8x2 R20 AISI316	2	120 x 240	271 x 298 x 60	6.3	5SRC000012347	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 271 x 298 x 60 Weight (kg) 6.3 Art. No 5SRC000012347 CAD files dxf stp
SRC 8x3 R20 AISI316	3	120 x 240	401.5 x 298 x 60		110946
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 401.5 x 298 x 60 Weight (kg) Art. No 110946 CAD files
SRC 8x4 R20 AISI316	4	120 x 240	532 x 298 x 60	21.1	5SRC000006655	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 532 x 298 x 60 Weight (kg) 21.1 Art. No 5SRC000006655 CAD files dxf stp
SRC 8x5 R20 AISI316	5	120 x 240	662.5 x 298 x 60	13.9	104332	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 662.5 x 298 x 60 Weight (kg) 13.9 Art. No 104332 CAD files dxf stp
SRC 8x6 R20 AISI316	6	120 x 240	793 x 298 x 60	16	113987	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 793 x 298 x 60 Weight (kg) 16 Art. No 113987 CAD files dxf stp
SRC 8+8x1 R20 AISI316	2	120 x 240	140.5 x 586 x 60	6.9	5SRC000013683	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 140.5 x 586 x 60 Weight (kg) 6.9 Art. No 5SRC000013683 CAD files dxf stp
SRC 8+8x2 R20 AISI316	4	120 x 240	271 x 596 x 60	13.3	104357	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 271 x 596 x 60 Weight (kg) 13.3 Art. No 104357 CAD files dxf stp
SRC 8+8x3 R20 AISI316	6	120 x 240	401.5 x 596 x 60	18.4	113992	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 401.5 x 596 x 60 Weight (kg) 18.4 Art. No 113992 CAD files dxf stp
SRC 8+8x4 R20 AISI316	8	120 x 240	532 x 596 x 60	23.6	113993	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 532 x 596 x 60 Weight (kg) 23.6 Art. No 113993 CAD files dxf stp

SRC R40, aluminum
Name	Frame openings	Packing space (mm)	External dimensions WxHxD (mm)	Weight (kg)	Art. No	CAD files
SRC 4x1 R40 ALU	1	120 x 120	140.5 x 179.5 x 60	0.9	5SRC000003233	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 140.5 x 179.5 x 60 Weight (kg) 0.9 Art. No 5SRC000003233 CAD files dxf stp
SRC 4x2 R40 ALU	2	120 x 120	271 x 179.5 x 60	1.6	5SRC000006359	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 271 x 179.5 x 60 Weight (kg) 1.6 Art. No 5SRC000006359 CAD files dxf stp
SRC 4x4 R40 ALU	4	120 x 120	532 x 179.5 x 60	2.9	5SRC000009763	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 532 x 179.5 x 60 Weight (kg) 2.9 Art. No 5SRC000009763 CAD files dxf stp
SRC 4x5 R40 ALU	5	120 x 120	662.5 x 179.5 x 60	3.3	5SRC000010915	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 662.5 x 179.5 x 60 Weight (kg) 3.3 Art. No 5SRC000010915 CAD files dxf stp
SRC 4x6 R40 ALU	6	120 x 120	793 x 179.5 x 60	4.4	5SRC000010916	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 793 x 179.5 x 60 Weight (kg) 4.4 Art. No 5SRC000010916 CAD files dxf stp
SRC 4x7 R40 ALU	7	120 x 120	923.5 x 179.5 x 60	5.1	119757	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 923.5 x 179.5 x 60 Weight (kg) 5.1 Art. No 119757 CAD files dxf stp
SRC 4x8 R40 ALU	8	120 x 120	1054 x 179.5 x 60	5.8	119758	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 1054 x 179.5 x 60 Weight (kg) 5.8 Art. No 119758 CAD files dxf stp
SRC 4x9 R40 ALU	9	120 x 120	1184.5 x 179.5 x 60	6.5	119759	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 1184.5 x 179.5 x 60 Weight (kg) 6.5 Art. No 119759 CAD files dxf stp
SRC 4+4x1 R40 ALU	2	120 x 120	140.5 x 349 x 60	1.8	119761	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 140.5 x 349 x 60 Weight (kg) 1.8 Art. No 119761 CAD files dxf stp
SRC 4+4x2 R40 ALU	4	120 x 120	271 x 359 x 60	3.4	119762	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 271 x 359 x 60 Weight (kg) 3.4 Art. No 119762 CAD files dxf stp
SRC 4+4x3 R40 ALU	6	120 x 120	401.5 x 359 x 60	4.7	119763	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 401.5 x 359 x 60 Weight (kg) 4.7 Art. No 119763 CAD files dxf stp
SRC 4+4x4 R40 ALU	8	120 x 120	532 x 359 x 60	6.1	119764	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 532 x 359 x 60 Weight (kg) 6.1 Art. No 119764 CAD files dxf stp
SRC 4+4x5 R40 ALU	10	120 x 120	662.5 x 359 x 60	7.4	119765	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 662.5 x 359 x 60 Weight (kg) 7.4 Art. No 119765 CAD files dxf stp
SRC 4+4x6 R40 ALU	12	120 x 120	793 x 359 x 60	9	119766	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 793 x 359 x 60 Weight (kg) 9 Art. No 119766 CAD files dxf stp
SRC 6x1 R40 ALU	1	120 x 180	140.5 x 238 x 60	1	5SRC000003232	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 140.5 x 238 x 60 Weight (kg) 1 Art. No 5SRC000003232 CAD files dxf stp
SRC 6x2 R40 ALU	2	120 x 180	271 x 238 x 60	1.8	5SRC000005649	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 271 x 238 x 60 Weight (kg) 1.8 Art. No 5SRC000005649 CAD files dxf stp
SRC 6x3 R40 ALU	3	120 x 180	401.5 x 238 x 60	2.6	5SRC000005650	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 401.5 x 238 x 60 Weight (kg) 2.6 Art. No 5SRC000005650 CAD files dxf stp
SRC 6x4 R40 ALU	4	120 x 180	532 x 238 x 60	3.6	5SRC000005651	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 532 x 238 x 60 Weight (kg) 3.6 Art. No 5SRC000005651 CAD files dxf stp
SRC 6x5 R40 ALU	5	120 x 180	662.5 x 238 x 60	4.2	5SRC000010917	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 662.5 x 238 x 60 Weight (kg) 4.2 Art. No 5SRC000010917 CAD files dxf stp
SRC 6x6 R40 ALU	6	120 x 180	793 x 238 x 60	5.1	5SRC000010918	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 793 x 238 x 60 Weight (kg) 5.1 Art. No 5SRC000010918 CAD files dxf stp
SRC 6x7 R40 ALU	7	120 x 180	923.5 x 238 x 60	5.9	119783	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 923.5 x 238 x 60 Weight (kg) 5.9 Art. No 119783 CAD files dxf stp
SRC 6x8 R40 ALU	8	120 x 180	1054 x 238 x 60	6.6	119784	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 1054 x 238 x 60 Weight (kg) 6.6 Art. No 119784 CAD files dxf stp
SRC 6x9 R40 ALU	9	120 x 180	1184.5 x 238 x 60	7.4	119785	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 1184.5 x 238 x 60 Weight (kg) 7.4 Art. No 119785 CAD files dxf stp
SRC 6+6x2 R40 ALU	4	120 x 180	271 x 476 x 60	3.9	119788	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 271 x 476 x 60 Weight (kg) 3.9 Art. No 119788 CAD files dxf stp
SRC 6+6x3 R40 ALU	6	120 x 180	401.5 x 476 x 60	5.5	119789	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 401.5 x 476 x 60 Weight (kg) 5.5 Art. No 119789 CAD files dxf stp
SRC 6+6x4 R40 ALU	8	120 x 180	532 x 476 x 60	7	119790	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 532 x 476 x 60 Weight (kg) 7 Art. No 119790 CAD files dxf stp
SRC 6+6x5 R40 ALU	10	120 x 180	662.5 x 476 x 60	8.6	119791	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 662.5 x 476 x 60 Weight (kg) 8.6 Art. No 119791 CAD files dxf stp
SRC 6+6x6 R40 ALU	12	120 x 180	793 x 476 x 60	10.1	119792	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 793 x 476 x 60 Weight (kg) 10.1 Art. No 119792 CAD files dxf stp
SRC 8x1 R40 ALU	1	120 x 240	140.5 x 298 x 60	1.2	5SRC000004309	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 140.5 x 298 x 60 Weight (kg) 1.2 Art. No 5SRC000004309 CAD files dxf stp
SRC 8x3 R40 ALU	3	120 x 240	401.5 x 298 x 60	3	5SRC000006085	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 401.5 x 298 x 60 Weight (kg) 3 Art. No 5SRC000006085 CAD files dxf stp
SRC 8x4 R40 ALU	4	120 x 240	532 x 298 x 60	3.9	5SRC000010919	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 532 x 298 x 60 Weight (kg) 3.9 Art. No 5SRC000010919 CAD files dxf stp
SRC 8x5 R40 ALU	5	120 x 240	662.5 x 298 x 60	4.9	5SRC000010920	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 662.5 x 298 x 60 Weight (kg) 4.9 Art. No 5SRC000010920 CAD files dxf stp
SRC 8+8x1 R40 ALU	2	120 x 240	140.5 x 586 x 60	2.4	5SRC000007047	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 140.5 x 586 x 60 Weight (kg) 2.4 Art. No 5SRC000007047 CAD files dxf stp
SRC 8+8x2 R40 ALU	4	120 x 240	271 x 596 x 60	4.5	119811	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 271 x 596 x 60 Weight (kg) 4.5 Art. No 119811 CAD files dxf stp
SRC 8+8x3 R40 ALU	6	120 x 240	401.5 x 596 x 60	6	5SRC000006112	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 401.5 x 596 x 60 Weight (kg) 6 Art. No 5SRC000006112 CAD files dxf stp
SRC 8+8x4 R40 ALU	8	120 x 240	532 x 596 x 60	8	119812	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 532 x 596 x 60 Weight (kg) 8 Art. No 119812 CAD files dxf stp

SRC R40, primed mild steel
Name	Frame openings	Packing space (mm)	External dimensions WxHxD (mm)	Weight (kg)	Art. No	CAD files
SRC 4x1 R40 PRIMED	1	120 x 120	140.5 x 179.5 x 60	2.8	SRC4000040112	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 140.5 x 179.5 x 60 Weight (kg) 2.8 Art. No SRC4000040112 CAD files dxf stp
SRC 4x2 R40 PRIMED	2	120 x 120	271 x 179.5 x 60	4.7	SRC4000040212	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 271 x 179.5 x 60 Weight (kg) 4.7 Art. No SRC4000040212 CAD files dxf stp
SRC 4x3 R40 PRIMED	3	120 x 120	401.5 x 179.5 x 60	6.6	SRC4000040312	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 401.5 x 179.5 x 60 Weight (kg) 6.6 Art. No SRC4000040312 CAD files dxf stp
SRC 4x4 R40 PRIMED	4	120 x 120	532 x 179.5 x 60	8.5	SRC4000040412	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 532 x 179.5 x 60 Weight (kg) 8.5 Art. No SRC4000040412 CAD files dxf stp
SRC 4x5 R40 PRIMED	5	120 x 120	662.5 x 179.5 x 60	10.3	SRC4000040512	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 662.5 x 179.5 x 60 Weight (kg) 10.3 Art. No SRC4000040512 CAD files dxf stp
SRC 4x6 R40 PRIMED	6	120 x 120	793 x 179.5 x 60	12.2	SRC4000040612	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 793 x 179.5 x 60 Weight (kg) 12.2 Art. No SRC4000040612 CAD files dxf stp
SRC 4x7 R40 PRIMED	7	120 x 120	923.5 x 179.5 x 60	14.1	SRC4000040712	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 923.5 x 179.5 x 60 Weight (kg) 14.1 Art. No SRC4000040712 CAD files dxf stp
SRC 4x8 R40 PRIMED	8	120 x 120	1054 x 179.5 x 60	16	SRC4000040812	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 1054 x 179.5 x 60 Weight (kg) 16 Art. No SRC4000040812 CAD files dxf stp
SRC 4x9 R40 PRIMED	9	120 x 120	1184.5 x 179.5 x 60	17.9	SRC4000040912	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 1184.5 x 179.5 x 60 Weight (kg) 17.9 Art. No SRC4000040912 CAD files dxf stp
SRC 4+4x1 R40 PRIMED	2	120 x 120	140.5 x 349 x 60	5	5SRC000009665	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 140.5 x 349 x 60 Weight (kg) 5 Art. No 5SRC000009665 CAD files dxf stp
SRC 4+4x2 R40 PRIMED	4	120 x 120	271 x 359 x 60	9.2	5SRC000009321	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 271 x 359 x 60 Weight (kg) 9.2 Art. No 5SRC000009321 CAD files dxf stp
SRC 4+4x3 R40 PRIMED	6	120 x 120	401.5 x 359 x 60	13.1	5SRC000007943	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 401.5 x 359 x 60 Weight (kg) 13.1 Art. No 5SRC000007943 CAD files dxf stp
SRC 4+4x4 R40 PRIMED	8	120 x 120	532 x 359 x 60	17.4	5SRC000007744	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 532 x 359 x 60 Weight (kg) 17.4 Art. No 5SRC000007744 CAD files dxf stp
SRC 4+4x5 R40 PRIMED	10	120 x 120	662.5 x 359 x 60	21	5SRC000007944	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 662.5 x 359 x 60 Weight (kg) 21 Art. No 5SRC000007944 CAD files dxf stp
SRC 4+4x6 R40 PRIMED	12	120 x 120	793 x 359 x 60	24.9	5SRC000007945	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 793 x 359 x 60 Weight (kg) 24.9 Art. No 5SRC000007945 CAD files dxf stp
SRC 6x1 R40 PRIMED	1	120 x 180	140.5 x 238 x 60	3.3	SRC6000040112	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 140.5 x 238 x 60 Weight (kg) 3.3 Art. No SRC6000040112 CAD files dxf stp
SRC 6x2 R40 PRIMED	2	120 x 180	271 x 238 x 60	5.5	SRC6000040212	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 271 x 238 x 60 Weight (kg) 5.5 Art. No SRC6000040212 CAD files dxf stp
SRC 6x3 R40 PRIMED	3	120 x 180	401.5 x 238 x 60	7.7	SRC6000040312	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 401.5 x 238 x 60 Weight (kg) 7.7 Art. No SRC6000040312 CAD files dxf stp
SRC 6x4 R40 PRIMED	4	120 x 180	532 x 238 x 60	9.8	SRC6000040412	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 532 x 238 x 60 Weight (kg) 9.8 Art. No SRC6000040412 CAD files dxf stp
SRC 6x5 R40 PRIMED	5	120 x 180	662.5 x 238 x 60	12	SRC6000040512	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 662.5 x 238 x 60 Weight (kg) 12 Art. No SRC6000040512 CAD files dxf stp
SRC 6x6 R40 PRIMED	6	120 x 180	793 x 238 x 60	14.2	SRC6000040612	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 793 x 238 x 60 Weight (kg) 14.2 Art. No SRC6000040612 CAD files dxf stp
SRC 6x7 R40 PRIMED	7	120 x 180	923.5 x 238 x 60	16.3	SRC6000040712	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 923.5 x 238 x 60 Weight (kg) 16.3 Art. No SRC6000040712 CAD files dxf stp
SRC 6x8 R40 PRIMED	8	120 x 180	1054 x 238 x 60	18.5	SRC6000040812	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 1054 x 238 x 60 Weight (kg) 18.5 Art. No SRC6000040812 CAD files dxf stp
SRC 6x9 R40 PRIMED	9	120 x 180	1184.5 x 238 x 60	20.8	SRC6000040912	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 1184.5 x 238 x 60 Weight (kg) 20.8 Art. No SRC6000040912 CAD files dxf stp
SRC 6+6x1 R40 PRIMED	2	120 x 180	140.5 x 466 x 60	5.7	5SRC000006939	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 140.5 x 466 x 60 Weight (kg) 5.7 Art. No 5SRC000006939 CAD files dxf stp
SRC 6+6x2 R40 PRIMED	4	120 x 180	271 x 476 x 60	11	5SRC000007526	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 271 x 476 x 60 Weight (kg) 11 Art. No 5SRC000007526 CAD files dxf stp
SRC 6+6x3 R40 PRIMED	6	120 x 180	401.5 x 476 x 60	15.6	5SRC000007936	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 401.5 x 476 x 60 Weight (kg) 15.6 Art. No 5SRC000007936 CAD files dxf stp
SRC 6+6x4 R40 PRIMED	8	120 x 180	532 x 476 x 60	19.6	5SRC000006214	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 532 x 476 x 60 Weight (kg) 19.6 Art. No 5SRC000006214 CAD files dxf stp
SRC 6+6x5 R40 PRIMED	10	120 x 180	662.5 x 476 x 60	24.6	5SRC000007743	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 662.5 x 476 x 60 Weight (kg) 24.6 Art. No 5SRC000007743 CAD files dxf stp
SRC 6+6x6 R40 PRIMED	12	120 x 180	793 x 476 x 60	29.5	5SRC000007745	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 793 x 476 x 60 Weight (kg) 29.5 Art. No 5SRC000007745 CAD files dxf stp
SRC 8x1 R40 PRIMED	1	120 x 240	140.5 x 298 x 60	3.9	SRC8000040112	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 140.5 x 298 x 60 Weight (kg) 3.9 Art. No SRC8000040112 CAD files dxf stp
SRC 8x2 R40 PRIMED	2	120 x 240	271 x 298 x 60	6.1	SRC8000040212	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 271 x 298 x 60 Weight (kg) 6.1 Art. No SRC8000040212 CAD files dxf stp
SRC 8x3 R40 PRIMED	3	120 x 240	401.5 x 298 x 60	8.2	SRC8000040312	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 401.5 x 298 x 60 Weight (kg) 8.2 Art. No SRC8000040312 CAD files dxf stp
SRC 8x4 R40 PRIMED	4	120 x 240	532 x 298 x 60	10.4	SRC8000040412	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 532 x 298 x 60 Weight (kg) 10.4 Art. No SRC8000040412 CAD files dxf stp
SRC 8x5 R40 PRIMED	5	120 x 240	662.5 x 298 x 60	12.6	SRC8000040512	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 662.5 x 298 x 60 Weight (kg) 12.6 Art. No SRC8000040512 CAD files dxf stp
SRC 8x6 R40 PRIMED	6	120 x 240	793 x 298 x 60	14.7	SRC8000040612	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 793 x 298 x 60 Weight (kg) 14.7 Art. No SRC8000040612 CAD files dxf stp
SRC 8+8x1 R40 PRIMED	2	120 x 240	140.5 x 586 x 60	6.8	5SRC000009707	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 140.5 x 586 x 60 Weight (kg) 6.8 Art. No 5SRC000009707 CAD files dxf stp
SRC 8+8x2 R40 PRIMED	4	120 x 240	271 x 596 x 60	12.5	5SRC000010044	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 271 x 596 x 60 Weight (kg) 12.5 Art. No 5SRC000010044 CAD files dxf stp
SRC 8+8x3 R40 PRIMED	6	120 x 240	401.5 x 596 x 60	17.6	5SRC000009322	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 401.5 x 596 x 60 Weight (kg) 17.6 Art. No 5SRC000009322 CAD files dxf stp
SRC 8+8x4 R40 PRIMED	8	120 x 240	532 x 596 x 60	21	5SRC000007527	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 532 x 596 x 60 Weight (kg) 21 Art. No 5SRC000007527 CAD files dxf stp

SRC R40, stainless steel
Name	Frame openings	Packing space (mm)	External dimensions WxHxD (mm)	Weight (kg)	Art. No	CAD files
SRC 4x1 R40 AISI316	1	120 x 120	140.5 x 179.5 x 60	2.8	5SRC000006790	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 140.5 x 179.5 x 60 Weight (kg) 2.8 Art. No 5SRC000006790 CAD files dxf stp
SRC 4x2 R40 AISI316	2	120 x 120	271 x 179.5 x 60	4.4	110284	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 271 x 179.5 x 60 Weight (kg) 4.4 Art. No 110284 CAD files dxf stp
SRC 4x3 R40 AISI316	3	120 x 120	401.5 x 179.5 x 60	6.4	110285	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 401.5 x 179.5 x 60 Weight (kg) 6.4 Art. No 110285 CAD files dxf stp
SRC 4x4 R40 AISI316	4	120 x 120	532 x 179.5 x 60	8.3	110286	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 532 x 179.5 x 60 Weight (kg) 8.3 Art. No 110286 CAD files dxf stp
SRC 4x5 R40 AISI316	5	120 x 120	662.5 x 179.5 x 60	10	114133	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 662.5 x 179.5 x 60 Weight (kg) 10 Art. No 114133 CAD files dxf stp
SRC 4x6 R40 AISI316	6	120 x 120	793 x 179.5 x 60	12	114134	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 793 x 179.5 x 60 Weight (kg) 12 Art. No 114134 CAD files dxf stp
SRC 4x7 R40 AISI316	7	120 x 120	923.5 x 179.5 x 60	15	114135	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 923.5 x 179.5 x 60 Weight (kg) 15 Art. No 114135 CAD files dxf stp
SRC 4x8 R40 AISI316	8	120 x 120	1054 x 179.5 x 60	17.1	114136	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 1054 x 179.5 x 60 Weight (kg) 17.1 Art. No 114136 CAD files dxf stp
SRC 4x9 R40 AISI316	9	120 x 120	1184.5 x 179.5 x 60	19.1	110947	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 1184.5 x 179.5 x 60 Weight (kg) 19.1 Art. No 110947 CAD files dxf stp
SRC 4+4x1 R40 AISI316	2	120 x 120	140.5 x 349 x 60	5.1	111483	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 140.5 x 349 x 60 Weight (kg) 5.1 Art. No 111483 CAD files dxf stp
SRC 4+4x2 R40 AISI316	4	120 x 120	271 x 359 x 60	9.8	111473	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 271 x 359 x 60 Weight (kg) 9.8 Art. No 111473 CAD files dxf stp
SRC 4+4x4 R40 AISI316	8	120 x 120	532 x 359 x 60	17.9	111475	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 532 x 359 x 60 Weight (kg) 17.9 Art. No 111475 CAD files dxf stp
SRC 4+4x5 R40 AISI316	10	120 x 120	662.5 x 359 x 60	22	114139	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 662.5 x 359 x 60 Weight (kg) 22 Art. No 114139 CAD files dxf stp
SRC 4+4x6 R40 AISI316	12	120 x 120	793 x 359 x 60	26	114140	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 793 x 359 x 60 Weight (kg) 26 Art. No 114140 CAD files dxf stp
SRC 6x1 R40 AISI316	1	120 x 180	140.5 x 238 x 60	3	5SRC000010300	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 140.5 x 238 x 60 Weight (kg) 3 Art. No 5SRC000010300 CAD files dxf stp
SRC 6x2 R40 AISI316	2	120 x 180	271 x 238 x 60	5.1	5SRC000010299	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 271 x 238 x 60 Weight (kg) 5.1 Art. No 5SRC000010299 CAD files dxf stp
SRC 6x3 R40 AISI316	3	120 x 180	401.5 x 238 x 60	7.4	5SRC000010298	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 401.5 x 238 x 60 Weight (kg) 7.4 Art. No 5SRC000010298 CAD files dxf stp
SRC 6x4 R40 AISI316	4	120 x 180	532 x 238 x 60	9.5	5SRC000010297	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 532 x 238 x 60 Weight (kg) 9.5 Art. No 5SRC000010297 CAD files dxf stp
SRC 6x5 R40 AISI316	5	120 x 180	662.5 x 238 x 60	11.9	109839	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 662.5 x 238 x 60 Weight (kg) 11.9 Art. No 109839 CAD files dxf stp
SRC 6x6 R40 AISI316	6	120 x 180	793 x 238 x 60	14.2	109485	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 793 x 238 x 60 Weight (kg) 14.2 Art. No 109485 CAD files dxf stp
SRC 6x7 R40 AISI316	7	120 x 180	923.5 x 238 x 60	16.5	110287	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 923.5 x 238 x 60 Weight (kg) 16.5 Art. No 110287 CAD files dxf stp
SRC 6x8 R40 AISI316	8	120 x 180	1054 x 238 x 60	18	104247	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 1054 x 238 x 60 Weight (kg) 18 Art. No 104247 CAD files dxf stp
SRC 6x9 R40 AISI316	9	120 x 180	1184.5 x 238 x 60	21.9	110948	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 1184.5 x 238 x 60 Weight (kg) 21.9 Art. No 110948 CAD files dxf stp
SRC 6+6x1 R40 AISI316	2	120 x 180	140.5 x 466 x 60	6.3	111484	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 140.5 x 466 x 60 Weight (kg) 6.3 Art. No 111484 CAD files dxf stp
SRC 6+6x2 R40 AISI316	4	120 x 180	271 x 476 x 60	11.5	111476	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 271 x 476 x 60 Weight (kg) 11.5 Art. No 111476 CAD files dxf stp
SRC 6+6x3 R40 AISI316	6	120 x 180	401.5 x 476 x 60	16.1	111477	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 401.5 x 476 x 60 Weight (kg) 16.1 Art. No 111477 CAD files dxf stp
SRC 6+6x4 R40 AISI316	8	120 x 180	532 x 476 x 60	21	107714	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 532 x 476 x 60 Weight (kg) 21 Art. No 107714 CAD files dxf stp
SRC 6+6x5 R40 AISI316	10	120 x 180	662.5 x 476 x 60	25.3	111478	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 662.5 x 476 x 60 Weight (kg) 25.3 Art. No 111478 CAD files dxf stp
SRC 6+6x6 R40 AISI316	12	120 x 180	793 x 476 x 60	29.9	111479	dxf stp
Packing space (mm) 120 x 180 External dimensions WxHxD (mm) 793 x 476 x 60 Weight (kg) 29.9 Art. No 111479 CAD files dxf stp
SRC 8x1 R40 AISI316	1	120 x 240	140.5 x 298 x 60	4.1	114184	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 140.5 x 298 x 60 Weight (kg) 4.1 Art. No 114184 CAD files dxf stp
SRC 8x2 R40 AISI316	2	120 x 240	271 x 298 x 60	6.1	5SRC000012331
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 271 x 298 x 60 Weight (kg) 6.1 Art. No 5SRC000012331 CAD files
SRC 8x3 R40 AISI316	3	120 x 240	401.5 x 298 x 60	8.6	5SRC000012730	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 401.5 x 298 x 60 Weight (kg) 8.6 Art. No 5SRC000012730 CAD files dxf stp
SRC 8x4 R40 AISI316	4	120 x 240	532 x 298 x 60	11.1	5SRC000012368	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 532 x 298 x 60 Weight (kg) 11.1 Art. No 5SRC000012368 CAD files dxf stp
SRC 8x5 R40 AISI316	5	120 x 240	662.5 x 298 x 60	13.9	5SRC000012731	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 662.5 x 298 x 60 Weight (kg) 13.9 Art. No 5SRC000012731 CAD files dxf stp
SRC 8x6 R40 AISI316	6	120 x 240	793 x 298 x 60	16.1	5SRC000012720	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 793 x 298 x 60 Weight (kg) 16.1 Art. No 5SRC000012720 CAD files dxf stp
SRC 8+8x1 R40 AISI316	2	120 x 240	140.5 x 586 x 60	7.4	111485	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 140.5 x 586 x 60 Weight (kg) 7.4 Art. No 111485 CAD files dxf stp
SRC 8+8x2 R40 AISI316	4	120 x 240	271 x 596 x 60	13.3	111480	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 271 x 596 x 60 Weight (kg) 13.3 Art. No 111480 CAD files dxf stp
SRC 8+8x3 R40 AISI316	6	120 x 240	401.5 x 596 x 60	17.5	110535	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 401.5 x 596 x 60 Weight (kg) 17.5 Art. No 110535 CAD files dxf stp
SRC 8+8x4 R40 AISI316	8	120 x 240	532 x 596 x 60	23.6	111481	dxf stp
Packing space (mm) 120 x 240 External dimensions WxHxD (mm) 532 x 596 x 60 Weight (kg) 23.6 Art. No 111481 CAD files dxf stp
SRC 4+4x3 R40 AISI316	6	120 x 120	401.5 x 359 x 60	13.9	111474	dxf stp
Packing space (mm) 120 x 120 External dimensions WxHxD (mm) 401.5 x 359 x 60 Weight (kg) 13.9 Art. No 111474 CAD files dxf stp

Smart engineering tool

Do you need our help?

Contact our head office:

Roxtec SRC frame

Information drawings

S1005541 (A) SRC FRAME COMBINATION FRAME R40

S1005535 (A) SRC FRAME COMBINATION FRAME R20

S1005537 (A) SRC FRAME + COMBINATION FRAME R20

S1005543 (A) SRC FRAME + COMBINATION FRAME R40

S1005542 (A) SRC FRAME + SINGLE FRAME R40

S1005536 (A) SRC FRAME + SINGLE FRAME R20

S1005540 (B) SRC FRAME SINGLE FRAME R40

S1005534 (A) SRC FRAME SINGLE FRAME R20

Installation instructions

INST INSTRUCTION SRC

Certificates

Component articles

Americas

Europe

Africa/Middle East

Asia/Pacific
