Roxtec GHM frame

The Roxtec GHM frame is designed for installation where welding is not suitable. The frame is drilled for bolting according to standardized hole patterns and sealed to the structure with a TSL sealing strip.

  • To be used with corresponding Roxtec components to form a complete sealing solution
  • Attachment by bolting

Component articles

Galvanized mild steel
Name Frame openings Packing space (mm) External dimensions WxHxD (mm) Weight (kg) Art. No CAD files
GHM 1x1 GALV INCL TSL 15x6 1 60 x 60 192.5 x 233 x 60 2.9 125337
dxf
stp
  • Packing space (mm) 60 x 60
  • External dimensions WxHxD (mm) 192.5 x 233 x 60
  • Weight (kg) 2.9
  • Art. No 125337
  • CAD files
    dxf
    stp
GHM 1+1x1 GALV INCL TSL 15x6 2 60 x 60 192.5 x 344 x 60 4.3 112771
dxf
stp
  • Packing space (mm) 60 x 60
  • External dimensions WxHxD (mm) 192.5 x 344 x 60
  • Weight (kg) 4.3
  • Art. No 112771
  • CAD files
    dxf
    stp
GHM 2x1 GALV INCL TSL 15x6 1 120 x 60 252.5 x 233 x 60 3.4 5GHM000006803
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 252.5 x 233 x 60
  • Weight (kg) 3.4
  • Art. No 5GHM000006803
  • CAD files
    dxf
    stp
GHM 2x2 GALV INCL TSL 15x6 2 120 x 60 383 x 233 x 60 5.6 GHM2000000215
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 383 x 233 x 60
  • Weight (kg) 5.6
  • Art. No GHM2000000215
  • CAD files
    dxf
    stp
GHM 2x3 GALV INCL TSL 15x6 3 120 x 60 513.5 x 233 x 60 7.5 GHM2000000315
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 513.5 x 233 x 60
  • Weight (kg) 7.5
  • Art. No GHM2000000315
  • CAD files
    dxf
    stp
GHM 2+2x1 GALV INCL TSL 15x6 2 120 x 60 252.5 x 344 x 60 5.5 112787
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 252.5 x 344 x 60
  • Weight (kg) 5.5
  • Art. No 112787
  • CAD files
    dxf
    stp
GHM 3x1 GALV INCL TSL 15x6 1 60 x 120 192.5 x 291.5 x 60 3.7 105874
dxf
stp
  • Packing space (mm) 60 x 120
  • External dimensions WxHxD (mm) 192.5 x 291.5 x 60
  • Weight (kg) 3.7
  • Art. No 105874
  • CAD files
    dxf
    stp
GHM 3+3x1 GALV INCL TSL 15x6 2 60 x 120 192.5 x 461 x 60 5.6 112817
dxf
stp
  • Packing space (mm) 60 x 120
  • External dimensions WxHxD (mm) 192.5 x 461 x 60
  • Weight (kg) 5.6
  • Art. No 112817
  • CAD files
    dxf
    stp
GHM 4x1 GALV INCL TSL 15x6 1 120 x 120 252.5 x 291.5 x 60 3.9 5GHM000005427
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 252.5 x 291.5 x 60
  • Weight (kg) 3.9
  • Art. No 5GHM000005427
  • CAD files
    dxf
    stp
GHM 4x2 GALV INCL TSL 15x6 2 120 x 120 383 x 291.5 x 60 6.4 5GHM000005044
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 383 x 291.5 x 60
  • Weight (kg) 6.4
  • Art. No 5GHM000005044
  • CAD files
    dxf
    stp
GHM 4x3 GALV INCL TSL 15x6 3 120 x 120 513.5 x 291.5 x 60 9 5GHM000013404
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 513.5 x 291.5 x 60
  • Weight (kg) 9
  • Art. No 5GHM000013404
  • CAD files
    dxf
    stp
GHM 4+4x1 GALV INCL TSL 15x6 2 120 x 120 252.5 x 461 x 60 6.5 112830
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 252.5 x 461 x 60
  • Weight (kg) 6.5
  • Art. No 112830
  • CAD files
    dxf
    stp
GHM 5x1 GALV INCL TSL 15x6 1 60 x 180 192.5 x 350 x 60 4.1 112857
dxf
stp
  • Packing space (mm) 60 x 180
  • External dimensions WxHxD (mm) 192.5 x 350 x 60
  • Weight (kg) 4.1
  • Art. No 112857
  • CAD files
    dxf
    stp
GHM 5+5x1 GALV INCL TSL 15x6 2 60 x 180 192.5 x 578 x 60 6.9 112858
dxf
stp
  • Packing space (mm) 60 x 180
  • External dimensions WxHxD (mm) 192.5 x 578 x 60
  • Weight (kg) 6.9
  • Art. No 112858
  • CAD files
    dxf
    stp
GHM 6x1 GALV INCL TSL 15x6 1 120 x 180 252.5 x 350 x 60 4.5 5GHM000004089
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 252.5 x 350 x 60
  • Weight (kg) 4.5
  • Art. No 5GHM000004089
  • CAD files
    dxf
    stp
GHM 6x2 GALV INCL TSL 15x6 2 120 x 180 383 x 350 x 60 7.7 5GHM000006300
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 383 x 350 x 60
  • Weight (kg) 7.7
  • Art. No 5GHM000006300
  • CAD files
    dxf
    stp
GHM 6x3 GALV INCL TSL 15x6 3 120 x 180 513.5 x 350 x 60 10.5 5GHM000004091
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 513.5 x 350 x 60
  • Weight (kg) 10.5
  • Art. No 5GHM000004091
  • CAD files
    dxf
    stp

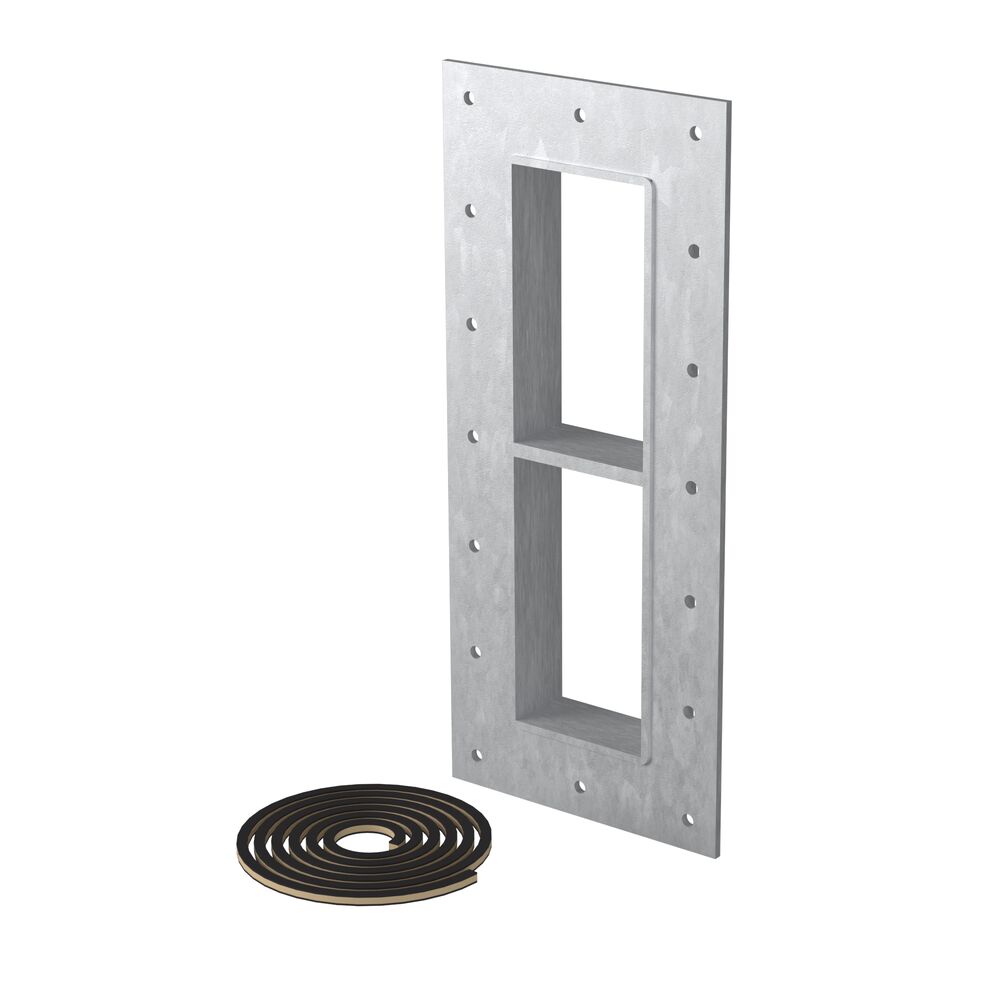

GHM 6+6x1 GALV INCL TSL 15x6 2 120 x 180 252.5 x 578 x 60 8 161632
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 252.5 x 578 x 60
  • Weight (kg) 8
  • Art. No 161632
  • CAD files
GHM 7x1 GALV INCL TSL 15x6 1 60 x 240 192.5 x 410 x 60 4.7 112897
dxf
stp
  • Packing space (mm) 60 x 240
  • External dimensions WxHxD (mm) 192.5 x 410 x 60
  • Weight (kg) 4.7
  • Art. No 112897
  • CAD files
    dxf
    stp
GHM 7+7x1 GALV INCL TSL 15x6 2 60 x 240 192.5 x 698 x 60 8.2 112898
dxf
stp
  • Packing space (mm) 60 x 240
  • External dimensions WxHxD (mm) 192.5 x 698 x 60
  • Weight (kg) 8.2
  • Art. No 112898
  • CAD files
    dxf
    stp
GHM 8x1 GALV INCL TSL 15x6 1 120 x 240 252.5 x 410 x 60 5.4 GHM8000000115
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 252.5 x 410 x 60
  • Weight (kg) 5.4
  • Art. No GHM8000000115
  • CAD files
    dxf
    stp
GHM 8x2 GALV INCL TSL 15x6 2 120 x 240 383 x 410 x 60 8.4 GHM8000000215
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 383 x 410 x 60
  • Weight (kg) 8.4
  • Art. No GHM8000000215
  • CAD files
    dxf
    stp
GHM 8x3 GALV INCL TSL 15x6 3 120 x 240 513.5 x 410 x 60 11.7 5GHM000003218
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 513.5 x 410 x 60
  • Weight (kg) 11.7
  • Art. No 5GHM000003218
  • CAD files
    dxf
    stp
GHM 8+8x1 GALV INCL TSL 15x6 2 120 x 240 252.5 x 698 x 60 9.2 5GHM000013402
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 252.5 x 698 x 60
  • Weight (kg) 9.2
  • Art. No 5GHM000013402
  • CAD files
    dxf
    stp
Primed mild steel
Name Frame openings Packing space (mm) External dimensions WxHxD (mm) Weight (kg) Art. No CAD files
GHM 1x1 PRIMED INCL TSL 15x6 1 60 x 60 192.5 x 233 x 60 0.07 112936
dxf
stp
  • Packing space (mm) 60 x 60
  • External dimensions WxHxD (mm) 192.5 x 233 x 60
  • Weight (kg) 0.07
  • Art. No 112936
  • CAD files
    dxf
    stp
GHM 1x2 PRIMED INCL TSL 15x6 2 60 x 60 263 x 233 x 60 0 119445
  • Packing space (mm) 60 x 60
  • External dimensions WxHxD (mm) 263 x 233 x 60
  • Weight (kg) 0
  • Art. No 119445
  • CAD files
GHM 1+1x1 PRIMED INCL TSL 15x6 2 60 x 60 192.5 x 344 x 60 4.3 112937
dxf
stp
  • Packing space (mm) 60 x 60
  • External dimensions WxHxD (mm) 192.5 x 344 x 60
  • Weight (kg) 4.3
  • Art. No 112937
  • CAD files
    dxf
    stp
GHM 2x1 PRIMED INCL TSL 15x6 1 120 x 60 252.5 x 233 x 60 3.2 GHM2000000112
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 252.5 x 233 x 60
  • Weight (kg) 3.2
  • Art. No GHM2000000112
  • CAD files
    dxf
    stp
GHM 2x2 PRIMED INCL TSL 15x6 2 120 x 60 383 x 233 x 60 5.5 GHM2000000212
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 383 x 233 x 60
  • Weight (kg) 5.5
  • Art. No GHM2000000212
  • CAD files
    dxf
    stp
GHM 2x3 PRIMED INCL TSL 15x6 3 120 x 60 513.5 x 233 x 60 7.6 GHM2000000312
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 513.5 x 233 x 60
  • Weight (kg) 7.6
  • Art. No GHM2000000312
  • CAD files
    dxf
    stp
GHM 2+2x1 PRIMED INCL TSL 15x6 2 120 x 60 252.5 x 344 x 60 5.2 112952
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 252.5 x 344 x 60
  • Weight (kg) 5.2
  • Art. No 112952
  • CAD files
    dxf
    stp
GHM 3x1 PRIMED INCL TSL 15x6 1 60 x 120 192.5 x 291.5 x 60 161527
  • Packing space (mm) 60 x 120
  • External dimensions WxHxD (mm) 192.5 x 291.5 x 60
  • Weight (kg)
  • Art. No 161527
  • CAD files
GHM 3+3x1 PRIMED INCL TSL 15x6 2 60 x 120 192.5 x 461 x 60 5.6 112983
dxf
stp
  • Packing space (mm) 60 x 120
  • External dimensions WxHxD (mm) 192.5 x 461 x 60
  • Weight (kg) 5.6
  • Art. No 112983
  • CAD files
    dxf
    stp
GHM 4x1 PRIMED INCL TSL 15x6 1 120 x 120 252.5 x 291.5 x 60 3.9 GHM4000000112
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 252.5 x 291.5 x 60
  • Weight (kg) 3.9
  • Art. No GHM4000000112
  • CAD files
    dxf
    stp
GHM 4x2 PRIMED INCL TSL 15x6 2 120 x 120 383 x 291.5 x 60 6.4 GHM4000000212
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 383 x 291.5 x 60
  • Weight (kg) 6.4
  • Art. No GHM4000000212
  • CAD files
    dxf
    stp
GHM 4x3 PRIMED INCL TSL 15x6 3 120 x 120 513.5 x 291.5 x 60 8.9 GHM4000000312
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 513.5 x 291.5 x 60
  • Weight (kg) 8.9
  • Art. No GHM4000000312
  • CAD files
    dxf
    stp

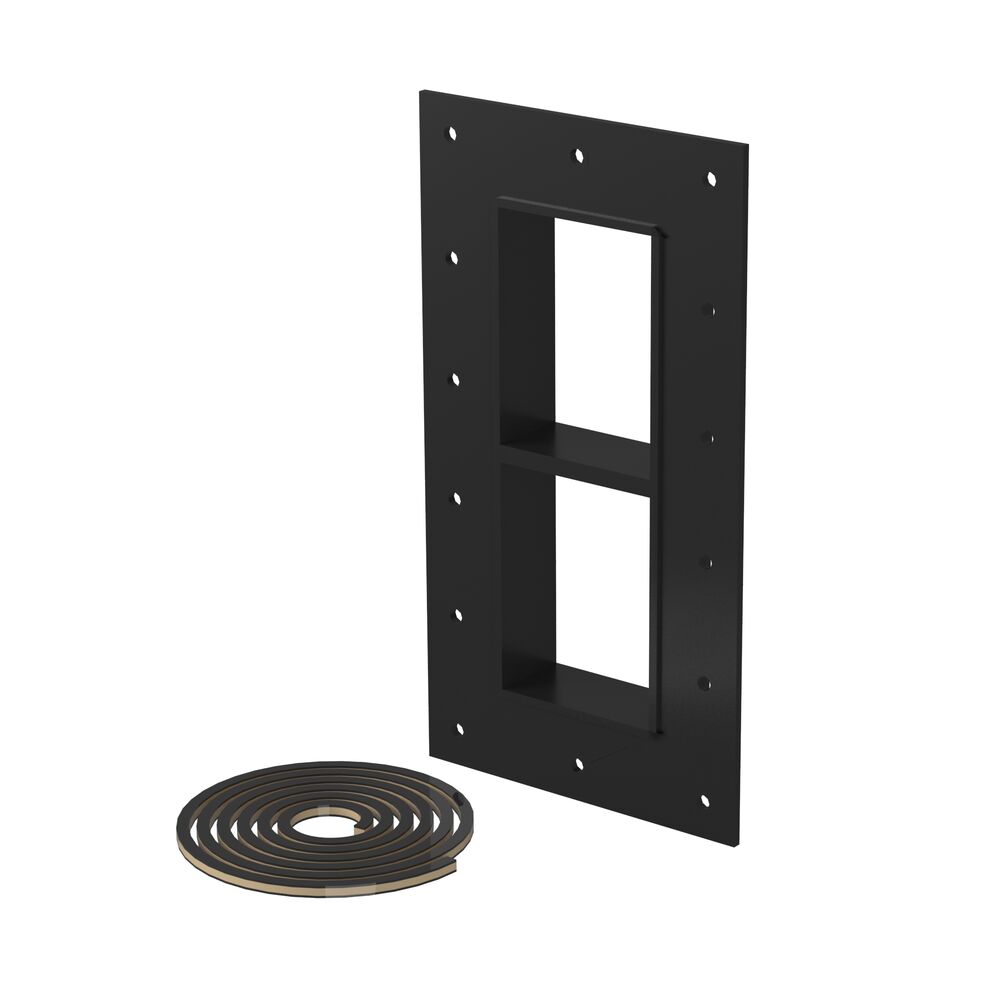

GHM 4+4x1 PRIMED INCL TSL 15x6 2 120 x 120 252.5 x 461 x 60 6.5 161536
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 252.5 x 461 x 60
  • Weight (kg) 6.5
  • Art. No 161536
  • CAD files
GHM 5x1 PRIMED INCL TSL 15x6 1 60 x 180 192.5 x 350 x 60 3.9 110064
dxf
stp
  • Packing space (mm) 60 x 180
  • External dimensions WxHxD (mm) 192.5 x 350 x 60
  • Weight (kg) 3.9
  • Art. No 110064
  • CAD files
    dxf
    stp
GHM 5x2 PRIMED INCL TSL 15x6 2 60 x 180 263 x 350 x 60 0 121526
  • Packing space (mm) 60 x 180
  • External dimensions WxHxD (mm) 263 x 350 x 60
  • Weight (kg) 0
  • Art. No 121526
  • CAD files
GHM 5+5x1 PRIMED INCL TSL 15x6 2 60 x 180 192.5 x 578 x 60 6.9 113025
dxf
stp
  • Packing space (mm) 60 x 180
  • External dimensions WxHxD (mm) 192.5 x 578 x 60
  • Weight (kg) 6.9
  • Art. No 113025
  • CAD files
    dxf
    stp
GHM 6x1 PRIMED INCL TSL 15x6 1 120 x 180 252.5 x 350 x 60 4.9 GHM6000000112
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 252.5 x 350 x 60
  • Weight (kg) 4.9
  • Art. No GHM6000000112
  • CAD files
    dxf
    stp
GHM 6x2 PRIMED INCL TSL 15x6 2 120 x 180 383 x 350 x 60 7.4 GHM6000000212
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 383 x 350 x 60
  • Weight (kg) 7.4
  • Art. No GHM6000000212
  • CAD files
    dxf
    stp
GHM 6x3 PRIMED INCL TSL 15x6 3 120 x 180 513.5 x 350 x 60 9.9 GHM6000000312
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 513.5 x 350 x 60
  • Weight (kg) 9.9
  • Art. No GHM6000000312
  • CAD files
    dxf
    stp
GHM 6+6x1 PRIMED INCL TSL 15x6 2 120 x 180 252.5 x 578 x 60 8.3 5GHM000005946
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 252.5 x 578 x 60
  • Weight (kg) 8.3
  • Art. No 5GHM000005946
  • CAD files
    dxf
    stp
GHM 7x1 PRIMED INCL TSL 15x6 1 60 x 240 192.5 x 410 x 60 4.7 113059
dxf
stp
  • Packing space (mm) 60 x 240
  • External dimensions WxHxD (mm) 192.5 x 410 x 60
  • Weight (kg) 4.7
  • Art. No 113059
  • CAD files
    dxf
    stp
GHM 7+7x1 PRIMED INCL TSL 15x6 2 60 x 240 192.5 x 698 x 60 8.2 113060
dxf
stp
  • Packing space (mm) 60 x 240
  • External dimensions WxHxD (mm) 192.5 x 698 x 60
  • Weight (kg) 8.2
  • Art. No 113060
  • CAD files
    dxf
    stp
GHM 8x1 PRIMED INCL TSL 15x6 1 120 x 240 252.5 x 410 x 60 5.1 5GHM000004474
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 252.5 x 410 x 60
  • Weight (kg) 5.1
  • Art. No 5GHM000004474
  • CAD files
    dxf
    stp
GHM 8x2 PRIMED INCL TSL 15x6 2 120 x 240 383 x 410 x 60 8.8 5GHM000006808
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 383 x 410 x 60
  • Weight (kg) 8.8
  • Art. No 5GHM000006808
  • CAD files
    dxf
    stp
GHM 8x3 PRIMED INCL TSL 15x6 3 120 x 240 513.5 x 410 x 60 11.3 5GHM000006807
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 513.5 x 410 x 60
  • Weight (kg) 11.3
  • Art. No 5GHM000006807
  • CAD files
    dxf
    stp

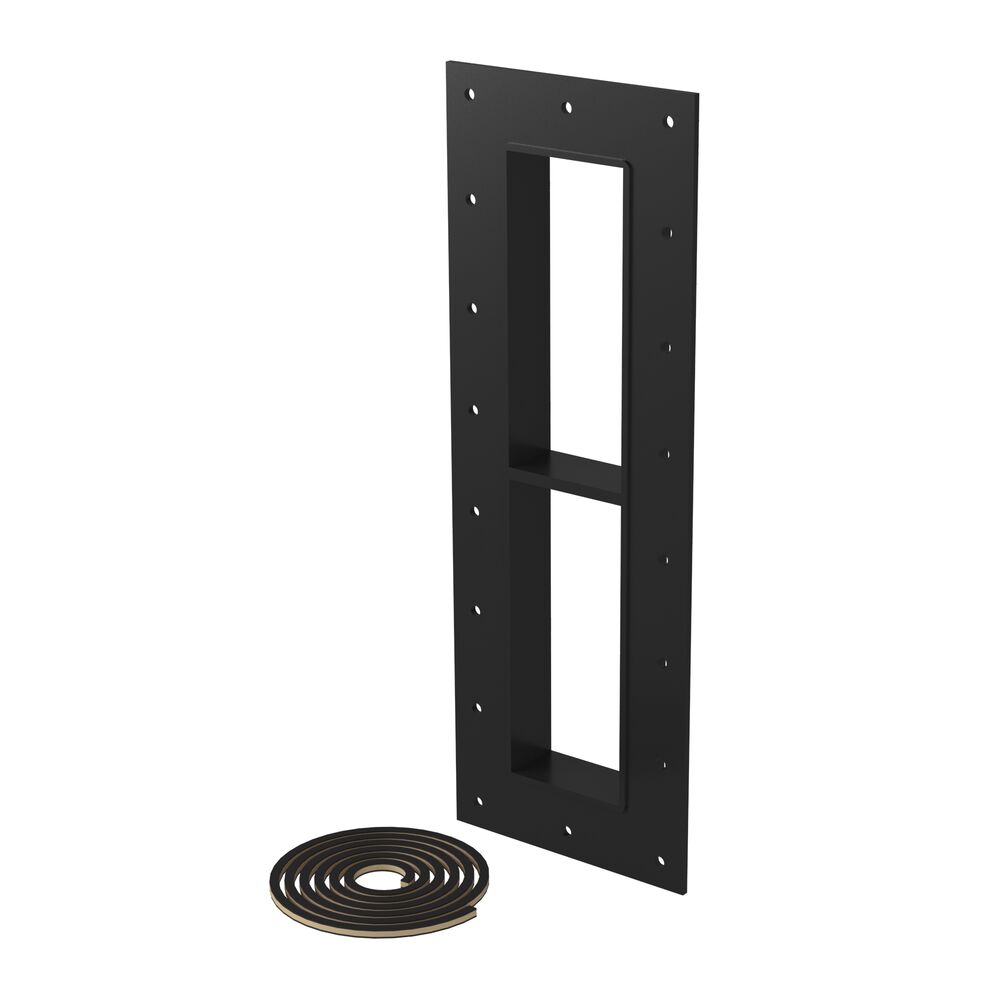

GHM 8+8x1 PRIMED INCL TSL 15x6 2 120 x 240 252.5 x 698 x 60 9.4 161574
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 252.5 x 698 x 60
  • Weight (kg) 9.4
  • Art. No 161574
  • CAD files
Stainless steel
Name Frame openings Packing space (mm) External dimensions WxHxD (mm) Weight (kg) Art. No CAD files
GHM 1x1 AISI316 INCL TSL 15x6 1 60 x 60 192.5 x 233 x 60 0.07 108064
dxf
stp
  • Packing space (mm) 60 x 60
  • External dimensions WxHxD (mm) 192.5 x 233 x 60
  • Weight (kg) 0.07
  • Art. No 108064
  • CAD files
    dxf
    stp
GHM 1+1x1 AISI316 INCL TSL 15x6 2 60 x 60 192.5 x 344 x 60 4.4 113099
dxf
stp
  • Packing space (mm) 60 x 60
  • External dimensions WxHxD (mm) 192.5 x 344 x 60
  • Weight (kg) 4.4
  • Art. No 113099
  • CAD files
    dxf
    stp
GHM 2x2 AISI316 INCL TSL 15x6 2 120 x 60 383 x 233 x 60 5.4 151674
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 383 x 233 x 60
  • Weight (kg) 5.4
  • Art. No 151674
  • CAD files
GHM 2x3 AISI316 INCL TSL 15x6 3 120 x 60 513.5 x 233 x 60 7.5 109390
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 513.5 x 233 x 60
  • Weight (kg) 7.5
  • Art. No 109390
  • CAD files
    dxf
    stp
GHM 2+2x1 AISI316 INCL TSL 15x6 2 120 x 60 252.5 x 344 x 60 5.4 113114
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 252.5 x 344 x 60
  • Weight (kg) 5.4
  • Art. No 113114
  • CAD files
    dxf
    stp
GHM 3x1 AISI316 INCL TSL 15x6 1 60 x 120 192.5 x 291.5 x 60 0.07 113145
dxf
stp
  • Packing space (mm) 60 x 120
  • External dimensions WxHxD (mm) 192.5 x 291.5 x 60
  • Weight (kg) 0.07
  • Art. No 113145
  • CAD files
    dxf
    stp
GHM 3+3x1 AISI316 INCL TSL 15x6 2 60 x 120 192.5 x 461 x 60 5.7 113146
dxf
stp
  • Packing space (mm) 60 x 120
  • External dimensions WxHxD (mm) 192.5 x 461 x 60
  • Weight (kg) 5.7
  • Art. No 113146
  • CAD files
    dxf
    stp
GHM 4x1 AISI316 INCL TSL 15x6 1 120 x 120 252.5 x 291.5 x 60 3.9 5GHM000003380
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 252.5 x 291.5 x 60
  • Weight (kg) 3.9
  • Art. No 5GHM000003380
  • CAD files
    dxf
    stp
GHM 4x2 AISI316 INCL TSL 15x6 2 120 x 120 383 x 291.5 x 60 6.4 110624
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 383 x 291.5 x 60
  • Weight (kg) 6.4
  • Art. No 110624
  • CAD files
    dxf
    stp
GHM 4x3 AISI316 INCL TSL 15x6 3 120 x 120 513.5 x 291.5 x 60 9 GHM4000000321
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 513.5 x 291.5 x 60
  • Weight (kg) 9
  • Art. No GHM4000000321
  • CAD files
    dxf
    stp
GHM 4+4x1 AISI316 INCL TSL 15x6 2 120 x 120 252.5 x 461 x 60 6.8 107609
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 252.5 x 461 x 60
  • Weight (kg) 6.8
  • Art. No 107609
  • CAD files
    dxf
    stp
GHM 5x1 AISI316 INCL TSL 15x6 1 60 x 180 192.5 x 350 x 60 3.2 113189
dxf
stp
  • Packing space (mm) 60 x 180
  • External dimensions WxHxD (mm) 192.5 x 350 x 60
  • Weight (kg) 3.2
  • Art. No 113189
  • CAD files
    dxf
    stp
GHM 5x2 AISI316 INCL TSL 15x6 2 60 x 180 263 x 350 x 60 159788
  • Packing space (mm) 60 x 180
  • External dimensions WxHxD (mm) 263 x 350 x 60
  • Weight (kg)
  • Art. No 159788
  • CAD files
GHM 5+5x1 AISI316 INCL TSL 15x6 2 60 x 180 192.5 x 578 x 60 7.1 113190
dxf
stp
  • Packing space (mm) 60 x 180
  • External dimensions WxHxD (mm) 192.5 x 578 x 60
  • Weight (kg) 7.1
  • Art. No 113190
  • CAD files
    dxf
    stp
GHM 6x1 AISI316 INCL TSL 15x6 1 120 x 180 252.5 x 350 x 60 4.9 5GHM000004746
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 252.5 x 350 x 60
  • Weight (kg) 4.9
  • Art. No 5GHM000004746
  • CAD files
    dxf
    stp
GHM 6x2 AISI316 INCL TSL 15x6 2 120 x 180 383 x 350 x 60 7.4 5GHM000004027
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 383 x 350 x 60
  • Weight (kg) 7.4
  • Art. No 5GHM000004027
  • CAD files
    dxf
    stp
GHM 6x3 AISI 316 INCL TSL 15x6 3 120 x 180 513.5 x 350 x 60 9.9 5GHM000004044
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 513.5 x 350 x 60
  • Weight (kg) 9.9
  • Art. No 5GHM000004044
  • CAD files
    dxf
    stp
GHM 6+6x1 AISI316 INCL TSL 15x6 2 120 x 180 252.5 x 578 x 60 7.8 5GHM660000121
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 252.5 x 578 x 60
  • Weight (kg) 7.8
  • Art. No 5GHM660000121
  • CAD files
    dxf
    stp
GHM 7x1 AISI316 INCL TSL 15x6 1 60 x 240 192.5 x 410 x 60 4.8 113227
dxf
stp
  • Packing space (mm) 60 x 240
  • External dimensions WxHxD (mm) 192.5 x 410 x 60
  • Weight (kg) 4.8
  • Art. No 113227
  • CAD files
    dxf
    stp
GHM 7+7x1 AISI316 INCL TSL 15x6 2 60 x 240 192.5 x 698 x 60 8.5 113228
dxf
stp
  • Packing space (mm) 60 x 240
  • External dimensions WxHxD (mm) 192.5 x 698 x 60
  • Weight (kg) 8.5
  • Art. No 113228
  • CAD files
    dxf
    stp
GHM 8x1 AISI316 INCL TSL 15x6 1 120 x 240 252.5 x 410 x 60 5.8 5GHM000003386
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 252.5 x 410 x 60
  • Weight (kg) 5.8
  • Art. No 5GHM000003386
  • CAD files
    dxf
    stp
GHM 8x2 AISI316 INCL TSL 15x6 2 120 x 240 383 x 410 x 60 8.4 5GHM000007398
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 383 x 410 x 60
  • Weight (kg) 8.4
  • Art. No 5GHM000007398
  • CAD files
    dxf
    stp
GHM 8x3 AISI316 INCL TSL 15x6 3 120 x 240 513.5 x 410 x 60 11.1 104542
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 513.5 x 410 x 60
  • Weight (kg) 11.1
  • Art. No 104542
  • CAD files
    dxf
    stp
GHM 8+8x1 AISI316 INCL TSL 15x6 2 120 x 240 252.5 x 698 x 60 9.4 110629
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 252.5 x 698 x 60
  • Weight (kg) 9.4
  • Art. No 110629
  • CAD files
    dxf
    stp
