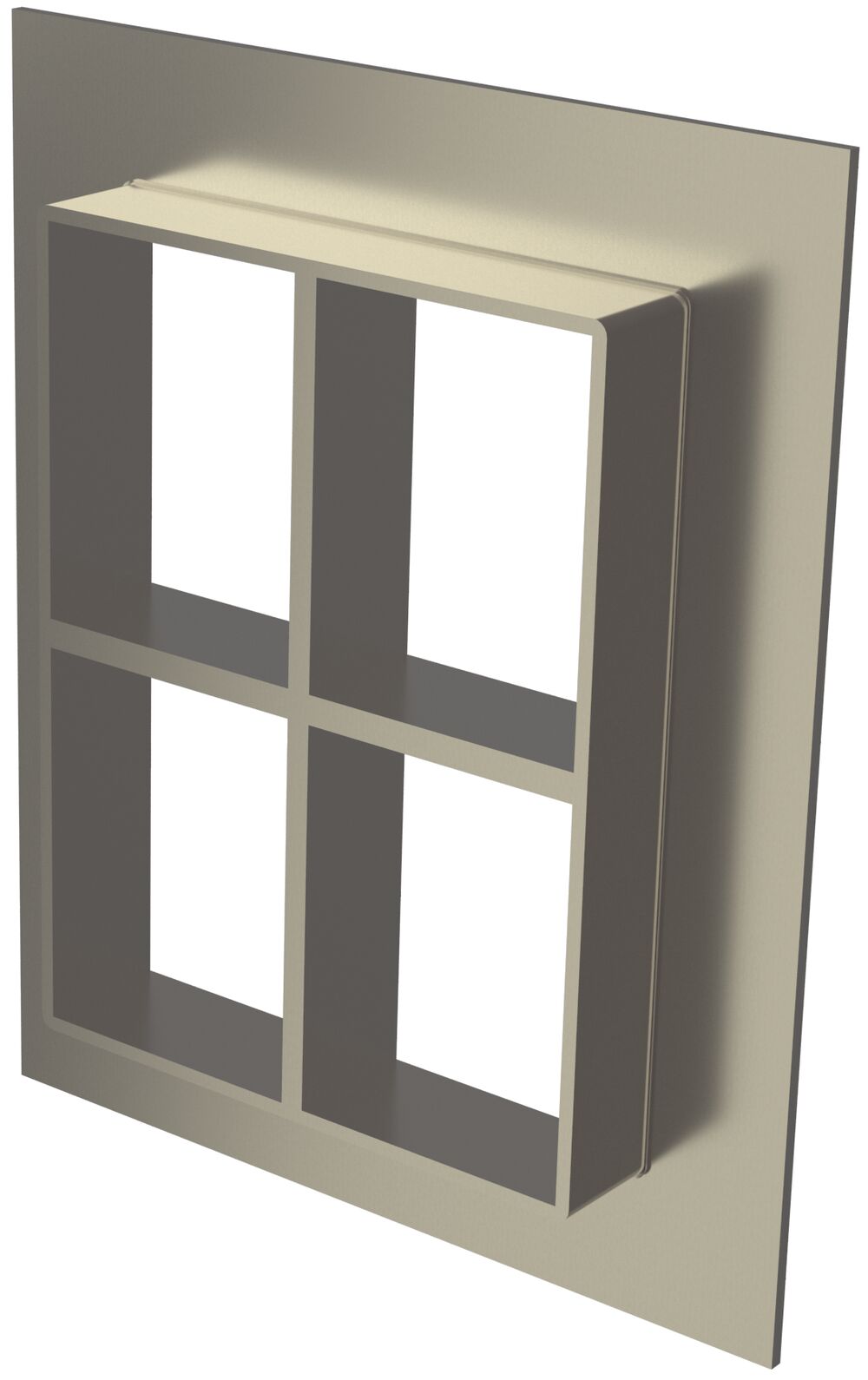

Roxtec G frame

The Roxtec G frame is a metal frame with flange available with a single opening or in combinations with several openings in width and/or height.

  • To be used with corresponding Roxtec components to form a complete sealing solution
  • Attachment by casting or welding
  • Casting mold accessory available
  • GE extension frame accessory available

Component articles

Galvanized mild steel
Name Frame openings Packing space (mm) External dimensions WxHxD (mm) Weight (kg) Art. No CAD files
G 1x1 GALV 1 60 x 60 192.5 x 233 x 60 2.6 5G00000007464
dxf
stp
  • Packing space (mm) 60 x 60
  • External dimensions WxHxD (mm) 192.5 x 233 x 60
  • Weight (kg) 2.6
  • Art. No 5G00000007464
  • CAD files
    dxf
    stp
G 1+1x1 GALV 2 60 x 60 192.5 x 344 x 60 4.3 112682
dxf
stp
  • Packing space (mm) 60 x 60
  • External dimensions WxHxD (mm) 192.5 x 344 x 60
  • Weight (kg) 4.3
  • Art. No 112682
  • CAD files
    dxf
    stp
G 1+1+1x1 GALV 3 60 x 60 192.5 x 455 x 60 5.8 112683
dxf
stp
  • Packing space (mm) 60 x 60
  • External dimensions WxHxD (mm) 192.5 x 455 x 60
  • Weight (kg) 5.8
  • Art. No 112683
  • CAD files
    dxf
    stp
G 2x1 GALV 1 120 x 60 252.5 x 233 x 60 3.5 G002000000115
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 252.5 x 233 x 60
  • Weight (kg) 3.5
  • Art. No G002000000115
  • CAD files
    dxf
    stp
G 2x2 GALV 2 120 x 60 383 x 233 x 60 5.4 5G00000000066
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 383 x 233 x 60
  • Weight (kg) 5.4
  • Art. No 5G00000000066
  • CAD files
    dxf
    stp
G 2x3 GALV 3 120 x 60 513.5 x 233 x 60 7.9 5G00000000769
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 513.5 x 233 x 60
  • Weight (kg) 7.9
  • Art. No 5G00000000769
  • CAD files
    dxf
    stp
G 2x4 GALV 4 120 x 60 644 x 233 x 60 9.3 5G00000002262
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 644 x 233 x 60
  • Weight (kg) 9.3
  • Art. No 5G00000002262
  • CAD files
    dxf
    stp
G 2x5 GALV 5 120 x 60 774.5 x 233 x 60 11.2 5G00000006410
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 774.5 x 233 x 60
  • Weight (kg) 11.2
  • Art. No 5G00000006410
  • CAD files
    dxf
    stp
G 2x6 GALV 6 120 x 60 905 x 233 x 60 14 5G00000002045
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 905 x 233 x 60
  • Weight (kg) 14
  • Art. No 5G00000002045
  • CAD files
    dxf
    stp
G 2+2x1 GALV 2 120 x 60 252.5 x 344 x 60 5.5 5G00000008078
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 252.5 x 344 x 60
  • Weight (kg) 5.5
  • Art. No 5G00000008078
  • CAD files
    dxf
    stp
G 2+2x2 GALV 4 120 x 60 383 x 346 x 60 9 5G00000007929
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 383 x 346 x 60
  • Weight (kg) 9
  • Art. No 5G00000007929
  • CAD files
    dxf
    stp
G 2+2x3 GALV 6 120 x 60 513.5 x 346 x 60 12.3 G002200000315
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 513.5 x 346 x 60
  • Weight (kg) 12.3
  • Art. No G002200000315
  • CAD files
    dxf
    stp
G 2+2x4 GALV 8 120 x 60 644 x 346 x 60 15.4 G002200000415
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 644 x 346 x 60
  • Weight (kg) 15.4
  • Art. No G002200000415
  • CAD files
    dxf
    stp
G 2+2x5 GALV 10 120 x 60 774.5 x 346 x 60 17.9 112693
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 774.5 x 346 x 60
  • Weight (kg) 17.9
  • Art. No 112693
  • CAD files
    dxf
    stp
G 2+2x6 GALV 12 120 x 60 905 x 346 x 60 22.5 5G00000003468
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 905 x 346 x 60
  • Weight (kg) 22.5
  • Art. No 5G00000003468
  • CAD files
    dxf
    stp
G 2+2+2x1 GALV 3 120 x 60 252.5 x 455 x 60 7.5 112703
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 252.5 x 455 x 60
  • Weight (kg) 7.5
  • Art. No 112703
  • CAD files
    dxf
    stp
G 2+2+2x2 GALV 6 120 x 60 383 x 459 x 60 11.7 112704
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 383 x 459 x 60
  • Weight (kg) 11.7
  • Art. No 112704
  • CAD files
    dxf
    stp
G 2+2+2x3 GALV 9 120 x 60 513.5 x 459 x 60 16 112705
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 513.5 x 459 x 60
  • Weight (kg) 16
  • Art. No 112705
  • CAD files
    dxf
    stp
G 2+2+2x4 GALV 12 120 x 60 644 x 459 x 60 20.4 112706
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 644 x 459 x 60
  • Weight (kg) 20.4
  • Art. No 112706
  • CAD files
    dxf
    stp
G 2+2+2x5 GALV 15 120 x 60 774.5 x 459 x 60 24.7 112707
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 774.5 x 459 x 60
  • Weight (kg) 24.7
  • Art. No 112707
  • CAD files
    dxf
    stp
G 2+2+2x6 GALV 18 120 x 60 905 x 459 x 60 29.1 112708
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 905 x 459 x 60
  • Weight (kg) 29.1
  • Art. No 112708
  • CAD files
    dxf
    stp
G 3x1 GALV 1 60 x 120 192.5 x 291.5 x 60 3.6 5G00000001351
dxf
stp
  • Packing space (mm) 60 x 120
  • External dimensions WxHxD (mm) 192.5 x 291.5 x 60
  • Weight (kg) 3.6
  • Art. No 5G00000001351
  • CAD files
    dxf
    stp
G 3+3x1 GALV 2 60 x 120 192.5 x 461 x 60 6 112719
dxf
stp
  • Packing space (mm) 60 x 120
  • External dimensions WxHxD (mm) 192.5 x 461 x 60
  • Weight (kg) 6
  • Art. No 112719
  • CAD files
    dxf
    stp
G 3+3+3x1 GALV 3 60 x 120 192.5 x 630.5 x 60 7.8 112720
dxf
stp
  • Packing space (mm) 60 x 120
  • External dimensions WxHxD (mm) 192.5 x 630.5 x 60
  • Weight (kg) 7.8
  • Art. No 112720
  • CAD files
    dxf
    stp
G 4x1 GALV 1 120 x 120 252.5 x 291.5 x 60 3.5 G004000000115
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 252.5 x 291.5 x 60
  • Weight (kg) 3.5
  • Art. No G004000000115
  • CAD files
    dxf
    stp
G 4x2 GALV 2 120 x 120 383 x 291.5 x 60 6.3 G004000000215
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 383 x 291.5 x 60
  • Weight (kg) 6.3
  • Art. No G004000000215
  • CAD files
    dxf
    stp
G 4x3 GALV 3 120 x 120 513.5 x 291.5 x 60 8.6 G004000000315
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 513.5 x 291.5 x 60
  • Weight (kg) 8.6
  • Art. No G004000000315
  • CAD files
    dxf
    stp
G 4x4 GALV 4 120 x 120 644 x 291.5 x 60 10.8 G004000000415
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 644 x 291.5 x 60
  • Weight (kg) 10.8
  • Art. No G004000000415
  • CAD files
    dxf
    stp
G 4x5 GALV 5 120 x 120 774.5 x 291.5 x 60 13.1 G004000000515
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 774.5 x 291.5 x 60
  • Weight (kg) 13.1
  • Art. No G004000000515
  • CAD files
    dxf
    stp
G 4x6 GALV 6 120 x 120 905 x 291.5 x 60 15.3 G004000000615
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 905 x 291.5 x 60
  • Weight (kg) 15.3
  • Art. No G004000000615
  • CAD files
    dxf
    stp
G 4+4x1 GALV 2 120 x 120 252.5 x 461 x 60 6.6 G004400000115
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 252.5 x 461 x 60
  • Weight (kg) 6.6
  • Art. No G004400000115
  • CAD files
    dxf
    stp
G 4+4x2 GALV 4 120 x 120 383 x 463 x 60 10.5 5G00000000073
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 383 x 463 x 60
  • Weight (kg) 10.5
  • Art. No 5G00000000073
  • CAD files
    dxf
    stp
G 4+4x3 GALV 6 120 x 120 513.5 x 463 x 60 14.2 5G00000000063
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 513.5 x 463 x 60
  • Weight (kg) 14.2
  • Art. No 5G00000000063
  • CAD files
    dxf
    stp
G 4+4x4 GALV 8 120 x 120 644 x 463 x 60 17.9 5G00000000065
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 644 x 463 x 60
  • Weight (kg) 17.9
  • Art. No 5G00000000065
  • CAD files
    dxf
    stp
G 4+4x5 GALV 10 120 x 120 774.5 x 463 x 60 21.7 5G00000000420
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 774.5 x 463 x 60
  • Weight (kg) 21.7
  • Art. No 5G00000000420
  • CAD files
    dxf
    stp
G 4+4x6 GALV 12 120 x 120 905 x 463 x 60 26 5G00000000426
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 905 x 463 x 60
  • Weight (kg) 26
  • Art. No 5G00000000426
  • CAD files
    dxf
    stp
G 4+4+4x1 GALV 3 120 x 120 252.5 x 630.5 x 60 9.1 G004440000115
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 252.5 x 630.5 x 60
  • Weight (kg) 9.1
  • Art. No G004440000115
  • CAD files
    dxf
    stp
G 4+4+4x2 GALV 6 120 x 120 383 x 634.5 x 60 15 110829
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 383 x 634.5 x 60
  • Weight (kg) 15
  • Art. No 110829
  • CAD files
    dxf
    stp
G 4+4+4x3 GALV 9 120 x 120 513.5 x 634.5 x 60 20.8 5G00000002451
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 513.5 x 634.5 x 60
  • Weight (kg) 20.8
  • Art. No 5G00000002451
  • CAD files
    dxf
    stp
G 4+4+4x4 GALV 12 120 x 120 644 x 634.5 x 60 25 5G00000001418
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 644 x 634.5 x 60
  • Weight (kg) 25
  • Art. No 5G00000001418
  • CAD files
    dxf
    stp
G 4+4+4x5 GALV 15 120 x 120 774.5 x 634.5 x 60 30.3 5G00000001828
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 774.5 x 634.5 x 60
  • Weight (kg) 30.3
  • Art. No 5G00000001828
  • CAD files
    dxf
    stp
G 4+4+4x6 GALV 18 120 x 120 905 x 634.5 x 60 36.8 5G00000001429
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 905 x 634.5 x 60
  • Weight (kg) 36.8
  • Art. No 5G00000001429
  • CAD files
    dxf
    stp
G 5x1 GALV 1 60 x 180 192.5 x 350 x 60 4.3 5G00000009888
dxf
stp
  • Packing space (mm) 60 x 180
  • External dimensions WxHxD (mm) 192.5 x 350 x 60
  • Weight (kg) 4.3
  • Art. No 5G00000009888
  • CAD files
    dxf
    stp
G 5+5x1 GALV 2 60 x 180 192.5 x 578 x 60 7 105953
dxf
stp
  • Packing space (mm) 60 x 180
  • External dimensions WxHxD (mm) 192.5 x 578 x 60
  • Weight (kg) 7
  • Art. No 105953
  • CAD files
    dxf
    stp
G 5+5+5x1 GALV 3 60 x 180 192.5 x 806 x 60 9.7 112737
dxf
stp
  • Packing space (mm) 60 x 180
  • External dimensions WxHxD (mm) 192.5 x 806 x 60
  • Weight (kg) 9.7
  • Art. No 112737
  • CAD files
    dxf
    stp
G 6x1 GALV 1 120 x 180 252.5 x 350 x 60 5 G006000000115
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 252.5 x 350 x 60
  • Weight (kg) 5
  • Art. No G006000000115
  • CAD files
    dxf
    stp
G 6x2 GALV 2 120 x 180 383 x 350 x 60 7.3 G006000000215
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 383 x 350 x 60
  • Weight (kg) 7.3
  • Art. No G006000000215
  • CAD files
    dxf
    stp
G 6x3 GALV 3 120 x 180 513.5 x 350 x 60 9.8 G006000000315
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 513.5 x 350 x 60
  • Weight (kg) 9.8
  • Art. No G006000000315
  • CAD files
    dxf
    stp
G 6x4 GALV 4 120 x 180 644 x 350 x 60 12.3 G006000000415
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 644 x 350 x 60
  • Weight (kg) 12.3
  • Art. No G006000000415
  • CAD files
    dxf
    stp
G 6x5 GALV 5 120 x 180 774.5 x 350 x 60 14.9 G006000000515
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 774.5 x 350 x 60
  • Weight (kg) 14.9
  • Art. No G006000000515
  • CAD files
    dxf
    stp
G 6x6 GALV 6 120 x 180 905 x 350 x 60 17.4 G006000000615
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 905 x 350 x 60
  • Weight (kg) 17.4
  • Art. No G006000000615
  • CAD files
    dxf
    stp
G 6+6x1 GALV 2 120 x 180 252.5 x 578 x 60 8 G006600000115
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 252.5 x 578 x 60
  • Weight (kg) 8
  • Art. No G006600000115
  • CAD files
    dxf
    stp
G 6+6x2 GALV 4 120 x 180 383 x 580 x 60 12.4 5G00000000339
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 383 x 580 x 60
  • Weight (kg) 12.4
  • Art. No 5G00000000339
  • CAD files
    dxf
    stp
G 6+6x3 GALV 6 120 x 180 513.5 x 580 x 60 16.7 5G00000000071
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 513.5 x 580 x 60
  • Weight (kg) 16.7
  • Art. No 5G00000000071
  • CAD files
    dxf
    stp
G 6+6x4 GALV 8 120 x 180 644 x 580 x 60 20.9 5G00000000278
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 644 x 580 x 60
  • Weight (kg) 20.9
  • Art. No 5G00000000278
  • CAD files
    dxf
    stp
G 6+6x5 GALV 10 120 x 180 774.5 x 580 x 60 25.2 5G00000000478
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 774.5 x 580 x 60
  • Weight (kg) 25.2
  • Art. No 5G00000000478
  • CAD files
    dxf
    stp
G 6+6x6 GALV 12 120 x 180 905 x 580 x 60 29.5 5G00000000404
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 905 x 580 x 60
  • Weight (kg) 29.5
  • Art. No 5G00000000404
  • CAD files
    dxf
    stp
G 6+6+6x1 GALV 3 120 x 180 252.5 x 806 x 60 11.1 G006660000115
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 252.5 x 806 x 60
  • Weight (kg) 11.1
  • Art. No G006660000115
  • CAD files
    dxf
    stp
G 6+6+6x2 GALV 6 120 x 180 383 x 810 x 60 18.1 5G00000002266
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 383 x 810 x 60
  • Weight (kg) 18.1
  • Art. No 5G00000002266
  • CAD files
    dxf
    stp
G 6+6+6x3 GALV 9 120 x 180 513.5 x 810 x 60 24.6 5G00000002201
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 513.5 x 810 x 60
  • Weight (kg) 24.6
  • Art. No 5G00000002201
  • CAD files
    dxf
    stp
G 6+6+6x4 GALV 12 120 x 180 644 x 810 x 60 29.5 5G00000005202
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 644 x 810 x 60
  • Weight (kg) 29.5
  • Art. No 5G00000005202
  • CAD files
    dxf
    stp
G 6+6+6x5 GALV 15 120 x 180 774.5 x 810 x 60 35.5 5G00000002312
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 774.5 x 810 x 60
  • Weight (kg) 35.5
  • Art. No 5G00000002312
  • CAD files
    dxf
    stp
G 6+6+6x6 GALV 18 120 x 180 905 x 810 x 60 41.6 5G00000002122
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 905 x 810 x 60
  • Weight (kg) 41.6
  • Art. No 5G00000002122
  • CAD files
    dxf
    stp
G 7x1 GALV 1 60 x 240 192.5 x 410 x 60 4.8 5G00000006343
dxf
stp
  • Packing space (mm) 60 x 240
  • External dimensions WxHxD (mm) 192.5 x 410 x 60
  • Weight (kg) 4.8
  • Art. No 5G00000006343
  • CAD files
    dxf
    stp
G 7+7x1 GALV 2 60 x 240 192.5 x 698 x 60 8.8 112754
dxf
stp
  • Packing space (mm) 60 x 240
  • External dimensions WxHxD (mm) 192.5 x 698 x 60
  • Weight (kg) 8.8
  • Art. No 112754
  • CAD files
    dxf
    stp
G 7+7+7x1 GALV 3 60 x 240 192.5 x 986 x 60 11.8 105956
dxf
stp
  • Packing space (mm) 60 x 240
  • External dimensions WxHxD (mm) 192.5 x 986 x 60
  • Weight (kg) 11.8
  • Art. No 105956
  • CAD files
    dxf
    stp
G 8x1 GALV 1 120 x 240 252.5 x 410 x 60 4.8 G008000000115
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 252.5 x 410 x 60
  • Weight (kg) 4.8
  • Art. No G008000000115
  • CAD files
    dxf
    stp
G 8x2 GALV 2 120 x 240 383 x 410 x 60 8.3 G008000000215
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 383 x 410 x 60
  • Weight (kg) 8.3
  • Art. No G008000000215
  • CAD files
    dxf
    stp
G 8x3 GALV 3 120 x 240 513.5 x 410 x 60 11.1 G008000000315
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 513.5 x 410 x 60
  • Weight (kg) 11.1
  • Art. No G008000000315
  • CAD files
    dxf
    stp
G 8x4 GALV 4 120 x 240 644 x 410 x 60 13.9 G008000000415
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 644 x 410 x 60
  • Weight (kg) 13.9
  • Art. No G008000000415
  • CAD files
    dxf
    stp
G 8x5 GALV 5 120 x 240 774.5 x 410 x 60 16.7 5G00000000146
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 774.5 x 410 x 60
  • Weight (kg) 16.7
  • Art. No 5G00000000146
  • CAD files
    dxf
    stp
G 8x6 GALV 6 120 x 240 905 x 410 x 60 20.5 5G00000002036
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 905 x 410 x 60
  • Weight (kg) 20.5
  • Art. No 5G00000002036
  • CAD files
    dxf
    stp
G 8+8x1 GALV 2 120 x 240 252.5 x 698 x 60 8.3 5G00000000823
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 252.5 x 698 x 60
  • Weight (kg) 8.3
  • Art. No 5G00000000823
  • CAD files
    dxf
    stp
G 8+8x2 GALV 4 120 x 240 383 x 700 x 60 16 5G00000002268
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 383 x 700 x 60
  • Weight (kg) 16
  • Art. No 5G00000002268
  • CAD files
    dxf
    stp
G 8+8x3 GALV 6 120 x 240 513.5 x 700 x 60 20.1 5G00000003787
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 513.5 x 700 x 60
  • Weight (kg) 20.1
  • Art. No 5G00000003787
  • CAD files
    dxf
    stp
G 8+8x4 GALV 8 120 x 240 644 x 700 x 60 24 5G00000002329
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 644 x 700 x 60
  • Weight (kg) 24
  • Art. No 5G00000002329
  • CAD files
    dxf
    stp
G 8+8x5 GALV 10 120 x 240 774.5 x 700 x 60 28.7 5G00000004300
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 774.5 x 700 x 60
  • Weight (kg) 28.7
  • Art. No 5G00000004300
  • CAD files
    dxf
    stp
G 8+8x6 GALV 12 120 x 240 905 x 700 x 60 37.5 5G00000001652
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 905 x 700 x 60
  • Weight (kg) 37.5
  • Art. No 5G00000001652
  • CAD files
    dxf
    stp
G 8+8+8x1 GALV 3 120 x 240 252.5 x 986 x 60 13.3 G088800000115
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 252.5 x 986 x 60
  • Weight (kg) 13.3
  • Art. No G088800000115
  • CAD files
    dxf
    stp
G 8+8+8x2 GALV 6 120 x 240 383 x 990 x 60 20.5 5G00000002330
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 383 x 990 x 60
  • Weight (kg) 20.5
  • Art. No 5G00000002330
  • CAD files
    dxf
    stp
G 8+8+8x3 GALV 9 120 x 240 513.5 x 990 x 60 27.8 5G00000004082
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 513.5 x 990 x 60
  • Weight (kg) 27.8
  • Art. No 5G00000004082
  • CAD files
    dxf
    stp
G 8+8+8x4 GALV 12 120 x 240 644 x 990 x 60 37.3 5G00000002269
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 644 x 990 x 60
  • Weight (kg) 37.3
  • Art. No 5G00000002269
  • CAD files
    dxf
    stp
G 8+8+8x5 GALV 15 120 x 240 774.5 x 990 x 60 41 5G00000004992
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 774.5 x 990 x 60
  • Weight (kg) 41
  • Art. No 5G00000004992
  • CAD files
    dxf
    stp
G 8+8+8x6 GALV 18 120 x 240 905 x 990 x 60 51 5G00000008160
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 905 x 990 x 60
  • Weight (kg) 51
  • Art. No 5G00000008160
  • CAD files
    dxf
    stp
Primed mild steel
Name Frame openings Packing space (mm) External dimensions WxHxD (mm) Weight (kg) Art. No CAD files
G 1x1 PRIMED 1 60 x 60 192.5 x 233 x 60 2.8 5G00000002922
dxf
stp
  • Packing space (mm) 60 x 60
  • External dimensions WxHxD (mm) 192.5 x 233 x 60
  • Weight (kg) 2.8
  • Art. No 5G00000002922
  • CAD files
    dxf
    stp
G 1+1x1 PRIMED 2 60 x 60 192.5 x 344 x 60 4.3 112500
dxf
stp
  • Packing space (mm) 60 x 60
  • External dimensions WxHxD (mm) 192.5 x 344 x 60
  • Weight (kg) 4.3
  • Art. No 112500
  • CAD files
    dxf
    stp
G 1+1+1x1 PRIMED 3 60 x 60 192.5 x 455 x 60 5.8 112501
dxf
stp
  • Packing space (mm) 60 x 60
  • External dimensions WxHxD (mm) 192.5 x 455 x 60
  • Weight (kg) 5.8
  • Art. No 112501
  • CAD files
    dxf
    stp
G 2x1 PRIMED 1 120 x 60 252.5 x 233 x 60 3.4 G002000000112
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 252.5 x 233 x 60
  • Weight (kg) 3.4
  • Art. No G002000000112
  • CAD files
    dxf
    stp
G 2x2 PRIMED 2 120 x 60 383 x 233 x 60 5.4 G002000000212
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 383 x 233 x 60
  • Weight (kg) 5.4
  • Art. No G002000000212
  • CAD files
    dxf
    stp
G 2x3 PRIMED 3 120 x 60 513.5 x 233 x 60 7.4 G002000000312
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 513.5 x 233 x 60
  • Weight (kg) 7.4
  • Art. No G002000000312
  • CAD files
    dxf
    stp
G 2x4 PRIMED 4 120 x 60 644 x 233 x 60 9.3 G002000000412
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 644 x 233 x 60
  • Weight (kg) 9.3
  • Art. No G002000000412
  • CAD files
    dxf
    stp
G 2x5 PRIMED 5 120 x 60 774.5 x 233 x 60 11.2 5G00000006930
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 774.5 x 233 x 60
  • Weight (kg) 11.2
  • Art. No 5G00000006930
  • CAD files
    dxf
    stp
G 2x6 PRIMED 6 120 x 60 905 x 233 x 60 13.7 5G00000004785
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 905 x 233 x 60
  • Weight (kg) 13.7
  • Art. No 5G00000004785
  • CAD files
    dxf
    stp
G 2+2x1 PRIMED 2 120 x 60 252.5 x 344 x 60 5.4 G002200000112
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 252.5 x 344 x 60
  • Weight (kg) 5.4
  • Art. No G002200000112
  • CAD files
    dxf
    stp
G 2+2x2 PRIMED 4 120 x 60 383 x 346 x 60 8.9 5G00000005011
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 383 x 346 x 60
  • Weight (kg) 8.9
  • Art. No 5G00000005011
  • CAD files
    dxf
    stp
G 2+2x3 PRIMED 6 120 x 60 513.5 x 346 x 60 11.6 5G00000013096
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 513.5 x 346 x 60
  • Weight (kg) 11.6
  • Art. No 5G00000013096
  • CAD files
    dxf
    stp
G 2+2x4 PRIMED 8 120 x 60 644 x 346 x 60 15.4 112511
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 644 x 346 x 60
  • Weight (kg) 15.4
  • Art. No 112511
  • CAD files
    dxf
    stp
G 2+2x5 PRIMED 10 120 x 60 774.5 x 346 x 60 17.9 112512
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 774.5 x 346 x 60
  • Weight (kg) 17.9
  • Art. No 112512
  • CAD files
    dxf
    stp
G 2+2x6 PRIMED 12 120 x 60 905 x 346 x 60 21.1 112513
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 905 x 346 x 60
  • Weight (kg) 21.1
  • Art. No 112513
  • CAD files
    dxf
    stp
G 2+2+2x1 PRIMED 3 120 x 60 252.5 x 455 x 60 7 112523
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 252.5 x 455 x 60
  • Weight (kg) 7
  • Art. No 112523
  • CAD files
    dxf
    stp
G 2+2+2x2 PRIMED 6 120 x 60 383 x 459 x 60 11.7 112524
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 383 x 459 x 60
  • Weight (kg) 11.7
  • Art. No 112524
  • CAD files
    dxf
    stp
G 2+2+2x3 PRIMED 9 120 x 60 513.5 x 459 x 60 16 112525
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 513.5 x 459 x 60
  • Weight (kg) 16
  • Art. No 112525
  • CAD files
    dxf
    stp
G 2+2+2x4 PRIMED 12 120 x 60 644 x 459 x 60 20.4 112526
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 644 x 459 x 60
  • Weight (kg) 20.4
  • Art. No 112526
  • CAD files
    dxf
    stp
G 2+2+2x5 PRIMED 15 120 x 60 774.5 x 459 x 60 24.7 112527
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 774.5 x 459 x 60
  • Weight (kg) 24.7
  • Art. No 112527
  • CAD files
    dxf
    stp
G 2+2+2x6 PRIMED 18 120 x 60 905 x 459 x 60 29.1 112528
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 905 x 459 x 60
  • Weight (kg) 29.1
  • Art. No 112528
  • CAD files
    dxf
    stp
G 3x1 PRIMED 1 60 x 120 192.5 x 291.5 x 60 3.5 5G00000000419
dxf
stp
  • Packing space (mm) 60 x 120
  • External dimensions WxHxD (mm) 192.5 x 291.5 x 60
  • Weight (kg) 3.5
  • Art. No 5G00000000419
  • CAD files
    dxf
    stp
G 3+3x1 PRIMED 2 60 x 120 192.5 x 461 x 60 5.6 5G00000004815
dxf
stp
  • Packing space (mm) 60 x 120
  • External dimensions WxHxD (mm) 192.5 x 461 x 60
  • Weight (kg) 5.6
  • Art. No 5G00000004815
  • CAD files
    dxf
    stp
G 3+3+3x1 PRIMED 3 60 x 120 192.5 x 630.5 x 60 7.8 112540
dxf
stp
  • Packing space (mm) 60 x 120
  • External dimensions WxHxD (mm) 192.5 x 630.5 x 60
  • Weight (kg) 7.8
  • Art. No 112540
  • CAD files
    dxf
    stp
G 4x1 PRIMED 1 120 x 120 252.5 x 291.5 x 60 3.8 G004000000112
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 252.5 x 291.5 x 60
  • Weight (kg) 3.8
  • Art. No G004000000112
  • CAD files
    dxf
    stp
G 4x2 PRIMED 2 120 x 120 383 x 291.5 x 60 6.3 G004000000212
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 383 x 291.5 x 60
  • Weight (kg) 6.3
  • Art. No G004000000212
  • CAD files
    dxf
    stp
G 4x3 PRIMED 3 120 x 120 513.5 x 291.5 x 60 8.8 G004000000312
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 513.5 x 291.5 x 60
  • Weight (kg) 8.8
  • Art. No G004000000312
  • CAD files
    dxf
    stp
G 4x4 PRIMED 4 120 x 120 644 x 291.5 x 60 11.1 G004000000412
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 644 x 291.5 x 60
  • Weight (kg) 11.1
  • Art. No G004000000412
  • CAD files
    dxf
    stp
G 4x5 PRIMED 5 120 x 120 774.5 x 291.5 x 60 13.1 G004000000512
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 774.5 x 291.5 x 60
  • Weight (kg) 13.1
  • Art. No G004000000512
  • CAD files
    dxf
    stp
G 4x6 PRIMED 6 120 x 120 905 x 291.5 x 60 15.3 G004000000612
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 905 x 291.5 x 60
  • Weight (kg) 15.3
  • Art. No G004000000612
  • CAD files
    dxf
    stp
G 4+4x1 PRIMED 2 120 x 120 252.5 x 461 x 60 6.6 G004400000112
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 252.5 x 461 x 60
  • Weight (kg) 6.6
  • Art. No G004400000112
  • CAD files
    dxf
    stp
G 4+4x2 PRIMED 4 120 x 120 383 x 463 x 60 10.5 G004400000212
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 383 x 463 x 60
  • Weight (kg) 10.5
  • Art. No G004400000212
  • CAD files
    dxf
    stp
G 4+4x3 PRIMED 6 120 x 120 513.5 x 463 x 60 14.2 G004400000312
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 513.5 x 463 x 60
  • Weight (kg) 14.2
  • Art. No G004400000312
  • CAD files
    dxf
    stp
G 4+4x4 PRIMED 8 120 x 120 644 x 463 x 60 17.9 G004400000412
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 644 x 463 x 60
  • Weight (kg) 17.9
  • Art. No G004400000412
  • CAD files
    dxf
    stp
G 4+4x5 PRIMED 10 120 x 120 774.5 x 463 x 60 21.7 G004400000512
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 774.5 x 463 x 60
  • Weight (kg) 21.7
  • Art. No G004400000512
  • CAD files
    dxf
    stp
G 4+4x6 PRIMED 12 120 x 120 905 x 463 x 60 25.4 G004400000612
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 905 x 463 x 60
  • Weight (kg) 25.4
  • Art. No G004400000612
  • CAD files
    dxf
    stp
G 4+4+4x1 PRIMED 3 120 x 120 252.5 x 630.5 x 60 9.1 G004440000112
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 252.5 x 630.5 x 60
  • Weight (kg) 9.1
  • Art. No G004440000112
  • CAD files
    dxf
    stp
G 4+4+4x2 PRIMED 6 120 x 120 383 x 634.5 x 60 14.4 5G00000003678
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 383 x 634.5 x 60
  • Weight (kg) 14.4
  • Art. No 5G00000003678
  • CAD files
    dxf
    stp
G 4+4+4x3 PRIMED 9 120 x 120 513.5 x 634.5 x 60 20 5G00000003108
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 513.5 x 634.5 x 60
  • Weight (kg) 20
  • Art. No 5G00000003108
  • CAD files
    dxf
    stp
G 4+4+4x4 PRIMED 12 120 x 120 644 x 634.5 x 60 25 5G00000003309
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 644 x 634.5 x 60
  • Weight (kg) 25
  • Art. No 5G00000003309
  • CAD files
    dxf
    stp
G 4+4+4x5 PRIMED 15 120 x 120 774.5 x 634.5 x 60 30 5G00000004838
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 774.5 x 634.5 x 60
  • Weight (kg) 30
  • Art. No 5G00000004838
  • CAD files
    dxf
    stp
G 4+4+4x6 PRIMED 18 120 x 120 905 x 634.5 x 60 36 5G00000003747
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 905 x 634.5 x 60
  • Weight (kg) 36
  • Art. No 5G00000003747
  • CAD files
    dxf
    stp
G 5x1 PRIMED 1 60 x 180 192.5 x 350 x 60 4.2 5G00000004301
dxf
stp
  • Packing space (mm) 60 x 180
  • External dimensions WxHxD (mm) 192.5 x 350 x 60
  • Weight (kg) 4.2
  • Art. No 5G00000004301
  • CAD files
    dxf
    stp
G 5+5x1 PRIMED 2 60 x 180 192.5 x 578 x 60 7 112558
dxf
stp
  • Packing space (mm) 60 x 180
  • External dimensions WxHxD (mm) 192.5 x 578 x 60
  • Weight (kg) 7
  • Art. No 112558
  • CAD files
    dxf
    stp
G 5+5+5x1 PRIMED 3 60 x 180 192.5 x 806 x 60 9.7 112559
dxf
stp
  • Packing space (mm) 60 x 180
  • External dimensions WxHxD (mm) 192.5 x 806 x 60
  • Weight (kg) 9.7
  • Art. No 112559
  • CAD files
    dxf
    stp
G 6x1 PRIMED 1 120 x 180 252.5 x 350 x 60 4.4 G006000000112
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 252.5 x 350 x 60
  • Weight (kg) 4.4
  • Art. No G006000000112
  • CAD files
    dxf
    stp
G 6x2 PRIMED 2 120 x 180 383 x 350 x 60 7.4 G006000000212
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 383 x 350 x 60
  • Weight (kg) 7.4
  • Art. No G006000000212
  • CAD files
    dxf
    stp
G 6x3 PRIMED 3 120 x 180 513.5 x 350 x 60 9.8 G006000000312
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 513.5 x 350 x 60
  • Weight (kg) 9.8
  • Art. No G006000000312
  • CAD files
    dxf
    stp
G 6x4 PRIMED 4 120 x 180 644 x 350 x 60 12.3 G006000000412
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 644 x 350 x 60
  • Weight (kg) 12.3
  • Art. No G006000000412
  • CAD files
    dxf
    stp
G 6x5 PRIMED 5 120 x 180 774.5 x 350 x 60 14.9 G006000000512
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 774.5 x 350 x 60
  • Weight (kg) 14.9
  • Art. No G006000000512
  • CAD files
    dxf
    stp
G 6x6 PRIMED 6 120 x 180 905 x 350 x 60 17.4 G006000000612
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 905 x 350 x 60
  • Weight (kg) 17.4
  • Art. No G006000000612
  • CAD files
    dxf
    stp
G 6+6x1 PRIMED 2 120 x 180 252.5 x 578 x 60 8 G006600000112
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 252.5 x 578 x 60
  • Weight (kg) 8
  • Art. No G006600000112
  • CAD files
    dxf
    stp
G 6+6x2 PRIMED 4 120 x 180 383 x 580 x 60 12.4 G006600000212
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 383 x 580 x 60
  • Weight (kg) 12.4
  • Art. No G006600000212
  • CAD files
    dxf
    stp
G 6+6x3 PRIMED 6 120 x 180 513.5 x 580 x 60 16.7 G006600000312
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 513.5 x 580 x 60
  • Weight (kg) 16.7
  • Art. No G006600000312
  • CAD files
    dxf
    stp
G 6+6x4 PRIMED 8 120 x 180 644 x 580 x 60 20.9 G006600000412
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 644 x 580 x 60
  • Weight (kg) 20.9
  • Art. No G006600000412
  • CAD files
    dxf
    stp
G 6+6x5 PRIMED 10 120 x 180 774.5 x 580 x 60 25.2 G006600000512
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 774.5 x 580 x 60
  • Weight (kg) 25.2
  • Art. No G006600000512
  • CAD files
    dxf
    stp
G 6+6x6 PRIMED 12 120 x 180 905 x 580 x 60 29.5 G006600000612
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 905 x 580 x 60
  • Weight (kg) 29.5
  • Art. No G006600000612
  • CAD files
    dxf
    stp
G 6+6+6x1 PRIMED 3 120 x 180 252.5 x 806 x 60 11.1 G006660000112
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 252.5 x 806 x 60
  • Weight (kg) 11.1
  • Art. No G006660000112
  • CAD files
    dxf
    stp
G 6+6+6x2 PRIMED 6 120 x 180 383 x 810 x 60 17.9 5G00000003441
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 383 x 810 x 60
  • Weight (kg) 17.9
  • Art. No 5G00000003441
  • CAD files
    dxf
    stp
G 6+6+6x3 PRIMED 9 120 x 180 513.5 x 810 x 60 23.7 5G00000005555
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 513.5 x 810 x 60
  • Weight (kg) 23.7
  • Art. No 5G00000005555
  • CAD files
    dxf
    stp
G 6+6+6x4 PRIMED 12 120 x 180 644 x 810 x 60 30.5 5G00000004405
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 644 x 810 x 60
  • Weight (kg) 30.5
  • Art. No 5G00000004405
  • CAD files
    dxf
    stp
G 6+6+6x5 PRIMED 15 120 x 180 774.5 x 810 x 60 38 107182
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 774.5 x 810 x 60
  • Weight (kg) 38
  • Art. No 107182
  • CAD files
    dxf
    stp
G 6+6+6x6 PRIMED 18 120 x 180 905 x 810 x 60 42.5 5G00000003110
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 905 x 810 x 60
  • Weight (kg) 42.5
  • Art. No 5G00000003110
  • CAD files
    dxf
    stp
G 7x1 PRIMED 1 60 x 240 192.5 x 410 x 60 4.8 5G00000002862
dxf
stp
  • Packing space (mm) 60 x 240
  • External dimensions WxHxD (mm) 192.5 x 410 x 60
  • Weight (kg) 4.8
  • Art. No 5G00000002862
  • CAD files
    dxf
    stp
G 7+7x1 PRIMED 2 60 x 240 192.5 x 698 x 60 8.2 112574
dxf
stp
  • Packing space (mm) 60 x 240
  • External dimensions WxHxD (mm) 192.5 x 698 x 60
  • Weight (kg) 8.2
  • Art. No 112574
  • CAD files
    dxf
    stp
G 7+7+7x1 PRIMED 3 60 x 240 192.5 x 986 x 60 12 112575
dxf
stp
  • Packing space (mm) 60 x 240
  • External dimensions WxHxD (mm) 192.5 x 986 x 60
  • Weight (kg) 12
  • Art. No 112575
  • CAD files
    dxf
    stp
G 8x1 PRIMED 1 120 x 240 252.5 x 410 x 60 5.2 G008000000112
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 252.5 x 410 x 60
  • Weight (kg) 5.2
  • Art. No G008000000112
  • CAD files
    dxf
    stp
G 8x2 PRIMED 2 120 x 240 383 x 410 x 60 8.3 G008000000212
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 383 x 410 x 60
  • Weight (kg) 8.3
  • Art. No G008000000212
  • CAD files
    dxf
    stp
G 8x3 PRIMED 3 120 x 240 513.5 x 410 x 60 11.1 G008000000312
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 513.5 x 410 x 60
  • Weight (kg) 11.1
  • Art. No G008000000312
  • CAD files
    dxf
    stp
G 8x4 PRIMED 4 120 x 240 644 x 410 x 60 14 G008000000412
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 644 x 410 x 60
  • Weight (kg) 14
  • Art. No G008000000412
  • CAD files
    dxf
    stp
G 8x5 PRIMED 5 120 x 240 774.5 x 410 x 60 16.7 G008000000512
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 774.5 x 410 x 60
  • Weight (kg) 16.7
  • Art. No G008000000512
  • CAD files
    dxf
    stp
G 8x6 PRIMED 6 120 x 240 905 x 410 x 60 19.5 G008000000612
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 905 x 410 x 60
  • Weight (kg) 19.5
  • Art. No G008000000612
  • CAD files
    dxf
    stp
G 8+8x1 PRIMED 2 120 x 240 252.5 x 698 x 60 8.3 5G00000003170
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 252.5 x 698 x 60
  • Weight (kg) 8.3
  • Art. No 5G00000003170
  • CAD files
    dxf
    stp
G 8+8x2 PRIMED 4 120 x 240 383 x 700 x 60 16 5G00000003511
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 383 x 700 x 60
  • Weight (kg) 16
  • Art. No 5G00000003511
  • CAD files
    dxf
    stp
G 8+8x3 PRIMED 6 120 x 240 513.5 x 700 x 60 19.7 5G00000001337
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 513.5 x 700 x 60
  • Weight (kg) 19.7
  • Art. No 5G00000001337
  • CAD files
    dxf
    stp
G 8+8x4 PRIMED 8 120 x 240 644 x 700 x 60 24.5 5G00000002069
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 644 x 700 x 60
  • Weight (kg) 24.5
  • Art. No 5G00000002069
  • CAD files
    dxf
    stp
G 8+8x5 PRIMED 10 120 x 240 774.5 x 700 x 60 25.7 5G0000006239
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 774.5 x 700 x 60
  • Weight (kg) 25.7
  • Art. No 5G0000006239
  • CAD files
    dxf
    stp
G 8+8x6 PRIMED 12 120 x 240 905 x 700 x 60 33.2 5G00000002068
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 905 x 700 x 60
  • Weight (kg) 33.2
  • Art. No 5G00000002068
  • CAD files
    dxf
    stp
G 8+8+8x1 PRIMED 3 120 x 240 252.5 x 986 x 60 13.6 5G00000003996
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 252.5 x 986 x 60
  • Weight (kg) 13.6
  • Art. No 5G00000003996
  • CAD files
    dxf
    stp
G 8+8+8x2 PRIMED 6 120 x 240 383 x 990 x 60 20.5 5G00000004067
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 383 x 990 x 60
  • Weight (kg) 20.5
  • Art. No 5G00000004067
  • CAD files
    dxf
    stp
G 8+8+8x3 PRIMED 9 120 x 240 513.5 x 990 x 60 29 5G00000005668
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 513.5 x 990 x 60
  • Weight (kg) 29
  • Art. No 5G00000005668
  • CAD files
    dxf
    stp
G 8+8+8x4 PRIMED 12 120 x 240 644 x 990 x 60 34.2 5G00000005807
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 644 x 990 x 60
  • Weight (kg) 34.2
  • Art. No 5G00000005807
  • CAD files
    dxf
    stp
G 8+8+8x5 PRIMED 15 120 x 240 774.5 x 990 x 60 40.6 104993
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 774.5 x 990 x 60
  • Weight (kg) 40.6
  • Art. No 104993
  • CAD files
    dxf
    stp
G 8+8+8x6 PRIMED 18 120 x 240 905 x 990 x 60 50 5G00000002066
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 905 x 990 x 60
  • Weight (kg) 50
  • Art. No 5G00000002066
  • CAD files
    dxf
    stp
Stainless steel
Name Frame openings Packing space (mm) External dimensions WxHxD (mm) Weight (kg) Art. No CAD files
G 1x1 AISI316 1 60 x 60 192.5 x 233 x 60 3 5G00000002815
dxf
stp
  • Packing space (mm) 60 x 60
  • External dimensions WxHxD (mm) 192.5 x 233 x 60
  • Weight (kg) 3
  • Art. No 5G00000002815
  • CAD files
    dxf
    stp
G 1+1x1 AISI316 2 60 x 60 192.5 x 344 x 60 4.3 110673
dxf
stp
  • Packing space (mm) 60 x 60
  • External dimensions WxHxD (mm) 192.5 x 344 x 60
  • Weight (kg) 4.3
  • Art. No 110673
  • CAD files
    dxf
    stp
G 1+1+1x1 AISI316 3 60 x 60 192.5 x 455 x 60 5.9 112588
dxf
stp
  • Packing space (mm) 60 x 60
  • External dimensions WxHxD (mm) 192.5 x 455 x 60
  • Weight (kg) 5.9
  • Art. No 112588
  • CAD files
    dxf
    stp
G 2x1 AISI316 1 120 x 60 252.5 x 233 x 60 3.4 G002000000121
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 252.5 x 233 x 60
  • Weight (kg) 3.4
  • Art. No G002000000121
  • CAD files
    dxf
    stp
G 2x2 AISI316 2 120 x 60 383 x 233 x 60 5.5 5G00000000072
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 383 x 233 x 60
  • Weight (kg) 5.5
  • Art. No 5G00000000072
  • CAD files
    dxf
    stp
G 2x3 AISI316 3 120 x 60 513.5 x 233 x 60 7.6 5G00000002718
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 513.5 x 233 x 60
  • Weight (kg) 7.6
  • Art. No 5G00000002718
  • CAD files
    dxf
    stp
G 2x4 AISI316 4 120 x 60 644 x 233 x 60 9.5 5G00000006009
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 644 x 233 x 60
  • Weight (kg) 9.5
  • Art. No 5G00000006009
  • CAD files
    dxf
    stp
G 2x5 AISI316 5 120 x 60 774.5 x 233 x 60 11.2 5G00000006032
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 774.5 x 233 x 60
  • Weight (kg) 11.2
  • Art. No 5G00000006032
  • CAD files
    dxf
    stp
G 2x6 AISI316 6 120 x 60 905 x 233 x 60 13.3 5G00000009039
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 905 x 233 x 60
  • Weight (kg) 13.3
  • Art. No 5G00000009039
  • CAD files
    dxf
    stp
G 2+2x1 AISI316 2 120 x 60 252.5 x 344 x 60 5.2 5G00000008077
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 252.5 x 344 x 60
  • Weight (kg) 5.2
  • Art. No 5G00000008077
  • CAD files
    dxf
    stp
G 2+2x2 AISI316 4 120 x 60 383 x 346 x 60 8.8 5G00000009685
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 383 x 346 x 60
  • Weight (kg) 8.8
  • Art. No 5G00000009685
  • CAD files
    dxf
    stp
G 2+2x3 AISI316 6 120 x 60 513.5 x 346 x 60 11.9 5G00000009777
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 513.5 x 346 x 60
  • Weight (kg) 11.9
  • Art. No 5G00000009777
  • CAD files
    dxf
    stp
G 2+2x4 AISI316 8 120 x 60 644 x 346 x 60 15 109953
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 644 x 346 x 60
  • Weight (kg) 15
  • Art. No 109953
  • CAD files
    dxf
    stp
G 2+2x5 AISI316 10 120 x 60 774.5 x 346 x 60 18.4 112598
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 774.5 x 346 x 60
  • Weight (kg) 18.4
  • Art. No 112598
  • CAD files
    dxf
    stp
G 2+2x6 AISI316 12 120 x 60 905 x 346 x 60 21.6 112599
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 905 x 346 x 60
  • Weight (kg) 21.6
  • Art. No 112599
  • CAD files
    dxf
    stp
G 2+2+2x1 AISI316 3 120 x 60 252.5 x 455 x 60 7 112609
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 252.5 x 455 x 60
  • Weight (kg) 7
  • Art. No 112609
  • CAD files
    dxf
    stp
G 2+2+2x2 AISI316 6 120 x 60 383 x 459 x 60 12 112610
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 383 x 459 x 60
  • Weight (kg) 12
  • Art. No 112610
  • CAD files
    dxf
    stp
G 2+2+2x3 AISI316 9 120 x 60 513.5 x 459 x 60 16.4 112611
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 513.5 x 459 x 60
  • Weight (kg) 16.4
  • Art. No 112611
  • CAD files
    dxf
    stp
G 2+2+2x4 AISI316 12 120 x 60 644 x 459 x 60 20.9 112612
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 644 x 459 x 60
  • Weight (kg) 20.9
  • Art. No 112612
  • CAD files
    dxf
    stp
G 2+2+2x5 AISI316 15 120 x 60 774.5 x 459 x 60 25.3 112613
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 774.5 x 459 x 60
  • Weight (kg) 25.3
  • Art. No 112613
  • CAD files
    dxf
    stp
G 2+2+2x6 AISI316 18 120 x 60 905 x 459 x 60 29.8 112614
dxf
stp
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 905 x 459 x 60
  • Weight (kg) 29.8
  • Art. No 112614
  • CAD files
    dxf
    stp
G 3x1 AISI316 1 60 x 120 192.5 x 291.5 x 60 4 5G00000007714
dxf
stp
  • Packing space (mm) 60 x 120
  • External dimensions WxHxD (mm) 192.5 x 291.5 x 60
  • Weight (kg) 4
  • Art. No 5G00000007714
  • CAD files
    dxf
    stp
G 3+3x1 AISI316 2 60 x 120 192.5 x 461 x 60 6 107374
dxf
stp
  • Packing space (mm) 60 x 120
  • External dimensions WxHxD (mm) 192.5 x 461 x 60
  • Weight (kg) 6
  • Art. No 107374
  • CAD files
    dxf
    stp
G 3+3+3x1 AISI316 3 60 x 120 192.5 x 630.5 x 60 8 112626
dxf
stp
  • Packing space (mm) 60 x 120
  • External dimensions WxHxD (mm) 192.5 x 630.5 x 60
  • Weight (kg) 8
  • Art. No 112626
  • CAD files
    dxf
    stp
G 4x1 AISI316 1 120 x 120 252.5 x 291.5 x 60 4.1 G004000000121
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 252.5 x 291.5 x 60
  • Weight (kg) 4.1
  • Art. No G004000000121
  • CAD files
    dxf
    stp
G 4x2 AISI316 2 120 x 120 383 x 291.5 x 60 6.3 G004000000221
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 383 x 291.5 x 60
  • Weight (kg) 6.3
  • Art. No G004000000221
  • CAD files
    dxf
    stp
G 4x3 AISI316 3 120 x 120 513.5 x 291.5 x 60 8.6 G004000000321
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 513.5 x 291.5 x 60
  • Weight (kg) 8.6
  • Art. No G004000000321
  • CAD files
    dxf
    stp
G 4x4 AISI316 4 120 x 120 644 x 291.5 x 60 10.8 G004000000421
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 644 x 291.5 x 60
  • Weight (kg) 10.8
  • Art. No G004000000421
  • CAD files
    dxf
    stp
G 4x5 AISI316 5 120 x 120 774.5 x 291.5 x 60 13.9 G004000000521
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 774.5 x 291.5 x 60
  • Weight (kg) 13.9
  • Art. No G004000000521
  • CAD files
    dxf
    stp
G 4x6 AISI316 6 120 x 120 905 x 291.5 x 60 15.3 G004000000621
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 905 x 291.5 x 60
  • Weight (kg) 15.3
  • Art. No G004000000621
  • CAD files
    dxf
    stp
G 4+4x1 AISI316 2 120 x 120 252.5 x 461 x 60 6.8 5G00000000865
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 252.5 x 461 x 60
  • Weight (kg) 6.8
  • Art. No 5G00000000865
  • CAD files
    dxf
    stp
G 4+4x2 AISI316 4 120 x 120 383 x 463 x 60 10.5 5G00000005843
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 383 x 463 x 60
  • Weight (kg) 10.5
  • Art. No 5G00000005843
  • CAD files
    dxf
    stp
G 4+4x3 AISI316 6 120 x 120 513.5 x 463 x 60 14.2 5G00000001119
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 513.5 x 463 x 60
  • Weight (kg) 14.2
  • Art. No 5G00000001119
  • CAD files
    dxf
    stp
G 4+4x4 AISI316 8 120 x 120 644 x 463 x 60 17.9 5G00000003243
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 644 x 463 x 60
  • Weight (kg) 17.9
  • Art. No 5G00000003243
  • CAD files
    dxf
    stp
G 4+4x5 AISI316 10 120 x 120 774.5 x 463 x 60 22.2 5G00000007519
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 774.5 x 463 x 60
  • Weight (kg) 22.2
  • Art. No 5G00000007519
  • CAD files
    dxf
    stp
G 4+4x6 AISI316 12 120 x 120 905 x 463 x 60 26.5 5G00000001801
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 905 x 463 x 60
  • Weight (kg) 26.5
  • Art. No 5G00000001801
  • CAD files
    dxf
    stp
G 4+4+4x1 AISI316 3 120 x 120 252.5 x 630.5 x 60 9 5G00000000684
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 252.5 x 630.5 x 60
  • Weight (kg) 9
  • Art. No 5G00000000684
  • CAD files
    dxf
    stp
G 4+4+4x2 AISI316 6 120 x 120 383 x 634.5 x 60 14.5 5G00000003194
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 383 x 634.5 x 60
  • Weight (kg) 14.5
  • Art. No 5G00000003194
  • CAD files
    dxf
    stp
G 4+4+4x3 AISI316 9 120 x 120 513.5 x 634.5 x 60 20.7 5G00000011687
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 513.5 x 634.5 x 60
  • Weight (kg) 20.7
  • Art. No 5G00000011687
  • CAD files
    dxf
    stp
G 4+4+4x4 AISI316 12 120 x 120 644 x 634.5 x 60 25.5 5G00000013084
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 644 x 634.5 x 60
  • Weight (kg) 25.5
  • Art. No 5G00000013084
  • CAD files
    dxf
    stp
G 4+4+4x5 AISI316 15 120 x 120 774.5 x 634.5 x 60 30.7 112638
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 774.5 x 634.5 x 60
  • Weight (kg) 30.7
  • Art. No 112638
  • CAD files
    dxf
    stp
G 4+4+4x6 AISI316 18 120 x 120 905 x 634.5 x 60 36 112639
dxf
stp
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 905 x 634.5 x 60
  • Weight (kg) 36
  • Art. No 112639
  • CAD files
    dxf
    stp
G 5x1 AISI316 1 60 x 180 192.5 x 350 x 60 4.2 G005000000121
dxf
stp
  • Packing space (mm) 60 x 180
  • External dimensions WxHxD (mm) 192.5 x 350 x 60
  • Weight (kg) 4.2
  • Art. No G005000000121
  • CAD files
    dxf
    stp
G 5+5x1 AISI316 2 60 x 180 192.5 x 578 x 60 6.8 5G00000010586
dxf
stp
  • Packing space (mm) 60 x 180
  • External dimensions WxHxD (mm) 192.5 x 578 x 60
  • Weight (kg) 6.8
  • Art. No 5G00000010586
  • CAD files
    dxf
    stp
G 5+5+5x1 AISI316 3 60 x 180 192.5 x 806 x 60 10 112649
dxf
stp
  • Packing space (mm) 60 x 180
  • External dimensions WxHxD (mm) 192.5 x 806 x 60
  • Weight (kg) 10
  • Art. No 112649
  • CAD files
    dxf
    stp
G 6x1 AISI316 1 120 x 180 252.5 x 350 x 60 4.8 G006000000121
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 252.5 x 350 x 60
  • Weight (kg) 4.8
  • Art. No G006000000121
  • CAD files
    dxf
    stp
G 6x2 AISI316 2 120 x 180 383 x 350 x 60 7.3 G006000000221
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 383 x 350 x 60
  • Weight (kg) 7.3
  • Art. No G006000000221
  • CAD files
    dxf
    stp
G 6x3 AISI316 3 120 x 180 513.5 x 350 x 60 9.8 G006000000321
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 513.5 x 350 x 60
  • Weight (kg) 9.8
  • Art. No G006000000321
  • CAD files
    dxf
    stp
G 6x4 AISI316 4 120 x 180 644 x 350 x 60 12.5 G006000000421
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 644 x 350 x 60
  • Weight (kg) 12.5
  • Art. No G006000000421
  • CAD files
    dxf
    stp
G 6x5 AISI316 5 120 x 180 774.5 x 350 x 60 14.9 G006000000521
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 774.5 x 350 x 60
  • Weight (kg) 14.9
  • Art. No G006000000521
  • CAD files
    dxf
    stp
G 6x6 AISI316 6 120 x 180 905 x 350 x 60 17.4 G006000000621
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 905 x 350 x 60
  • Weight (kg) 17.4
  • Art. No G006000000621
  • CAD files
    dxf
    stp
G 6+6x1 AISI316 2 120 x 180 252.5 x 578 x 60 8 5G00000001204
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 252.5 x 578 x 60
  • Weight (kg) 8
  • Art. No 5G00000001204
  • CAD files
    dxf
    stp
G 6+6x2 AISI316 4 120 x 180 383 x 580 x 60 12.4 5G00000006098
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 383 x 580 x 60
  • Weight (kg) 12.4
  • Art. No 5G00000006098
  • CAD files
    dxf
    stp
G 6+6x3 AISI316 6 120 x 180 513.5 x 580 x 60 16.6 5G00000000974
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 513.5 x 580 x 60
  • Weight (kg) 16.6
  • Art. No 5G00000000974
  • CAD files
    dxf
    stp
G 6+6x4 AISI316 8 120 x 180 644 x 580 x 60 20.9 5G00000000463
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 644 x 580 x 60
  • Weight (kg) 20.9
  • Art. No 5G00000000463
  • CAD files
    dxf
    stp
G 6+6x5 AISI316 10 120 x 180 774.5 x 580 x 60 25.2 5G00000000312
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 774.5 x 580 x 60
  • Weight (kg) 25.2
  • Art. No 5G00000000312
  • CAD files
    dxf
    stp
G 6+6x6 AISI316 12 120 x 180 905 x 580 x 60 29.5 5G00000000260
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 905 x 580 x 60
  • Weight (kg) 29.5
  • Art. No 5G00000000260
  • CAD files
    dxf
    stp
G 6+6+6x1 AISI316 3 120 x 180 252.5 x 806 x 60 11.6 5G00000005738
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 252.5 x 806 x 60
  • Weight (kg) 11.6
  • Art. No 5G00000005738
  • CAD files
    dxf
    stp
G 6+6+6x2 AISI316 6 120 x 180 383 x 810 x 60 18.2 5G00000011705
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 383 x 810 x 60
  • Weight (kg) 18.2
  • Art. No 5G00000011705
  • CAD files
    dxf
    stp
G 6+6+6x3 AISI316 9 120 x 180 513.5 x 810 x 60 23.4 5G00000007621
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 513.5 x 810 x 60
  • Weight (kg) 23.4
  • Art. No 5G00000007621
  • CAD files
    dxf
    stp
G 6+6+6x4 AISI316 12 120 x 180 644 x 810 x 60 29.5 5G00000007622
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 644 x 810 x 60
  • Weight (kg) 29.5
  • Art. No 5G00000007622
  • CAD files
    dxf
    stp
G 6+6+6x5 AISI316 15 120 x 180 774.5 x 810 x 60 35.5 5G00000007880
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 774.5 x 810 x 60
  • Weight (kg) 35.5
  • Art. No 5G00000007880
  • CAD files
    dxf
    stp
G 6+6+6x6 AISI316 18 120 x 180 905 x 810 x 60 42.3 G006660000621
dxf
stp
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 905 x 810 x 60
  • Weight (kg) 42.3
  • Art. No G006660000621
  • CAD files
    dxf
    stp
G 7x1 AISI316 1 60 x 240 192.5 x 410 x 60 4.8 5G00000004358
dxf
stp
  • Packing space (mm) 60 x 240
  • External dimensions WxHxD (mm) 192.5 x 410 x 60
  • Weight (kg) 4.8
  • Art. No 5G00000004358
  • CAD files
    dxf
    stp
G 7+7x1 AISI316 2 60 x 240 192.5 x 698 x 60 8.5 105954
dxf
stp
  • Packing space (mm) 60 x 240
  • External dimensions WxHxD (mm) 192.5 x 698 x 60
  • Weight (kg) 8.5
  • Art. No 105954
  • CAD files
    dxf
    stp
G 7+7+7x1 AISI316 3 60 x 240 192.5 x 986 x 60 12.1 105296
dxf
stp
  • Packing space (mm) 60 x 240
  • External dimensions WxHxD (mm) 192.5 x 986 x 60
  • Weight (kg) 12.1
  • Art. No 105296
  • CAD files
    dxf
    stp
G 8x1 AISI316 1 120 x 240 252.5 x 410 x 60 5.5 G008000000121
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 252.5 x 410 x 60
  • Weight (kg) 5.5
  • Art. No G008000000121
  • CAD files
    dxf
    stp
G 8x2 AISI316 2 120 x 240 383 x 410 x 60 8.3 G008000000221
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 383 x 410 x 60
  • Weight (kg) 8.3
  • Art. No G008000000221
  • CAD files
    dxf
    stp
G 8x3 AISI316 3 120 x 240 513.5 x 410 x 60 11.1 G008000000321
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 513.5 x 410 x 60
  • Weight (kg) 11.1
  • Art. No G008000000321
  • CAD files
    dxf
    stp
G 8x4 AISI316 4 120 x 240 644 x 410 x 60 13.9 G008000000421
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 644 x 410 x 60
  • Weight (kg) 13.9
  • Art. No G008000000421
  • CAD files
    dxf
    stp
G 8x5 AISI316 5 120 x 240 774.5 x 410 x 60 16.7 5G00000003370
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 774.5 x 410 x 60
  • Weight (kg) 16.7
  • Art. No 5G00000003370
  • CAD files
    dxf
    stp
G 8x6 AISI316 6 120 x 240 905 x 410 x 60 19.5 5G00000004569
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 905 x 410 x 60
  • Weight (kg) 19.5
  • Art. No 5G00000004569
  • CAD files
    dxf
    stp
G 8+8x1 AISI316 2 120 x 240 252.5 x 698 x 60 8.3 5G00000001852
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 252.5 x 698 x 60
  • Weight (kg) 8.3
  • Art. No 5G00000001852
  • CAD files
    dxf
    stp
G 8+8x2 AISI316 4 120 x 240 383 x 700 x 60 16 5G00000004296
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 383 x 700 x 60
  • Weight (kg) 16
  • Art. No 5G00000004296
  • CAD files
    dxf
    stp
G 8+8x3 AISI316 6 120 x 240 513.5 x 700 x 60 19.2 5G00000003157
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 513.5 x 700 x 60
  • Weight (kg) 19.2
  • Art. No 5G00000003157
  • CAD files
    dxf
    stp
G 8+8x4 AISI316 8 120 x 240 644 x 700 x 60 24 5G00000005383
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 644 x 700 x 60
  • Weight (kg) 24
  • Art. No 5G00000005383
  • CAD files
    dxf
    stp
G 8+8x5 AISI316 10 120 x 240 774.5 x 700 x 60 28.9 5G00000006310
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 774.5 x 700 x 60
  • Weight (kg) 28.9
  • Art. No 5G00000006310
  • CAD files
    dxf
    stp
G 8+8x6 AISI316 12 120 x 240 905 x 700 x 60 33.6 5G00000002370
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 905 x 700 x 60
  • Weight (kg) 33.6
  • Art. No 5G00000002370
  • CAD files
    dxf
    stp
G 8+8+8x1 AISI316 3 120 x 240 252.5 x 986 x 60 13.3 5G00000005129
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 252.5 x 986 x 60
  • Weight (kg) 13.3
  • Art. No 5G00000005129
  • CAD files
    dxf
    stp
G 8+8+8x2 AISI316 6 120 x 240 383 x 990 x 60 20 5G00000007680
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 383 x 990 x 60
  • Weight (kg) 20
  • Art. No 5G00000007680
  • CAD files
    dxf
    stp
G 8+8+8x3 AISI316 9 120 x 240 513.5 x 990 x 60 27.2 5G00000007846
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 513.5 x 990 x 60
  • Weight (kg) 27.2
  • Art. No 5G00000007846
  • CAD files
    dxf
    stp
G 8+8+8x4 AISI316 12 120 x 240 644 x 990 x 60 34.2 5G00000007847
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 644 x 990 x 60
  • Weight (kg) 34.2
  • Art. No 5G00000007847
  • CAD files
    dxf
    stp
G 8+8+8x5 AISI316 15 120 x 240 774.5 x 990 x 60 41 110825
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 774.5 x 990 x 60
  • Weight (kg) 41
  • Art. No 110825
  • CAD files
    dxf
    stp
G 8+8+8x6 AISI316 18 120 x 240 905 x 990 x 60 48.2 5G00000002160
dxf
stp
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 905 x 990 x 60
  • Weight (kg) 48.2
  • Art. No 5G00000002160
  • CAD files
    dxf
    stp
