Roxtec B cast Ex frame

The Roxtec B…C Ex metal frame with flange is assembled into different sizes and combinations. It is suitable also for installation around existing cables and pipes. The B…C Ex frame is approved for use in potentially explosive atmospheres.

  • To be used with corresponding Roxtec components to form a complete sealing solution
  • Attachment by casting
  • Casting mold accessory available
B 6x1 C Ex GALV
B 6x1 C Ex GALV

Component articles

Galvanized mild steel

B 2x1 C Ex GALV

  • Frame openings 1
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 200.5 x 181 x 60
  • Aperture dimensions WxHxD (mm) 146(+1/-1) x 126(+1/-1)
  • Weight (kg) 2.7
  • Art. No EXBBC0200000115
Remove from cart?

B 2x2 C Ex GALV

  • Frame openings 2
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 329 x 181 x 60
  • Aperture dimensions WxHxD (mm) 274(+1/-1) x 126(+1/-1)
  • Weight (kg) 4.2
  • Art. No EXBBC0200000215
Remove from cart?

B 2x3 C Ex GALV

  • Frame openings 3
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 457.5 x 181 x 60
  • Aperture dimensions WxHxD (mm) 403(+1/-1) x 126(+1/-1)
  • Weight (kg) 6
  • Art. No EXBBC0200000315
Remove from cart?

B 2x4 C Ex GALV

  • Frame openings 4
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 586 x 181 x 60
  • Aperture dimensions WxHxD (mm) 531(+1/-1) x 126(+1/-1)
  • Weight (kg) 7.8
  • Art. No EXBBC0200000415
Remove from cart?

B 2x5 C Ex GALV

  • Frame openings 5
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 714.5 x 181 x 60
  • Aperture dimensions WxHxD (mm) 660(+1/-1) x 126(+1/-1)
  • Weight (kg) 9.5
  • Art. No EXBBC0200000515
Remove from cart?

B 4x1 C Ex GALV

  • Frame openings 1
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 200.5 x 239.5 x 60
  • Aperture dimensions WxHxD (mm) 146(+1/-1) x 184(+1/-1)
  • Weight (kg) 3.1
  • Art. No EXBBC0400000115
Remove from cart?

B 4x2 C Ex GALV

  • Frame openings 2
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 329 x 239.5 x 60
  • Aperture dimensions WxHxD (mm) 274(+1/-1) x 184(+1/-1)
  • Weight (kg) 5.5
  • Art. No EXBBC0400000215
Remove from cart?

B 4x3 C Ex GALV

  • Frame openings 3
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 457.5 x 239.5 x 60
  • Aperture dimensions WxHxD (mm) 403(+1/-1) x 184(+1/-1)
  • Weight (kg) 6.9
  • Art. No EXBBC0400000315
Remove from cart?

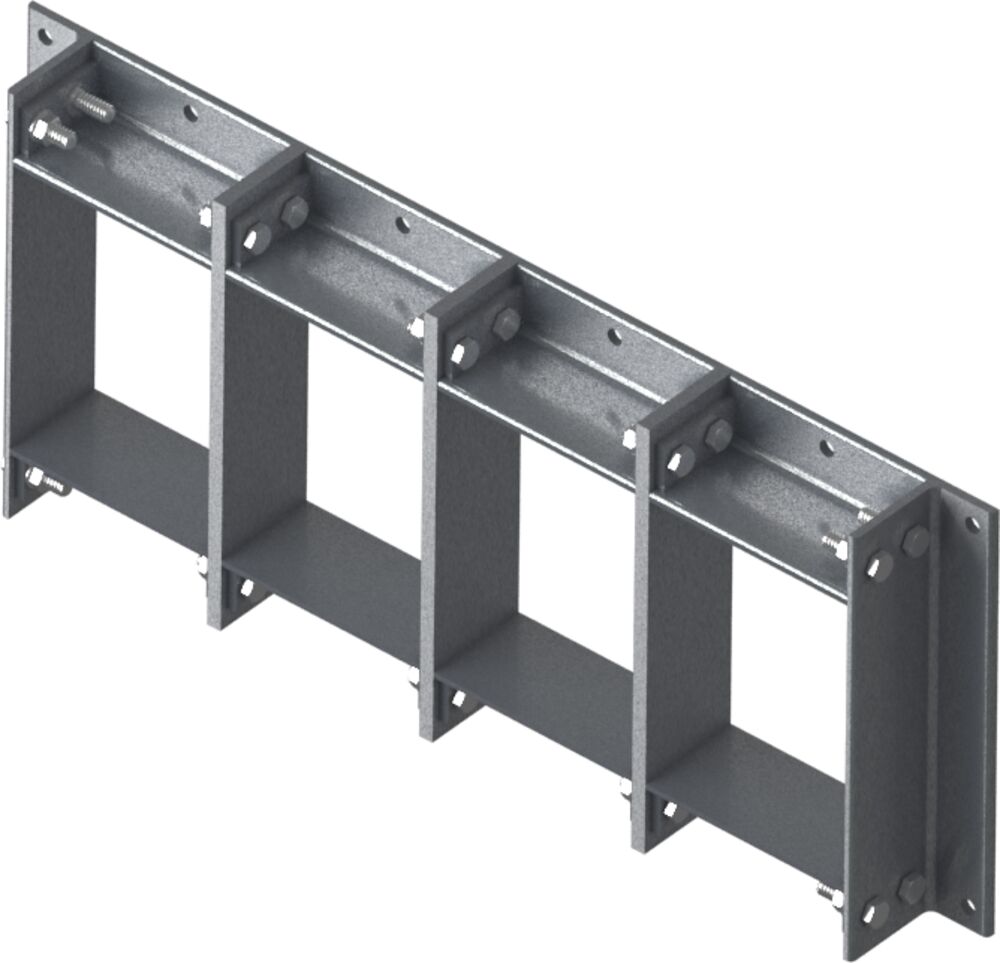

B 4x4 C Ex GALV

  • Frame openings 4
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 586 x 239.5 x 60
  • Aperture dimensions WxHxD (mm) 531(+1/-1) x 184(+1/-1)
  • Weight (kg) 9.8
  • Art. No EXBBC0400000415
Remove from cart?

B 4x5 C Ex GALV

  • Frame openings 5
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 714.5 x 239.5 x 60
  • Aperture dimensions WxHxD (mm) 660(+1/-1) x 184(+1/-1)
  • Weight (kg) 10.9
  • Art. No EXBBC0400000515
Remove from cart?

B 6x1 C Ex GALV

  • Frame openings 1
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 200.5 x 298 x 60
  • Aperture dimensions WxHxD (mm) 146(+1/-1) x 243(+1/-1)
  • Weight (kg) 3.6
  • Art. No EXBBC0600000115
Remove from cart?

B 6x2 C Ex GALV

  • Frame openings 2
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 329 x 298 x 60
  • Aperture dimensions WxHxD (mm) 274(+1/-1) x 243(+1/-1)
  • Weight (kg) 5.9
  • Art. No EXBBC0600000215
Remove from cart?

B 6x3 C Ex GALV

  • Frame openings 3
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 457.5 x 298 x 60
  • Aperture dimensions WxHxD (mm) 403(+1/-1) x 243(+1/-1)
  • Weight (kg) 8.6
  • Art. No EXBBC0600000315
Remove from cart?

B 6x4 C Ex GALV

  • Frame openings 4
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 586 x 298 x 60
  • Aperture dimensions WxHxD (mm) 531(+1/-1) x 243(+1/-1)
  • Weight (kg) 10.7
  • Art. No EXBBC0600000415
Remove from cart?

B 6x5 C Ex GALV

  • Frame openings 5
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 714.5 x 298 x 60
  • Aperture dimensions WxHxD (mm) 660(+1/-1) x 243(+1/-1)
  • Weight (kg) 13.4
  • Art. No EXBBC6000000515
Remove from cart?

B 8x1 C Ex GALV

  • Frame openings 1
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 200.5 x 358 x 60
  • Aperture dimensions WxHxD (mm) 146(+1/-1) x 303(+1/-1)
  • Weight (kg) 3.5
  • Art. No EXBBC0800000115
Remove from cart?

B 8x2 C Ex GALV

  • Frame openings 2
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 329 x 358 x 60
  • Aperture dimensions WxHxD (mm) 274(+1/-1) x 303(+1/-1)
  • Weight (kg) 6.7
  • Art. No EXBBC0800000215
Remove from cart?

B 8x3 C Ex GALV

  • Frame openings 3
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 457.5 x 358 x 60
  • Aperture dimensions WxHxD (mm) 403(+1/-1) x 303(+1/-1)
  • Weight (kg) 9.3
  • Art. No EXBBC0800000315
Remove from cart?

B 8x4 C Ex GALV

  • Frame openings 4
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 586 x 358 x 60
  • Aperture dimensions WxHxD (mm) 531(+1/-1) x 303(+1/-1)
  • Weight (kg) 12.2
  • Art. No EXBBC0800000415
Remove from cart?

B 8x5 C Ex GALV

  • Frame openings 5
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 714.5 x 358 x 60
  • Aperture dimensions WxHxD (mm) 660(+1/-1) x 303(+1/-1)
  • Weight (kg) 15
  • Art. No EXBBC0800000515
Remove from cart?
