Roxtec B bolted Ex frame

The Roxtec B…B Ex metal frame with flange is assembled into different sizes and combinations. It is suitable also for installation around existing cables and pipes. The B…B Ex frame is approved for use in potentially explosive atmospheres.

  • To be used with corresponding Roxtec components to form a complete sealing solution
  • Attachment by bolting
B frame 6x1 B EEx
B frame 6x1 B EEx

Component articles

Galvanized mild steel

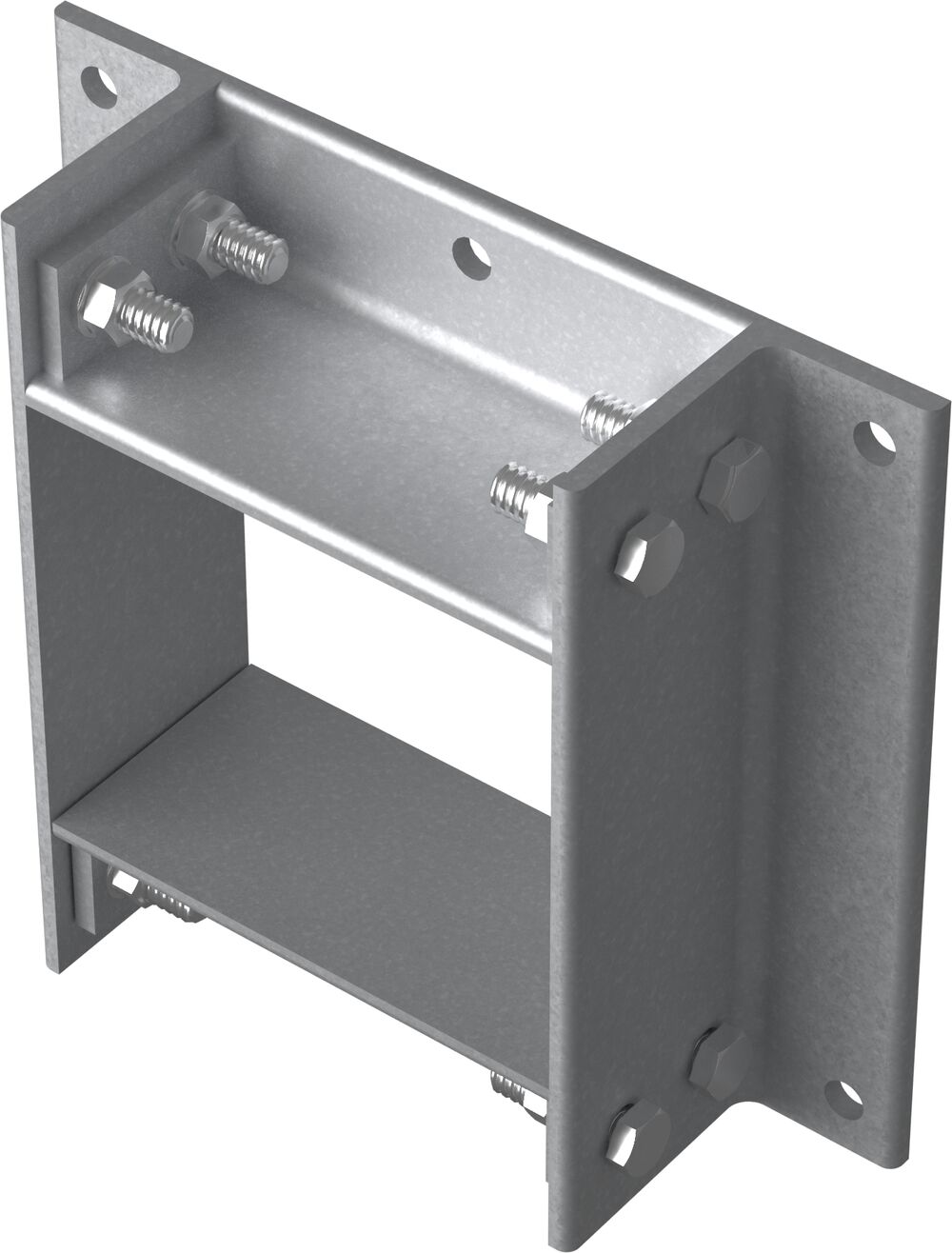

B 2x1 B Ex GALV

  • Frame openings 1
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 200.5 x 181 x 60
  • Aperture dimensions WxHxD (mm) 146(+1/-1) x 126(+1/-1)
  • Weight (kg) 2.8
  • Art. No EXBBB0200000115

B 2x2 B Ex GALV

  • Frame openings 2
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 329 x 181 x 60
  • Aperture dimensions WxHxD (mm) 274(+1/-1) x 126(+1/-1)
  • Weight (kg) 4.5
  • Art. No EXBBB0200000215

B 2x3 B Ex GALV

  • Frame openings 3
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 457.5 x 181 x 60
  • Aperture dimensions WxHxD (mm) 403(+1/-1) x 126(+1/-1)
  • Weight (kg) 7
  • Art. No EXBBB0200000315

B 2x4 B Ex GALV

  • Frame openings 4
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 586 x 181 x 60
  • Aperture dimensions WxHxD (mm) 531(+1/-1) x 126(+1/-1)
  • Weight (kg) 9.4
  • Art. No EXBBB0200000415

B 2x5 B Ex GALV

  • Frame openings 5
  • Packing space (mm) 120 x 60
  • External dimensions WxHxD (mm) 714.5 x 181 x 60
  • Aperture dimensions WxHxD (mm) 660(+1/-1) x 126(+1/-1)
  • Weight (kg) 14.3
  • Art. No EXBBB0200000515

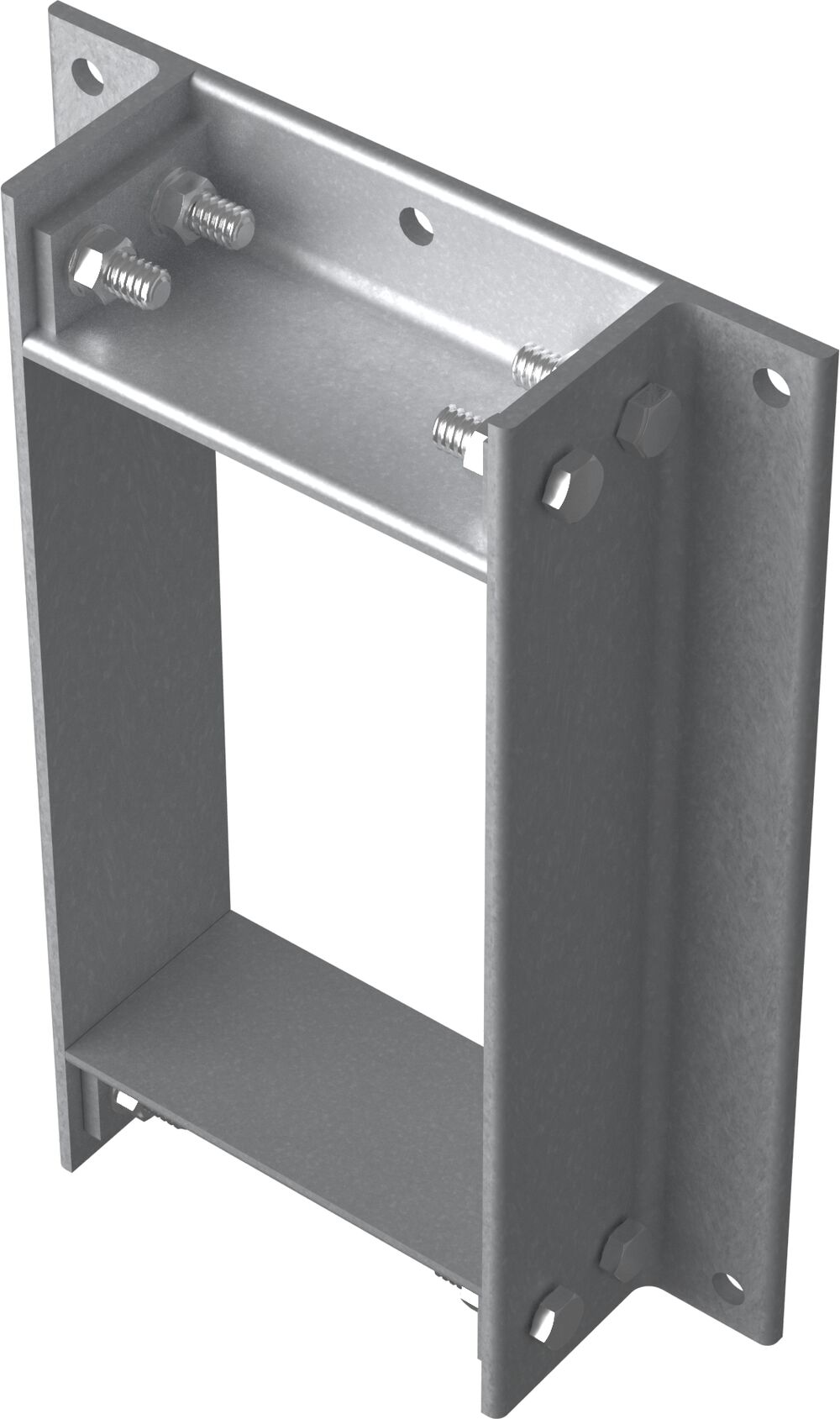

B 4x1 B EX GALV

  • Frame openings 1
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 200.5 x 239.5 x 60
  • Aperture dimensions WxHxD (mm) 146(+1/-1) x 184(+1/-1)
  • Weight (kg) 3.2
  • Art. No EXBBB0400000115

B 4x2 B Ex GALV

  • Frame openings 2
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 329 x 239.5 x 60
  • Aperture dimensions WxHxD (mm) 274(+1/-1) x 184(+1/-1)
  • Weight (kg) 5.8
  • Art. No EXBBB0400000215

B 4x3 B Ex GALV

  • Frame openings 3
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 457.5 x 239.5 x 60
  • Aperture dimensions WxHxD (mm) 403(+1/-1) x 184(+1/-1)
  • Weight (kg) 7.5
  • Art. No EXBBB0400000315

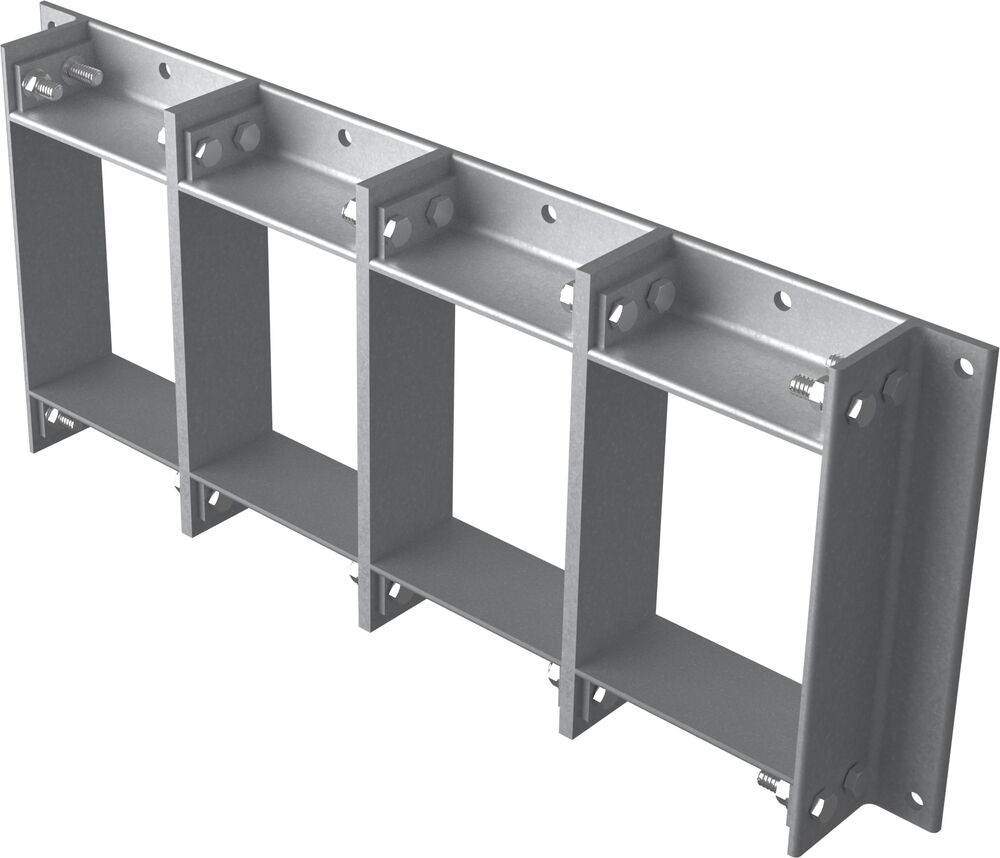

B 4x4 B Ex GALV

  • Frame openings 4
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 586 x 239.5 x 60
  • Aperture dimensions WxHxD (mm) 531(+1/-1) x 184(+1/-1)
  • Weight (kg) 10.2
  • Art. No EXBBB0400000415

B 4x5 B Ex GALV

  • Frame openings 5
  • Packing space (mm) 120 x 120
  • External dimensions WxHxD (mm) 714.5 x 239.5 x 60
  • Aperture dimensions WxHxD (mm) 660(+1/-1) x 184(+1/-1)
  • Weight (kg) 11.3
  • Art. No EXBBB0400000515

B 6x1 B Ex GALV

  • Frame openings 1
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 200.5 x 298 x 60
  • Aperture dimensions WxHxD (mm) 146(+1/-1) x 243(+1/-1)
  • Weight (kg) 3.7
  • Art. No EXBBB0600000115

B 6x2 B Ex GALV

  • Frame openings 2
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 329 x 298 x 60
  • Aperture dimensions WxHxD (mm) 274(+1/-1) x 243(+1/-1)
  • Weight (kg) 6.1
  • Art. No EXBBB0600000215

B 6x3 B Ex GALV

  • Frame openings 3
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 457.5 x 298 x 60
  • Aperture dimensions WxHxD (mm) 403(+1/-1) x 243(+1/-1)
  • Weight (kg) 8.7
  • Art. No EXBBB0600000315

B 6x4 B Ex GALV

  • Frame openings 4
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 586 x 298 x 60
  • Aperture dimensions WxHxD (mm) 531(+1/-1) x 243(+1/-1)
  • Weight (kg) 11
  • Art. No EXBBB0600000415

B 6x5 B Ex GALV

  • Frame openings 5
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 714.5 x 298 x 60
  • Aperture dimensions WxHxD (mm) 660(+1/-1) x 243(+1/-1)
  • Weight (kg) 13.6
  • Art. No EXBBB0600000515

B 8x1 B Ex GALV

  • Frame openings 1
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 200.5 x 358 x 60
  • Aperture dimensions WxHxD (mm) 146(+1/-1) x 303(+1/-1)
  • Weight (kg) 4.4
  • Art. No EXBBB0800000115

B 8x2 B Ex GALV

  • Frame openings 2
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 329 x 358 x 60
  • Aperture dimensions WxHxD (mm) 274(+1/-1) x 303(+1/-1)
  • Weight (kg) 7
  • Art. No EXBBB0800000215

B 8x3 B Ex GALV

  • Frame openings 3
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 457.5 x 358 x 60
  • Aperture dimensions WxHxD (mm) 403(+1/-1) x 303(+1/-1)
  • Weight (kg) 9.8
  • Art. No EXBBB0800000315

B 8x4 B Ex GALV

  • Frame openings 4
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 586 x 358 x 60
  • Aperture dimensions WxHxD (mm) 531(+1/-1) x 303(+1/-1)
  • Weight (kg) 12.4
  • Art. No EXBBB0800000415

B 8x5 B Ex GALV

  • Frame openings 5
  • Packing space (mm) 120 x 240
  • External dimensions WxHxD (mm) 714.5 x 358 x 60
  • Aperture dimensions WxHxD (mm) 660(+1/-1) x 303(+1/-1)
  • Weight (kg) 15.5
  • Art. No EXBBB0800000515
