IP 54 rated cable entry seal for EMC.

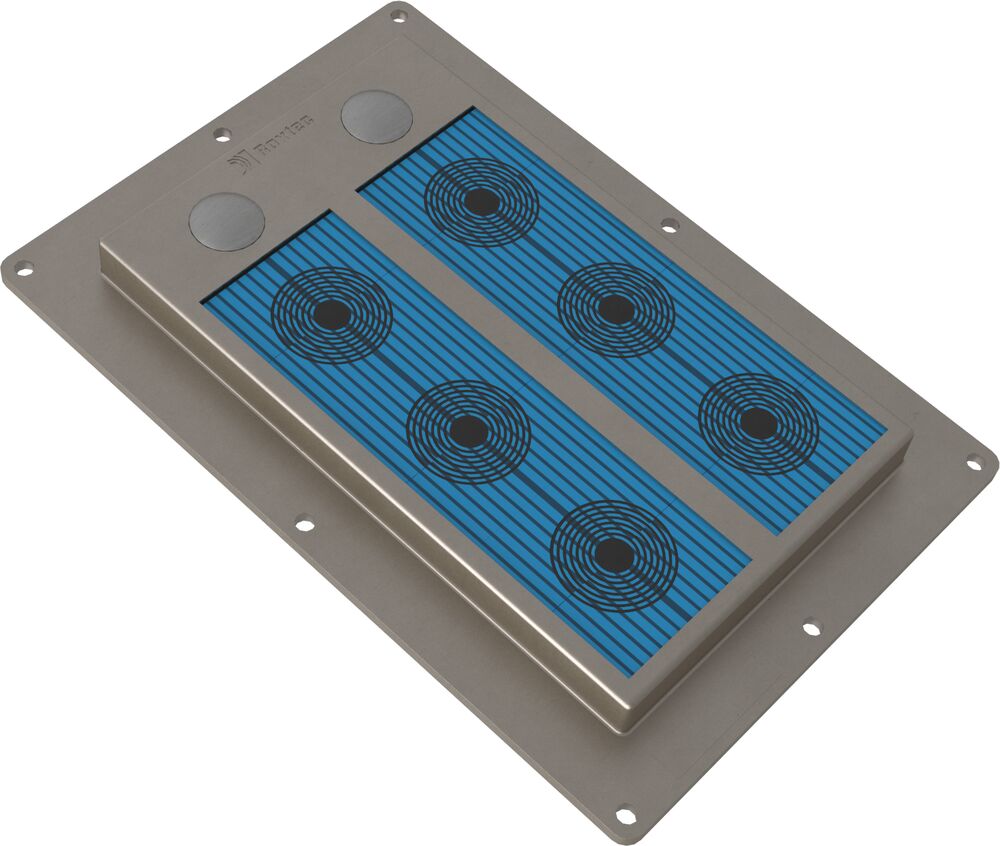

The Roxtec ComSeal™ EMC is rated for IP 54 and designed to ensure electromagnetic compatibility. The seal is available with frame in nickel-plated aluminum. There is a choice between Roxtec ES modules for electromagnetic shielding and PE modules that protect against conducted disturbances. The modules adapt to a variety of cable sizes. The transit is available in six different sizes to accommodate 4 to 32 cables.

Print

Roxtec ComSeal™ EMC transit

Page index

Ratings & certificates Installation Sealing component data Pre-configured transit kits

Ratings & certificates

Certificates are continuously added, renewed and replaced, please visit regularly to ensure compliance.

Fire

N/A

Tightness

IP 54

Supports

Installation

Structure of installation

Cabinet

Mounting type

Bolted

Installation instructions

Information drawings

Information drawings

Images

Sealing component data

Here you find technical information about each specific part of our system.

Rectangular frames

ComSeal™ EMC frame

ComSeal™ EMC frame

Sealing components

CM ES module with Multidiameter™

CM ES module with Multidiameter™

CM PE module with Multidiameter™

CM PE module with Multidiameter™

CM ES solid compensation module

CM ES solid compensation module

CM PE solid compensation module

CM PE solid compensation module

Lubricant

Lubricant

Pre-configured transit kits

Metric (mm/kg) Imperial (inch/lbs)

ComSeal 10/4 ES

Configuration 2x (3.5-16.5), 2x (9.5-32.5)
External dimensions WxHxD (mm) 81 x 173 x 33
Aperture dimensions WxHxD (mm) 56(+1/-1) x 149(+1/-1)
Weight (kg) 0.7
Art. No CSE0000000104
