Roxtec RM solid compensation module

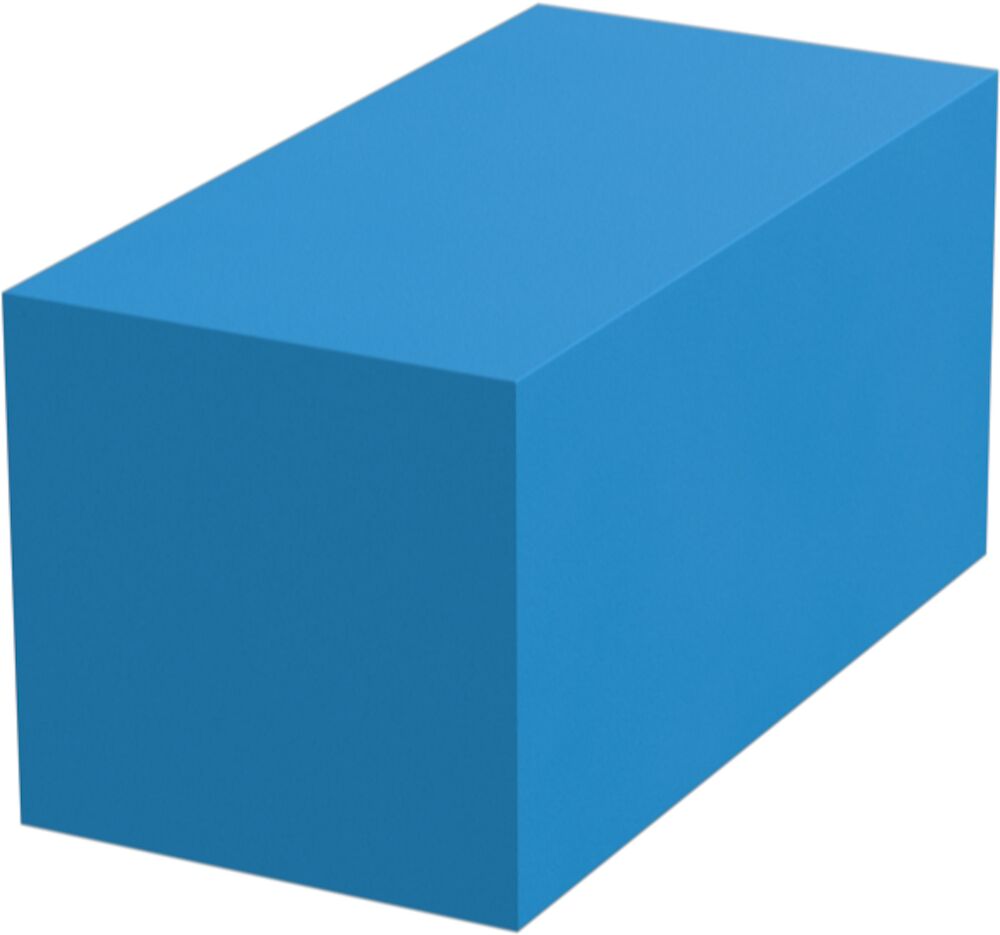

Roxtec RM solid compensation modules are 60 mm (2.362") deep. The RC version is used for the Roxtec SRC frame which has rounded corners.

To be used with corresponding Roxtec components to form a complete sealing solution

Information drawings

Installation instructions

Certificates

Certificates
Type approval name	Certifying authority	Rating	Pipe/cable	Division
C-SEII05.B.04342-B_G-frame	Poschjpolicert Electrocert	EIT 120 E 120	Other	Concrete Floor Wall	pdf Download
Certifying authority Poschjpolicert Electrocert Rating EIT 120 E 120 Pipe/cable Other
C-SEII05.B.04342-R	Poschjpolicert Electrocert	EIT 120 E 120	Other	Concrete Floor Wall	pdf Download
Certifying authority Poschjpolicert Electrocert Rating EIT 120 E 120 Pipe/cable Other
C-SEII05.B.04343-G_B-frame	Poschjpolicert Electrocert	EIT 60 E 60	Other	Concrete Floor Wall	pdf Download
Certifying authority Poschjpolicert Electrocert Rating EIT 60 E 60 Pipe/cable Other
C-SEII05.B.04343-R	Poschjpolicert Electrocert	EIT 60 E 60	Other	Concrete Floor Wall	pdf Download
Certifying authority Poschjpolicert Electrocert Rating EIT 60 E 60 Pipe/cable Other
FM Fire Stop Design 635	Factory Mutual Approval	0h 0,5h 2h 1h	Other	Gypsum Wall	pdf Download
Certifying authority Factory Mutual Approval Rating 0h 0,5h 2h 1h Pipe/cable Other
FM Fire Stop Design 636	Factory Mutual Approval	1h 0h 2h 1h	Other	Gypsum Wall	pdf Download
Certifying authority Factory Mutual Approval Rating 1h 0h 2h 1h Pipe/cable Other
FM Fire Stop Design 637	Factory Mutual Approval	2h 1h 2h 1h	Other	Gypsum Wall	pdf Download
Certifying authority Factory Mutual Approval Rating 2h 1h 2h 1h Pipe/cable Other
FM Fire Stop Design 638	Factory Mutual Approval	2h 1h 0h 2h 1h	Other	Gypsum Wall	pdf Download
Certifying authority Factory Mutual Approval Rating 2h 1h 0h 2h 1h Pipe/cable Other
FM Fire Stop Design 640	Factory Mutual Approval	2h 1h 3h	Other	Wall	pdf Download
Certifying authority Factory Mutual Approval Rating 2h 1h 3h Pipe/cable Other
QMFZ2.E185619	Underwriters Laboratories Inc.				pdf Download
Certifying authority Underwriters Laboratories Inc. Rating Pipe/cable
SC 1479-11 EN	SP Swedish National Testing and Research Institute	EI 120 EI 60 EI 90 E 60 E 90 E 120	Other	Brickwork Gypsum Concrete Floor Wall	pdf Download
Certifying authority SP Swedish National Testing and Research Institute Rating EI 120 EI 60 EI 90 E 60 E 90 E 120 Pipe/cable Other
SC 1479-11 EN	SP Swedish National Testing and Research Institute	EI 120 EI 60 EI 90 E 60 E 90 E 120	Other	Brickwork Gypsum Concrete Floor Wall	pdf Download
Certifying authority SP Swedish National Testing and Research Institute Rating EI 120 EI 60 EI 90 E 60 E 90 E 120 Pipe/cable Other
SC1479-11	SP Swedish National Testing and Research Institute	EI 120 EI 60 EI 90 E 60 E 90 E 120	Other	Brickwork Gypsum Concrete Floor Wall	pdf Download
Certifying authority SP Swedish National Testing and Research Institute Rating EI 120 EI 60 EI 90 E 60 E 90 E 120 Pipe/cable Other
SC1479-11	SP Swedish National Testing and Research Institute	EI 120 EI 60 EI 90 E 60 E 90 E 120	Other	Brickwork Gypsum Concrete Floor Wall	pdf Download
Certifying authority SP Swedish National Testing and Research Institute Rating EI 120 EI 60 EI 90 E 60 E 90 E 120 Pipe/cable Other

Component articles

Metric (mm/kg) Imperial (inch/lbs)


Name	Number of cables/pipes	For cable/pipe Ø (mm)	External dimensions WxHxD (mm)	Weight (kg)	Art. No
RM 10/0x12	0	0 - 0	10 x 10 x 60	0.12	RM00310121000
For cable/pipe Ø (mm) 0 - 0 External dimensions WxHxD (mm) 10 x 10 x 60 Weight (kg) 0.12 Art. No RM00310121000 CAD files
RM 15/0	0	0 - 0	15 x 15 x 60	0.02	RM00300151000
For cable/pipe Ø (mm) 0 - 0 External dimensions WxHxD (mm) 15 x 15 x 60 Weight (kg) 0.02 Art. No RM00300151000 CAD files
RM 20/0	0	0 - 0	20 x 20 x 60	0.04	RM00300201000
For cable/pipe Ø (mm) 0 - 0 External dimensions WxHxD (mm) 20 x 20 x 60 Weight (kg) 0.04 Art. No RM00300201000 CAD files
RM 30/0	0	0 - 0	30 x 30 x 60	0.08	RM00300301000
For cable/pipe Ø (mm) 0 - 0 External dimensions WxHxD (mm) 30 x 30 x 60 Weight (kg) 0.08 Art. No RM00300301000 CAD files
RM 40/0	0	0 - 0	40 x 40 x 60	0.15	RM00300401000
For cable/pipe Ø (mm) 0 - 0 External dimensions WxHxD (mm) 40 x 40 x 60 Weight (kg) 0.15 Art. No RM00300401000 CAD files
RM 60/0	0	0 - 0	60 x 60 x 60	0.33	RM00300601000
For cable/pipe Ø (mm) 0 - 0 External dimensions WxHxD (mm) 60 x 60 x 60 Weight (kg) 0.33 Art. No RM00300601000 CAD files
RM 30H90/0	0	0 - 0	30 x 90 x 60	0.24	5RM0000011073
For cable/pipe Ø (mm) 0 - 0 External dimensions WxHxD (mm) 30 x 90 x 60 Weight (kg) 0.24 Art. No 5RM0000011073 CAD files
RM 40H80/0	0	0 - 0	40 x 80 x 60	0.3	119935
For cable/pipe Ø (mm) 0 - 0 External dimensions WxHxD (mm) 40 x 80 x 60 Weight (kg) 0.3 Art. No 119935 CAD files
RM 20/0 RC 4 PACK	0	0 - 0	20 x 20 x 60	0.13	RMC0300201000
For cable/pipe Ø (mm) 0 - 0 External dimensions WxHxD (mm) 20 x 20 x 60 Weight (kg) 0.13 Art. No RMC0300201000 CAD files
RM 40/0 RC 4 PACK	0	0 - 0	40 x 40 x 60	0.3	RMC0300401000
For cable/pipe Ø (mm) 0 - 0 External dimensions WxHxD (mm) 40 x 40 x 60 Weight (kg) 0.3 Art. No RMC0300401000 CAD files
