Roxtec RM module with Multidiameter™

Roxtec RM modules are 60 mm (2.362") deep and easy to adapt to cable and pipes of different sizes. When used with a solid core, the module functions as a spare module for future capacity.

To be used with corresponding Roxtec components to form a complete sealing solution
For cables and pipes 3.0-99.0mm (0.118"-3.898") OD

Information drawings

Installation instructions

Certificates

Certificates
Type approval name	Certifying authority	Rating	Pipe/cable	Division
2017081809000207	China certification center for fire products ministry of public security (CCCF)	EI 120 E 120	Construction Steel	Concrete Wall	pdf Download
Certifying authority China certification center for fire products ministry of public security (CCCF) Rating EI 120 E 120 Pipe/cable Construction Steel
C-SEII05.B.04342-B_G-frame	Poschjpolicert Electrocert	EIT 120 E 120	Other	Concrete Floor Wall	pdf Download
Certifying authority Poschjpolicert Electrocert Rating EIT 120 E 120 Pipe/cable Other
C-SEII05.B.04342-R	Poschjpolicert Electrocert	EIT 120 E 120	Other	Concrete Floor Wall	pdf Download
Certifying authority Poschjpolicert Electrocert Rating EIT 120 E 120 Pipe/cable Other
C-SEII05.B.04343-G_B-frame	Poschjpolicert Electrocert	EIT 60 E 60	Other	Concrete Floor Wall	pdf Download
Certifying authority Poschjpolicert Electrocert Rating EIT 60 E 60 Pipe/cable Other
C-SEII05.B.04343-R	Poschjpolicert Electrocert	EIT 60 E 60	Other	Concrete Floor Wall	pdf Download
Certifying authority Poschjpolicert Electrocert Rating EIT 60 E 60 Pipe/cable Other
E496911	Underwriters Laboratories Inc.	UL/Nema 3 UL/Nema 3R UL/Nema 4 UL/Nema 4x UL/Nema 12 UL/Nema 13			pdf Download
Certifying authority Underwriters Laboratories Inc. Rating UL/Nema 3 UL/Nema 3R UL/Nema 4 UL/Nema 4x UL/Nema 12 UL/Nema 13 Pipe/cable
FM Fire Stop Design 635	Factory Mutual Approval	0h 0,5h 2h 1h	Other	Gypsum Wall	pdf Download
Certifying authority Factory Mutual Approval Rating 0h 0,5h 2h 1h Pipe/cable Other
FM Fire Stop Design 636	Factory Mutual Approval	1h 0h 2h 1h	Other	Gypsum Wall	pdf Download
Certifying authority Factory Mutual Approval Rating 1h 0h 2h 1h Pipe/cable Other
FM Fire Stop Design 637	Factory Mutual Approval	2h 1h 2h 1h	Other	Gypsum Wall	pdf Download
Certifying authority Factory Mutual Approval Rating 2h 1h 2h 1h Pipe/cable Other
FM Fire Stop Design 638	Factory Mutual Approval	2h 1h 0h 2h 1h	Other	Gypsum Wall	pdf Download
Certifying authority Factory Mutual Approval Rating 2h 1h 0h 2h 1h Pipe/cable Other
FM Fire Stop Design 640	Factory Mutual Approval	2h 1h 3h	Other	Wall	pdf Download
Certifying authority Factory Mutual Approval Rating 2h 1h 3h Pipe/cable Other
QMFZ2.E185619	Underwriters Laboratories Inc.				pdf Download
Certifying authority Underwriters Laboratories Inc. Rating Pipe/cable
SC 1479-11 EN	SP Swedish National Testing and Research Institute	EI 120 EI 60 EI 90 E 60 E 90 E 120	Other	Brickwork Gypsum Concrete Floor Wall	pdf Download
Certifying authority SP Swedish National Testing and Research Institute Rating EI 120 EI 60 EI 90 E 60 E 90 E 120 Pipe/cable Other
SC 1479-11 EN	SP Swedish National Testing and Research Institute	EI 120 EI 60 EI 90 E 60 E 90 E 120	Other	Brickwork Gypsum Concrete Floor Wall	pdf Download
Certifying authority SP Swedish National Testing and Research Institute Rating EI 120 EI 60 EI 90 E 60 E 90 E 120 Pipe/cable Other
SC1479-11	SP Swedish National Testing and Research Institute	EI 120 EI 60 EI 90 E 60 E 90 E 120	Other	Brickwork Gypsum Concrete Floor Wall	pdf Download
Certifying authority SP Swedish National Testing and Research Institute Rating EI 120 EI 60 EI 90 E 60 E 90 E 120 Pipe/cable Other
SC1479-11	SP Swedish National Testing and Research Institute	EI 120 EI 60 EI 90 E 60 E 90 E 120	Other	Brickwork Gypsum Concrete Floor Wall	pdf Download
Certifying authority SP Swedish National Testing and Research Institute Rating EI 120 EI 60 EI 90 E 60 E 90 E 120 Pipe/cable Other

Component articles

Metric (mm/kg) Imperial (inch/lbs)

RM, with core
Name	Number of cables/pipes	For cable/pipe Ø (mm)	External dimensions WxHxD (mm)	Weight (kg)	Art. No

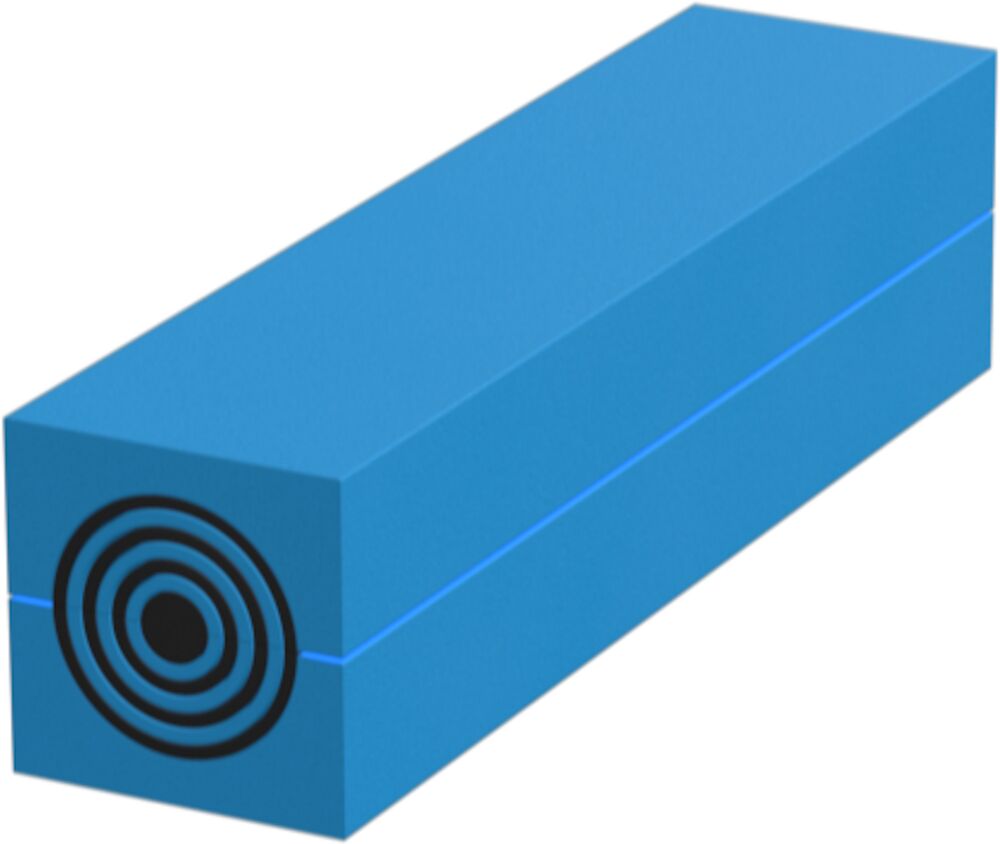

RM 15	1	3 - 11	15 x 15 x 60	0.02	RM00100151000
For cable/pipe Ø (mm) 3 - 11 External dimensions WxHxD (mm) 15 x 15 x 60 Weight (kg) 0.02 Art. No RM00100151000 CAD files

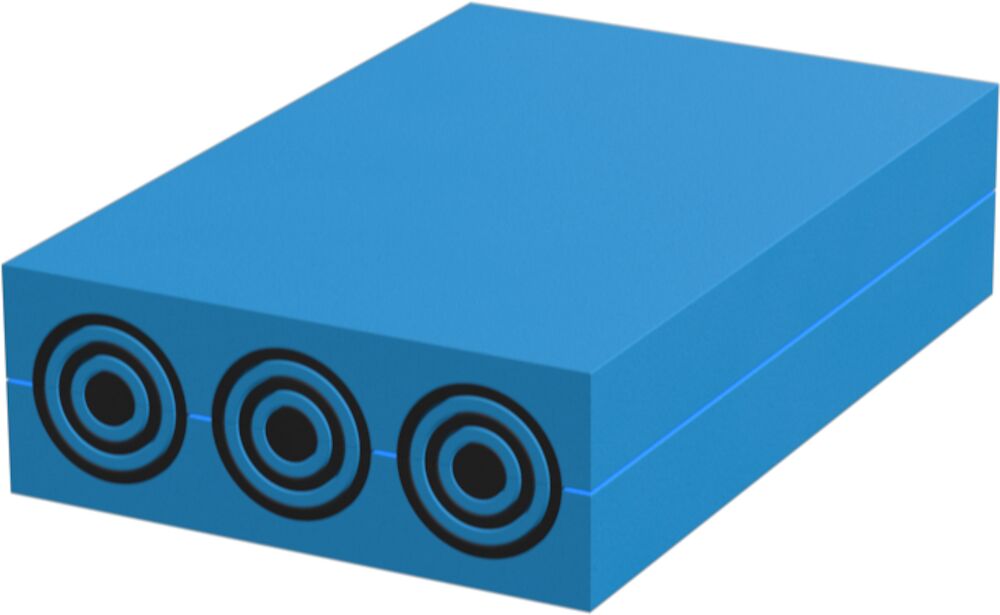

RM 15w40	3	3.5 - 10.5	40 x 15 x 60	0.05	RM00115401000
For cable/pipe Ø (mm) 3.5 - 10.5 External dimensions WxHxD (mm) 40 x 15 x 60 Weight (kg) 0.05 Art. No RM00115401000 CAD files

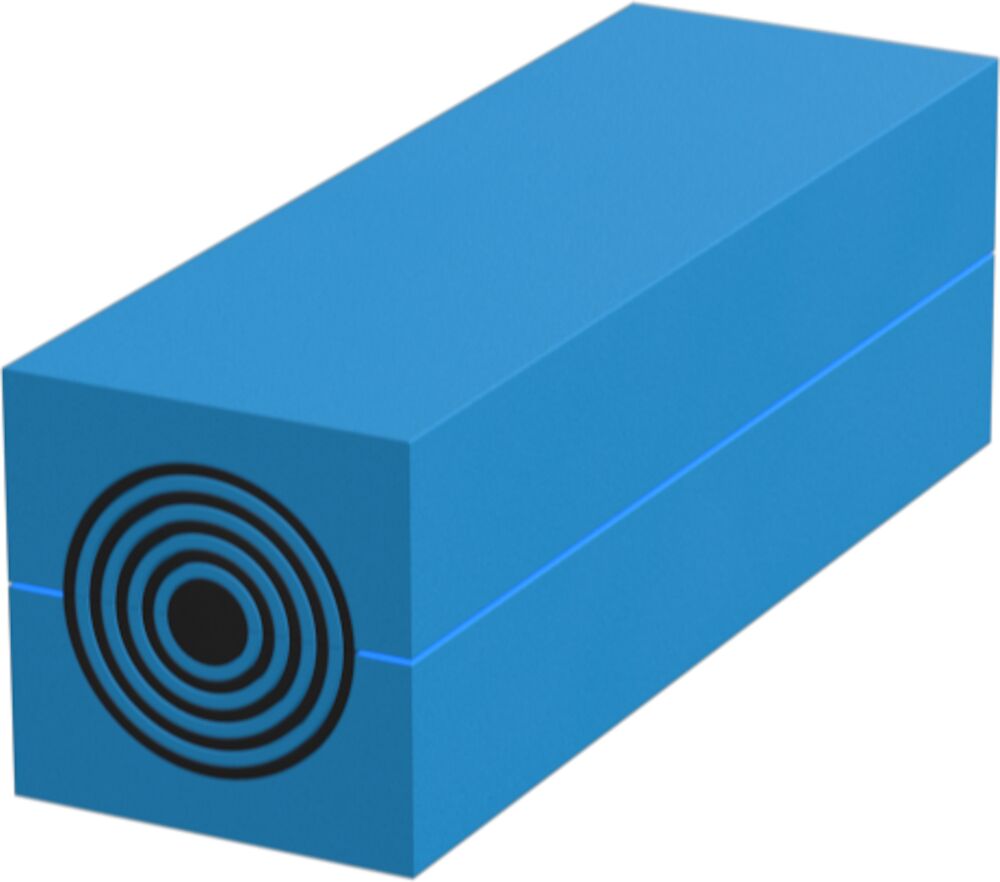

RM 20	1	4 - 14.5	20 x 20 x 60	0.04	RM00100201000
For cable/pipe Ø (mm) 4 - 14.5 External dimensions WxHxD (mm) 20 x 20 x 60 Weight (kg) 0.04 Art. No RM00100201000 CAD files
RM 20w40	2	3.5 - 16.5	40 x 20 x 60	0.07	RM00120401000
For cable/pipe Ø (mm) 3.5 - 16.5 External dimensions WxHxD (mm) 40 x 20 x 60 Weight (kg) 0.07 Art. No RM00120401000 CAD files
RM 30	1	10 - 25	30 x 30 x 60	0.08	RM00100301000
For cable/pipe Ø (mm) 10 - 25 External dimensions WxHxD (mm) 30 x 30 x 60 Weight (kg) 0.08 Art. No RM00100301000 CAD files
RM 30H90	1	10 - 25	30 x 90 x 60	0.25	103915
For cable/pipe Ø (mm) 10 - 25 External dimensions WxHxD (mm) 30 x 90 x 60 Weight (kg) 0.25 Art. No 103915 CAD files
RM 40	1	21.5 - 34.5	40 x 40 x 60	0.14	RM00100401000
For cable/pipe Ø (mm) 21.5 - 34.5 External dimensions WxHxD (mm) 40 x 40 x 60 Weight (kg) 0.14 Art. No RM00100401000 CAD files
RM 40 10-32	1	9.5 - 32.5	40 x 40 x 60	0.14	RM00140101000
For cable/pipe Ø (mm) 9.5 - 32.5 External dimensions WxHxD (mm) 40 x 40 x 60 Weight (kg) 0.14 Art. No RM00140101000 CAD files

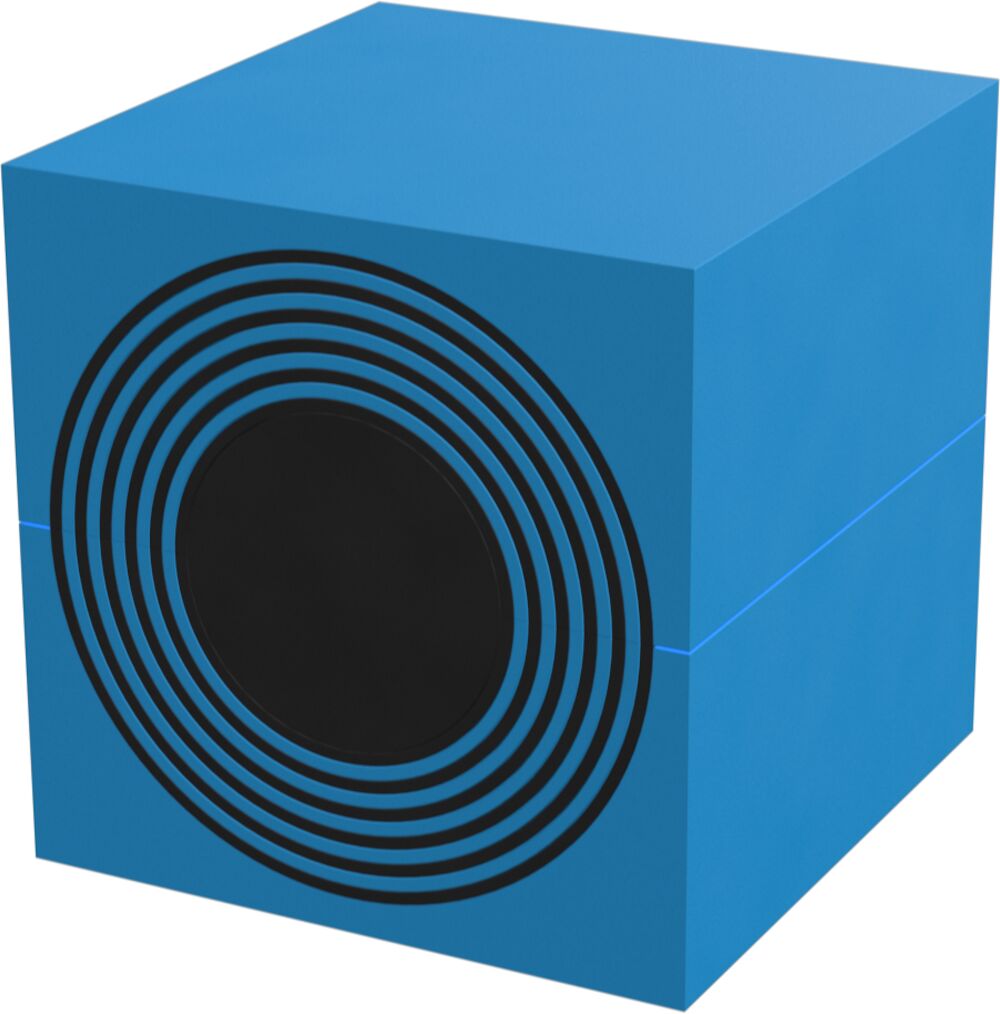

RM 60	1	28 - 54	60 x 60 x 60	0.32	RM00100601000
For cable/pipe Ø (mm) 28 - 54 External dimensions WxHxD (mm) 60 x 60 x 60 Weight (kg) 0.32 Art. No RM00100601000 CAD files
RM 60 24-54	1	24 - 54	60 x 60 x 60	0.33	RM00160201000
For cable/pipe Ø (mm) 24 - 54 External dimensions WxHxD (mm) 60 x 60 x 60 Weight (kg) 0.33 Art. No RM00160201000 CAD files

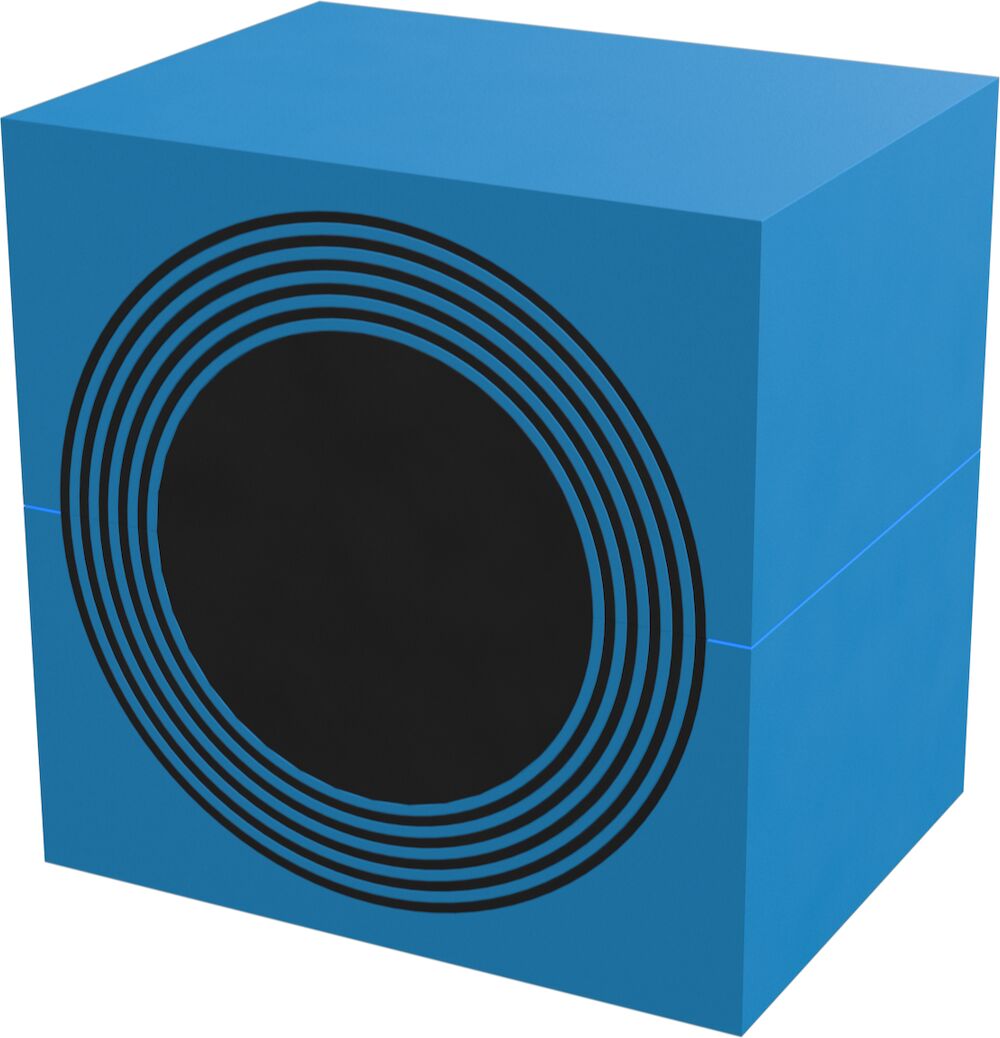

RM 80	1	48 - 71	80 x 80 x 60	0.6	5RM0000003350
For cable/pipe Ø (mm) 48 - 71 External dimensions WxHxD (mm) 80 x 80 x 60 Weight (kg) 0.6 Art. No 5RM0000003350 CAD files
RM 90	1	48 - 71	90 x 90 x 60	0.7	RM00100901000
For cable/pipe Ø (mm) 48 - 71 External dimensions WxHxD (mm) 90 x 90 x 60 Weight (kg) 0.7 Art. No RM00100901000 CAD files

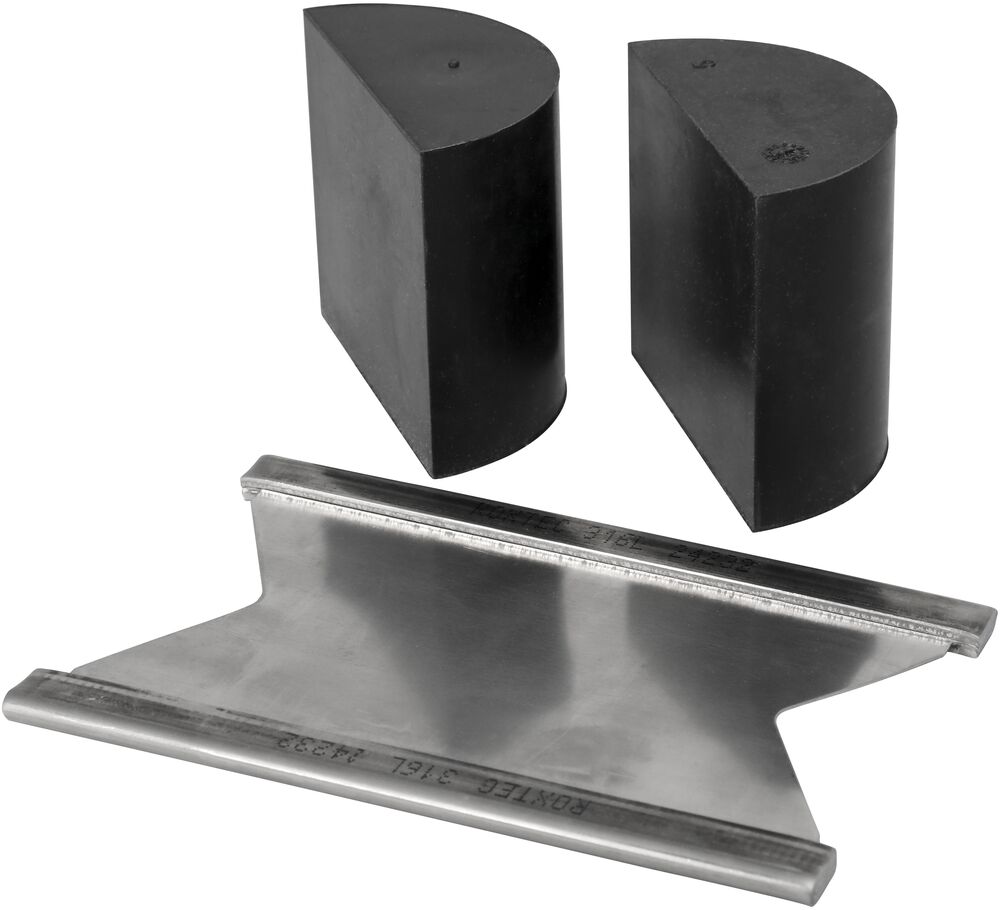

RM 120	1	67.5 - 99	120 x 120 x 60	1.3	RM00101201000
For cable/pipe Ø (mm) 67.5 - 99 External dimensions WxHxD (mm) 120 x 120 x 60 Weight (kg) 1.3 Art. No RM00101201000 CAD files

RM, without core
Name	Number of cables/pipes	For cable/pipe Ø (mm)	External dimensions WxHxD (mm)	Weight (kg)	Art. No
RM 60 WOC	1	28 - 54	60 x 60 x 60	0.26	RM00000601000
For cable/pipe Ø (mm) 28 - 54 External dimensions WxHxD (mm) 60 x 60 x 60 Weight (kg) 0.26 Art. No RM00000601000 CAD files
RM 80 WOC	1	48 - 71	80 x 80 x 60	0.4	5RM0000000534
For cable/pipe Ø (mm) 48 - 71 External dimensions WxHxD (mm) 80 x 80 x 60 Weight (kg) 0.4 Art. No 5RM0000000534 CAD files
RM 90 WOC	1	48 - 71	90 x 90 x 60	0.6	RM00000901000
For cable/pipe Ø (mm) 48 - 71 External dimensions WxHxD (mm) 90 x 90 x 60 Weight (kg) 0.6 Art. No RM00000901000 CAD files
RM 120 WOC	1	67.5 - 99	120 x 120 x 60	0.9	RM00001201000
For cable/pipe Ø (mm) 67.5 - 99 External dimensions WxHxD (mm) 120 x 120 x 60 Weight (kg) 0.9 Art. No RM00001201000 CAD files

Smart engineering tool

Do you need our help?

Contact our head office:

Roxtec RM module with Multidiameter™

Information drawings

S1007435 (-) RM 30H90 ASSEMBLY

S1005711 (D) RM MODULES ASSEMBLY

Installation instructions

Roxtec rectangular system

Other documents

MSDS Roxylon Multilingual

Certificates

Component articles
