Roxtec RM Ex module with Multidiameter™

Roxtec RM modules are 60 mm (2.362") deep and easy to adapt to cable and pipes of different sizes. The Ex version is approved for use in hazardous locations and potentially explosive atmospheres.

  • To be used with corresponding Roxtec components to form a complete sealing solution
  • For cables 3.0-99.0 mm (0.118”-3.898”) OD

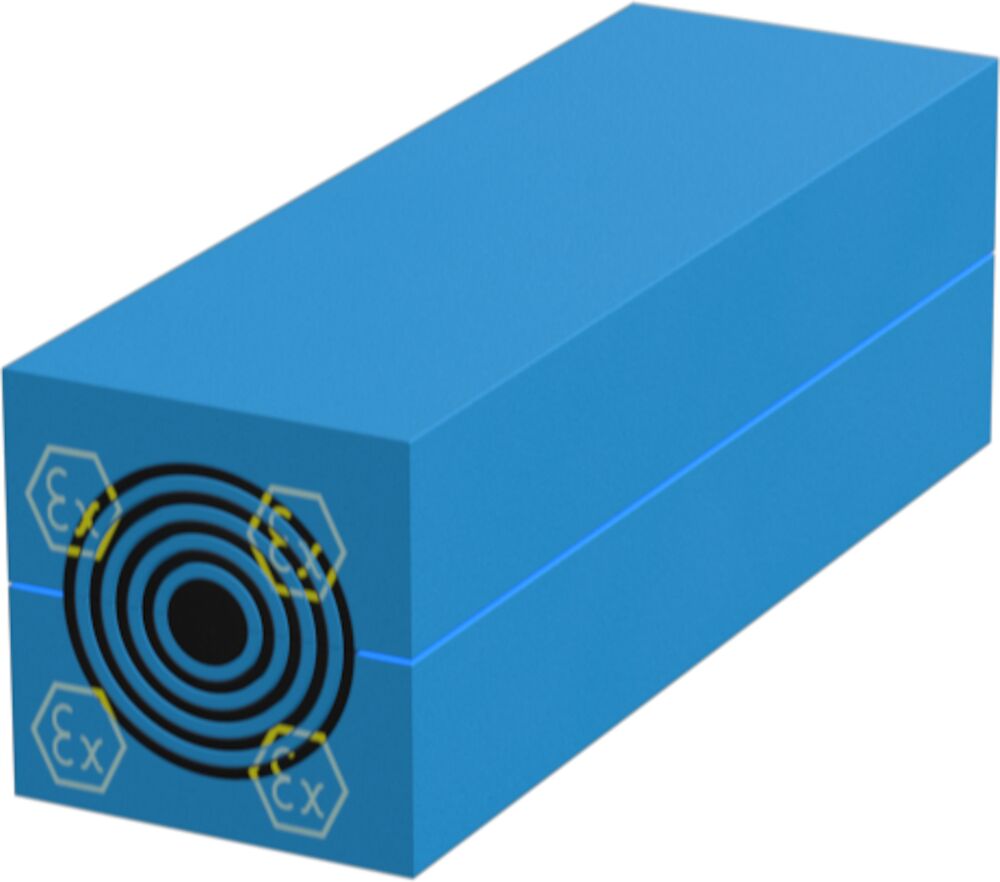

RM Ex module with core
RM Ex module with core
RM Ex module with core
RM Ex module with core
RM Ex module with core
RM Ex module with core
RM Ex module with core
RM Ex module with core
RM Ex module with core
RM Ex module with core
RM Ex module with core
RM Ex module with core
RM Ex module with core
RM Ex module with core
RM Ex module with core

Component articles

Metric (mm/kg) Imperial (inch/lbs)
RM Ex, with core
Name Number of cables/pipes For cable/pipe Ø (mm) External dimensions WxHxD (mm) Weight (kg) Art. No CAD files
RM 15 Ex 1 3 - 11 15 x 15 x 60 0.02 EXRM00100151000
  • For cable/pipe Ø (mm) 3 - 11
  • External dimensions WxHxD (mm) 15 x 15 x 60
  • Weight (kg) 0.02
  • Art. No EXRM00100151000
  • CAD files
RM 15w40 Ex 3 3.5 - 10.5 40 x 15 x 60 0.05 EXRM00115401000
  • For cable/pipe Ø (mm) 3.5 - 10.5
  • External dimensions WxHxD (mm) 40 x 15 x 60
  • Weight (kg) 0.05
  • Art. No EXRM00115401000
  • CAD files
RM 20 Ex 1 4 - 14.5 20 x 20 x 60 0.04 EXRM00100201000
  • For cable/pipe Ø (mm) 4 - 14.5
  • External dimensions WxHxD (mm) 20 x 20 x 60
  • Weight (kg) 0.04
  • Art. No EXRM00100201000
  • CAD files
RM 20w40 Ex 2 3.5 - 16.5 40 x 20 x 60 0.07 EXRM00120401000
  • For cable/pipe Ø (mm) 3.5 - 16.5
  • External dimensions WxHxD (mm) 40 x 20 x 60
  • Weight (kg) 0.07
  • Art. No EXRM00120401000
  • CAD files
RM 30 Ex 1 10 - 25 30 x 30 x 60 0.08 EXRM00100301000
  • For cable/pipe Ø (mm) 10 - 25
  • External dimensions WxHxD (mm) 30 x 30 x 60
  • Weight (kg) 0.08
  • Art. No EXRM00100301000
  • CAD files
RM 30H90 Ex 1 10 - 25 30 x 90 x 60 0.25 EXRM00300309000
  • For cable/pipe Ø (mm) 10 - 25
  • External dimensions WxHxD (mm) 30 x 90 x 60
  • Weight (kg) 0.25
  • Art. No EXRM00300309000
  • CAD files
RM 40 10-32 Ex 1 9.5 - 32.5 40 x 40 x 60 0.15 EXRM00140101000
  • For cable/pipe Ø (mm) 9.5 - 32.5
  • External dimensions WxHxD (mm) 40 x 40 x 60
  • Weight (kg) 0.15
  • Art. No EXRM00140101000
  • CAD files
RM 40 Ex 1 21.5 - 34.5 40 x 40 x 60 0.14 EXRM00100401000
  • For cable/pipe Ø (mm) 21.5 - 34.5
  • External dimensions WxHxD (mm) 40 x 40 x 60
  • Weight (kg) 0.14
  • Art. No EXRM00100401000
  • CAD files
RM 40H80 Ex 1 21.5 - 34.5 40 x 80 x 60 0.28 153266
  • For cable/pipe Ø (mm) 21.5 - 34.5
  • External dimensions WxHxD (mm) 40 x 80 x 60
  • Weight (kg) 0.28
  • Art. No 153266
  • CAD files
RM 60 24-54 Ex 1 24 - 54 60 x 60 x 60 0.33 EXRM01060245400
  • For cable/pipe Ø (mm) 24 - 54
  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Weight (kg) 0.33
  • Art. No EXRM01060245400
  • CAD files
RM 60 Ex 1 28 - 54 60 x 60 x 60 0.33 EXRM00100601000
  • For cable/pipe Ø (mm) 28 - 54
  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Weight (kg) 0.33
  • Art. No EXRM00100601000
  • CAD files
RM 80 Ex 1 48 - 71 80 x 80 x 60 0.6 153229
  • For cable/pipe Ø (mm) 48 - 71
  • External dimensions WxHxD (mm) 80 x 80 x 60
  • Weight (kg) 0.6
  • Art. No 153229
  • CAD files
RM 90 Ex 1 48 - 71 90 x 90 x 60 0.7 EXRM00100901000
  • For cable/pipe Ø (mm) 48 - 71
  • External dimensions WxHxD (mm) 90 x 90 x 60
  • Weight (kg) 0.7
  • Art. No EXRM00100901000
  • CAD files
RM 120 Ex 1 67.5 - 99 120 x 120 x 60 1.3 EXRM00101201000
  • For cable/pipe Ø (mm) 67.5 - 99
  • External dimensions WxHxD (mm) 120 x 120 x 60
  • Weight (kg) 1.3
  • Art. No EXRM00101201000
  • CAD files
RM Ex, without core
Name Number of cables/pipes For cable/pipe Ø (mm) External dimensions WxHxD (mm) Weight (kg) Art. No CAD files
RM 120 Ex WOC 1 67.5 - 99 120 x 120 x 60 0.9 EXRM00001201000
  • For cable/pipe Ø (mm) 67.5 - 99
  • External dimensions WxHxD (mm) 120 x 120 x 60
  • Weight (kg) 0.9
  • Art. No EXRM00001201000
  • CAD files
RM 60 WOC Ex 1 28 - 54 60 x 60 x 60 0.26 EXRM00000601000
  • For cable/pipe Ø (mm) 28 - 54
  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Weight (kg) 0.26
  • Art. No EXRM00000601000
  • CAD files
RM 80 Ex WOC 1 48 - 71 80 x 80 x 60 0.5 153230
  • For cable/pipe Ø (mm) 48 - 71
  • External dimensions WxHxD (mm) 80 x 80 x 60
  • Weight (kg) 0.5
  • Art. No 153230
  • CAD files
RM 90 WOC Ex 1 48 - 71 90 x 90 x 60 0.6 EXRM00000901000
  • For cable/pipe Ø (mm) 48 - 71
  • External dimensions WxHxD (mm) 90 x 90 x 60
  • Weight (kg) 0.6
  • Art. No EXRM00000901000
  • CAD files
