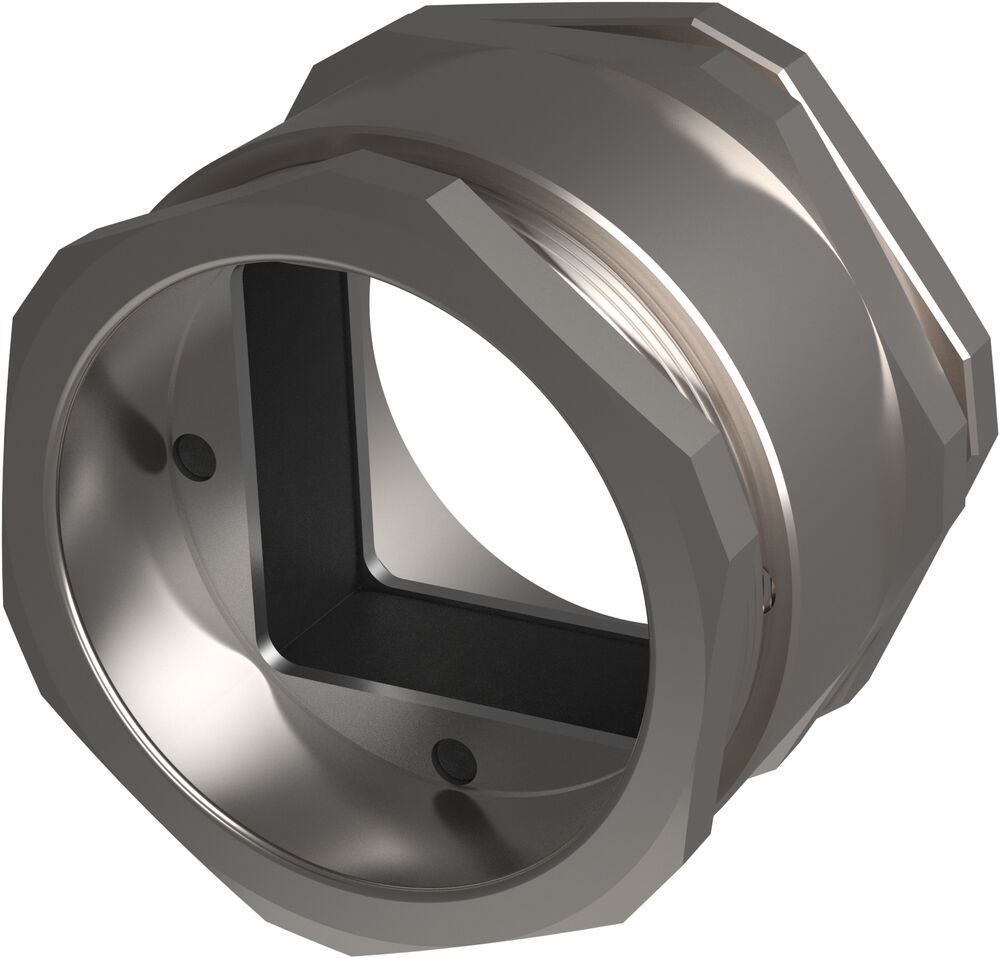

The Roxtec RG M63 entry seal frame is a cable gland type of frame to be used with Roxtec GM modules.
- To be used with corresponding Roxtec components to form a complete sealing solution Attachment by counter ring nut
- For one to nine cables/pipes
- Allows use of pre-terminated cables
- Available in stainless acid-proof steel AISI 316
Technical drawings
Installation instructions
Certificates
Variants
Acid proof stainless steel
RG M63-SEAL AISI316
- Packing space (mm) 40 x 40
- Aperture dimension Ø (mm) 63 - 64
- Weight (kg) 0.45
- Art. No 100694
