Roxtec R B Ex kit

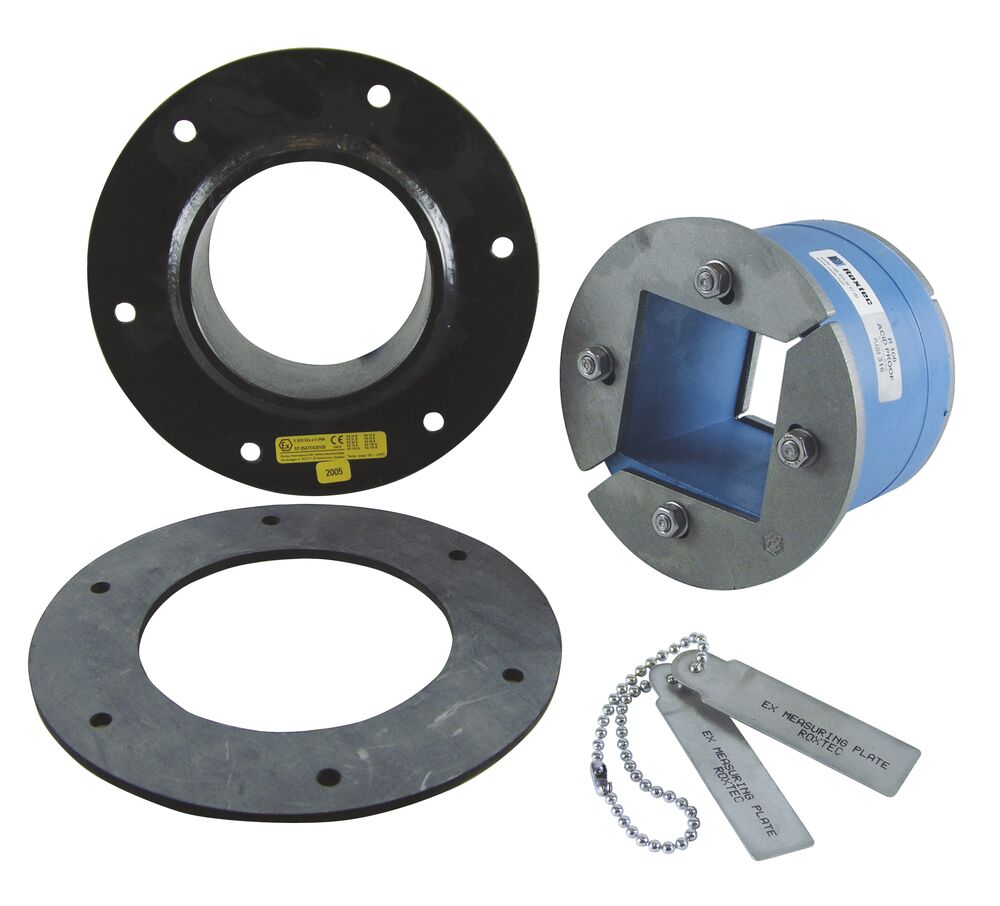

The Roxtec R B Ex frame is round with a square packing space and integrated compression. The frame kit includes a sleeve with flange and a gasket. R B Ex frames (except R B 75 Ex) are supplied with a net on the back side to simplify horizontal installations.

  • To be used with corresponding Roxtec components to form a complete sealing solution
  • For several cables or pipes
  • For use in hazardous locations
  • Attachment by bolting

Component articles

Galvanized mild steel
Name Packing space (mm) Aperture dimension Ø (mm) Weight (kg) Art. No CAD files
R 75 B Ex AISI316/GALV 40 x 40 93 - 93 1.9 EXBR00000752118
dxf
stp
  • Aperture dimension Ø (mm) 93 - 93
  • Weight (kg) 1.9
  • Art. No EXBR00000752118
  • CAD files
    dxf
    stp
R 100 B Ex AISI316/GALV 60 x 60 118 - 118 2.6 EXBR00001002118
dxf
stp
  • Aperture dimension Ø (mm) 118 - 118
  • Weight (kg) 2.6
  • Art. No EXBR00001002118
  • CAD files
    dxf
    stp
R 125 Ex B AISI316/GALV 80 x 80 144 - 144 3.4 EXBR00001252118
dxf
stp
  • Aperture dimension Ø (mm) 144 - 144
  • Weight (kg) 3.4
  • Art. No EXBR00001252118
  • CAD files
    dxf
    stp
R 150 B Ex AISI316/GALV 90 x 90 168 - 168 4.3 EXBR00001502118
dxf
stp
  • Aperture dimension Ø (mm) 168 - 168
  • Weight (kg) 4.3
  • Art. No EXBR00001502118
  • CAD files
    dxf
    stp
R 200 B Ex AISI316/GALV 120 x 120 218 - 218 6.4 EXBR00002002118
dxf
stp
  • Aperture dimension Ø (mm) 218 - 218
  • Weight (kg) 6.4
  • Art. No EXBR00002002118
  • CAD files
    dxf
    stp
Primed mild steel
Name Packing space (mm) Aperture dimension Ø (mm) Weight (kg) Art. No CAD files
R 75 B Ex AISI316/PRIMED 40 x 40 93 - 93 2.2 EXBR00000752112
dxf
stp
  • Aperture dimension Ø (mm) 93 - 93
  • Weight (kg) 2.2
  • Art. No EXBR00000752112
  • CAD files
    dxf
    stp
R 75 W Ex AISI316/PRIMED 40 x 40 91 - 91 1.3 EXWR00000752112
dxf
stp
  • Aperture dimension Ø (mm) 91 - 91
  • Weight (kg) 1.3
  • Art. No EXWR00000752112
  • CAD files
    dxf
    stp
R 100 B Ex AISI316/PRIMED 60 x 60 118 - 118 2.9 EXBR00001002112
dxf
stp
  • Aperture dimension Ø (mm) 118 - 118
  • Weight (kg) 2.9
  • Art. No EXBR00001002112
  • CAD files
    dxf
    stp
R 100 W Ex AISI316/PRIMED 60 x 60 116 - 116 1.9 EXWR00001002112
dxf
stp
  • Aperture dimension Ø (mm) 116 - 116
  • Weight (kg) 1.9
  • Art. No EXWR00001002112
  • CAD files
    dxf
    stp
R 125 B Ex AISI316/PRIMED 80 x 80 144 - 144 3.4 EXBR00001252112
dxf
stp
  • Aperture dimension Ø (mm) 144 - 144
  • Weight (kg) 3.4
  • Art. No EXBR00001252112
  • CAD files
    dxf
    stp
R 125 W Ex AISI316/PRIMED 80 x 80 142 - 142 2.8 EXWR00001252112
dxf
stp
  • Aperture dimension Ø (mm) 142 - 142
  • Weight (kg) 2.8
  • Art. No EXWR00001252112
  • CAD files
    dxf
    stp
R 150 B Ex AISI316/PRIMED 90 x 90 168 - 168 4.3 EXBR00001502112
dxf
stp
  • Aperture dimension Ø (mm) 168 - 168
  • Weight (kg) 4.3
  • Art. No EXBR00001502112
  • CAD files
    dxf
    stp
R 150 W Ex AISI316/PRIMED 90 x 90 166 - 166 3.5 EXWR00001502112
dxf
stp
  • Aperture dimension Ø (mm) 166 - 166
  • Weight (kg) 3.5
  • Art. No EXWR00001502112
  • CAD files
    dxf
    stp
R 200 B Ex AISI316/PRIMED 120 x 120 218 - 218 6.4 EXBR00002002112
dxf
stp
  • Aperture dimension Ø (mm) 218 - 218
  • Weight (kg) 6.4
  • Art. No EXBR00002002112
  • CAD files
    dxf
    stp
R 200 W Ex AISI316/PRIMED 120 x 120 216 - 216 5.3 EXWR00002002112
dxf
stp
  • Aperture dimension Ø (mm) 216 - 216
  • Weight (kg) 5.3
  • Art. No EXWR00002002112
  • CAD files
    dxf
    stp
Stainless steel
Name Packing space (mm) Aperture dimension Ø (mm) Weight (kg) Art. No CAD files
R 75 B Ex AISI316/AISI316 40 x 40 93 - 93 2.2 EXBR00000752121
dxf
stp
  • Aperture dimension Ø (mm) 93 - 93
  • Weight (kg) 2.2
  • Art. No EXBR00000752121
  • CAD files
    dxf
    stp
R 75 W Ex AISI316/AISI316 40 x 40 91 - 91 1.4 EXWR00000752121
dxf
stp
  • Aperture dimension Ø (mm) 91 - 91
  • Weight (kg) 1.4
  • Art. No EXWR00000752121
  • CAD files
    dxf
    stp
R 100 B Ex AISI316/AISI316 60 x 60 118 - 118 2.9 EXBR00001002121
dxf
stp
  • Aperture dimension Ø (mm) 118 - 118
  • Weight (kg) 2.9
  • Art. No EXBR00001002121
  • CAD files
    dxf
    stp
R 100 W Ex AISI316/AISI316 60 x 60 116 - 116 2.1 EXWR00001002121
dxf
stp
  • Aperture dimension Ø (mm) 116 - 116
  • Weight (kg) 2.1
  • Art. No EXWR00001002121
  • CAD files
    dxf
    stp
R 125 B Ex AISI316/AISI316 80 x 80 144 - 144 3.4 EXBR00001252121
dxf
stp
  • Aperture dimension Ø (mm) 144 - 144
  • Weight (kg) 3.4
  • Art. No EXBR00001252121
  • CAD files
    dxf
    stp
R 125 W Ex AISI316/AISI316 80 x 80 142 - 142 2.7 EXWR00001252121
dxf
stp
  • Aperture dimension Ø (mm) 142 - 142
  • Weight (kg) 2.7
  • Art. No EXWR00001252121
  • CAD files
    dxf
    stp
R 150 B Ex AISI316/AISI316 90 x 90 168 - 168 4.3 EXBR00001502121
dxf
stp
  • Aperture dimension Ø (mm) 168 - 168
  • Weight (kg) 4.3
  • Art. No EXBR00001502121
  • CAD files
    dxf
    stp
R 150 W Ex AISI316/AISI316 90 x 90 166 - 166 3.5 EXWR00001502121
dxf
stp
  • Aperture dimension Ø (mm) 166 - 166
  • Weight (kg) 3.5
  • Art. No EXWR00001502121
  • CAD files
    dxf
    stp
R 200 B Ex AISI316/AISI316 120 x 120 218 - 218 6.2 EXBR00002002121
dxf
stp
  • Aperture dimension Ø (mm) 218 - 218
  • Weight (kg) 6.2
  • Art. No EXBR00002002121
  • CAD files
    dxf
    stp
R 200 W Ex AISI316/AISI316 120 x 120 216 - 216 5.3 EXWR00002002121
dxf
stp
  • Aperture dimension Ø (mm) 216 - 216
  • Weight (kg) 5.3
  • Art. No EXWR00002002121
  • CAD files
    dxf
    stp
