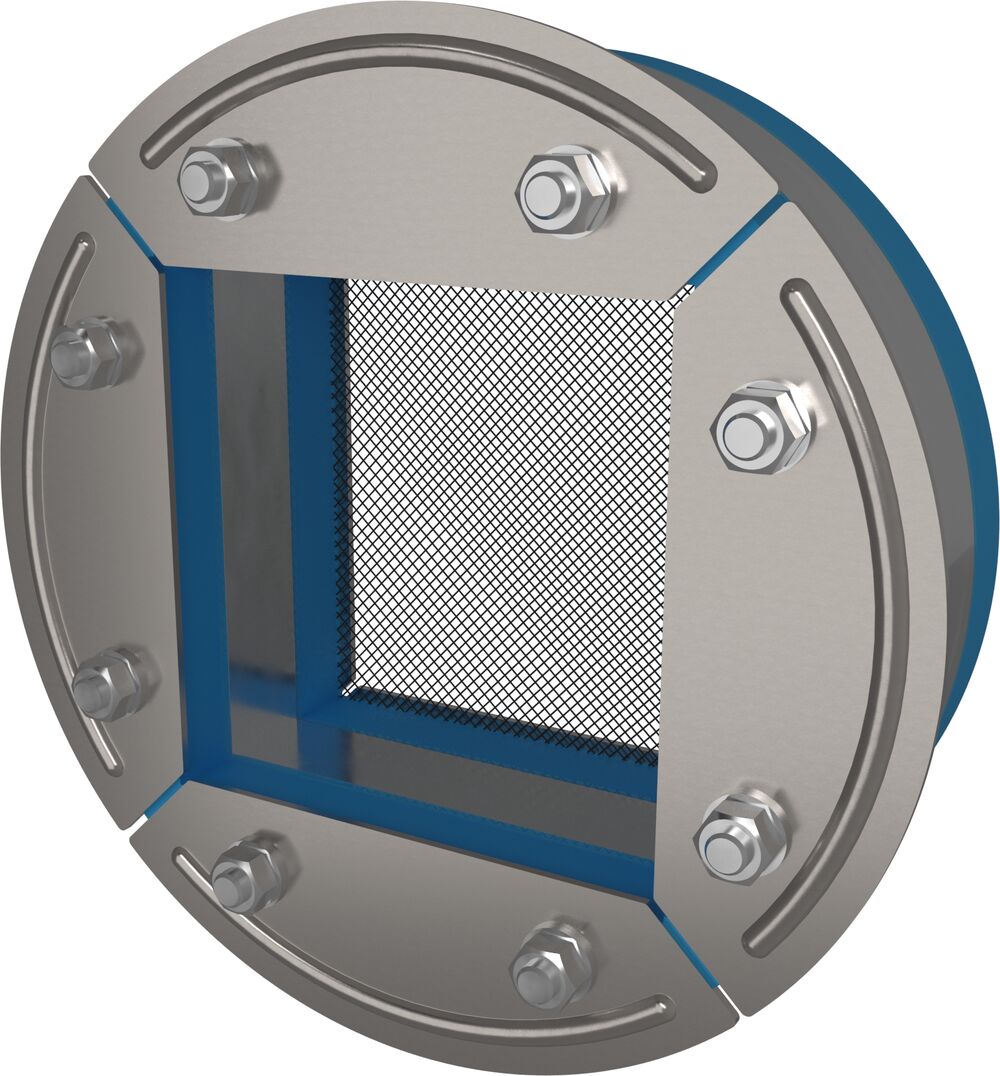

Roxtec R EMC transit with SL R

Round EMC transit for welding when sealing multiple cable and pipes in a limited area.

The Roxtec R EMC with SL R sleeve is a cable and pipe transit ensuring electromagnetic compatibility. The transit frame is designed to be installed into SL R sleeves. The compression is integrated in the frame and seals by expansion. There is a choice between Roxtec ES modules for electromagnetic shielding and PE modules that protect against conducted disturbances. The modules adapt to cables and pipes of different sizes, and can be used to build in spare capacity in the transit. The SL R sleeve is welded to the structure. Roxtec EC (electrical continuity) test sticks are available to help indicate the electrical performance of the transit installation.

  • Area efficient
  • Easy to maintain and inspect

Product characteristics

  • fire rated.svg
    Fire rated
  • watertight.svg
    Watertight
  • gas-tight.svg
    Gas-tight
  • emi protection.svg
    EMI protection

Ratings & certificates

Certificates are continuously added, renewed and replaced, please visit regularly to ensure compliance.

Fire

  • A-CLASS according to IMO 2010 FTP Code
  • H-CLASS according to IMO 2010 FTP Code + HC fire load curve

Tightness

  • Gas: 2.5 bar (catastrophic)
  • Water: 4 bar (catastrophic)

Supports

  • Electromagnetic shielding
  • Potential equalization

Seals for your industry

Explore the multitude of applications where you can benefit from our solutions.

Pre-configured transit kits

R 100/6 W ES AISI316

  • Configuration 4 x cables/pipes diameter 0+3,5-16,5mm
    1 x cables/pipes diameter 0+21,5-34,5mm
    1 x cables/pipes diameter 0+4,0-14,5mm
  • Weight (kg) 2.06
Remove from cart?

R 150/9 W ES AISI316

  • Configuration 9 x cables/pipes diameter 0+10,0-25,0mm
  • Weight (kg) 3.9
Remove from cart?

R 200/4 W ES AISI316

  • Configuration 4 x cables/pipes diameter 0+28,0-54,0mm
  • Weight (kg) 5.9
Remove from cart?
Product Configuration Weight (kg)
R 100/6 W ES AISI316 4 x cables/pipes diameter 0+3,5-16,5mm
1 x cables/pipes diameter 0+21,5-34,5mm
1 x cables/pipes diameter 0+4,0-14,5mm
2.06
R 150/9 W ES AISI316 9 x cables/pipes diameter 0+10,0-25,0mm 3.9
R 200/4 W ES AISI316 4 x cables/pipes diameter 0+28,0-54,0mm 5.9
