Roxtec RM BG™ Ex module with Multidiameter™

Print

Roxtec RM modules are 60 mm (2.362") deep and easy to adapt to cables and pipes of different sizes. The BG Ex version is used for bonding and grounding of armored cables in potentially explosive atmospheres and hazardous locations.

  • To be used with corresponding Roxtec components to form a complete sealing solution
RM 40 BG B EX

Component articles

Mm/kg Inch/lbs

RM BG B Ex

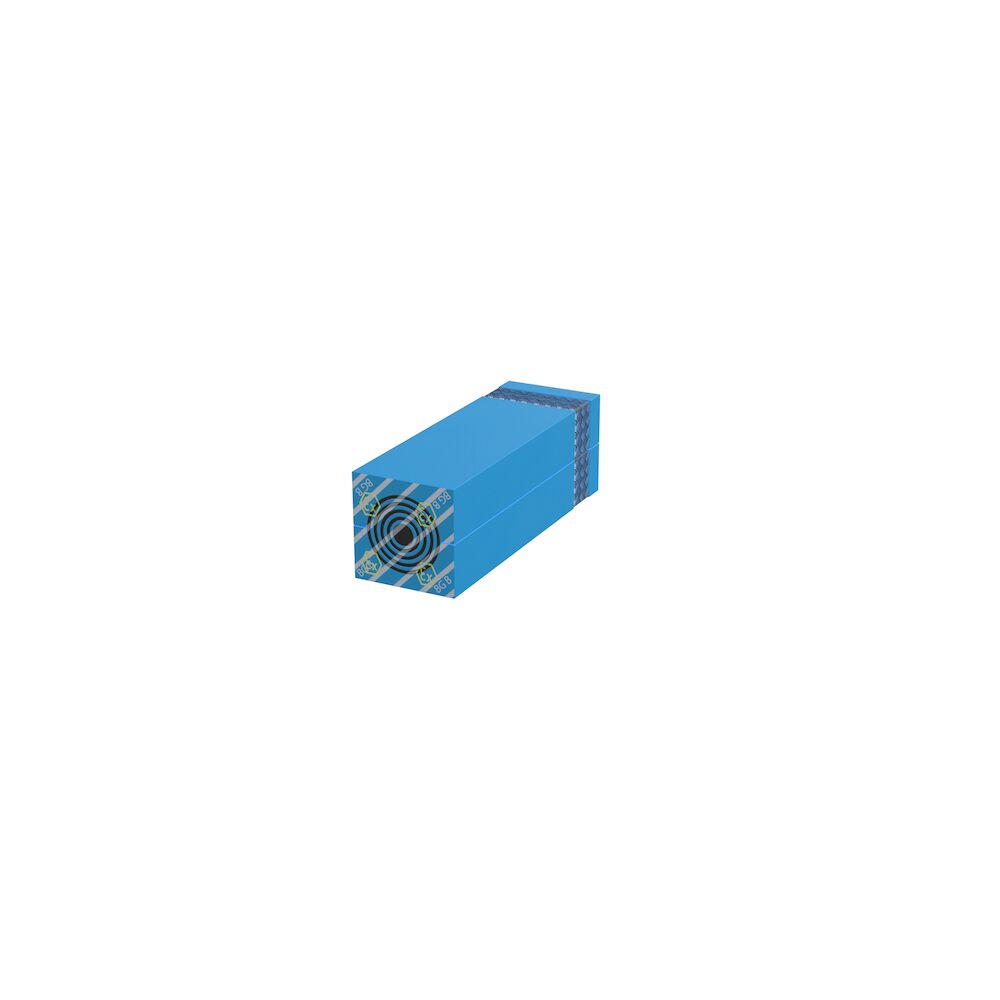

RM 20 BG B Ex

  • External dimensions WxHxD (mm) 20 x 20 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 4 - 14.5
  • Weight (kg) 0.04
  • Art. No 102515
Remove from cart?

RM 20w40 BG B Ex

  • External dimensions WxHxD (mm) 40 x 20 x 60
  • Number of cables/pipes 2
  • For cable/pipe Ø (mm) 3.5 - 16.5
  • Weight (kg) 0.07
  • Art. No 102516
Remove from cart?

RM 30 BG B Ex

  • External dimensions WxHxD (mm) 30 x 30 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 10 - 25
  • Weight (kg) 0.08
  • Art. No 102517
Remove from cart?

RM 30H90 BG B Ex

  • External dimensions WxHxD (mm) 30 x 90 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 10 - 25
  • Weight (kg) 0.35
  • Art. No 117569
Remove from cart?

RM 40 BG B Ex

  • External dimensions WxHxD (mm) 40 x 40 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 21.5 - 34.5
  • Weight (kg) 0.14
  • Art. No 102526
Remove from cart?

RM 40 10-32 BG B Ex

  • External dimensions WxHxD (mm) 40 x 40 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 9.5 - 32.5
  • Weight (kg) 0.15
  • Art. No 102518
Remove from cart?

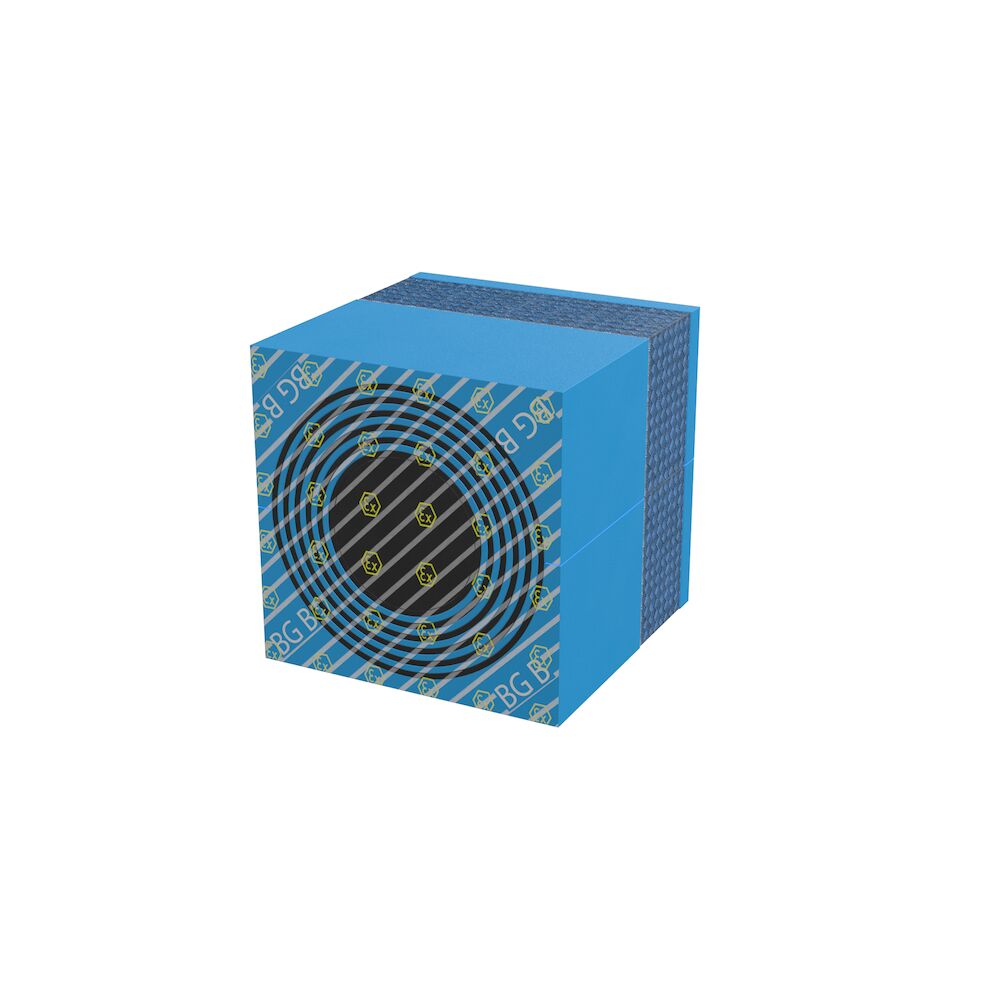

RM 60 BG B Ex

  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 28 - 54
  • Weight (kg) 0.34
  • Art. No 102532
Remove from cart?

RM 60 24-54 BG B Ex

  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 24 - 54
  • Weight (kg) 0.34
  • Art. No 102530
Remove from cart?

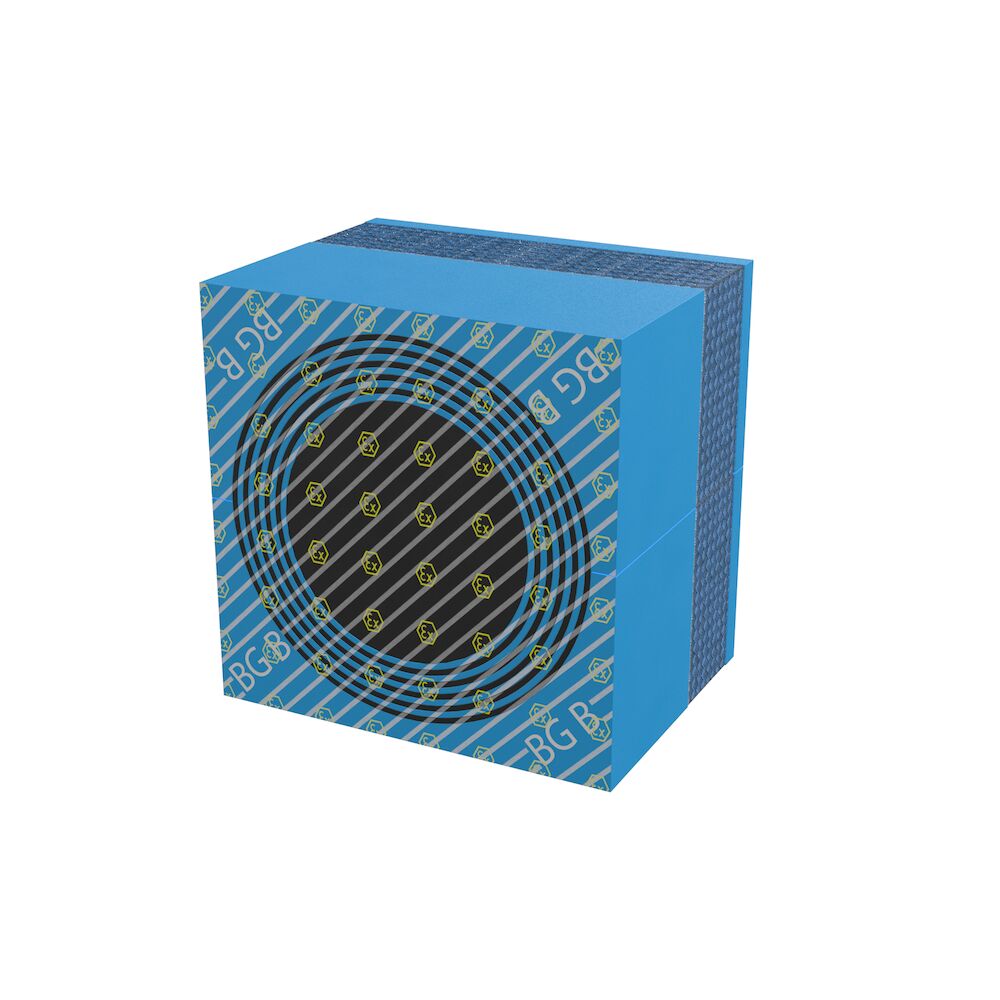

RM 80 BG B Ex

  • External dimensions WxHxD (mm) 80 x 80 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 48 - 71
  • Weight (kg) 0.44
  • Art. No 150599
Remove from cart?

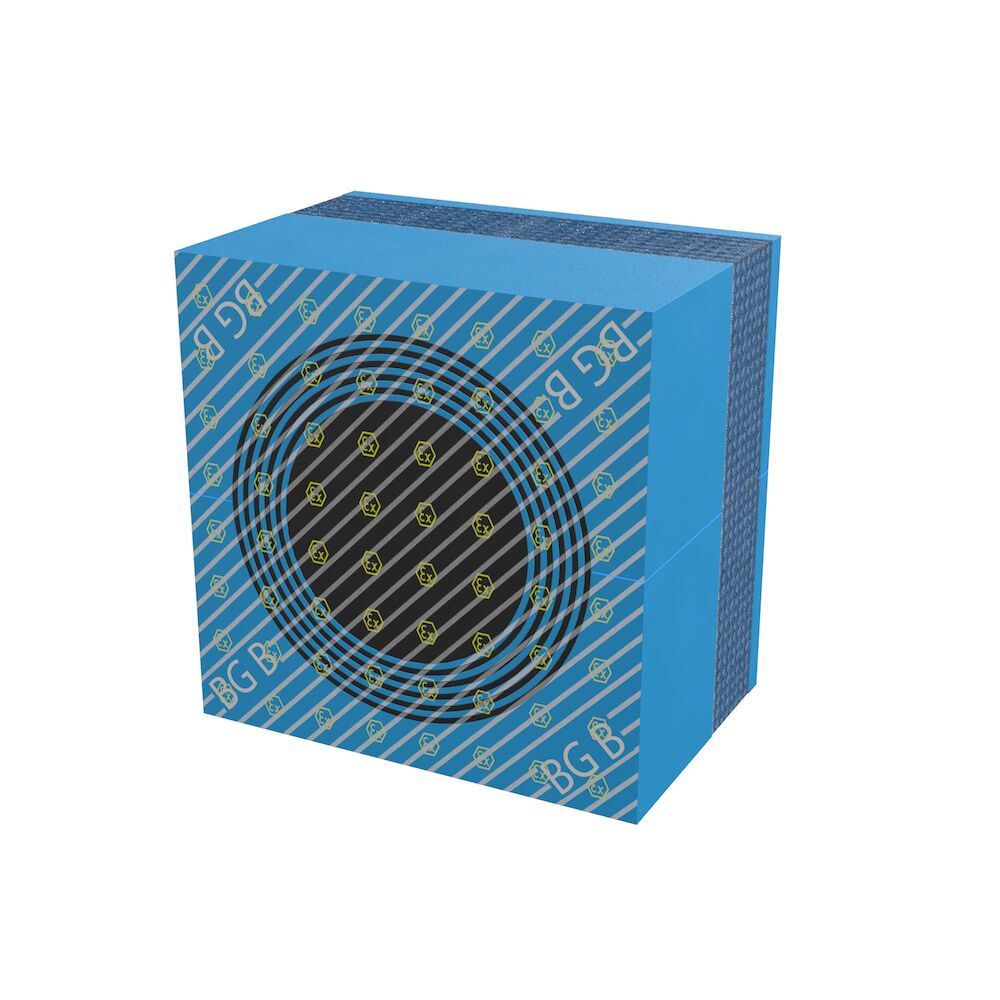

RM 90 BG B Ex

  • External dimensions WxHxD (mm) 90 x 90 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 48 - 71
  • Weight (kg) 0.8
  • Art. No 103298
Remove from cart?

RM 120 BG B Ex

  • External dimensions WxHxD (mm) 120 x 120 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 67.5 - 99
  • Weight (kg) 1.4
  • Art. No 103301
Remove from cart?

RM 60 BG B Ex WOC

  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 28 - 54
  • Weight (kg) 0.3
  • Art. No 109380
Remove from cart?

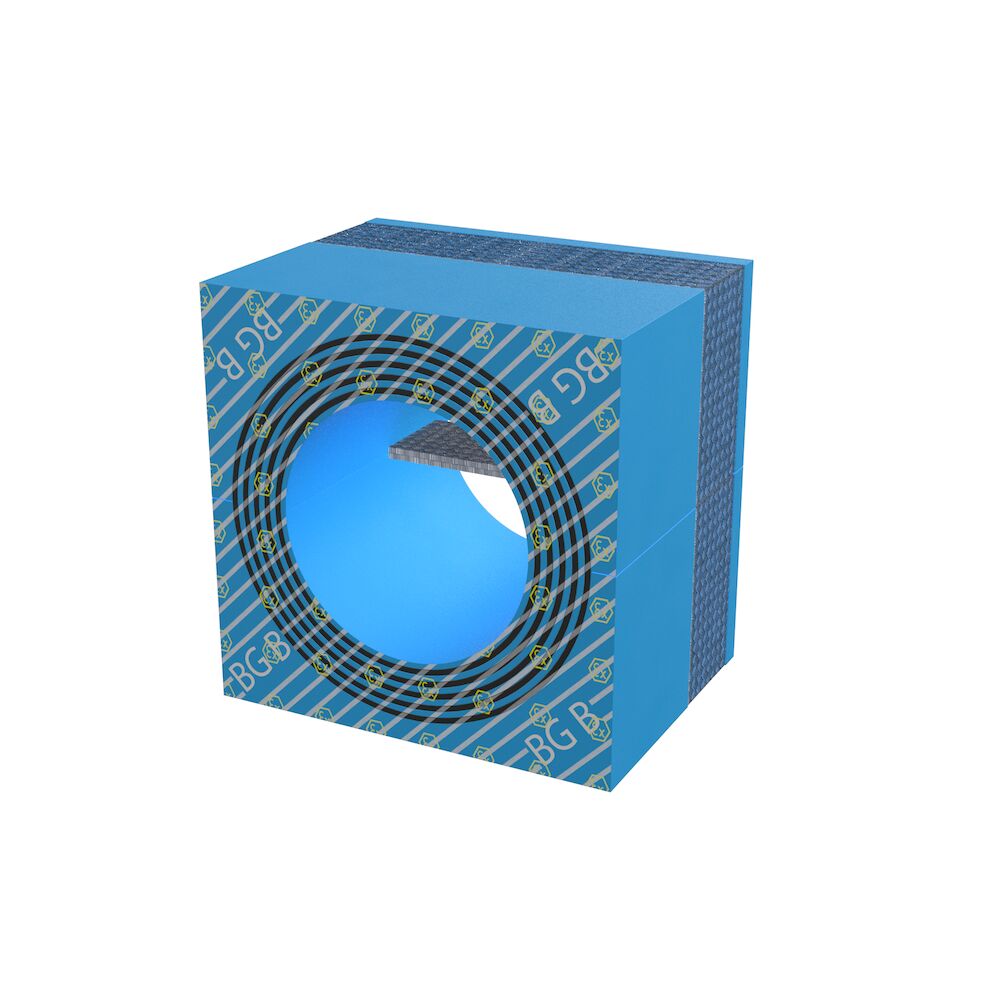

RM 80 BG B Ex WOC

  • External dimensions WxHxD (mm) 80 x 80 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 48 - 71
  • Weight (kg) 0.5
  • Art. No 150601
Remove from cart?

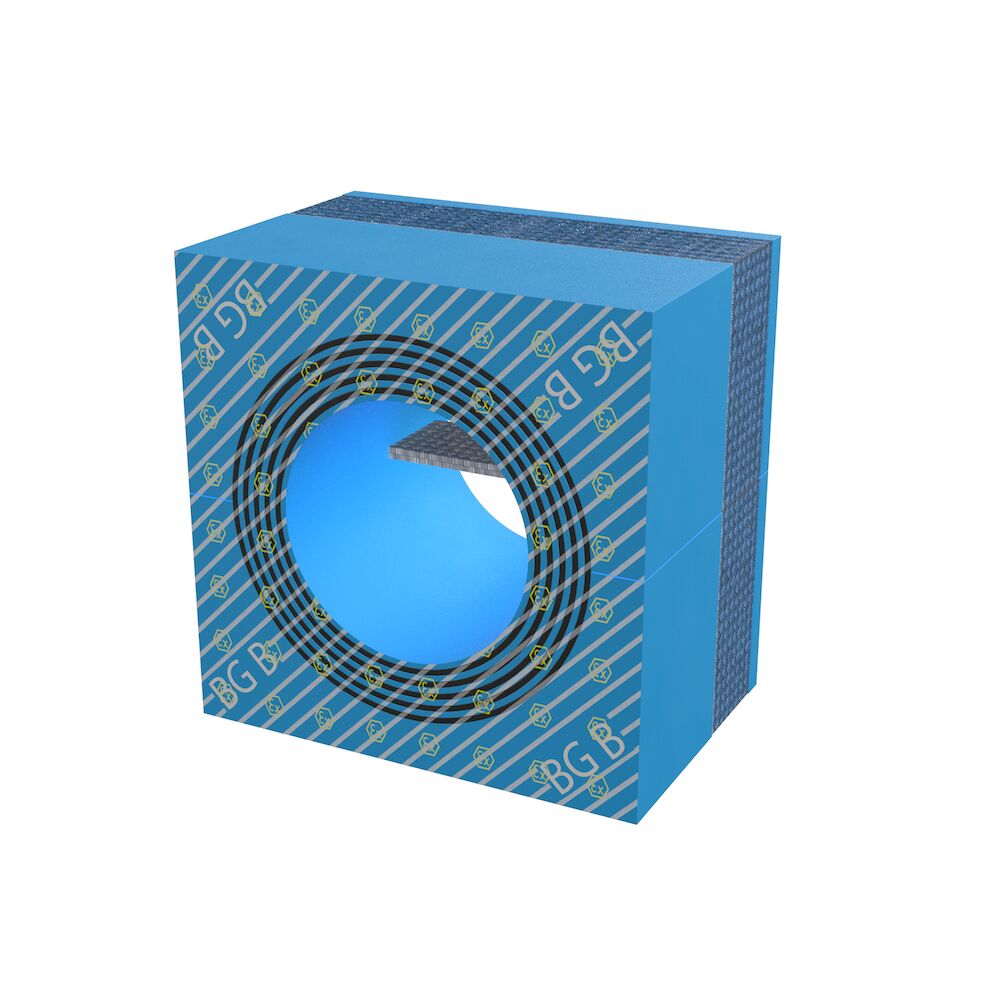

RM 90 BG B Ex WOC

  • External dimensions WxHxD (mm) 90 x 90 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 48 - 71
  • Weight (kg) 0.7
  • Art. No 102534
Remove from cart?

RM 120 BG B Ex WOC

  • External dimensions WxHxD (mm) 120 x 120 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 67.5 - 99
  • Weight (kg) 1.1
  • Art. No 102512
Remove from cart?

RM BG Ex

RM 20 BG Ex

  • External dimensions WxHxD (mm) 20 x 20 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 4 - 14.5
  • Weight (kg) 0.04
  • Art. No 102522
Remove from cart?

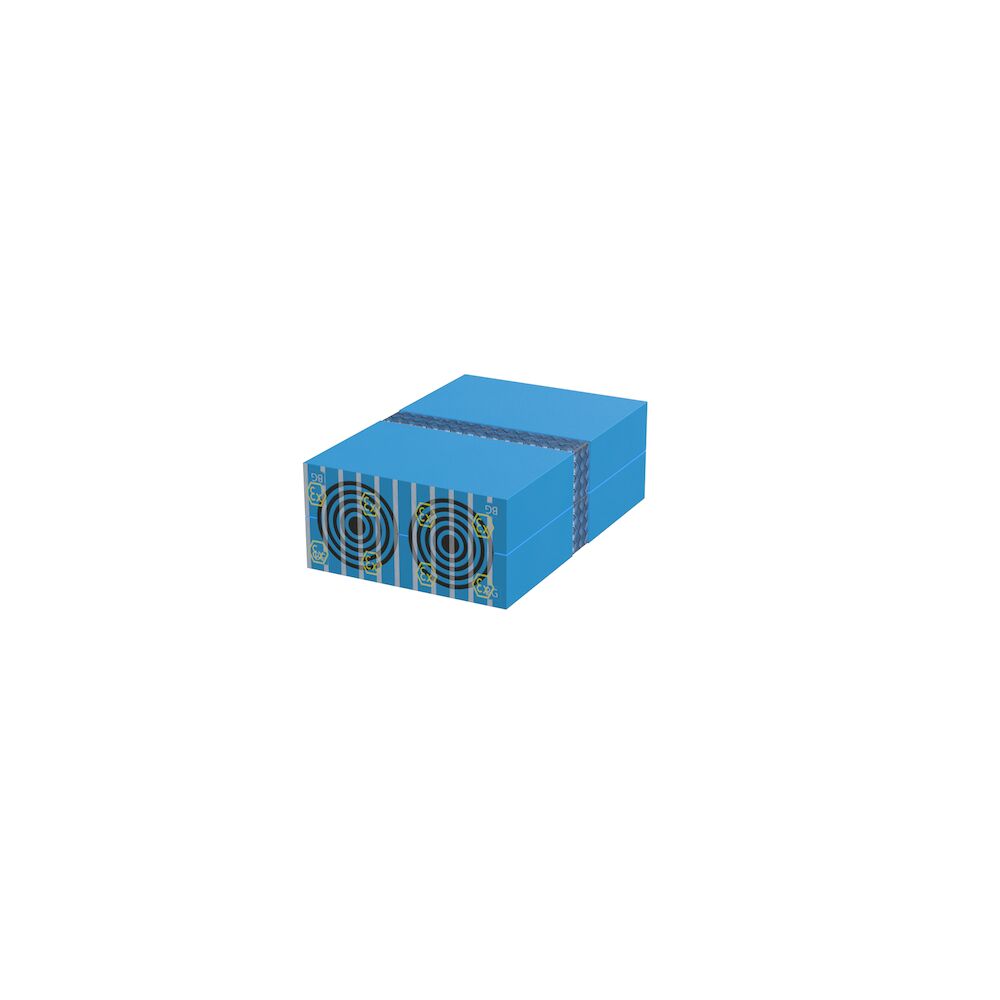

RM 20w40 BG Ex

  • External dimensions WxHxD (mm) 40 x 20 x 60
  • Number of cables/pipes 2
  • For cable/pipe Ø (mm) 3.5 - 16.5
  • Weight (kg) 0.08
  • Art. No 102523
Remove from cart?

RM 30 BG Ex

  • External dimensions WxHxD (mm) 30 x 30 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 10 - 25
  • Weight (kg) 0.08
  • Art. No 102524
Remove from cart?

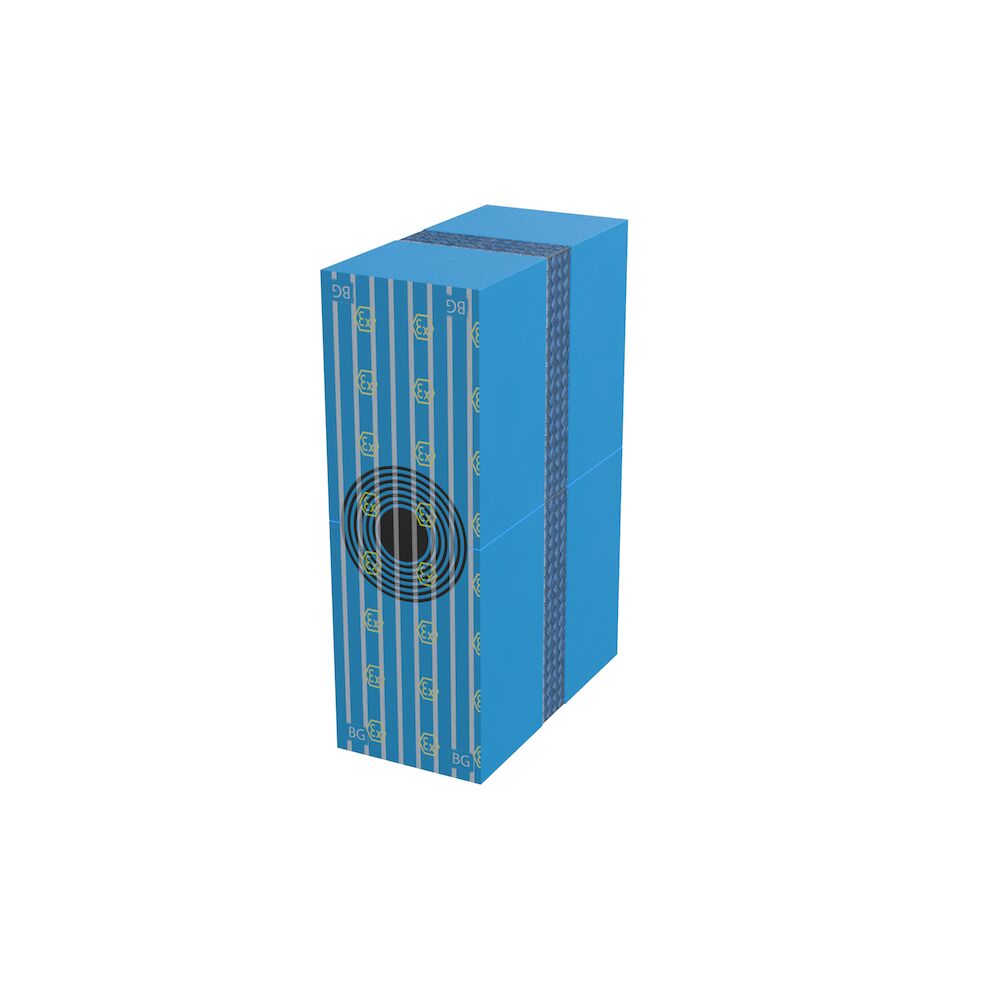

RM 30H90 BG Ex

  • External dimensions WxHxD (mm) 30 x 90 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 10 - 25
  • Weight (kg) 0.6
  • Art. No 117568
Remove from cart?

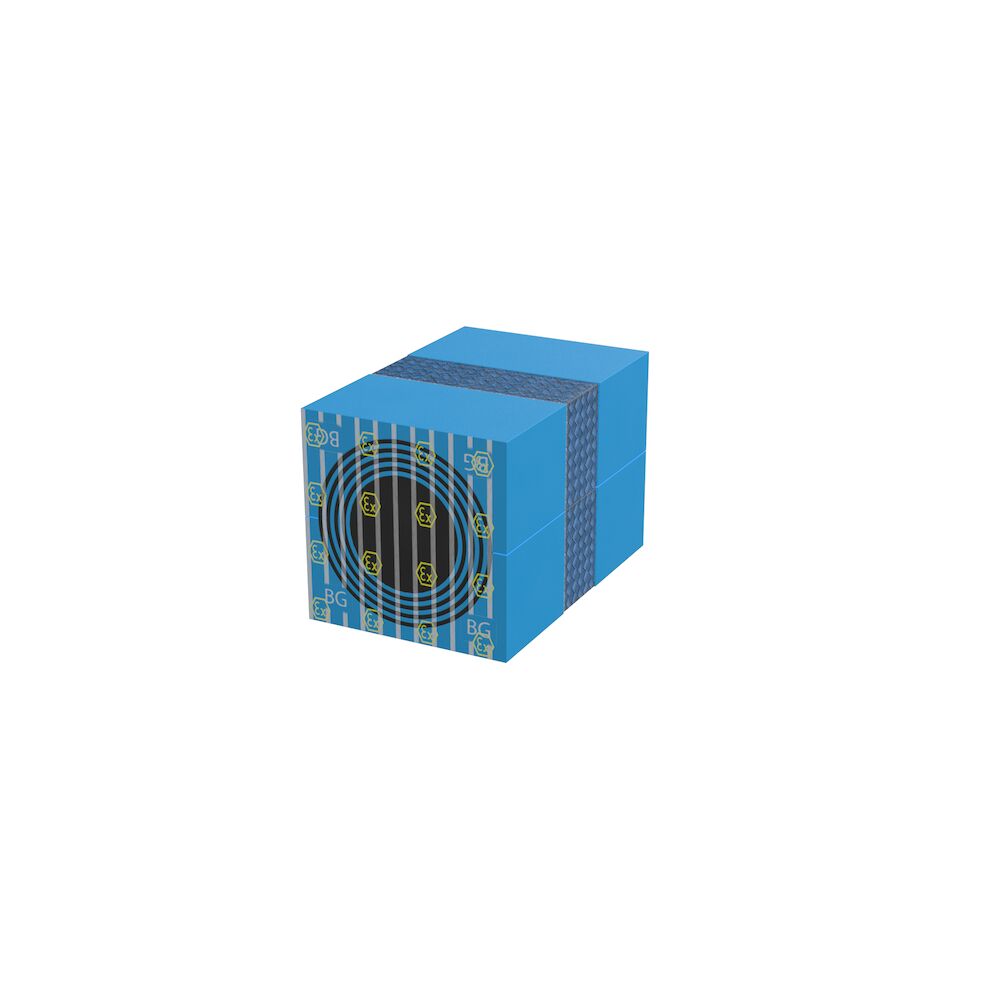

RM 40 BG Ex

  • External dimensions WxHxD (mm) 40 x 40 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 21.5 - 34.5
  • Weight (kg) 0.14
  • Art. No 102527
Remove from cart?

RM 40 10-32 BG Ex

  • External dimensions WxHxD (mm) 40 x 40 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 9.5 - 32.5
  • Weight (kg) 0.15
  • Art. No 102525
Remove from cart?

RM 40H80 BG Ex

  • External dimensions WxHxD (mm) 40 x 80 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 10 - 32
  • Weight (kg) 0.35
  • Art. No 150592
Remove from cart?

RM 60 BG Ex

  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 28 - 54
  • Weight (kg) 0.33
  • Art. No 102533
Remove from cart?

RM 60 24-54 BG Ex

  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 24 - 54
  • Weight (kg) 0.33
  • Art. No 102531
Remove from cart?

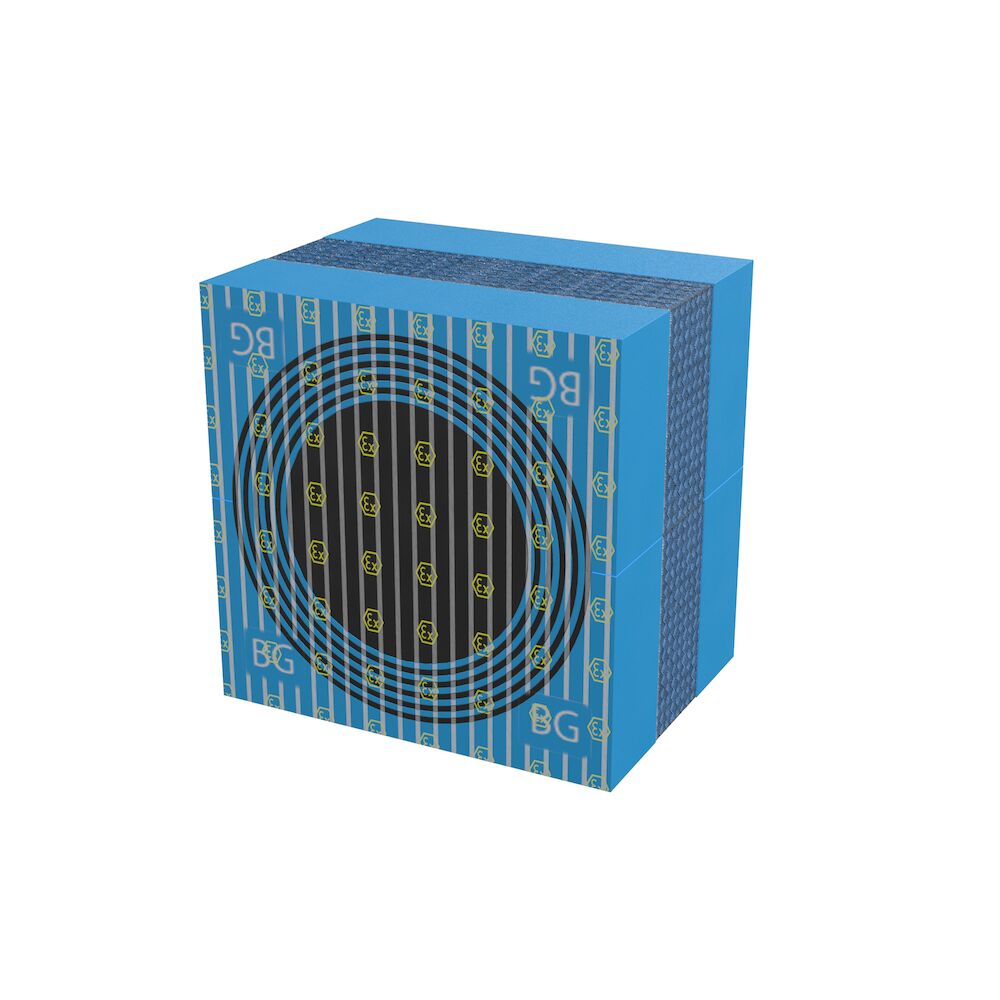

RM 80 BG Ex

  • External dimensions WxHxD (mm) 80 x 80 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 48 - 71
  • Weight (kg) 0.7
  • Art. No 150598
Remove from cart?

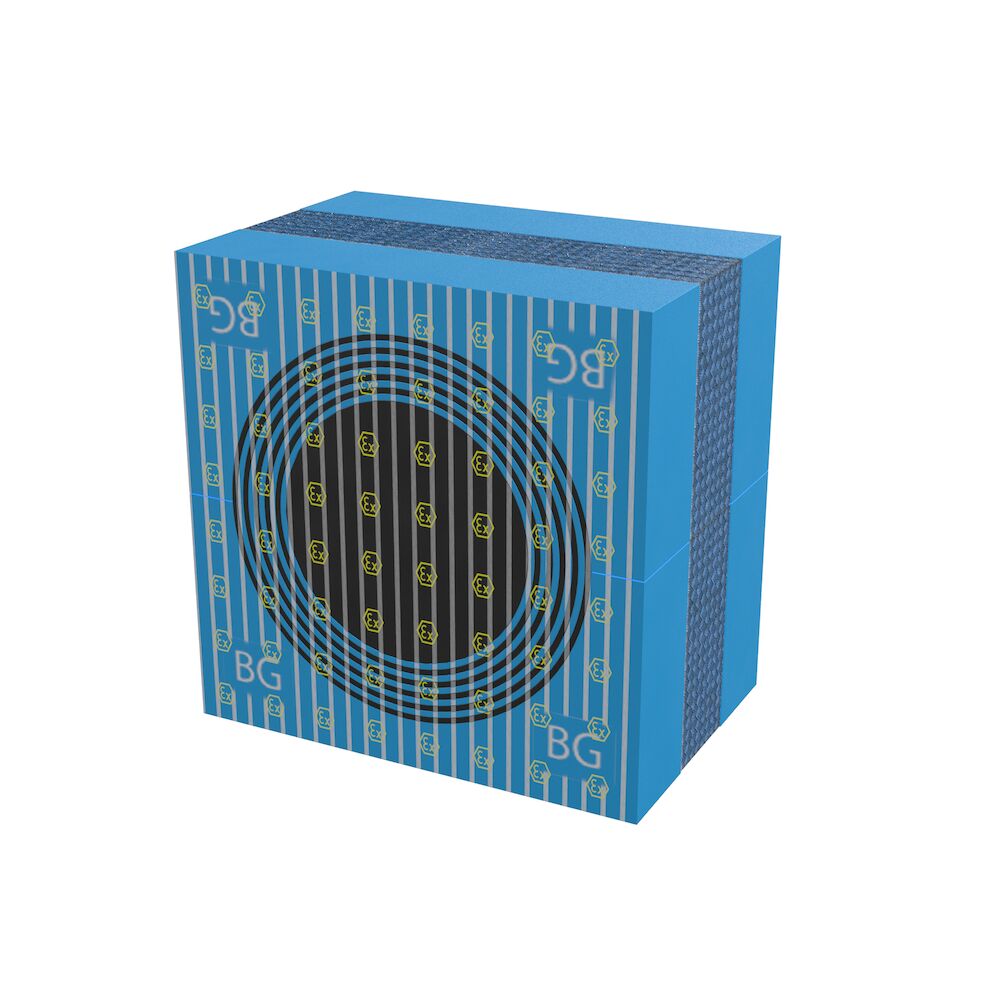

RM 90 BG Ex

  • External dimensions WxHxD (mm) 90 x 90 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 48 - 71
  • Weight (kg) 0.8
  • Art. No 103299
Remove from cart?

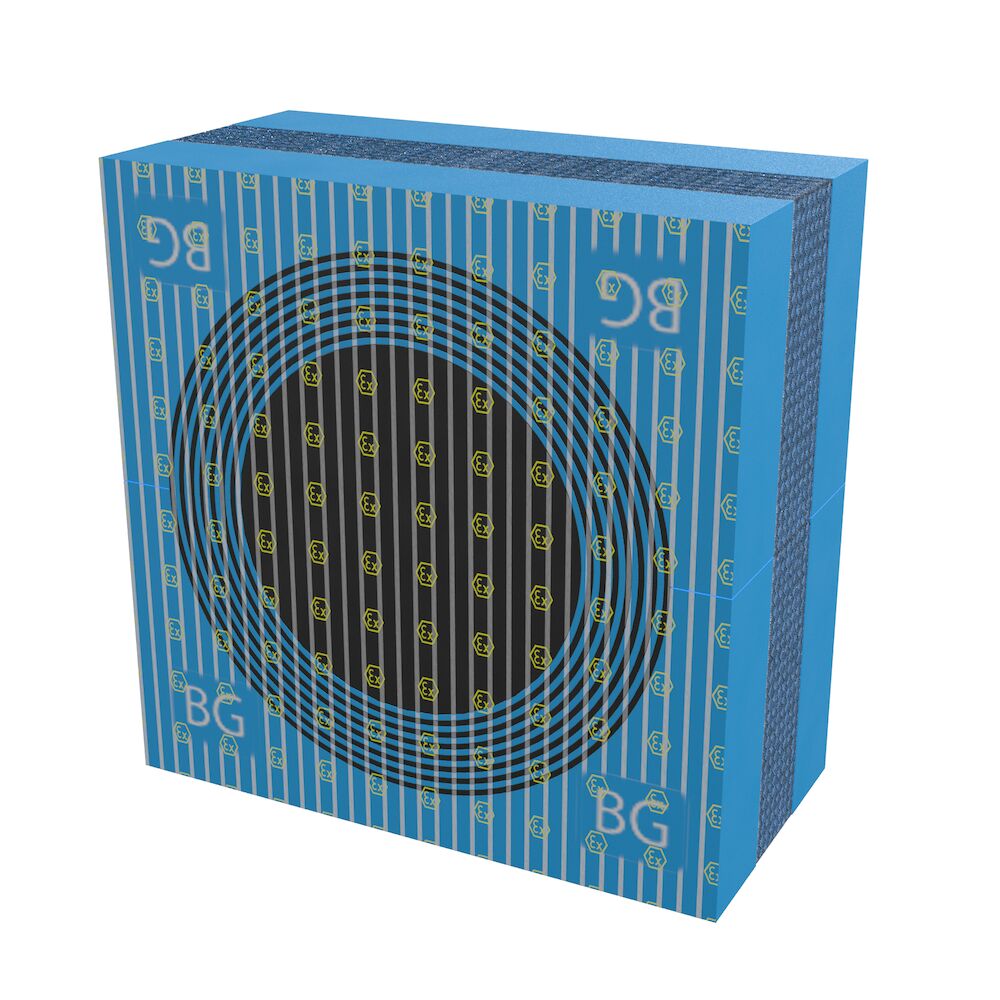

RM 120 BG Ex

  • External dimensions WxHxD (mm) 120 x 120 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 67.5 - 99
  • Weight (kg) 1
  • Art. No 103302
Remove from cart?

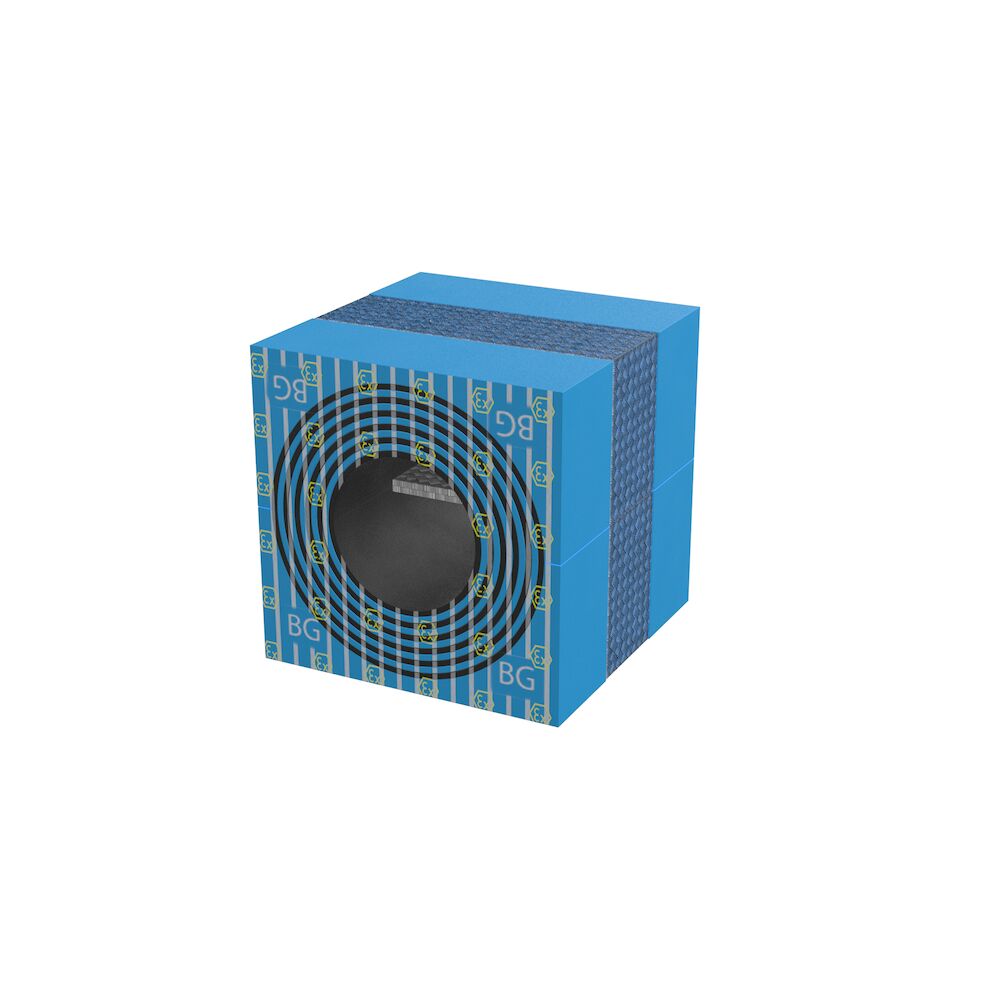

RM 60 BG Ex WOC

  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 28 - 54
  • Weight (kg) 0.33
  • Art. No 109379
Remove from cart?

RM 80 BG Ex WOC

  • External dimensions WxHxD (mm) 80 x 80 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 48 - 71
  • Weight (kg) 0.44
  • Art. No 150600
Remove from cart?

RM 90 BG Ex WOC

  • External dimensions WxHxD (mm) 90 x 90 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 48 - 71
  • Weight (kg) 0.7
  • Art. No 102535
Remove from cart?

RM 120 BG Ex WOC

  • External dimensions WxHxD (mm) 120 x 120 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 67.5 - 99
  • Weight (kg) 1.1
  • Art. No 102519
Remove from cart?
RM BG B Ex
Product External dimensions WxHxD (mm) Number of cables/pipes For cable/pipe Ø (mm) Weight (kg) Art. No
RM 20 BG B Ex 20 x 20 x 60 1 4 - 14.5 0.04 102515
RM 20w40 BG B Ex 40 x 20 x 60 2 3.5 - 16.5 0.07 102516
RM 30 BG B Ex 30 x 30 x 60 1 10 - 25 0.08 102517
RM 30H90 BG B Ex 30 x 90 x 60 1 10 - 25 0.35 117569
RM 40 BG B Ex 40 x 40 x 60 1 21.5 - 34.5 0.14 102526
RM 40 10-32 BG B Ex 40 x 40 x 60 1 9.5 - 32.5 0.15 102518
RM 60 BG B Ex 60 x 60 x 60 1 28 - 54 0.34 102532
RM 60 24-54 BG B Ex 60 x 60 x 60 1 24 - 54 0.34 102530
RM 80 BG B Ex 80 x 80 x 60 1 48 - 71 0.44 150599
RM 90 BG B Ex 90 x 90 x 60 1 48 - 71 0.8 103298
RM 120 BG B Ex 120 x 120 x 60 1 67.5 - 99 1.4 103301
RM 60 BG B Ex WOC 60 x 60 x 60 1 28 - 54 0.3 109380
RM 80 BG B Ex WOC 80 x 80 x 60 1 48 - 71 0.5 150601
RM 90 BG B Ex WOC 90 x 90 x 60 1 48 - 71 0.7 102534
RM 120 BG B Ex WOC 120 x 120 x 60 1 67.5 - 99 1.1 102512
RM BG Ex
Product External dimensions WxHxD (mm) Number of cables/pipes For cable/pipe Ø (mm) Weight (kg) Art. No
RM 20 BG Ex 20 x 20 x 60 1 4 - 14.5 0.04 102522
RM 20w40 BG Ex 40 x 20 x 60 2 3.5 - 16.5 0.08 102523
RM 30 BG Ex 30 x 30 x 60 1 10 - 25 0.08 102524
RM 30H90 BG Ex 30 x 90 x 60 1 10 - 25 0.6 117568
RM 40 BG Ex 40 x 40 x 60 1 21.5 - 34.5 0.14 102527
RM 40 10-32 BG Ex 40 x 40 x 60 1 9.5 - 32.5 0.15 102525
RM 40H80 BG Ex 40 x 80 x 60 1 10 - 32 0.35 150592
RM 60 BG Ex 60 x 60 x 60 1 28 - 54 0.33 102533
RM 60 24-54 BG Ex 60 x 60 x 60 1 24 - 54 0.33 102531
RM 80 BG Ex 80 x 80 x 60 1 48 - 71 0.7 150598
RM 90 BG Ex 90 x 90 x 60 1 48 - 71 0.8 103299
RM 120 BG Ex 120 x 120 x 60 1 67.5 - 99 1 103302
RM 60 BG Ex WOC 60 x 60 x 60 1 28 - 54 0.33 109379
RM 80 BG Ex WOC 80 x 80 x 60 1 48 - 71 0.44 150600
RM 90 BG Ex WOC 90 x 90 x 60 1 48 - 71 0.7 102535
RM 120 BG Ex WOC 120 x 120 x 60 1 67.5 - 99 1.1 102519
