Roxtec RS OMD er en rund gennemføringstætning, som består af to dele med aftagelige lag på både indersiden og ydersiden. Den kan tilpasses, så den passer til kraver i andre størrelser end standardstørrelser. Komprimering er indbygget i tætningen. Tillader montering omkring et eksisterende kabel eller rør.
- Monteres ved udvidelse i åbninger
- Til ét kabel eller rør
| Certificeringsmyndighed | Normering | Division/Struktur | Kabler | Rør | Indtast godkendelsesnavn | |
|---|---|---|---|---|---|---|
| Roxtec International AB | E fire EI fire | Concrete Concrete or Brickwork Lightweight concrete | Construction | Copper Steel | 0402-CPR-C500592 | |
| BV | A class fire F+WT Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Armored Marine Shielded Unshielded | ABS Bundle Copper Copper-Nickel Fiberglass HDPE Other PB PE PE/ALU/PE Plastic PP PVC Steel | 12509/E1 | |
| CSA | IP tightness UL/NEMA tightness | Other | Copper Steel | 1333944 | ||
| BV | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Steel | Marine | 15027/E0 BV | ||
| IRS | A class fire | Steel | Marine | Bundle Copper Fiberglass Steel | 2022TAC104 | |
| ABS | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Stainless steel Steel | Marine | Bundle Fiberglass Steel Titanium | 24-0026230-PDA | |
| ABS | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Stainless steel Steel | Marine | Bundle Fiberglass Steel Titanium | 24-0026230-PDA-DUP | |
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Stainless steel Steel | Bundle Copper Copper-Nickel Fiberglass Steel | 25-0118234-PDA | ||
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Bundle Copper Copper-Nickel Fiberglass Steel | 25-0118234-PDA-DUP | ||
| ABS Certifikat under fornyelse | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | 25-0234779-PDA | ||
| ABS Certifikat under fornyelse | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | 25-0234779-PDA-DUP | ||
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Bundle Copper Copper-Nickel Fiberglass Other Steel | 25-0278844-PDA | ||
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Bundle Copper Copper-Nickel Fiberglass Other Steel | 25-0278844-PDA-DUP | ||
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Marine | 25-0389615-PDA | ||
| ABS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Marine | 25-0389615-PDA-DUP | ||
| Roxtec International AB | E fire EI fire | Concrete Concrete or Brickwork Lightweight concrete | Construction Telecom | Copper Steel | CE Declaration of Conformity ETA-19/0155 | |
| Roxtec International AB | E fire EI fire | Concrete Concrete or Brickwork Lightweight concrete | Construction Telecom | Copper Steel | CE Declaration of Performance (DoP) ETA 19/0155 | |
| KRS Certifikat under fornyelse | A class fire | Sandwich | Marine | CPH04189-FP001 | ||
| KRS Certifikat under fornyelse | A class fire | Steel | Marine | CPH04189-FP003 | ||
| Instytut Techniki Bodowlanej | EI fire | Concrete Concrete or Brickwork Lightweight concrete | Construction | Copper Steel | ETA-19/0155 | |
| CCS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | Marine | GB23PTB00036_01 | ||
| CCS | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | Bundle Copper Copper-Nickel Steel | GB23PTB00036_02 | ||
| RINA | A class fire | Steel | Copper Copper-Nickel Steel | LAB096725CS/001/-2/-3/-4 | ||
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | Marine | LR26387382SFTC | ||
| LR | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | Bundle Copper Copper-Nickel Fiberglass Steel Titanium | LR26387383SFTC | ||
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Bundle Copper Copper-Nickel Fiberglass Other Steel Titanium | MEDB0000128 | ||
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Armored Marine Shielded Unshielded | MEDB00002SA rev5 | ||
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | MEDB00002SD | ||
| DNV | A class fire | Sandwich | Marine | MEDB000065Z | ||
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Bundle Copper Copper-Nickel Fiberglass Steel | MEDB00006GS | ||
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Bundle Copper Copper-Nickel Fiberglass Other Steel Titanium | MERB0000128 | ||
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Marine | MERB00002SA | ||
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Marine | MERB00002SD | ||
| DNV | A class fire | Sandwich | Marine | MERB000065Z | ||
| DNV | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium | Bundle Copper Copper-Nickel Fiberglass Steel Titanium | MERB00006GS | ||
| ClassNK | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Steel | Marine | TA251516E | ||
| ClassNK | A class fire Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | Bundle Copper Copper-Nickel Fiberglass Other Plastic Steel Titanium | TA26927E(R) | ||
| DNV | Gas tightness (catastrophic) Water tightness (catastrophic) | Aluminium Steel | All | Aluminium Copper Copper-Nickel Plastic Steel | TAE000000W | |
| DNV | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Steel | Marine | TAF00000D8 | ||
| DNV | Gas tightness (catastrophic) H class fire Water tightness (catastrophic) | Steel | Fiberglass Other Steel | TAF00001NG |
Montering
Læs mere om Roxtec-tætningssystem, og få mere at vide om, hvordan du udfører en korrekt installation på vores installationssider.
Varianter

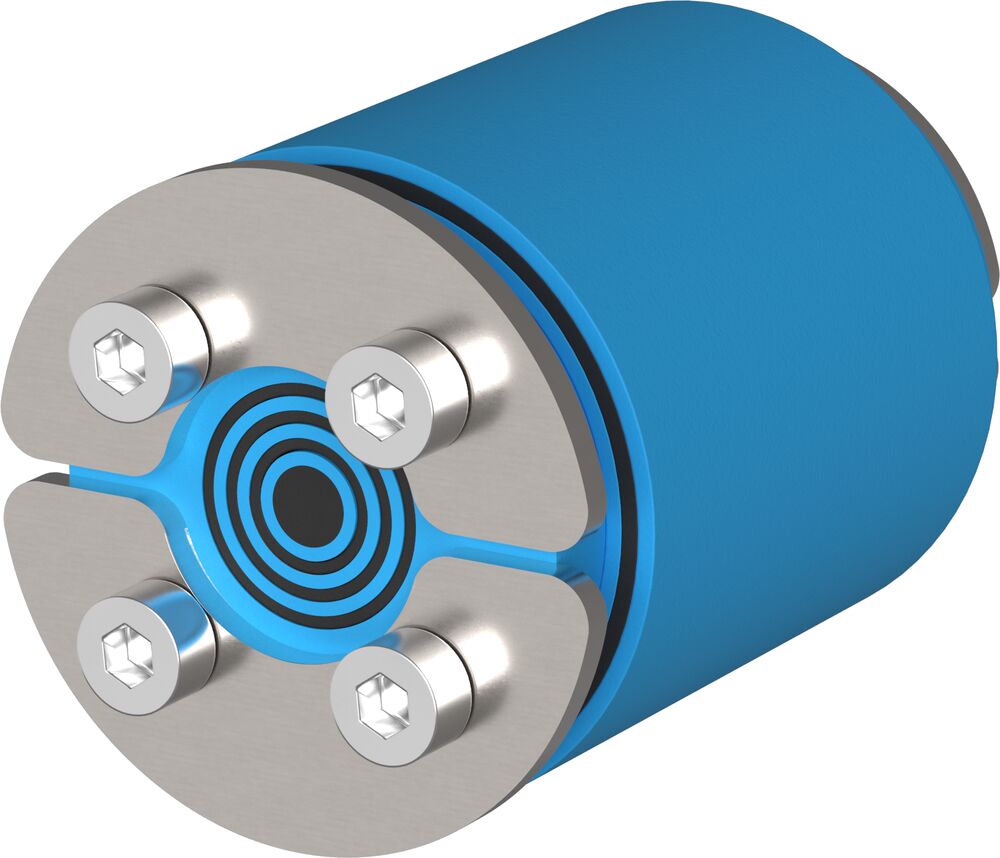

RS 25 OMD AISI316
- Til kabel/rør Ø (mm) 3.6 - 12
- Udvendige mål ØxD (mm) 32 x 43
- Hulstørrelse Ø (mm) 26 - 30
- Vægt (kg) 0.08
- Art.-nr. RSO0100251021
RS 31 OMD AISI316
- Til kabel/rør Ø (mm) 4 - 17
- Udvendige mål ØxD (mm) 37 x 43
- Hulstørrelse Ø (mm) 32 - 35.5
- Vægt (kg) 0.09
- Art.-nr. RSO0100311021
RS 43 OMD AISI316
- Til kabel/rør Ø (mm) 4 - 23
- Udvendige mål ØxD (mm) 53 x 85
- Hulstørrelse Ø (mm) 44 - 51
- Vægt (kg) 0.32
- Art.-nr. RSO0100431021
RS 50 OMD AISI316
- Til kabel/rør Ø (mm) 8 - 30
- Udvendige mål ØxD (mm) 60 x 85
- Hulstørrelse Ø (mm) 51 - 58
- Vægt (kg) 0.41
- Art.-nr. RSO0100501021
RS 68 OMD AISI316
- Til kabel/rør Ø (mm) 26 - 48
- Udvendige mål ØxD (mm) 78 x 85
- Hulstørrelse Ø (mm) 69 - 76.5
- Vægt (kg) 0.62
- Art.-nr. RSO0100681021

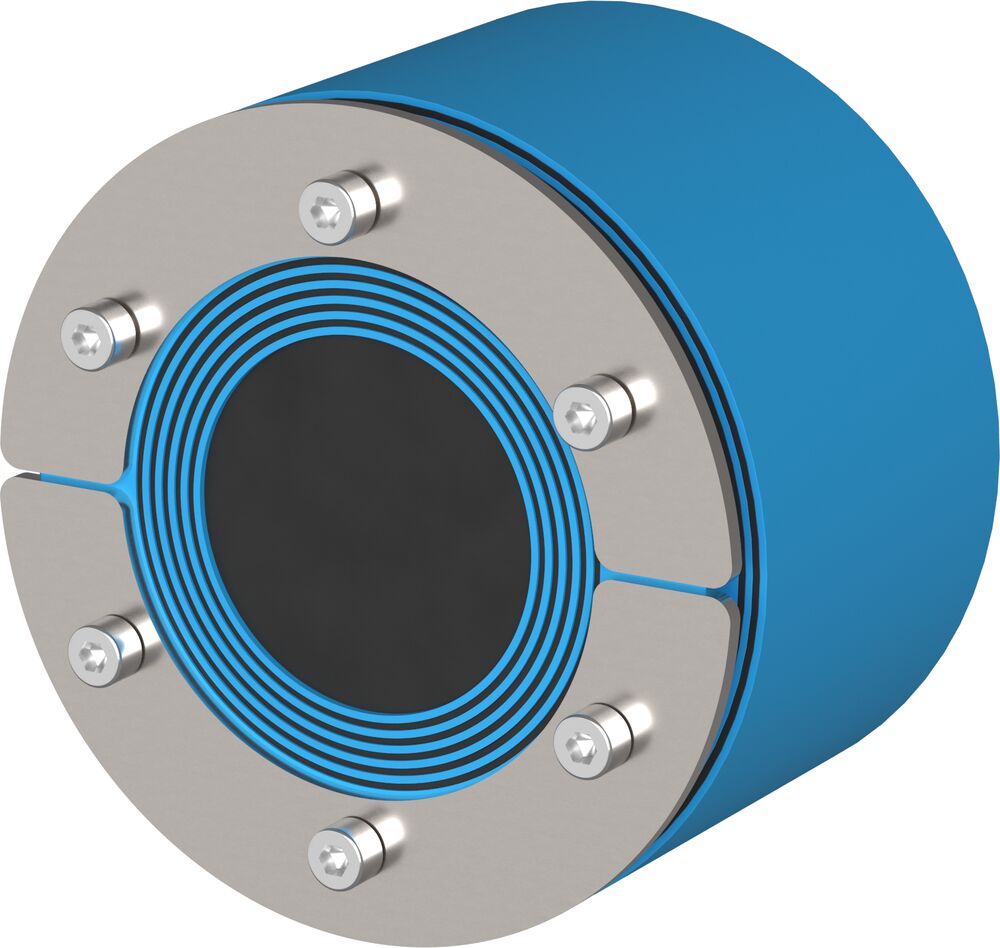

RS 100 OMD AISI316
- Til kabel/rør Ø (mm) 48 - 70
- Udvendige mål ØxD (mm) 110 x 85
- Hulstørrelse Ø (mm) 101 - 108
- Vægt (kg) 1.17
- Art.-nr. RSO0101001021
RS 125 OMD AISI316
- Til kabel/rør Ø (mm) 66 - 98
- Udvendige mål ØxD (mm) 145 x 85
- Hulstørrelse Ø (mm) 126 - 143
- Vægt (kg) 2.05
- Art.-nr. RSO0101251021

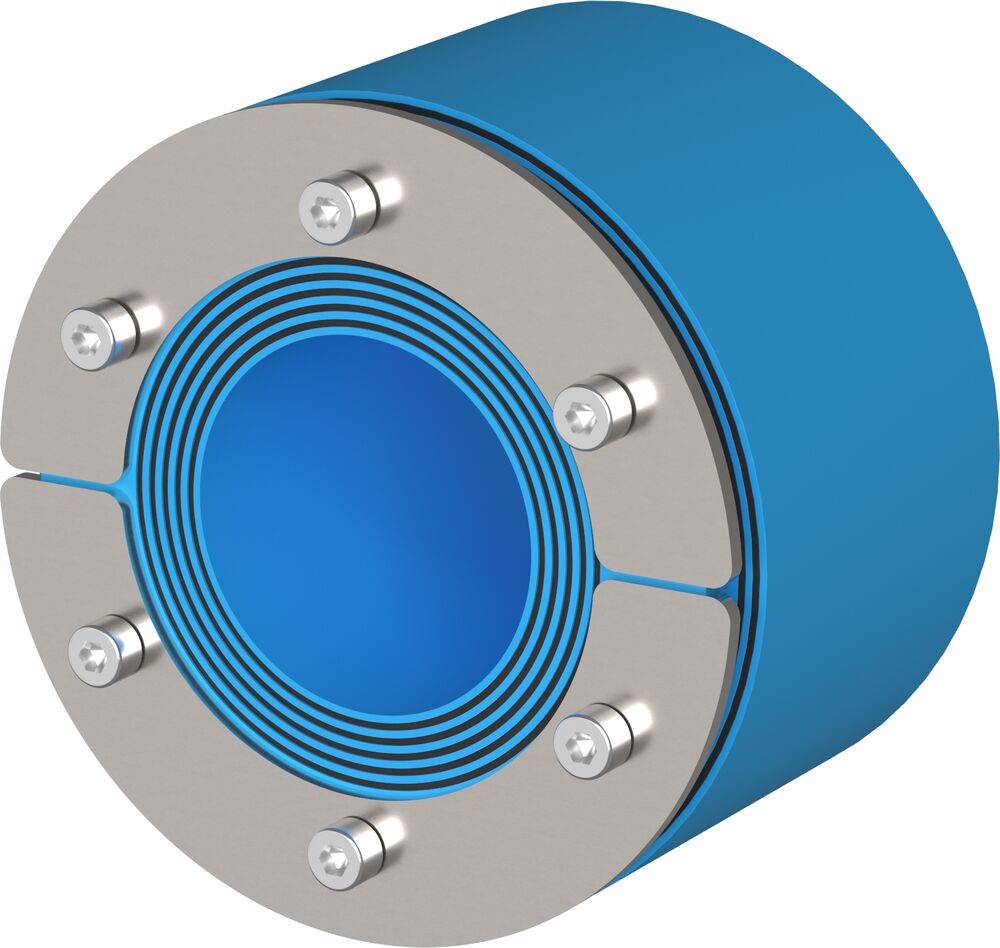

RS 100 OMD AISI316 WOC
- Til kabel/rør Ø (mm) 48 - 70
- Udvendige mål ØxD (mm) 110 x 78
- Hulstørrelse Ø (mm) 100 - 109
- Vægt (kg) 1.01
- Art.-nr. RSO0001001021
RS 125 OMD AISI316 WOC
- Til kabel/rør Ø (mm) 66 - 98
- Udvendige mål ØxD (mm) 145 x 78
- Hulstørrelse Ø (mm) 125 - 144
- Vægt (kg) 1.65
- Art.-nr. RSO0001251021

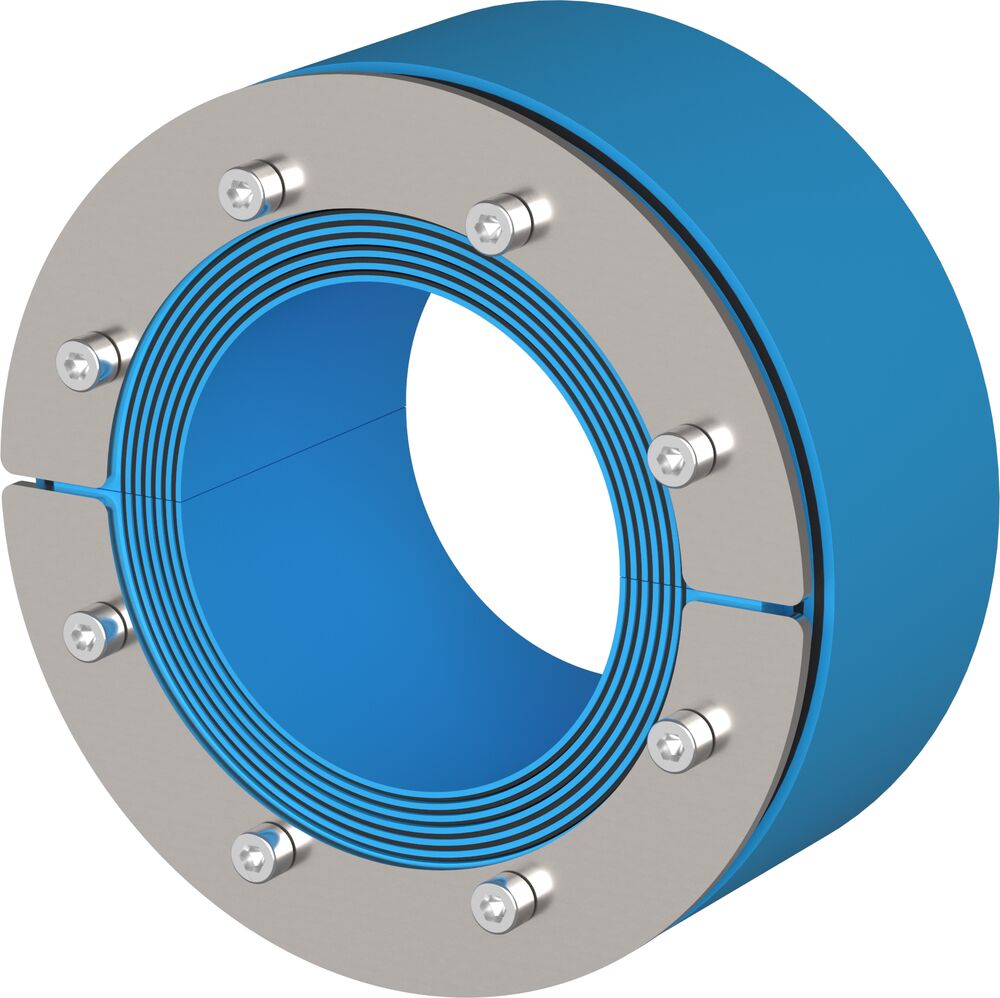

RS 150 OMD AISI316 WOC
- Til kabel/rør Ø (mm) 93 - 119
- Udvendige mål ØxD (mm) 170 x 78
- Hulstørrelse Ø (mm) 152 - 168
- Vægt (kg) 1.99
- Art.-nr. RSO0001501021
