Roxtec SF-rammen er en metalramme med flange til større åbningstolerancer. Den fås i forskellige materialer og med en enkelt åbning eller i kombinationer med flere åbninger i bredden og/eller højden.
- Den udgør sammen med tilhørende Roxtec-komponenter en komplet tætningsløsning
- Monteres ved svejsning
Tekniske tegninger
Monteringsvejledninger
Certifikater
Produkter
De foreslåede tætningsløsninger er omkostningseffektive standardløsninger. Udvælg de tætningsløsninger der dækker dit behov, minimér lead time og reducer behovet for lageropbevaring.
Grundet stål
Rustfrit stål
Aluminium
Grundet stål
Rustfrit stål
Aluminium
De foreslåede tætningsløsninger er omkostningseffektive standardløsninger. Udvælg de tætningsløsninger der dækker dit behov, minimér lead time og reducer behovet for lageropbevaring.
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SF 6x1 PRIMED | 1 | 120 x 180 | 260.5 x 358 x 60 | 201(+15/-15) x 298(+15/-15) | 7.6 | SFF6000000112 | |
| SF 6x2 PRIMED | 2 | 120 x 180 | 391 x 358 x 60 | 332(+15/-15) x 298(+15/-15) | 12 | SFF6000000212 | |
| SF 6x3 PRIMED | 3 | 120 x 180 | 521.5 x 358 x 60 | 462(+15/-15) x 298(+15/-15) | 16.4 | SFF6000000312 |
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SF 6x1 AISI316 | 1 | 120 x 180 | 260.5 x 358 x 60 | 201(+15/-15) x 298(+15/-15) | 8.2 | SFF6000000121 | |
| SF 6x2 AISI316 | 2 | 120 x 180 | 391 x 358 x 60 | 332(+15/-15) x 298(+15/-15) | 12.2 | SFF6000000221 | |
| SF 6x3 AISI316 | 3 | 120 x 180 | 521.5 x 358 x 60 | 462(+15/-15) x 298(+15/-15) | 16.6 | SFF6000000321 |
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SF 6x1 ALU | 1 | 120 x 180 | 260.5 x 358 x 60 | 201(+15/-15) x 298(+15/-15) | 2.9 | SFF6000000131 | |
| SF 6x2 ALU | 2 | 120 x 180 | 391 x 358 x 60 | 332(+15/-15) x 298(+15/-15) | 4.2 | SFF6000000231 | |
| SF 6x3 ALU | 3 | 120 x 180 | 521.5 x 358 x 60 | 462(+15/-15) x 298(+15/-15) | 6 | SFF6000000331 |
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SF 2x1 PRIMED | 1 | 120 x 60 | 260.5 x 241 x 60 | 201(+15/-15) x 181(+15/-15) | 6 | SFF2000000112 | |
| SF 2x2 PRIMED | 2 | 120 x 60 | 391 x 241 x 60 | 332(+15/-15) x 181(+15/-15) | 9 | SFF2000000212 | |
| SF 2x3 PRIMED | 3 | 120 x 60 | 521.5 x 241 x 60 | 462(+15/-15) x 181(+15/-15) | 12 | SFF2000000312 | |
| SF 2x4 PRIMED | 4 | 120 x 60 | 652 x 241 x 60 | 593(+15/-15) x 181(+15/-15) | 14.9 | SFF2000000412 | |
| SF 2x5 PRIMED | 5 | 120 x 60 | 782.5 x 241 x 60 | 723(+15/-15) x 181(+15/-15) | 17.9 | SFF2000000512 | |
| SF 2x6 PRIMED | 6 | 120 x 60 | 913 x 241 x 60 | 854(+15/-15) x 181(+15/-15) | 20.9 | SFF2000000612 | |
| SF 2+2x1 PRIMED | 2 | 120 x 60 | 260.5 x 352 x 60 | 201(+15/-15) x 292(+15/-15) | 8.6 | 5SFF000010953 | |
| SF 2+2x2 PRIMED | 4 | 120 x 60 | 391 x 362 x 60 | 332(+15/-15) x 302(+15/-15) | 13.9 | 116232 | |
| SF 2+2x3 PRIMED | 6 | 120 x 60 | 521.5 x 362 x 60 | 462(+15/-15) x 302(+15/-15) | 18.5 | 116233 | |
| SF 2+2x4 PRIMED | 8 | 120 x 60 | 652 x 362 x 60 | 593(+15/-15) x 302(+15/-15) | 23.2 | 116234 | |
| SF 4x1 PRIMED | 1 | 120 x 120 | 260.5 x 299.5 x 60 | 201(+15/-15) x 240(+15/-15) | 6.4 | SFF4000000112 | |
| SF 4x2 PRIMED | 2 | 120 x 120 | 391 x 299.5 x 60 | 332(+15/-15) x 240(+15/-15) | 10.4 | SFF4000000212 | |
| SF 4x3 PRIMED | 3 | 120 x 120 | 521.5 x 299.5 x 60 | 462(+15/-15) x 240(+15/-15) | 13.9 | SFF4000000312 | |
| SF 4x4 PRIMED | 4 | 120 x 120 | 652 x 299.5 x 60 | 593(+15/-15) x 240(+15/-15) | 16.9 | SFF4000000412 | |
| SF 4x5 PRIMED | 5 | 120 x 120 | 782.5 x 299.5 x 60 | 723(+15/-15) x 240(+15/-15) | 20.2 | SFF4000000512 | |
| SF 4x6 PRIMED | 6 | 120 x 120 | 913 x 299.5 x 60 | 854(+15/-15) x 240(+15/-15) | 23.4 | SFF4000000612 | |
| SF 4x7 PRIMED | 7 | 120 x 120 | 1043.5 x 299.5 x 60 | 984(+15/-15) x 240(+15/-15) | 26.7 | SFF4000000712 | |
| SF 4x8 PRIMED | 8 | 120 x 120 | 1174 x 299.5 x 60 | 1115(+15/-15) x 240(+15/-15) | 29.9 | SFF4000000812 | |
| SF 4x9 PRIMED | 9 | 120 x 120 | 1304.5 x 299.5 x 60 | 1245(+15/-15) x 240(+15/-15) | 33.2 | SFF4000000912 | |
| SF 4+4x1 PRIMED | 2 | 120 x 120 | 260.5 x 469 x 60 | 201(+15/-15) x 409(+15/-15) | 10.9 | SFF4400000112 | |
| SF 4+4x2 PRIMED | 4 | 120 x 120 | 391 x 479 x 60 | 332(+15/-15) x 419(+15/-15) | 17 | 5SFF000004891 | |
| SF 4+4x3 PRIMED | 6 | 120 x 120 | 521.5 x 479 x 60 | 462(+15/-15) x 419(+15/-15) | 23.5 | 5SFF000004871 | |
| SF 4+4x4 PRIMED | 8 | 120 x 120 | 652 x 479 x 60 | 593(+15/-15) x 419(+15/-15) | 26.9 | 5SFF000004872 | |
| SF 4+4x5 PRIMED | 10 | 120 x 120 | 782.5 x 479 x 60 | 723(+15/-15) x 419(+15/-15) | 32.5 | 5SFF000004883 | |
| SF 4+4x6 PRIMED | 12 | 120 x 120 | 913 x 479 x 60 | 854(+15/-15) x 419(+15/-15) | 37.4 | 116253 | |
| SF 6x1 PRIMED | 1 | 120 x 180 | 260.5 x 358 x 60 | 201(+15/-15) x 298(+15/-15) | 7.6 | SFF6000000112 | |
| SF 6x2 PRIMED | 2 | 120 x 180 | 391 x 358 x 60 | 332(+15/-15) x 298(+15/-15) | 12 | SFF6000000212 | |
| SF 6x3 PRIMED | 3 | 120 x 180 | 521.5 x 358 x 60 | 462(+15/-15) x 298(+15/-15) | 16.4 | SFF6000000312 | |
| SF 6x4 PRIMED | 4 | 120 x 180 | 652 x 358 x 60 | 593(+15/-15) x 298(+15/-15) | 18.6 | SFF6000000412 | |
| SF 6x5 PRIMED | 5 | 120 x 180 | 782.5 x 358 x 60 | 723(+15/-15) x 298(+15/-15) | 25.2 | SFF6000000512 | |
| SF 6x6 PRIMED | 6 | 120 x 180 | 913 x 358 x 60 | 854(+15/-15) x 298(+15/-15) | 29.7 | SFF6000000612 | |
| SF 6x7 PRIMED | 7 | 120 x 180 | 1043.5 x 358 x 60 | 984(+15/-15) x 298(+15/-15) | 29.5 | SFF6000000712 | |
| SF 6x8 PRIMED | 8 | 120 x 180 | 1174 x 358 x 60 | 1115(+15/-15) x 298(+15/-15) | 33 | SFF6000000812 | |
| SF 6x9 PRIMED | 9 | 120 x 180 | 1304.5 x 358 x 60 | 1245(+15/-15) x 298(+15/-15) | 36.5 | SFF6000000912 | |
| SF 6+6x1 PRIMED | 2 | 120 x 180 | 260.5 x 586 x 60 | 201(+15/-15) x 526(+15/-15) | 13.1 | SFF6600000112 | |
| SF 6+6x2 PRIMED | 4 | 120 x 180 | 391 x 596 x 60 | 332(+15/-15) x 536(+15/-15) | 19.6 | SFF6600000212 | |
| SF 6+6x3 PRIMED | 6 | 120 x 180 | 521.5 x 596 x 60 | 462(+15/-15) x 536(+15/-15) | 25.4 | SFF6600000312 | |
| SF 6+6x4 PRIMED | 8 | 120 x 180 | 652 x 596 x 60 | 593(+15/-15) x 536(+15/-15) | 31.2 | SFF6600000412 | |
| SF 6+6x5 PRIMED | 10 | 120 x 180 | 782.5 x 596 x 60 | 723(+15/-15) x 536(+15/-15) | 37 | SFF6600000512 | |
| SF 6+6x6 PRIMED | 12 | 120 x 180 | 913 x 596 x 60 | 854(+15/-15) x 536(+15/-15) | 42.8 | SFF6600000612 | |
| SF 8x1 PRIMED | 1 | 120 x 240 | 260.5 x 418 x 60 | 201(+15/-15) x 358(+15/-15) | 9.4 | SFF8000000112 | |
| SF 8x2 PRIMED | 2 | 120 x 240 | 391 x 418 x 60 | 332(+15/-15) x 358(+15/-15) | 14 | SFF8000000212 | |
| SF 8x3 PRIMED | 3 | 120 x 240 | 521.5 x 418 x 60 | 462(+15/-15) x 358(+15/-15) | 19.1 | SFF8000000312 | |
| SF 8x4 PRIMED | 4 | 120 x 240 | 652 x 418 x 60 | 593(+15/-15) x 358(+15/-15) | 20.8 | SFF8000000412 | |
| SF 8x5 PRIMED | 5 | 120 x 240 | 782.5 x 418 x 60 | 723(+15/-15) x 358(+15/-15) | 29.2 | SFF8000000512 | |
| SF 8x6 PRIMED | 6 | 120 x 240 | 913 x 418 x 60 | 854(+15/-15) x 358(+15/-15) | 25 | SFF8000000612 | |
| SF 8+8x1 PRIMED | 2 | 120 x 240 | 260.5 x 706 x 60 | 201(+15/-15) x 646(+15/-15) | 15.5 | SFF8800000112 | |
| SF 8+8x2 PRIMED | 4 | 120 x 240 | 391 x 716 x 60 | 332(+15/-15) x 656(+15/-15) | 22.6 | SFF8800000212 | |
| SF 8+8x3 PRIMED | 6 | 120 x 240 | 521.5 x 716 x 60 | 462(+15/-15) x 656(+15/-15) | 28.9 | SFF8800000312 | |
| SF 8+8x4 PRIMED | 8 | 120 x 240 | 652 x 716 x 60 | 593(+15/-15) x 656(+15/-15) | 35.3 | SFF8800000412 | |

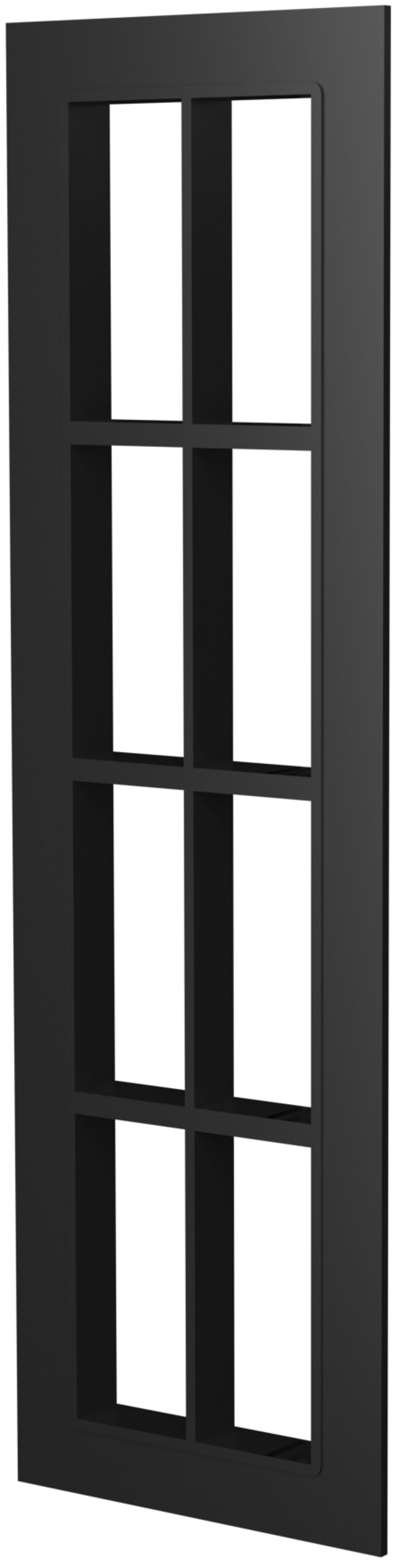

| SF 8+8+8+8x2 PRIMED | 8 | 120 x 240 | 391 x 1312 x 60 | 332(+15/-15) x 1254(+15/-15) | 40.8 | 162493 |
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SF 2x1 AISI316 | 1 | 120 x 60 | 260.5 x 241 x 60 | 201(+15/-15) x 181(+15/-15) | 5.2 | SFF2000000121 | |
| SF 2x2 AISI316 | 2 | 120 x 60 | 391 x 241 x 60 | 332(+15/-15) x 181(+15/-15) | 8.3 | SFF2000000221 | |
| SF 2x3 AISI316 | 3 | 120 x 60 | 521.5 x 241 x 60 | 462(+15/-15) x 181(+15/-15) | 11.5 | SFF2000000321 | |
| SF 2x4 AISI316 | 4 | 120 x 60 | 652 x 241 x 60 | 593(+15/-15) x 181(+15/-15) | 14.9 | SFF2000000421 | |
| SF 2x5 AISI316 | 5 | 120 x 60 | 782.5 x 241 x 60 | 723(+15/-15) x 181(+15/-15) | 17.6 | 116284 | |
| SF 2x6 AISI316 | 6 | 120 x 60 | 913 x 241 x 60 | 854(+15/-15) x 181(+15/-15) | 21 | 5SF0000012040 | |
| SF 2+2x1 AISI316 | 2 | 120 x 60 | 260.5 x 352 x 60 | 201(+15/-15) x 292(+15/-15) | 9 | 5SFF000007878 | |
| SF 2+2x2 AISI316 | 4 | 120 x 60 | 391 x 362 x 60 | 332(+15/-15) x 302(+15/-15) | 14.4 | 116289 | |
| SF 2+2x3 AISI316 | 6 | 120 x 60 | 521.5 x 362 x 60 | 462(+15/-15) x 302(+15/-15) | 20 | 116290 | |
| SF 2+2x4 AISI316 | 8 | 120 x 60 | 652 x 362 x 60 | 593(+15/-15) x 302(+15/-15) | 23.2 | 116291 | |
| SF 2+2+2x1 AISI316 | 3 | 120 x 60 | 260.5 x 463 x 60 | 201(+15/-15) x 403(+15/-15) | 11.2 | 116298 | |
| SF 4x1 AISI316 | 1 | 120 x 120 | 260.5 x 299.5 x 60 | 201(+15/-15) x 240(+15/-15) | 7.1 | SFF4000000121 | |
| SF 4x2 AISI316 | 2 | 120 x 120 | 391 x 299.5 x 60 | 332(+15/-15) x 240(+15/-15) | 10.4 | SFF4000000221 | |
| SF 4x3 AISI316 | 3 | 120 x 120 | 521.5 x 299.5 x 60 | 462(+15/-15) x 240(+15/-15) | 14.1 | SFF4000000321 | |
| SF 4x4 AISI316 | 4 | 120 x 120 | 652 x 299.5 x 60 | 593(+15/-15) x 240(+15/-15) | 17.9 | SFF4000000421 | |
| SF 4x5 AISI316 | 5 | 120 x 120 | 782.5 x 299.5 x 60 | 723(+15/-15) x 240(+15/-15) | 19.8 | 5SFF000007865 | |
| SF 4x6 AISI316 | 6 | 120 x 120 | 913 x 299.5 x 60 | 854(+15/-15) x 240(+15/-15) | 25.5 | 5SFF000008038 | |
| SF 4x7 AISI316 | 7 | 120 x 120 | 1043.5 x 299.5 x 60 | 984(+15/-15) x 240(+15/-15) | 26.2 | 111853 | |
| SF 4x8 AISI316 | 8 | 120 x 120 | 1174 x 299.5 x 60 | 1115(+15/-15) x 240(+15/-15) | 33.1 | 111803 | |
| SF 4x9 AISI316 | 9 | 120 x 120 | 1304.5 x 299.5 x 60 | 1245(+15/-15) x 240(+15/-15) | 36.9 | 116312 | |
| SF 4+4x1 AISI316 | 2 | 120 x 120 | 260.5 x 469 x 60 | 201(+15/-15) x 409(+15/-15) | 10.9 | 5SFF000008405 | |
| SF 4+4x2 AISI316 | 4 | 120 x 120 | 391 x 479 x 60 | 332(+15/-15) x 419(+15/-15) | 17 | 116314 | |
| SF 4+4x3 AISI316 | 6 | 120 x 120 | 521.5 x 479 x 60 | 462(+15/-15) x 419(+15/-15) | 25.1 | 116315 | |
| SF 4+4x4 AISI316 | 8 | 120 x 120 | 652 x 479 x 60 | 593(+15/-15) x 419(+15/-15) | 32 | 104602 | |
| SF 4+4x5 AISI316 | 10 | 120 x 120 | 782.5 x 479 x 60 | 723(+15/-15) x 419(+15/-15) | 32.5 | 105813 | |
| SF 4+4x6 AISI316 | 12 | 120 x 120 | 913 x 479 x 60 | 854(+15/-15) x 419(+15/-15) | 37.4 | 105814 | |
| SF 6x1 AISI316 | 1 | 120 x 180 | 260.5 x 358 x 60 | 201(+15/-15) x 298(+15/-15) | 8.2 | SFF6000000121 | |
| SF 6x2 AISI316 | 2 | 120 x 180 | 391 x 358 x 60 | 332(+15/-15) x 298(+15/-15) | 12.2 | SFF6000000221 | |
| SF 6x3 AISI316 | 3 | 120 x 180 | 521.5 x 358 x 60 | 462(+15/-15) x 298(+15/-15) | 16.6 | SFF6000000321 | |
| SF 6x4 AISI316 | 4 | 120 x 180 | 652 x 358 x 60 | 593(+15/-15) x 298(+15/-15) | 21.1 | SFF6000000421 | |
| SF 6x5 AISI316 | 5 | 120 x 180 | 782.5 x 358 x 60 | 723(+15/-15) x 298(+15/-15) | 25.5 | SFF6000000521 | |
| SF 6x6 AISI316 | 6 | 120 x 180 | 913 x 358 x 60 | 854(+15/-15) x 298(+15/-15) | 30 | SFF6000000621 | |
| SF 6x7 AISI316 | 7 | 120 x 180 | 1043.5 x 358 x 60 | 984(+15/-15) x 298(+15/-15) | 29.5 | SFF6000000721 | |
| SF 6x8 AISI316 | 8 | 120 x 180 | 1174 x 358 x 60 | 1115(+15/-15) x 298(+15/-15) | 33 | SFF6000000821 | |
| SF 6x9 AISI316 | 9 | 120 x 180 | 1304.5 x 358 x 60 | 1245(+15/-15) x 298(+15/-15) | 35.9 | 111854 | |
| SF 6+6x1 AISI316 | 2 | 120 x 180 | 260.5 x 586 x 60 | 201(+15/-15) x 526(+15/-15) | 13.1 | 5SFF000003762 | |
| SF 6+6x2 AISI316 | 4 | 120 x 180 | 391 x 596 x 60 | 332(+15/-15) x 536(+15/-15) | 20 | 5SFF000004544 | |
| SF 6+6x3 AISI316 | 6 | 120 x 180 | 521.5 x 596 x 60 | 462(+15/-15) x 536(+15/-15) | 25.4 | 5SFF000000270 | |
| SF 6+6x4 AISI316 | 8 | 120 x 180 | 652 x 596 x 60 | 593(+15/-15) x 536(+15/-15) | 38.4 | 5SFF000004545 | |
| SF 6+6x5 AISI316 | 10 | 120 x 180 | 782.5 x 596 x 60 | 723(+15/-15) x 536(+15/-15) | 37 | 5SFF000003790 | |
| SF 6+6x6 AISI316 | 12 | 120 x 180 | 913 x 596 x 60 | 854(+15/-15) x 536(+15/-15) | 42 | 5SFF000010645 | |
| SF 8x1 AISI316 | 1 | 120 x 240 | 260.5 x 418 x 60 | 201(+15/-15) x 358(+15/-15) | 9.4 | SFF8000000121 | |
| SF 8x2 AISI316 | 2 | 120 x 240 | 391 x 418 x 60 | 332(+15/-15) x 358(+15/-15) | 14.2 | SFF8000000221 | |
| SF 8x3 AISI316 | 3 | 120 x 240 | 521.5 x 418 x 60 | 462(+15/-15) x 358(+15/-15) | 17 | SFF8000000321 | |
| SF 8x4 AISI316 | 4 | 120 x 240 | 652 x 418 x 60 | 593(+15/-15) x 358(+15/-15) | 20.8 | SFF8000000421 | |
| SF 8x5 AISI316 | 5 | 120 x 240 | 782.5 x 418 x 60 | 723(+15/-15) x 358(+15/-15) | 24.4 | 5SFF000005472 | |
| SF 8x6 AISI316 | 6 | 120 x 240 | 913 x 418 x 60 | 854(+15/-15) x 358(+15/-15) | 34.6 | 5SF0000013857 | |
| SF 8+8x1 AISI316 | 2 | 120 x 240 | 260.5 x 706 x 60 | 201(+15/-15) x 646(+15/-15) | 15.2 | 5SF0000007604 | |
| SF 8+8x2 AISI316 | 4 | 120 x 240 | 391 x 716 x 60 | 332(+15/-15) x 656(+15/-15) | 22 | SFF8800000221 | |
| SF 8+8x3 AISI316 | 6 | 120 x 240 | 521.5 x 716 x 60 | 462(+15/-15) x 656(+15/-15) | 28.5 | 5SFF000010091 | |
| SF 8+8x4 AISI316 | 8 | 120 x 240 | 652 x 716 x 60 | 593(+15/-15) x 656(+15/-15) | 39.4 | 5SF0000012338 |
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SF 2x1 ALU | 1 | 120 x 60 | 260.5 x 241 x 60 | 201(+15/-15) x 181(+15/-15) | 2.1 | SFF2000000131 | |
| SF 2x2 ALU | 2 | 120 x 60 | 391 x 241 x 60 | 332(+15/-15) x 181(+15/-15) | 3.8 | SFF2000000231 | |
| SF 2x3 ALU | 3 | 120 x 60 | 521.5 x 241 x 60 | 462(+15/-15) x 181(+15/-15) | 4.1 | SFF2000000331 | |
| SF 2x4 ALU | 4 | 120 x 60 | 652 x 241 x 60 | 593(+15/-15) x 181(+15/-15) | 5.1 | SFF2000000431 | |
| SF 2x5 ALU | 5 | 120 x 60 | 782.5 x 241 x 60 | 723(+15/-15) x 181(+15/-15) | 6.2 | SFF2000000531 | |
| SF 2x6 ALU | 6 | 120 x 60 | 913 x 241 x 60 | 854(+15/-15) x 181(+15/-15) | 7.2 | SFF2000000631 | |
| SF 2+2x1 ALU | 2 | 120 x 60 | 260.5 x 352 x 60 | 201(+15/-15) x 292(+15/-15) | 3 | 118900 | |
| SF 2+2x2 ALU | 4 | 120 x 60 | 391 x 362 x 60 | 332(+15/-15) x 302(+15/-15) | 4.9 | 118901 | |
| SF 2+2x3 ALU | 6 | 120 x 60 | 521.5 x 362 x 60 | 462(+15/-15) x 302(+15/-15) | 6.5 | 118902 | |
| SF 2+2x4 ALU | 8 | 120 x 60 | 652 x 362 x 60 | 593(+15/-15) x 302(+15/-15) | 8.1 | 118903 | |
| SF 4x1 ALU | 1 | 120 x 120 | 260.5 x 299.5 x 60 | 201(+15/-15) x 240(+15/-15) | 2.4 | SFF4000000131 | |
| SF 4x2 ALU | 2 | 120 x 120 | 391 x 299.5 x 60 | 332(+15/-15) x 240(+15/-15) | 3.6 | SFF4000000231 | |
| SF 4x3 ALU | 3 | 120 x 120 | 521.5 x 299.5 x 60 | 462(+15/-15) x 240(+15/-15) | 4.7 | SFF4000000331 | |
| SF 4x4 ALU | 4 | 120 x 120 | 652 x 299.5 x 60 | 593(+15/-15) x 240(+15/-15) | 5.8 | SFF4000000431 | |
| SF 4x5 ALU | 5 | 120 x 120 | 782.5 x 299.5 x 60 | 723(+15/-15) x 240(+15/-15) | 6.9 | SFF4000000531 | |
| SF 4x6 ALU | 6 | 120 x 120 | 913 x 299.5 x 60 | 854(+15/-15) x 240(+15/-15) | 8.5 | SFF4000000631 | |
| SF 4x7 ALU | 7 | 120 x 120 | 1043.5 x 299.5 x 60 | 984(+15/-15) x 240(+15/-15) | 9.2 | SFF4000000731 | |
| SF 4x8 ALU | 8 | 120 x 120 | 1174 x 299.5 x 60 | 1115(+15/-15) x 240(+15/-15) | 10.3 | SFF4000000831 | |
| SF 4x9 ALU | 9 | 120 x 120 | 1304.5 x 299.5 x 60 | 1245(+15/-15) x 240(+15/-15) | 11.4 | SFF4000000931 | |
| SF 4+4x1 ALU | 2 | 120 x 120 | 260.5 x 469 x 60 | 201(+15/-15) x 409(+15/-15) | 3.7 | 5SFF000010490 | |
| SF 4+4x2 ALU | 4 | 120 x 120 | 391 x 479 x 60 | 332(+15/-15) x 419(+15/-15) | 10 | 118939 | |
| SF 4+4x3 ALU | 6 | 120 x 120 | 521.5 x 479 x 60 | 462(+15/-15) x 419(+15/-15) | 7.5 | 118940 | |
| SF 4+4x4 ALU | 8 | 120 x 120 | 652 x 479 x 60 | 593(+15/-15) x 419(+15/-15) | 9.6 | 5SFF000000699 | |
| SF 4+4x5 ALU | 10 | 120 x 120 | 782.5 x 479 x 60 | 723(+15/-15) x 419(+15/-15) | 11.2 | 118942 | |
| SF 4+4x6 ALU | 12 | 120 x 120 | 913 x 479 x 60 | 854(+15/-15) x 419(+15/-15) | 13 | 118943 | |
| SF 6x1 ALU | 1 | 120 x 180 | 260.5 x 358 x 60 | 201(+15/-15) x 298(+15/-15) | 2.9 | SFF6000000131 | |
| SF 6x2 ALU | 2 | 120 x 180 | 391 x 358 x 60 | 332(+15/-15) x 298(+15/-15) | 4.2 | SFF6000000231 | |
| SF 6x3 ALU | 3 | 120 x 180 | 521.5 x 358 x 60 | 462(+15/-15) x 298(+15/-15) | 6 | SFF6000000331 | |
| SF 6x4 ALU | 4 | 120 x 180 | 652 x 358 x 60 | 593(+15/-15) x 298(+15/-15) | 7.4 | SFF6000000431 | |
| SF 6x5 ALU | 5 | 120 x 180 | 782.5 x 358 x 60 | 723(+15/-15) x 298(+15/-15) | 8.8 | SFF6000000531 | |
| SF 6x6 ALU | 6 | 120 x 180 | 913 x 358 x 60 | 854(+15/-15) x 298(+15/-15) | 10.1 | SFF6000000631 | |
| SF 6x7 ALU | 7 | 120 x 180 | 1043.5 x 358 x 60 | 984(+15/-15) x 298(+15/-15) | 11.5 | SFF6000000731 | |
| SF 6x8 ALU | 8 | 120 x 180 | 1174 x 358 x 60 | 1115(+15/-15) x 298(+15/-15) | 12.9 | SFF6000000831 | |
| SF 6x9 ALU | 9 | 120 x 180 | 1304.5 x 358 x 60 | 1245(+15/-15) x 298(+15/-15) | 14.3 | SFF6000000931 | |
| SF 6+6x1 ALU | 2 | 120 x 180 | 260.5 x 586 x 60 | 201(+15/-15) x 526(+15/-15) | 4.6 | 5SFF000002917 | |
| SF 6+6x2 ALU | 4 | 120 x 180 | 391 x 596 x 60 | 332(+15/-15) x 536(+15/-15) | 6.8 | 5SFF000010092 | |
| SF 6+6x3 ALU | 6 | 120 x 180 | 521.5 x 596 x 60 | 462(+15/-15) x 536(+15/-15) | 8.9 | 104558 | |
| SF 6+6x4 ALU | 8 | 120 x 180 | 652 x 596 x 60 | 593(+15/-15) x 536(+15/-15) | 11 | 5SFF000002918 | |
| SF 6+6x5 ALU | 10 | 120 x 180 | 782.5 x 596 x 60 | 723(+15/-15) x 536(+15/-15) | 12.6 | 5SFF000002919 | |
| SF 6+6x6 ALU | 12 | 120 x 180 | 913 x 596 x 60 | 854(+15/-15) x 536(+15/-15) | 16.5 | 112181 | |
| SF 8x1 ALU | 1 | 120 x 240 | 260.5 x 418 x 60 | 201(+15/-15) x 358(+15/-15) | 3.7 | SFF8000000131 | |
| SF 8x2 ALU | 2 | 120 x 240 | 391 x 418 x 60 | 332(+15/-15) x 358(+15/-15) | 4.5 | SFF8000000231 | |
| SF 8x3 ALU | 3 | 120 x 240 | 521.5 x 418 x 60 | 462(+15/-15) x 358(+15/-15) | 6.6 | SFF8000000331 | |
| SF 8x4 ALU | 4 | 120 x 240 | 652 x 418 x 60 | 593(+15/-15) x 358(+15/-15) | 8.1 | SFF8000000431 | |
| SF 8x5 ALU | 5 | 120 x 240 | 782.5 x 418 x 60 | 723(+15/-15) x 358(+15/-15) | 9.6 | SFF8000000531 | |
| SF 8x6 ALU | 6 | 120 x 240 | 913 x 418 x 60 | 854(+15/-15) x 358(+15/-15) | 11.1 | SFF8000000631 | |
| SF 8+8x1 ALU | 2 | 120 x 240 | 260.5 x 706 x 60 | 201(+15/-15) x 646(+15/-15) | 5.3 | 5SFF000006667 | |
| SF 8+8x2 ALU | 4 | 120 x 240 | 391 x 716 x 60 | 332(+15/-15) x 656(+15/-15) | 7.8 | 5SF0000013707 | |
| SF 8+8x3 ALU | 6 | 120 x 240 | 521.5 x 716 x 60 | 462(+15/-15) x 656(+15/-15) | 10.1 | 5SF0000013708 | |
| SF 8+8x4 ALU | 8 | 120 x 240 | 652 x 716 x 60 | 593(+15/-15) x 656(+15/-15) | 12 | 109084 |
