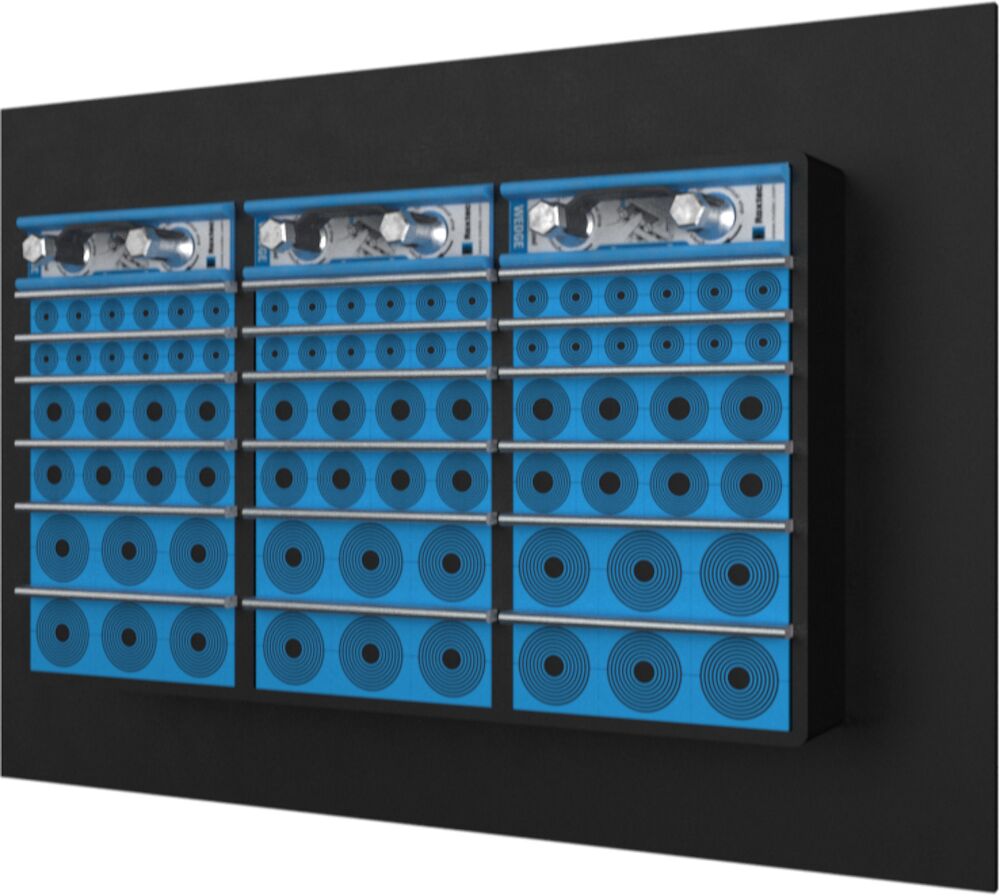

Roxtec G transit

Data sheet (metric)
Data sheet (imperial)

Use the print button on the page for an optimized print layout.

Transit with flange, for welding.

The Roxtec G is a cable and pipe seal with a steel frame for welding. The transit can be used with a GE extension frame in galvanized steel to cover the depth of a thick wall.

  • Provides built-in spare capacity
Buy solution

Product characteristics

  • fire rated.svg
    Fire rated
  • watertight.svg
    Watertight
  • gas-tight.svg
    Gas-tight

Page index

Ratings & certificates Installation Seals for your industry Sealing component data Pre-configured transit kits Configure your own transit kit

Ratings & certificates

Certificates are continuously added, renewed and replaced, please visit regularly to ensure compliance.

Fire

  • A-CLASS according to IMO 2010 FTP Code
  • E/EI rating according to EN 1366-3
  • F/T rating according to UL 1479

Tightness

  • Gas: 2.5 bar (catastrophic)
  • Water: 4 bar (catastrophic)

Installation

Structure of installation

  • metal.svg
    Metal
  • cabinet.svg
    Cabinets & enclosures

Mounting type

  • welding.svg
    Welding

Installation instructions

Technical drawings

Installation videos

Rectangular-transit_installation_video

Roxtec – so smart, easy and safe

Images

Seals for your industry

Explore the multitude of applications where you can benefit from our solutions.

Sealing component data

Here you find technical information about each specific part of our system.

Accessories

Holder tools

Holder tools
Welding tools

Welding tools

Rectangular frames

G frame

G frame

Sealing components

Wedge & Wedgekit

Wedge & Wedgekit
Lubricant

Lubricant
RM module with Multidiameter™

RM module with Multidiameter™
RM solid compensation module

RM solid compensation module
Sealing kit

Sealing kit
Stayplate

Stayplate

Pre-configured transit kits

mm/kg inch/lbs

G 6x1/18 PRIMED

  • Configuration 6 x cables/pipes diameter 0+3.5-16.5mm
    12 x cables/pipes diameter 0+9.5-32.5mm
  • External dimensions WxHxD (mm) 252.5 x 350 x 60
  • Aperture dimensions WxH (mm) 188(+15/-15) x 290(+15/-15)
  • Weight (kg) 8.0
Add
Remove from cart?

G 6x1/19 PRIMED

  • Configuration 6 x cables/pipes diameter 0+3.5-16.5mm
    8 x cables/pipes diameter 0+10-25mm
    3 x cables/pipes 0+9.5-32.5mm
    2 x cables/pipes 0+28-54mm
  • External dimensions WxHxD (mm) 252.5 x 350 x 60
  • Aperture dimensions WxH (mm) 188(+15/-15) x 290(+15/-15)
  • Weight (kg) 8.0
Add
Remove from cart?

G 6x1/26 PRIMED

  • Configuration 12 x cables/pipes diameter 0+3.5-16.5mm
    8 x cables/pipes diameter 0+10-25mm
    6 x cables/pipes 0+9.5-32.5mm
  • External dimensions WxHxD (mm) 252.5 x 350 x 60
  • Aperture dimensions WxH (mm) 188(+15/-15) x 290(+15/-15)
  • Weight (kg) 8.2
Add
Remove from cart?

G 6x2/36 PRIMED

  • Configuration 12 x cables/pipes diameter 0+3.5-16.5mm
    24 x cables/pipes diameter 0+9.5-32.5mm
  • External dimensions WxHxD (mm) 383 x 350 x 60
  • Aperture dimensions WxH (mm) 318(+15/-15) x 290(+15/-15)
  • Weight (kg) 14.6
Add
Remove from cart?

G 6x2/38 PRIMED

  • Configuration 12 x cables/pipes diameter 0+3.5-16.5mm
    16 x cables/pipes diameter 0+10-25mm
    6 x cables/pipes 0+9.5-32.5mm
    4 x cables/pipes 0+28-54mm
  • External dimensions WxHxD (mm) 383 x 350 x 60
  • Aperture dimensions WxH (mm) 318(+15/-15) x 290(+15/-15)
  • Weight (kg) 14.6
Add
Remove from cart?

G 6x2/52 PRIMED

  • Configuration 24 x cables/pipes diameter 0+3.5-16.5mm
    16 x cables/pipes diameter 0+10-25mm
    12 x cables/pipes 0+9.5-32.5mm
  • External dimensions WxHxD (mm) 383 x 350 x 60
  • Aperture dimensions WxH (mm) 318(+15/-15) x 290(+15/-15)
  • Weight (kg) 15.0
Add
Remove from cart?

G 6x3/54 PRIMED

  • Configuration 18 x cables/pipes diameter 0+3.5-16.5mm
    36 x cables/pipes diameter 0+9.5-32.5mm
  • External dimensions WxHxD (mm) 513.5 x 350 x 60
  • Aperture dimensions WxH (mm) 449(+15/-15) x 290(+15/-15)
  • Weight (kg) 20.6
Add
Remove from cart?

G 6x3/57 PRIMED

  • Configuration 18 x cables/pipes diameter 0+3.5-16.5mm
    24 x cables/pipes diameter 0+10-25mm
    9 x cables/pipes 0+9.5-32.5mm
    6 x cables/pipes 0+28-54mm
  • External dimensions WxHxD (mm) 513.5 x 350 x 60
  • Aperture dimensions WxH (mm) 449(+15/-15) x 290(+15/-15)
  • Weight (kg) 20.6
Add
Remove from cart?

G 6x3/78 PRIMED

  • Configuration 36 x cables/pipes diameter 0+3.5-16.5mm
    24 x cables/pipes diameter 0+10-25mm
    18 x cables/pipes 0+9.5-32.5mm
  • External dimensions WxHxD (mm) 513.5 x 350 x 60
  • Aperture dimensions WxH (mm) 449(+15/-15) x 290(+15/-15)
  • Weight (kg) 21.2
Add
Remove from cart?

G 6x1/18 AISI316

  • Configuration 6 x cables/pipes diameter 0+3.5-16.5mm
    12 x cables/pipes diameter 0+9.5-32.5mm
  • External dimensions WxHxD (mm) 252.5 x 350 x 60
  • Aperture dimensions WxH (mm) 188(+15/-15) x 290(+15/-15)
  • Weight (kg) 8.4
Add
Remove from cart?

G 6x1/19 AISI316

  • Configuration 6 x cables/pipes diameter 0+3.5-16.5mm
    8 x cables/pipes diameter 0+10-25mm
    3 x cables/pipes 0+9.5-32.5mm
    2 x cables/pipes 0+28-54mm
  • External dimensions WxHxD (mm) 252.5 x 350 x 60
  • Aperture dimensions WxH (mm) 188(+15/-15) x 290(+15/-15)
  • Weight (kg) 8.4
Add
Remove from cart?

G 6x1/26 AISI316

  • Configuration 12 x cables/pipes diameter 0+3.5-16.5mm
    8 x cables/pipes diameter 0+10-25mm
    6 x cables/pipes 0+9.5-32.5mm
  • External dimensions WxHxD (mm) 252.5 x 350 x 60
  • Aperture dimensions WxH (mm) 188(+15/-15) x 290(+15/-15)
  • Weight (kg) 8.5
Add
Remove from cart?

G 6x2/36 AISI316

  • Configuration 12 x cables/pipes diameter 0+3.5-16.5mm
    24 x cables/pipes diameter 0+9.5-32.5mm
  • External dimensions WxHxD (mm) 383 x 350 x 60
  • Aperture dimensions WxH (mm) 318(+15/-15) x 290(+15/-15)
  • Weight (kg) 14.5
Add
Remove from cart?

G 6x2/38 AISI316

  • Configuration 12 x cables/pipes diameter 0+3.5-16.5mm
    16 x cables/pipes diameter 0+10-25mm
    6 x cables/pipes 0+9.5-32.5mm
    4 x cables/pipes 0+28-54mm
  • External dimensions WxHxD (mm) 383 x 350 x 60
  • Aperture dimensions WxH (mm) 318(+15/-15) x 290(+15/-15)
  • Weight (kg) 14.5
Add
Remove from cart?

G 6x2/52 AISI316

  • Configuration 24 x cables/pipes diameter 0+3.5-16.5mm
    16 x cables/pipes diameter 0+10-25mm
    12 x cables/pipes 0+9.5-32.5mm
  • External dimensions WxHxD (mm) 383 x 350 x 60
  • Aperture dimensions WxH (mm) 318(+15/-15) x 290(+15/-15)
  • Weight (kg) 14.7
Add
Remove from cart?

G 6x3/54 AISI316

  • Configuration 18 x cables/pipes diameter 0+3.5-16.5mm
    36 x cables/pipes diameter 0+9.5-32.5mm
  • External dimensions WxHxD (mm) 513.5 x 350 x 60
  • Aperture dimensions WxH (mm) 449(+15/-15) x 290(+15/-15)
  • Weight (kg) 20.6
Add
Remove from cart?

G 6x3/57 AISI316

  • Configuration 18 x cables/pipes diameter 0+3.5-16.5mm
    24 x cables/pipes diameter 0+10-25mm
    9 x cables/pipes 0+9.5-32.5mm
    6 x cables/pipes 0+28-54mm
  • External dimensions WxHxD (mm) 513.5 x 350 x 60
  • Aperture dimensions WxH (mm) 449(+15/-15) x 290(+15/-15)
  • Weight (kg) 20.6
Add
Remove from cart?

G 6x3/78 AISI316

  • Configuration 36 x cables/pipes diameter 0+3.5-16.5mm
    24 x cables/pipes diameter 0+10-25mm
    18 x cables/pipes 0+9.5-32.5mm
  • External dimensions WxHxD (mm) 513.5 x 350 x 60
  • Aperture dimensions WxH (mm) 449(+15/-15) x 290(+15/-15)
  • Weight (kg) 20.9
Add
Remove from cart?
Product Configuration External dimensions WxHxD (mm) Aperture dimensions WxH (mm) Weight (kg)
G 6x1/18 PRIMED 6 x cables/pipes diameter 0+3.5-16.5mm
12 x cables/pipes diameter 0+9.5-32.5mm 		252.5 x 350 x 60 188(+15/-15) x 290(+15/-15) 8.0
G 6x1/19 PRIMED 6 x cables/pipes diameter 0+3.5-16.5mm
8 x cables/pipes diameter 0+10-25mm
3 x cables/pipes 0+9.5-32.5mm
2 x cables/pipes 0+28-54mm 		252.5 x 350 x 60 188(+15/-15) x 290(+15/-15) 8.0
G 6x1/26 PRIMED 12 x cables/pipes diameter 0+3.5-16.5mm
8 x cables/pipes diameter 0+10-25mm
6 x cables/pipes 0+9.5-32.5mm 		252.5 x 350 x 60 188(+15/-15) x 290(+15/-15) 8.2
G 6x2/36 PRIMED 12 x cables/pipes diameter 0+3.5-16.5mm
24 x cables/pipes diameter 0+9.5-32.5mm 		383 x 350 x 60 318(+15/-15) x 290(+15/-15) 14.6
G 6x2/38 PRIMED 12 x cables/pipes diameter 0+3.5-16.5mm
16 x cables/pipes diameter 0+10-25mm
6 x cables/pipes 0+9.5-32.5mm
4 x cables/pipes 0+28-54mm 		383 x 350 x 60 318(+15/-15) x 290(+15/-15) 14.6
G 6x2/52 PRIMED 24 x cables/pipes diameter 0+3.5-16.5mm
16 x cables/pipes diameter 0+10-25mm
12 x cables/pipes 0+9.5-32.5mm 		383 x 350 x 60 318(+15/-15) x 290(+15/-15) 15.0
G 6x3/54 PRIMED 18 x cables/pipes diameter 0+3.5-16.5mm
36 x cables/pipes diameter 0+9.5-32.5mm 		513.5 x 350 x 60 449(+15/-15) x 290(+15/-15) 20.6
G 6x3/57 PRIMED 18 x cables/pipes diameter 0+3.5-16.5mm
24 x cables/pipes diameter 0+10-25mm
9 x cables/pipes 0+9.5-32.5mm
6 x cables/pipes 0+28-54mm 		513.5 x 350 x 60 449(+15/-15) x 290(+15/-15) 20.6
G 6x3/78 PRIMED 36 x cables/pipes diameter 0+3.5-16.5mm
24 x cables/pipes diameter 0+10-25mm
18 x cables/pipes 0+9.5-32.5mm 		513.5 x 350 x 60 449(+15/-15) x 290(+15/-15) 21.2
G 6x1/18 AISI316 6 x cables/pipes diameter 0+3.5-16.5mm
12 x cables/pipes diameter 0+9.5-32.5mm 		252.5 x 350 x 60 188(+15/-15) x 290(+15/-15) 8.4
G 6x1/19 AISI316 6 x cables/pipes diameter 0+3.5-16.5mm
8 x cables/pipes diameter 0+10-25mm
3 x cables/pipes 0+9.5-32.5mm
2 x cables/pipes 0+28-54mm 		252.5 x 350 x 60 188(+15/-15) x 290(+15/-15) 8.4
G 6x1/26 AISI316 12 x cables/pipes diameter 0+3.5-16.5mm
8 x cables/pipes diameter 0+10-25mm
6 x cables/pipes 0+9.5-32.5mm 		252.5 x 350 x 60 188(+15/-15) x 290(+15/-15) 8.5
G 6x2/36 AISI316 12 x cables/pipes diameter 0+3.5-16.5mm
24 x cables/pipes diameter 0+9.5-32.5mm 		383 x 350 x 60 318(+15/-15) x 290(+15/-15) 14.5
G 6x2/38 AISI316 12 x cables/pipes diameter 0+3.5-16.5mm
16 x cables/pipes diameter 0+10-25mm
6 x cables/pipes 0+9.5-32.5mm
4 x cables/pipes 0+28-54mm 		383 x 350 x 60 318(+15/-15) x 290(+15/-15) 14.5
G 6x2/52 AISI316 24 x cables/pipes diameter 0+3.5-16.5mm
16 x cables/pipes diameter 0+10-25mm
12 x cables/pipes 0+9.5-32.5mm 		383 x 350 x 60 318(+15/-15) x 290(+15/-15) 14.7
G 6x3/54 AISI316 18 x cables/pipes diameter 0+3.5-16.5mm
36 x cables/pipes diameter 0+9.5-32.5mm 		513.5 x 350 x 60 449(+15/-15) x 290(+15/-15) 20.6
G 6x3/57 AISI316 18 x cables/pipes diameter 0+3.5-16.5mm
24 x cables/pipes diameter 0+10-25mm
9 x cables/pipes 0+9.5-32.5mm
6 x cables/pipes 0+28-54mm 		513.5 x 350 x 60 449(+15/-15) x 290(+15/-15) 20.6
G 6x3/78 AISI316 36 x cables/pipes diameter 0+3.5-16.5mm
24 x cables/pipes diameter 0+10-25mm
18 x cables/pipes 0+9.5-32.5mm 		513.5 x 350 x 60 449(+15/-15) x 290(+15/-15) 20.9
