Roxtec KFO frame

Use the print button on the page for an optimized print layout.

The Roxtec KFO is a light-weight composite frame in size 6x1. The frame is openable for easy installation around existing cables and pipes.

  • To be used with corresponding Roxtec components to form a complete sealing solution
  • Attachment by bolting
  • Available with or without flange

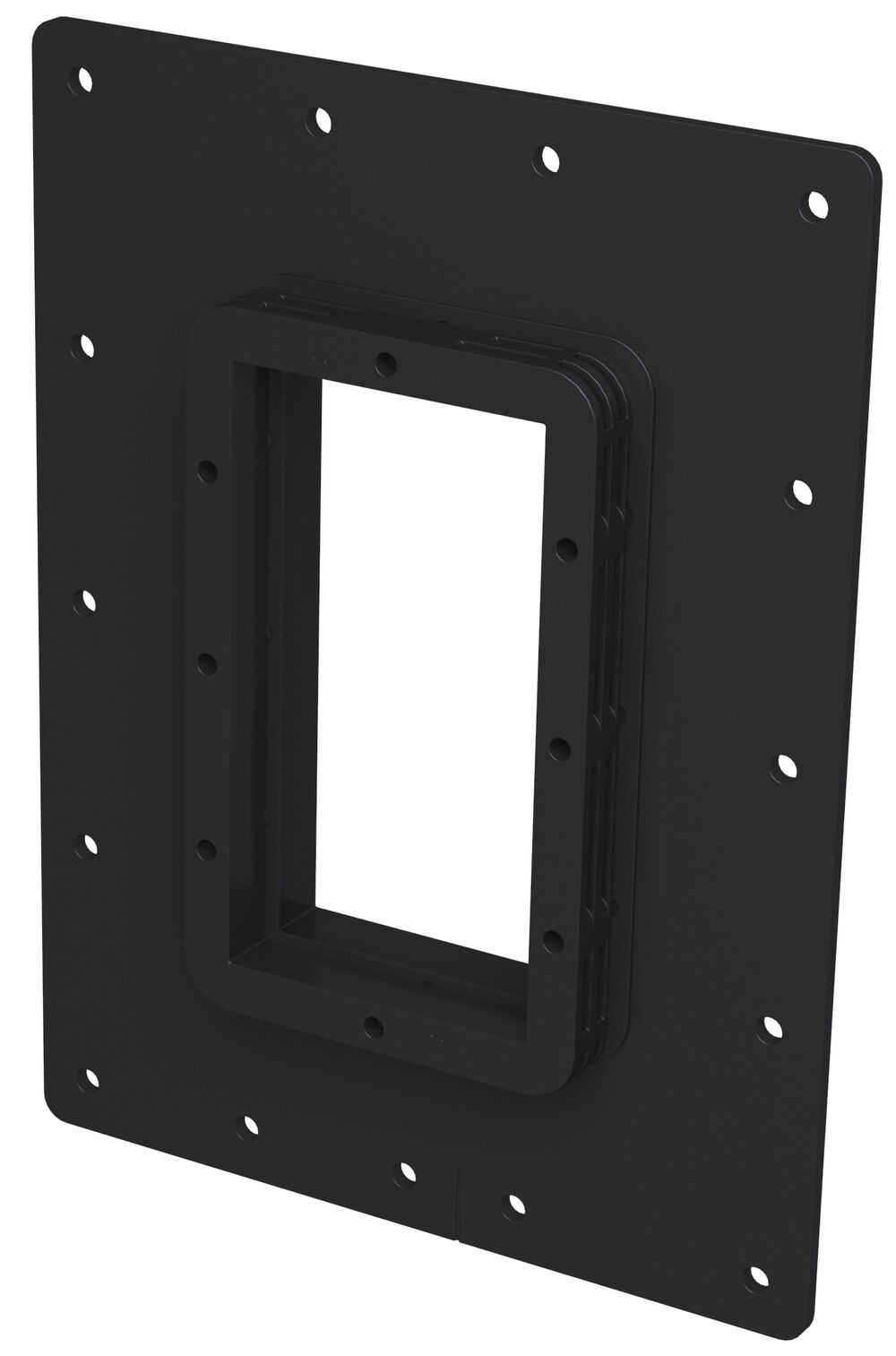

KFO 6x1 with flange
KFO 6x1 with flange

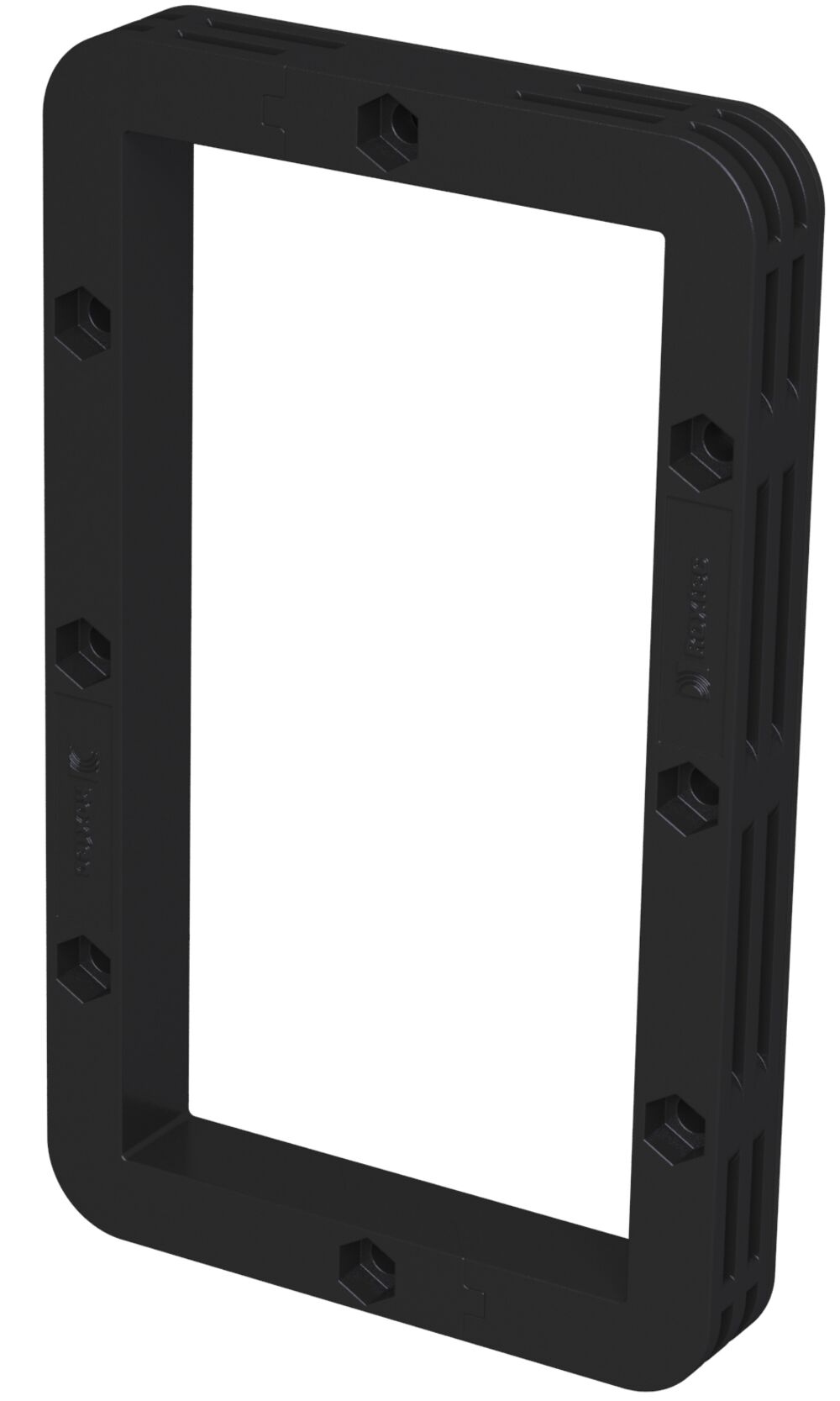

KFO 6x1
KFO 6x1
KFO 6x1 with flange
KFO 6x1

Component articles

KFO 6x1

  • Frame openings 1
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 159 x 260 x 52
  • Aperture dimensions WxH (mm) 123(+0.5/-0.5) x 223(+0.5/-0.5)
  • Weight (kg) 1
  • Art. No KFO0000060059
Remove from cart?

KFO 6x1 WITH FLANGE

  • Frame openings 1
  • Packing space (mm) 120 x 180
  • External dimensions WxHxD (mm) 319 x 420 x 59
  • Aperture dimensions WxH (mm) 170(+2/-2) x 270(+2/-2)
  • Weight (kg) 1.6
  • Art. No KFO1000060059
Remove from cart?
Product Frame openings Packing space (mm) External dimensions WxHxD (mm) Aperture dimensions WxH (mm) Weight (kg) Art. No
KFO 6x1 1 120 x 180 159 x 260 x 52 123(+0.5/-0.5) x 223(+0.5/-0.5) 1 KFO0000060059
KFO 6x1 WITH FLANGE 1 120 x 180 319 x 420 x 59 170(+2/-2) x 270(+2/-2) 1.6 KFO1000060059
