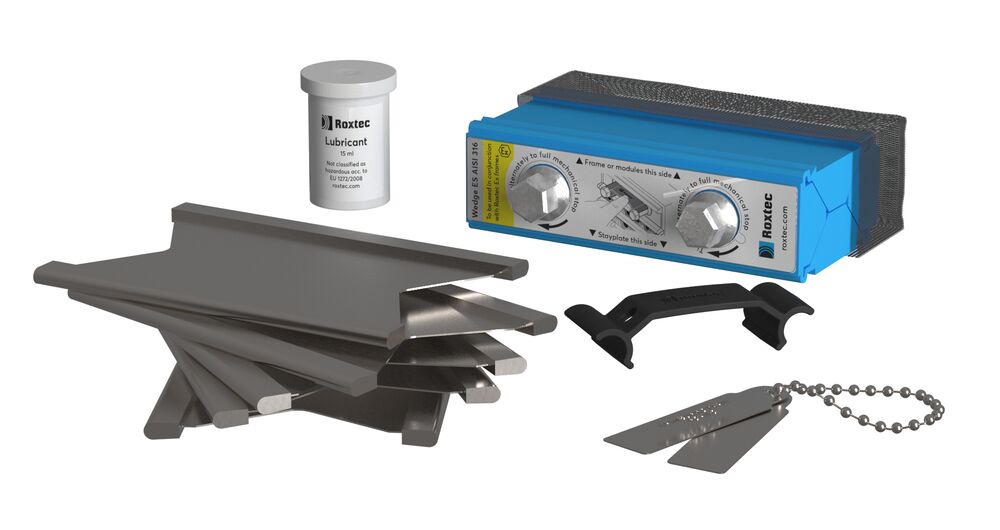

The Roxtec Wedge ES Ex is used for compression in Roxtec Ex frames with a rectangular packing space. The Roxtec Wedge kit ES Ex contains all necessary components to compress the system.
- To be used with corresponding Roxtec components to form a complete sealing solution
Technical drawings
Variants
Galvanized mild steel
WEDGE 60 ES Ex GALV
- External dimensions W (mm) 60
- Weight (kg) 2
- Art. No 105375
WEDGEKIT 60 ES Ex GALV
- External dimensions W (mm) 60
- Weight (kg) 0.8
- Art. No 163603
WEDGE 120 ES Ex GALV
- External dimensions W (mm) 120
- Weight (kg) 1
- Art. No 105149
WEDGEKIT 120 ES Ex GALV
- External dimensions W (mm) 120
- Weight (kg) 1.6
- Art. No 105377
Stainless steel
WEDGE 60 ES Ex AISI316
- External dimensions W (mm) 60
- Weight (kg) 0.6
- Art. No 105376
WEDGEKIT 60 ES Ex AISI316
- External dimensions W (mm) 60
- Weight (kg) 0.5
- Art. No 163604
WEDGE 120 ES Ex AISI316
- External dimensions W (mm) 120
- Weight (kg) 1
- Art. No 105150
WEDGEKIT 120 ES Ex AISI316
- External dimensions W (mm) 120
- Weight (kg) 1.9
- Art. No 105378
| Product | External dimensions W (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|
| WEDGE 60 ES Ex GALV | 60 | 2 | 105375 | |
| WEDGEKIT 60 ES Ex GALV | 60 | 0.8 | 163603 | |
| WEDGE 120 ES Ex GALV | 120 | 1 | 105149 | |
| WEDGEKIT 120 ES Ex GALV | 120 | 1.6 | 105377 |
| Product | External dimensions W (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|
| WEDGE 60 ES Ex AISI316 | 60 | 0.6 | 105376 | |
| WEDGEKIT 60 ES Ex AISI316 | 60 | 0.5 | 163604 | |
| WEDGE 120 ES Ex AISI316 | 120 | 1 | 105150 | |
| WEDGEKIT 120 ES Ex AISI316 | 120 | 1.9 | 105378 |
