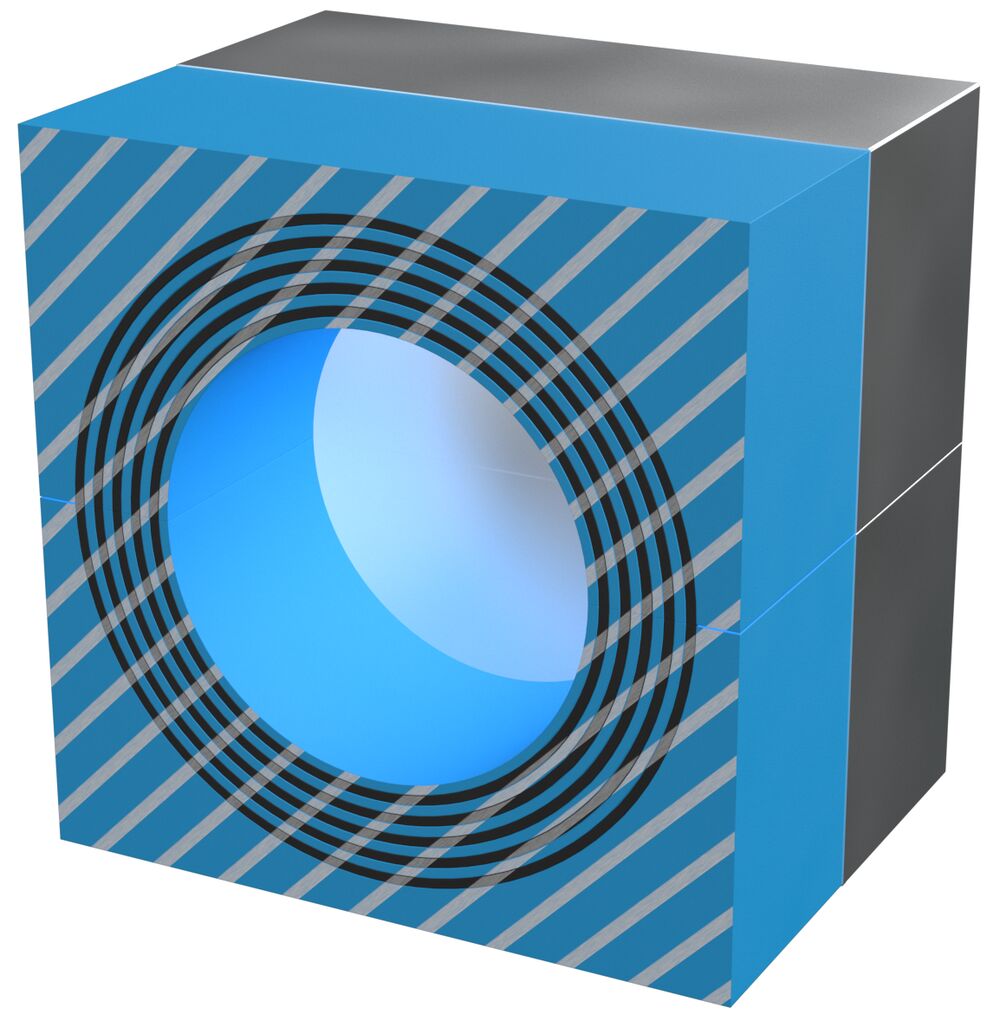

Roxtec RM modules are 60 mm (2.362") deep and easy to adapt to cable and pipes of different sizes. The ES version protects against high frequency radiated and conducted EMI/EMP in shielded environments.
- To be used with corresponding Roxtec components to form a complete sealing solution
Information drawings
Installation instructions
Component articles
RM ES

RM 15 ES
- External dimensions WxHxD (mm) 15 x 15 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 3 - 11
- Weight (kg) 0.02
- Art. No ERM0100151181

RM 15w40 ES
- External dimensions WxHxD (mm) 40 x 15 x 60
- Number of cables/pipes 3
- For cable/pipe Ø (mm) 3.5 - 10.5
- Weight (kg) 0.05
- Art. No ERM0115401181

RM 30H90 ES
- External dimensions WxHxD (mm) 30 x 90 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 10 - 25
- Weight (kg) 0.24
- Art. No 165306

RM 20 ES
- External dimensions WxHxD (mm) 20 x 20 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 4 - 14.5
- Weight (kg) 0.04
- Art. No ERM0100201181

RM 20w40 ES
- External dimensions WxHxD (mm) 40 x 20 x 60
- Number of cables/pipes 2
- For cable/pipe Ø (mm) 3.5 - 16.5
- Weight (kg) 0.07
- Art. No ERM0120401181

RM 30 ES
- External dimensions WxHxD (mm) 30 x 30 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 10 - 25
- Weight (kg) 0.08
- Art. No ERM0100301181

RM 40 10-32 ES
- External dimensions WxHxD (mm) 40 x 40 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 9.5 - 32.5
- Weight (kg) 0.15
- Art. No ERM0140101181

RM 40 ES
- External dimensions WxHxD (mm) 40 x 40 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 21.5 - 34.5
- Weight (kg) 0.15
- Art. No ERM0100401181

RM 40H80 ES
- External dimensions WxHxD (mm) 40 x 80 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 21.5 - 34.5
- Weight (kg) 0.28
- Art. No 173582

RM 60 24-54 ES
- External dimensions WxHxD (mm) 60 x 60 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 24 - 54
- Weight (kg) 0.33
- Art. No ERM0160201181

RM 60 ES
- External dimensions WxHxD (mm) 60 x 60 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 28 - 54
- Weight (kg) 0.35
- Art. No ERM0100601181

RM 80 ES
- External dimensions WxHxD (mm) 80 x 80 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 48 - 71
- Weight (kg) 0.63
- Art. No 110095

RM 90 ES
- External dimensions WxHxD (mm) 90 x 90 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 48 - 71
- Weight (kg) 0.75
- Art. No ERM0100901181

RM 120 ES
- External dimensions WxHxD (mm) 120 x 120 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 67.5 - 99
- Weight (kg) 1.26
- Art. No ERM0101201181

RM 60 ES WOC
- External dimensions WxHxD (mm) 60 x 60 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 28 - 54
- Weight (kg) 0.26
- Art. No ERM0000601181

RM 80 ES WOC
- External dimensions WxHxD (mm) 80 x 80 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 48 - 71
- Weight (kg) 0.47
- Art. No 110097

RM 90 ES WOC
- External dimensions WxHxD (mm) 90 x 90 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 48 - 71
- Weight (kg) 0.6
- Art. No ERM0000901181

RM 120 ES WOC
- External dimensions WxHxD (mm) 120 x 120 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 67.5 - 99
- Weight (kg) 0.94
- Art. No ERM0001201181
RM ES B

RM 15 ES B
- External dimensions WxHxD (mm) 15 x 15 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 3 - 11
- Weight (kg) 0.02
- Art. No ERM1100151181

RM 15w40 ES B
- External dimensions WxHxD (mm) 40 x 15 x 60
- Number of cables/pipes 3
- For cable/pipe Ø (mm) 3.5 - 10.5
- Weight (kg) 0.05
- Art. No ERM1115401181

RM 30H90 ES B
- External dimensions WxHxD (mm) 30 x 90 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 10 - 25
- Weight (kg) 0.58
- Art. No 165305

RM 20 ES B
- External dimensions WxHxD (mm) 20 x 20 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 4 - 14.5
- Weight (kg) 0.04
- Art. No ERM1100201181

RM 20w40 ES B
- External dimensions WxHxD (mm) 40 x 20 x 60
- Number of cables/pipes 2
- For cable/pipe Ø (mm) 3.5 - 16.5
- Weight (kg) 0.07
- Art. No ERM1120401181

RM 30 ES B
- External dimensions WxHxD (mm) 30 x 30 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 10 - 25
- Weight (kg) 0.1
- Art. No ERM1100301181

RM 40 10-32 ES B
- External dimensions WxHxD (mm) 40 x 40 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 9.5 - 32.5
- Weight (kg) 0.15
- Art. No ERM1140101181

RM 40 ES B
- External dimensions WxHxD (mm) 40 x 40 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 21.5 - 34.5
- Weight (kg) 0.15
- Art. No ERM1100401181

RM 40H80 ES B
- External dimensions WxHxD (mm) 40 x 80 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 21.5 - 34.5
- Weight (kg) 0.29
- Art. No 173584

RM 60 24-54 ES B
- External dimensions WxHxD (mm) 60 x 60 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 24 - 54
- Weight (kg) 0.33
- Art. No ERM1160201181

RM 60 ES B
- External dimensions WxHxD (mm) 60 x 60 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 28 - 54
- Weight (kg) 0.35
- Art. No ERM1100601181

RM 80 ES B
- External dimensions WxHxD (mm) 80 x 80 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 48 - 71
- Weight (kg) 0.56
- Art. No 110098

RM 90 ES B
- External dimensions WxHxD (mm) 90 x 90 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 48 - 71
- Weight (kg) 0.75
- Art. No ERM1100901181

RM 120 ES B
- External dimensions WxHxD (mm) 120 x 120 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 67.5 - 99
- Weight (kg) 1.26
- Art. No ERM1101201181

RM 60 ES B WOC
- External dimensions WxHxD (mm) 60 x 60 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 28 - 54
- Weight (kg) 0.26
- Art. No ERM1000601181

RM 80 ES B WOC
- External dimensions WxHxD (mm) 80 x 80 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 48 - 71
- Weight (kg) 0.42
- Art. No 110100

RM 90 ES B WOC
- External dimensions WxHxD (mm) 90 x 90 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 48 - 71
- Weight (kg) 0.6
- Art. No ERM1000901181

RM 120 ES B WOC
- External dimensions WxHxD (mm) 120 x 120 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 67.5 - 99
- Weight (kg) 0.94
- Art. No ERM1001201181
Product | External dimensions WxHxD (mm) | Number of cables/pipes | For cable/pipe Ø (mm) | Weight (kg) | Art. No | |
---|---|---|---|---|---|---|
RM 15 ES | 15 x 15 x 60 | 1 | 3 - 11 | 0.02 | ERM0100151181 | |
RM 15w40 ES | 40 x 15 x 60 | 3 | 3.5 - 10.5 | 0.05 | ERM0115401181 | |
RM 30H90 ES | 30 x 90 x 60 | 1 | 10 - 25 | 0.24 | 165306 | |
RM 20 ES | 20 x 20 x 60 | 1 | 4 - 14.5 | 0.04 | ERM0100201181 | |
RM 20w40 ES | 40 x 20 x 60 | 2 | 3.5 - 16.5 | 0.07 | ERM0120401181 | |
RM 30 ES | 30 x 30 x 60 | 1 | 10 - 25 | 0.08 | ERM0100301181 | |
RM 40 10-32 ES | 40 x 40 x 60 | 1 | 9.5 - 32.5 | 0.15 | ERM0140101181 | |
RM 40 ES | 40 x 40 x 60 | 1 | 21.5 - 34.5 | 0.15 | ERM0100401181 | |
RM 40H80 ES | 40 x 80 x 60 | 1 | 21.5 - 34.5 | 0.28 | 173582 | |
RM 60 24-54 ES | 60 x 60 x 60 | 1 | 24 - 54 | 0.33 | ERM0160201181 | |
RM 60 ES | 60 x 60 x 60 | 1 | 28 - 54 | 0.35 | ERM0100601181 | |
RM 80 ES | 80 x 80 x 60 | 1 | 48 - 71 | 0.63 | 110095 | |
RM 90 ES | 90 x 90 x 60 | 1 | 48 - 71 | 0.75 | ERM0100901181 | |
RM 120 ES | 120 x 120 x 60 | 1 | 67.5 - 99 | 1.26 | ERM0101201181 | |
RM 60 ES WOC | 60 x 60 x 60 | 1 | 28 - 54 | 0.26 | ERM0000601181 | |
RM 80 ES WOC | 80 x 80 x 60 | 1 | 48 - 71 | 0.47 | 110097 | |
RM 90 ES WOC | 90 x 90 x 60 | 1 | 48 - 71 | 0.6 | ERM0000901181 | |
RM 120 ES WOC | 120 x 120 x 60 | 1 | 67.5 - 99 | 0.94 | ERM0001201181 |
Product | External dimensions WxHxD (mm) | Number of cables/pipes | For cable/pipe Ø (mm) | Weight (kg) | Art. No | |
---|---|---|---|---|---|---|
RM 15 ES B | 15 x 15 x 60 | 1 | 3 - 11 | 0.02 | ERM1100151181 | |
RM 15w40 ES B | 40 x 15 x 60 | 3 | 3.5 - 10.5 | 0.05 | ERM1115401181 | |
RM 30H90 ES B | 30 x 90 x 60 | 1 | 10 - 25 | 0.58 | 165305 | |
RM 20 ES B | 20 x 20 x 60 | 1 | 4 - 14.5 | 0.04 | ERM1100201181 | |
RM 20w40 ES B | 40 x 20 x 60 | 2 | 3.5 - 16.5 | 0.07 | ERM1120401181 | |
RM 30 ES B | 30 x 30 x 60 | 1 | 10 - 25 | 0.1 | ERM1100301181 | |
RM 40 10-32 ES B | 40 x 40 x 60 | 1 | 9.5 - 32.5 | 0.15 | ERM1140101181 | |
RM 40 ES B | 40 x 40 x 60 | 1 | 21.5 - 34.5 | 0.15 | ERM1100401181 | |
RM 40H80 ES B | 40 x 80 x 60 | 1 | 21.5 - 34.5 | 0.29 | 173584 | |
RM 60 24-54 ES B | 60 x 60 x 60 | 1 | 24 - 54 | 0.33 | ERM1160201181 | |
RM 60 ES B | 60 x 60 x 60 | 1 | 28 - 54 | 0.35 | ERM1100601181 | |
RM 80 ES B | 80 x 80 x 60 | 1 | 48 - 71 | 0.56 | 110098 | |
RM 90 ES B | 90 x 90 x 60 | 1 | 48 - 71 | 0.75 | ERM1100901181 | |
RM 120 ES B | 120 x 120 x 60 | 1 | 67.5 - 99 | 1.26 | ERM1101201181 | |
RM 60 ES B WOC | 60 x 60 x 60 | 1 | 28 - 54 | 0.26 | ERM1000601181 | |
RM 80 ES B WOC | 80 x 80 x 60 | 1 | 48 - 71 | 0.42 | 110100 | |
RM 90 ES B WOC | 90 x 90 x 60 | 1 | 48 - 71 | 0.6 | ERM1000901181 | |
RM 120 ES B WOC | 120 x 120 x 60 | 1 | 67.5 - 99 | 0.94 | ERM1001201181 |
