Roxtec CX BG™ module with Multidiameter™

Print

Use the print button on the page for an optimized print layout.

Roxtec CX sealing modules are easy to adapt to cables and pipes of different sizes. The BG version is used for bonding and grounding of armored and metal-clad cables.

  • To be used with Roxtec HD Ex frame to form a complete solution
View variants
CX 40_10-31 BG
CX 40_10-31 BG

Variants

CX BG

CX 10w40/0 BG

  • External dimensions WxHxD (mm) 40 x 10 x 40
  • Number of cables/pipes 0
  • For cable/pipe Ø (mm) 0 - 0
  • Weight (kg) 0.03
  • Art. No 155032
Remove from cart?

CX 20w40 BG

  • External dimensions WxHxD (mm) 40 x 20 x 40
  • Number of cables/pipes 2
  • For cable/pipe Ø (mm) 4 - 15.5
  • Weight (kg) 0.05
  • Art. No 152743
Remove from cart?

CX 30w40 BG

  • External dimensions WxHxD (mm) 40 x 30 x 40
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 10 - 24
  • Weight (kg) 0.08
  • Art. No 152744
Remove from cart?

CX 40 BG

  • External dimensions WxHxD (mm) 40 x 40 x 40
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 21.5 - 33.5
  • Weight (kg) 0.1
  • Art. No 152568
Remove from cart?

CX 40 10-31 BG

  • External dimensions WxHxD (mm) 40 x 40 x 40
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 9.5 - 31.5
  • Weight (kg) 0.11
  • Art. No 152745
Remove from cart?
CX BG
Product External dimensions WxHxD (mm) Number of cables/pipes For cable/pipe Ø (mm) Weight (kg) Art. No
CX 10w40/0 BG 40 x 10 x 40 0 0 - 0 0.03 155032
CX 20w40 BG 40 x 20 x 40 2 4 - 15.5 0.05 152743
CX 30w40 BG 40 x 30 x 40 1 10 - 24 0.08 152744

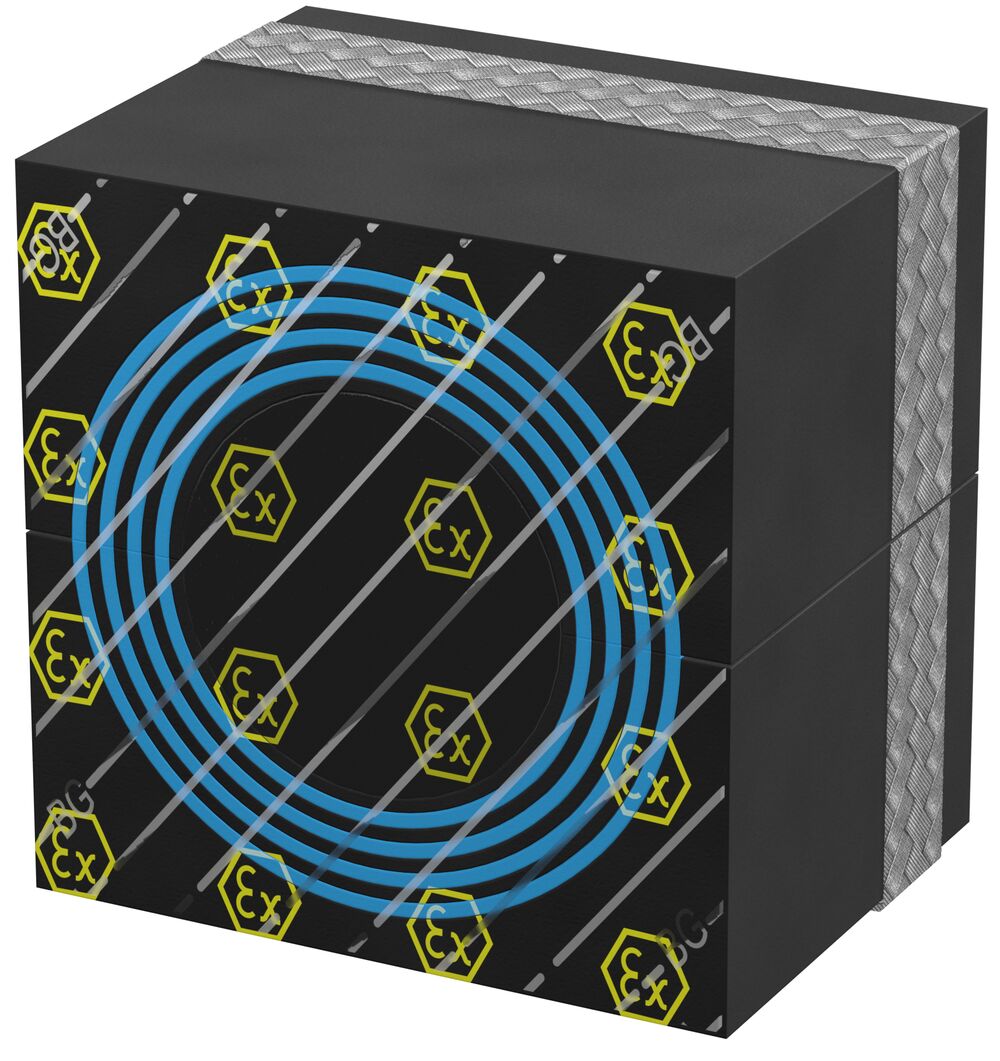

CX 40 BG 40 x 40 x 40 1 21.5 - 33.5 0.1 152568
CX 40 10-31 BG 40 x 40 x 40 1 9.5 - 31.5 0.11 152745
