Roxtec C RS T seal

Use the print button on the page for an optimized print layout.

Round seal for single cable entries.

The Roxtec C RS T is a compact entry seal for single cables requiring a rating up to IP 69K. The seal is available with housing in stainless steel or nickel-plated brass. The cable transit device is available in four sizes to cover cables ranging from 3.6 to 30mm.

  • Watertight
  • Dust-tight
  • Light-weight
  • Allows pre-terminated cables
  • Vibration tested

Ratings & certificates

Certificates are continuously added, renewed and replaced, please visit regularly to ensure compliance.

Fire

  • E30 according to EN 45545

Tightness

  • IP 66/67
  • IP 69K
  • UL/NEMA 4,4X,12,13

Supports

Installation

Structure of installation

  • Cabinet

Mounting type

  • Bolted

Installation instructions

Information drawings

Images

Sealing component data

Here you find technical information about each specific part of our system.

Round frames/seals

Sealing components

Pre-configured transit kits

Nickel-plated brass

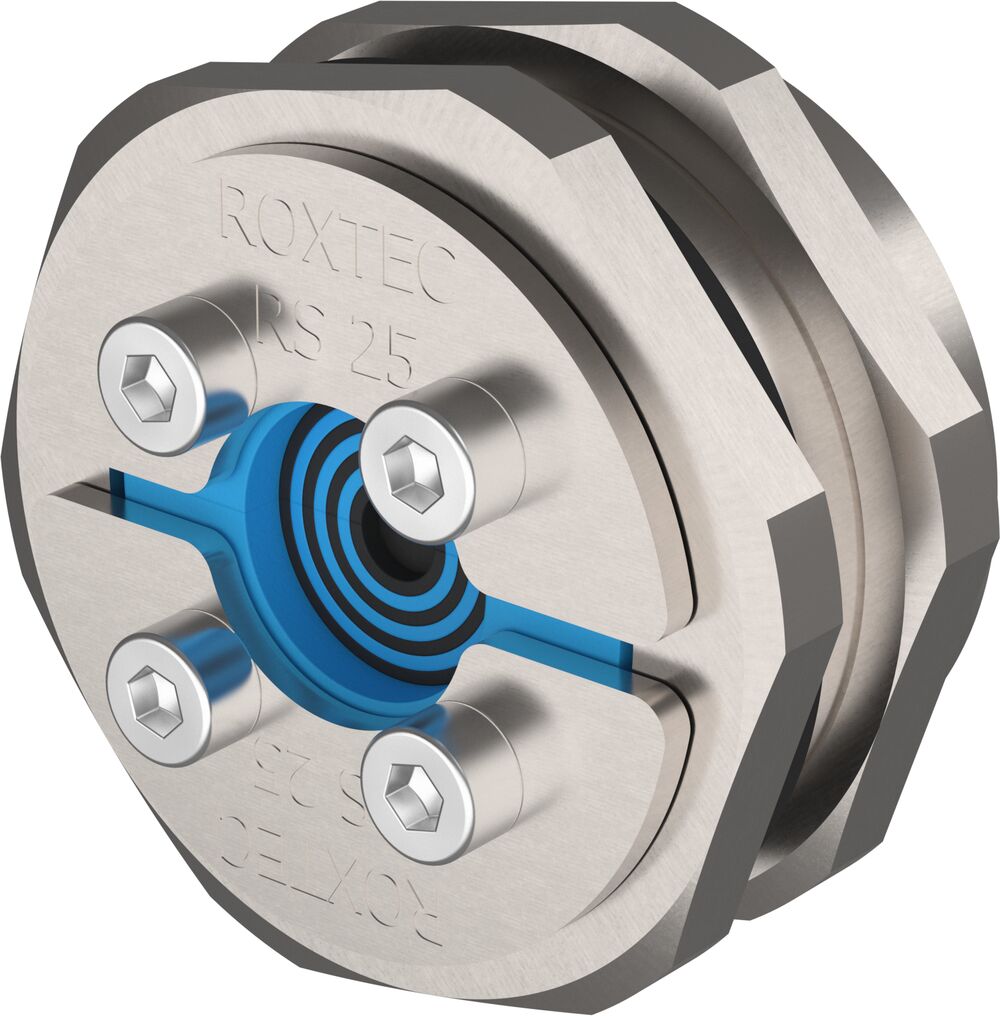

C RS T 25

  • Configuration 1x (3.6-12.0)
  • External dimension Ø (mm) 39
  • Aperture dimension Ø (mm) 33 - 33
  • Weight (kg) 0.10
  • Art. No CRST010025046
Remove from cart?

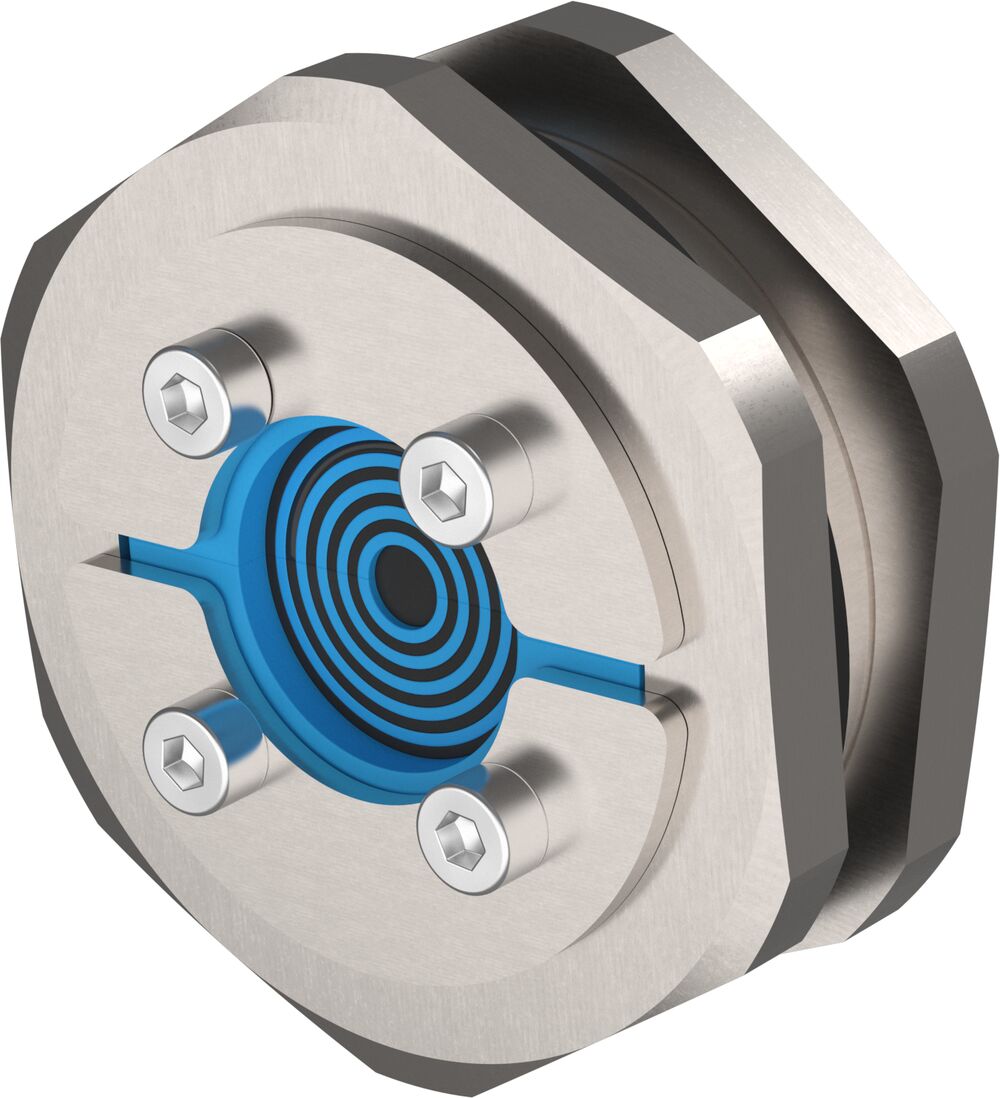

C RS T 31

  • Configuration 1x (4.0-17.0)
  • External dimension Ø (mm) 50
  • Aperture dimension Ø (mm) 41 - 41
  • Weight (kg) 0.16
  • Art. No CRST010031046
Remove from cart?

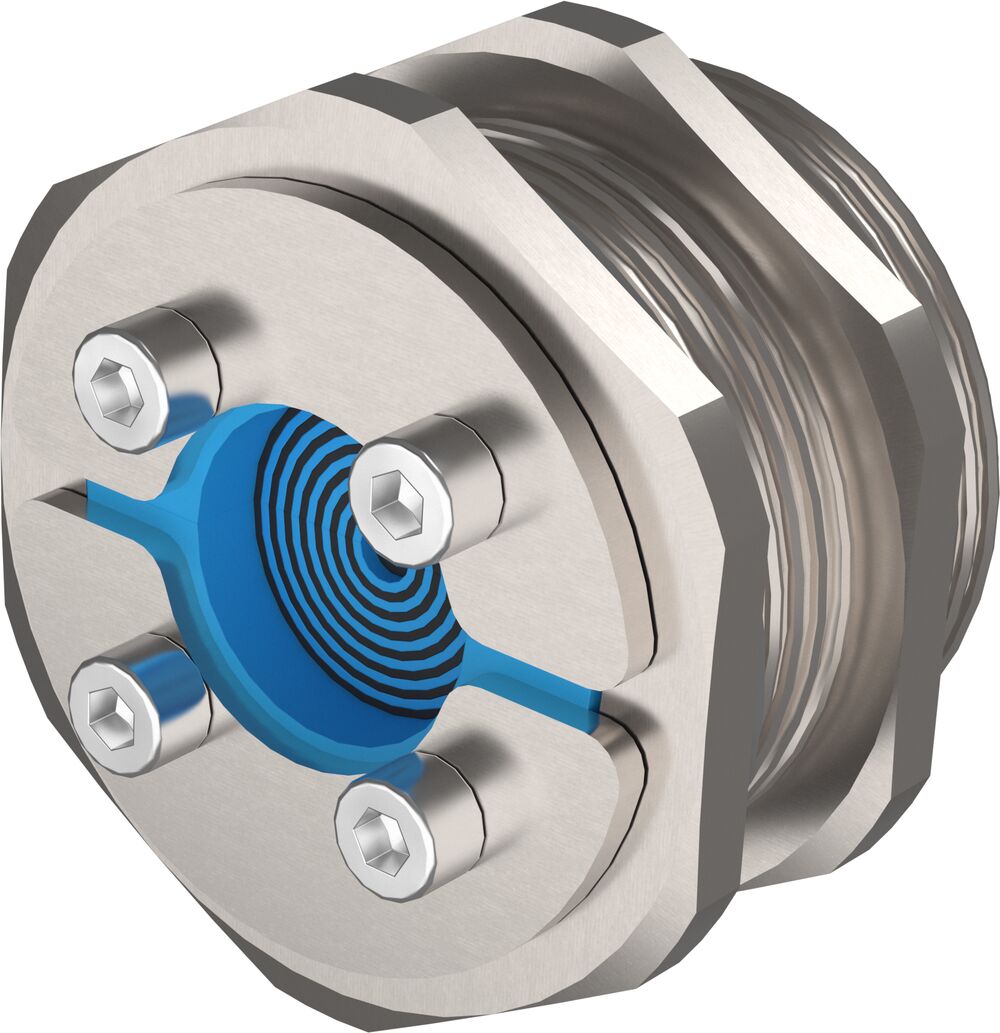

C RS T 43

  • Configuration 1x (4.0-23.0)
  • External dimension Ø (mm) 65
  • Aperture dimension Ø (mm) 52 - 52
  • Weight (kg) 0.39
  • Art. No CRST010043046
Remove from cart?

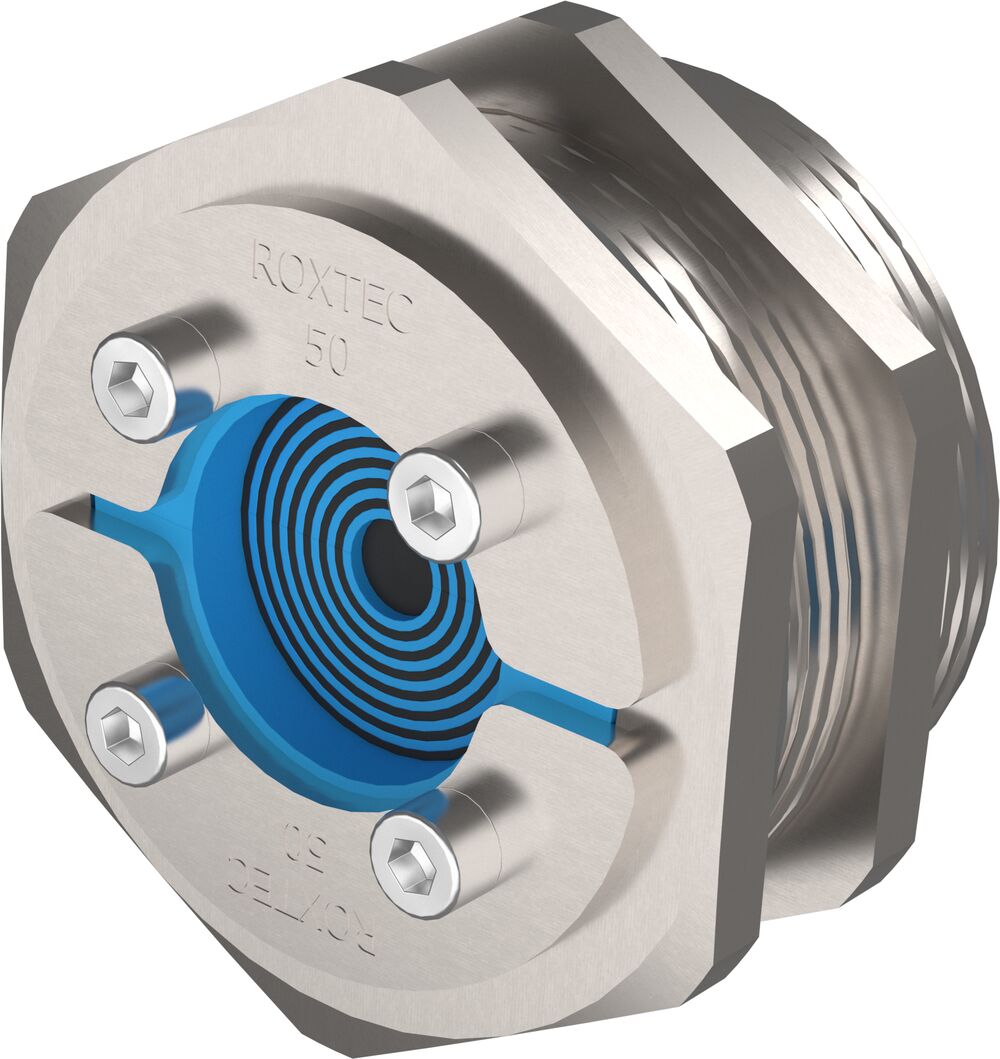

C RS T 50

  • Configuration 1x (8.0-30.0)
  • External dimension Ø (mm) 78
  • Aperture dimension Ø (mm) 64 - 64
  • Weight (kg) 0.66
  • Art. No CRST010050046
Remove from cart?
Nickel-plated brass
Product Configuration External dimension Ø (mm) Aperture dimension Ø (mm) Weight (kg) Art. No
C RS T 25 1x (3.6-12.0) 39 33 - 33 0.10 CRST010025046
C RS T 31 1x (4.0-17.0) 50 41 - 41 0.16 CRST010031046
C RS T 43 1x (4.0-23.0) 65 52 - 52 0.39 CRST010043046
C RS T 50 1x (8.0-30.0) 78 64 - 64 0.66 CRST010050046
