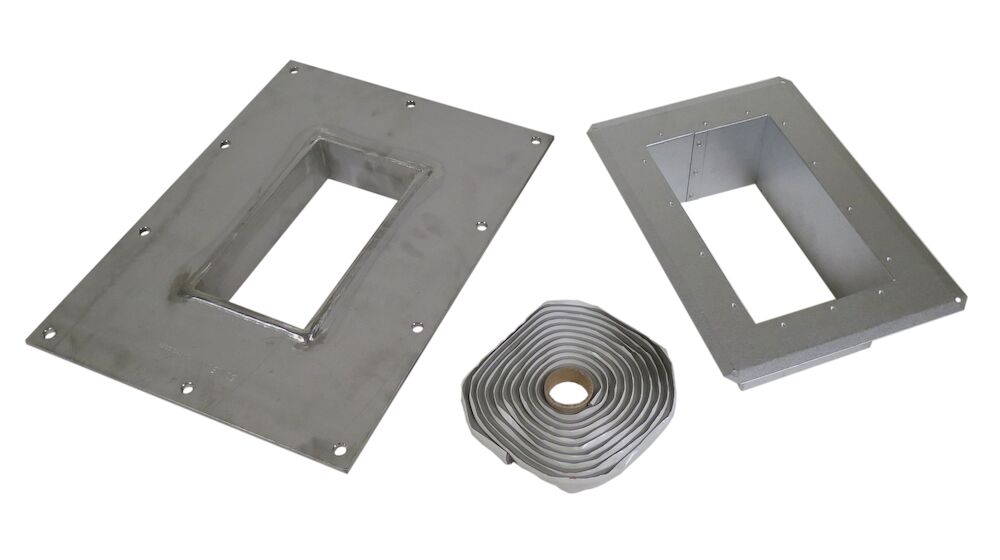

Roxtec GH framekit is a solution for bolting including a GH frame, a sealing strip and an extension frame for channelization. The GH FL100 frame kit with wider flange is used when bolting onto a brick or concrete wall. Modules, stayplates and a compression unit are added for a complete transit.
- To be used with corresponding Roxtec components to form a complete sealing solution
- Attachment by bolting to steel or sandwich walls
- The GH FL100 framekits are used when bolting to concrete or brick
Information drawings
Installation instructions
Component articles
Galvanized mild steel
Stainless steel
| Product | Frame openings | Packing space (mm) | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|---|
| GH BG 6x1 GALV FRAMEKIT | 1 | 120 x 180 | 252.5 x 350 x 93 | 148(+5/-5) x 245(+5/-5) | 7 | 152280 | |
| GH BG 6x2 GALV FRAMEKIT | 2 | 120 x 180 | 383 x 350 x 93 | 278(+5/-5) x 245(+5/-5) | 10.8 | 152281 | |
| GH BG 6x1 FL100 GALV FRAMEKIT | 1 | 120 x 180 | 332.5 x 430 x 93 | 148(+5/-5) x 245(+5/-5) | 10 | 152284 | |
| GH BG 6x2 FL100 GALV FRAMEKIT | 2 | 120 x 180 | 463 x 430 x 93 | 278(+5/-5) x 245(+5/-5) | 14.3 | 152285 | |
| GH 6x1 FL100 GALV FRAMEKIT | 148(+5/-5) x 245(+5/-5) | 152276 | |||||
| GH 6X1 GALV FRAMEKIT | 148(+5/-5) x 245(+5/-5) | 6.7 | 152272 | ||||
| GH 6x2 FL100 GALV FRAMEKIT | 278(+5/-5) x 245(+5/-5) | 13.9 | 152277 | ||||
| GH 6X2 GALV FRAMEKIT | 278(+5/-5) x 245(+5/-5) | 1 | 152273 |
| Product | Frame openings | Packing space (mm) | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|---|
| GH BG 6x1 AISI316 FRAMEKIT | 1 | 120 x 180 | 252.5 x 350 x 93 | 148(+5/-5) x 245(+5/-5) | 6.7 | 152278 | |
| GH BG 6x2 AISI316 FRAMEKIT | 2 | 120 x 180 | 383 x 350 x 93 | 278(+5/-5) x 245(+5/-5) | 152279 | ||
| GH BG 6x1 FL100 AISI316 FRAMEKIT | 1 | 120 x 180 | 332.5 x 430 x 93 | 148(+5/-5) x 245(+5/-5) | 7.7 | 152282 | |
| GH BG 6x2 FL100 AISI316 FRAMEKIT | 2 | 120 x 180 | 463 x 430 x 93 | 278(+5/-5) x 245(+5/-5) | 152283 | ||
| GH 6X1 AISI316 FRAMEKIT | 148(+5/-5) x 245(+5/-5) | 152232 | |||||
| GH 6x1 FL100 AISI316 FRAMEKIT | 148(+5/-5) x 245(+5/-5) | 10.6 | 152274 | ||||
| GH 6X2 AISI316 FRAMEKIT | 278(+5/-5) x 245(+5/-5) | 10.3 | 152258 | ||||
| GH 6x2 FL100 AISI316 FRAMEKIT | 278(+5/-5) x 245(+5/-5) | 152275 |
